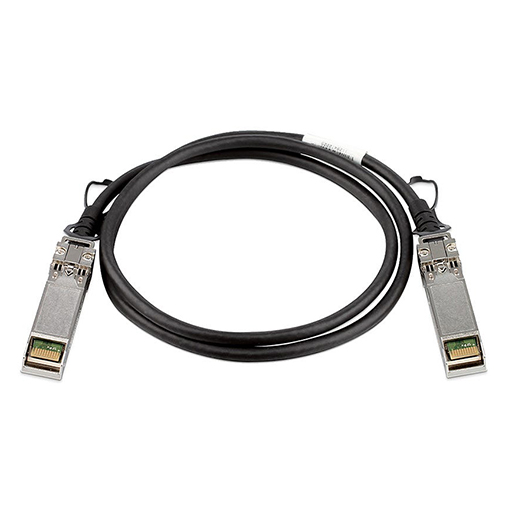

10G SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.
Features
Support multi-gigabit data rates up to 10.5Gbps
Support 1x, 2x, 4x and 8x Fiber Channel data rates
Hot-pluggable SFP 20PIN footprint
Serial ID module on MOD(0-2)
AC coupling of PECL signals
EMI/EMC performance
Low Power Consumption < 0.5W
Power Supply :+3.3V
Compliant to SFP+ MSA
Temperature Range: 0 ~ 70 °C
ROHS
Applications
Storage Area Networks(SAN), Network Attached Storage and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
High density connections among network equipment
Data center cabling infrastructure
1G/2G/4G/8G Fiber Channel
Length: |

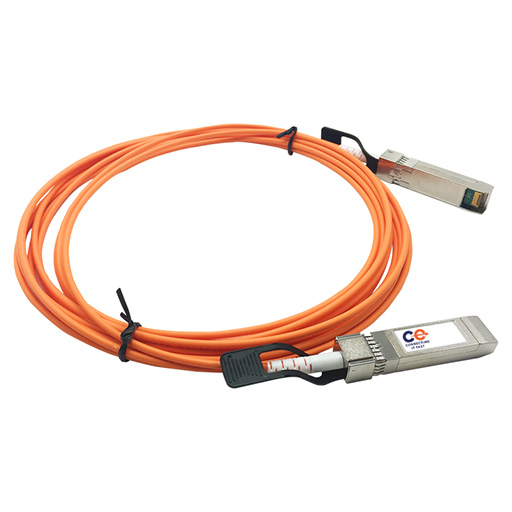

SFP+ AOC cable assemblies are high-performance, cost effective 1/0 solutions for 10Gb Ethernet and 10G Fiber Channel applications. SFP+ AOC modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.
Features
Hot pluggable
Bit rate support from 1G to 11.3Gbps
Pre-terminated fiber cable
Operating environment temperature 0 ~ 70°C
Low power consumption
SFP+ housing with enhanced EMI shielding
Single 3.3V power supply
Programmable EEPROM for serial identification
Applications
10G Ethernet
Applicable to 1G Ethernet
8G Fiber Channel
Applicable to 4G / 2G / 1G Fiber Channel
10G Fiber Channel over Ethernet
1X QDR lnfiniband
Applicable to 1 X DOR/ 1x SOR lnfiniband
High capacity 10 with SFP+ interface
Data center and in-rack connection
SFF-8431 SFP+ Electrical MSA
SFF-8432 SFP+ Mechanical MSA
Compliance
RoHS complaint
Length: |

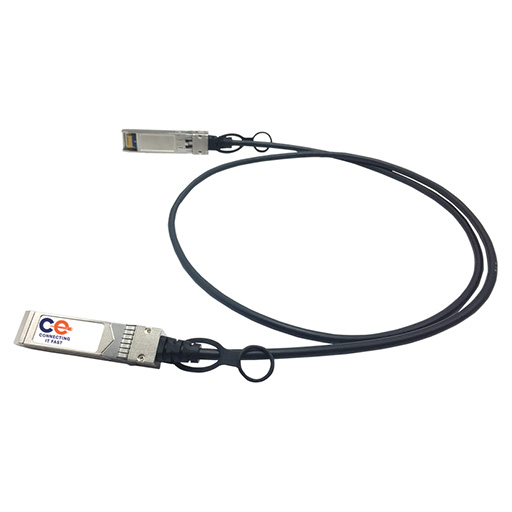

A passive SFP+ to SFP+ direct attach copper cable, factory terminated for 10G at 1m. The lowest-cost, lowest-power way to link servers, switches and storage inside the rack, with zero configuration and no optics to clean or align. A simple, dependable way to cable a rack, backed by a three-year no-quibble warranty.
A passive SFP+ to SFP+ direct attach copper cable, factory terminated for 10G at 3m. The lowest-cost, lowest-power way to link servers, switches and storage inside the rack, with zero configuration and no optics to clean or align. A simple, dependable way to cable a rack, backed by a three-year no-quibble warranty.
An active SFP+ to SFP+ direct attach copper cable with built-in signal conditioning, carrying 10G over 5m. Spans the in-row runs that passive cables cannot reach, while staying simpler and cheaper than separate optics and fibre. A simple, dependable way to cable a rack, backed by a three-year no-quibble warranty.
An active SFP+ to SFP+ direct attach copper cable with built-in signal conditioning, carrying 10G over 7m. Spans the in-row runs that passive cables cannot reach, while staying simpler and cheaper than separate optics and fibre. A simple, dependable way to cable a rack, backed by a three-year no-quibble warranty.
An active SFP+ to SFP+ direct attach copper cable with built-in signal conditioning, carrying 10G over 10m. Spans the in-row runs that passive cables cannot reach, while staying simpler and cheaper than separate optics and fibre. A simple, dependable way to cable a rack, backed by a three-year no-quibble warranty.
An active optical cable with SFP+ ends, carrying 10G over 20m. Lighter and thinner than copper with a tighter bend radius, it suits row-to-row runs and crowded cable trays. Pre-terminated, plug and play. A simple, dependable way to cable a rack, backed by a three-year no-quibble warranty.
The CE CAB-SFP-SFP-0.5M Arista Compatible Direct Attach Copper Cable provides a 10GbE connection between compatible SFP+ ports using a passive twinax copper cable. With a 0.5-metre length and SFP+ connectors at both ends, it is suitable for short-distance connections between switches, servers and other networking equipment. The cable supports 10GBASE-CR connectivity and follows SFP+ Multi-Source Agreement specifications.
Key Features of CE Arista Compatible Direct Attach Copper Cable
10GBASE-CR connectivity for 10GbE networks
Passive direct attach copper cable
0.5-metre cable length
SFP+ to SFP+ configuration
Twinax copper cable construction
10Gbps data transmission
Suitable for short-distance network connections
SFP+ MSA compliant
Suitable for switch-to-switch and server-to-switch links
10GBASE-CR Connectivity
This direct attach cable supports 10GBASE-CR connectivity for 10 Gigabit Ethernet applications. It provides a direct copper connection between compatible SFP+ interfaces without requiring separate optical transceiver modules and fibre cabling.
Passive Twinax Construction
The cable uses passive twinax copper construction to carry high-speed data between the two SFP+ interfaces. Its passive format is suitable for short links where compatible equipment is positioned close together.
SFP+ to SFP+ Interface
SFP+ connectors are integrated at both ends of the cable, allowing direct connection between compatible SFP+ ports. This configuration is suitable for linking network switches, servers and other equipment with supported 10GbE SFP+ interfaces.
Compact 0.5-Metre Length
The 0.5-metre cable length is intended for short-distance connections, including links between equipment located within the same rack or adjacent rack positions. The compact length can help keep short interconnections manageable.
*Images used for illustrative purposes only; product may differ in appearance
The CE CAB-SFP-SFP-1M Arista Compatible Direct Attach Copper Cable provides a 10GbE connection between compatible SFP+ ports using a passive copper twinax cable. With a 1-metre length and SFP+ connectors at both ends, it is suitable for short-distance links between switches, servers and other networking equipment. The cable supports 10GBASE-CR connectivity and provides a direct copper connection without requiring separate optical transceiver modules.
Key Features of CE Arista Compatible Direct Attach Copper Cable
10GBASE-CR connectivity for 10GbE networks
Passive direct attach copper cable
1-metre cable length
SFP+ to SFP+ configuration
Twinax copper cable construction
10Gbps data transmission
10GBASE-CR Connectivity
This direct attach cable supports 10GBASE-CR connectivity for 10 Gigabit Ethernet applications. It provides a direct copper connection between compatible SFP+ interfaces without requiring separate optical transceiver modules and fibre cabling.
Passive Twinax Construction
The cable uses passive copper twinax construction to carry data between the two SFP+ interfaces. Its passive format is intended for short links where compatible network equipment is positioned within close proximity.
SFP+ to SFP+ Interface
SFP+ connectors are integrated at both ends of the cable, allowing direct connection between compatible SFP+ ports. This configuration can be used for switch-to-switch, server-to-switch and other 10GbE equipment interconnections.
1-Metre Cable Length
The 1-metre cable length is suitable for short-distance connections between equipment located within the same rack or nearby positions. Its compact length is suited to direct interconnections where longer cabling is unnecessary.
The CE SFP-H10GB-CU1M Cisco Compatible Direct Attach Copper Cable provides a 1m 10GBASE-CU connection with integrated SFP+ connectors for short-distance 10Gb Ethernet networking. This passive Twinax copper cable is suitable for compatible Cisco equipment and is intended for in-rack or adjacent-rack connections where a short, low-latency interconnect is required. Cisco specifies the cable as a passive 30AWG Twinax assembly with a 1m reach.
Key Features of CE SFP-H10GB-CU1M Cisco Compatible
10GBASE-CU SFP+ direct-attach copper cable
1m cable length for short-distance connections
Passive Twinax copper cable assembly
30AWG cable construction
Integrated SFP+ connectors at both ends
Suitable for compatible Cisco 10Gb Ethernet equipment
10GBASE-CU Connectivity
The cable provides 10Gb Ethernet connectivity through integrated SFP+ interfaces. Its 10GBASE-CU format makes it suitable for short connections between compatible networking equipment fitted with SFP+ ports.
Passive Twinax Copper Cable
The passive Twinax copper construction provides a direct electrical connection between the integrated SFP+ ends without active optical components. Cisco specifies the 1m version as a passive 30AWG Twinax cable assembly.
The CE TL-SM5220-1M TP-Link Compatible Direct Attach Copper Cable provides a 1m passive twin-ax connection with 10G SFP+ connectors at both ends. It supports 10Gbps data rates and is suitable for short-distance connections within racks or between adjacent racks. The cable uses silver-plated copper conductors and operates between 0 °C and 70 °C.
Key Features of CE TP-Link Compatible Direct Attach Copper Cable
10G SFP+ direct attach copper cable
1m cable length
10Gbps data rate
Passive twin-ax cable assembly
SFP+ connectors on both ends
Silver-plated copper conductor
Suitable for connections within racks and adjacent racks
10G SFP+ Connectivity
This direct attach cable provides 10Gbps connectivity through SFP+ connectors on both ends. It is intended for short-distance Ethernet connections between compatible networking equipment fitted with SFP+ ports.
Passive Twin-Ax Construction
The cable uses a passive twin-ax assembly with silver-plated copper conductors. This provides a direct electrical connection between the two SFP+ interfaces without using optical fibre.
1 Metre Cable Length
With a 1m length, the cable is suitable for short connections within network racks and between adjacent racks. TP-Link specifies an overall cable length of 1,000mm.
The CE UACC-DAC-SFP10-0.5M Ubiquiti Compatible Direct Attach Copper Cable provides a 0.5m SFP+ interconnect for short-distance 10Gbps networking. It uses copper cabling with SFP+ connectors at both ends and supports both 1Gbps and 10Gbps data rates.
Key Features of CE UACC-DAC-SFP10-0.5M Ubiquiti Compatible
10G SFP+ direct attach copper cable
0.5m cable length
Supports 1Gbps and 10Gbps data rates
SFP+ connectors at both ends
Passive copper cable construction
PVC cable jacket
Minimum bend radius of 22mm
10G SFP+ Connectivity
This direct attach cable provides a short-range connection between compatible SFP+ interfaces, supporting data rates of up to 10Gbps. Ubiquiti also specifies compatibility with SFP interfaces and operation at 1Gbps.
Passive Copper Construction
The cable uses a passive copper direct attach construction with SFP+ connectors on both ends. This provides a direct electrical connection for short-distance networking applications without requiring separate optical transceiver modules and fibre patch cables.
Compact 0.5m Length
The 0.5m length is suited to short equipment-to-equipment connections, including links between devices installed within the same rack. Ubiquiti lists 0.5m as one of the available lengths for its UACC-DAC-SFP10 series.
*Images used for illustrative purposes only; product may differ in appearance
The CE UACC-DAC-SFP10-1M Ubiquiti Compatible Direct Attach Copper Cable provides a 1m SFP+ connection for short-distance 10Gbps networking. This passive copper cable uses SFP+ connectors at both ends and supports 1Gbps and 10Gbps data rates, making it suitable for connections between compatible switches and other network equipment. Ubiquiti specifies a PVC jacket, 4.2mm outer diameter and a minimum bend radius of 22mm for the 1m cable.
Key Features of CE UACC-DAC-SFP10-1M Ubiquiti Compatible
10G SFP+ direct attach copper cable
1m cable length
Supports 1Gbps and 10Gbps data rates
Passive copper cable construction
SFP+ connectors at both ends
PVC cable jacket
4.2mm jacket outer diameter
Minimum bend radius of 22mm
10G SFP+ Connectivity
This direct attach cable provides a short-range connection between compatible SFP+ interfaces and supports data rates of up to 10Gbps. Ubiquiti also specifies support for 1Gbps operation, allowing the cable to be used with compatible SFP and SFP+ interfaces.
Passive Copper Construction
The cable uses a passive copper direct attach construction with SFP+ connectors at both ends. This provides a direct electrical connection for short-distance networking applications without requiring separate optical transceiver modules and fibre patch leads.
1 Metre Cable Length
The 1m length is suited to short equipment-to-equipment connections, including links between devices positioned within the same rack or nearby equipment. Ubiquiti lists 1m as one of the available lengths for the UACC-DAC-SFP10 series.
Cable Construction
The 1m cable has a black PVC jacket with a 4.2mm outer diameter and a minimum bend radius of 22mm. The construction provides a compact interconnect for short-distance network installations.
The CE MA-CBL-TA-2M Cisco Meraki Compatible Direct Attach Copper Cable provides a 2m passive Twinax connection for 10Gbps Ethernet networking. It uses SFP+ connectors at both ends and is suitable for short-distance links between compatible network switches, routers and other equipment with SFP+ interfaces. Compatible specifications identify 10GBASE-CU operation, 30AWG copper construction and an operating temperature range of 0 °C to 70 °C.
Key Features of CE Cisco Meraki Compatible Direct Attach Copper Cable
10GBASE-CU SFP+ direct attach copper cable
2m cable length
10Gbps data rate
Passive Twinax copper construction
SFP+ connectors at both ends
30AWG copper cable
Suitable for short-distance network connections
10G SFP+ Connectivity
This direct attach copper cable provides a 10Gbps connection through SFP+ interfaces at both ends. The 10GBASE-CU format is intended for short-range Ethernet links between compatible networking equipment.
Passive Twinax Construction
The cable uses passive Twinax copper technology to carry electrical signals between the two SFP+ connectors. Compatible specifications identify a 30AWG copper cable construction for the 2m version.
2 Metre Cable Length
The 2m length provides additional reach compared with shorter DAC cables while remaining suitable for connections within the same rack or between nearby racks.
*Images used for illustrative purposes only; product may differ in appearance
The CE SFP-H10GB-CU2M Cisco Compatible Direct Attach Copper Cable provides a 2-metre passive Twinax connection for 10 Gigabit Ethernet equipment fitted with SFP+ ports. It uses SFP+ connectors at both ends and 30 AWG copper construction, making it suitable for short-distance links between compatible switches, servers, storage systems and other networking equipment.
Key Features of CE Cisco Compatible Direct Attach Copper Cable
10Gbps direct-attach copper connectivity
2-metre passive Twinax copper cable
SFP+ connectors at both ends
30 AWG copper cable construction
Compatible with Cisco SFP-H10GB-CU2M applications
Suitable for short-distance 10 Gigabit Ethernet connections
10 Gigabit Direct-Attach Connectivity
This passive copper cable supports 10 Gigabit Ethernet connections through SFP+ interfaces, providing a direct link between compatible networking equipment without separate optical transceiver modules.
2 Metre Twinax Cable
The 2-metre length is suited to short equipment-to-equipment connections within racks and between adjacent racks. Its passive Twinax construction uses 30 AWG copper conductors for the direct-attached connection.
SFP+ Interface
SFP+ connectors are fitted at both ends of the cable, allowing it to connect directly to compatible SFP+ ports on switches, servers, storage equipment and other 10 Gigabit networking hardware.
*Images used for illustrative purposes only; product may differ in appearance
The CE SFP-H10GB-CU3M Cisco Compatible Direct Attach Copper Cable provides a 10GBASE-CU connection using a 3m passive Twinax copper cable assembly with SFP+ connectors. Using 30 AWG cable, it provides a direct high-speed connection between compatible SFP+ networking equipment and is suitable for short-distance switch, server and storage interconnections.
Key Features of CE Cisco Compatible Direct Attach Copper Cable
10GBASE-CU SFP+ passive Twinax cable
3m cable length
30 AWG copper cable assembly
Integrated SFP+ connectors
10Gbps Ethernet connectivity
Direct-attached copper connection
SFP+ MSA compatible
SFF-8431 compliant
Hot-swappable SFP+ interface
10GBASE-CU Connectivity
The cable provides a direct 10Gbps connection between compatible SFP+ ports using passive Twinax copper technology. Its 3m length is suited to short-distance connections between networking equipment in racks and adjacent equipment locations.
Passive Twinax Construction
The assembly uses 30 AWG passive Twinax copper cable with integrated SFP+ connectors at both ends. The passive construction provides a direct copper interconnection without requiring separate optical modules or fibre cabling.
*Images used for illustrative purposes only; product may differ in appearance
The CE TL-SM5220-3M TP-Link Compatible Direct Attach Copper Cable provides a 10Gbps SFP+ connection using a passive Twinax cable assembly with SFP+ connectors at both ends. With a 3m cable length, it is suitable for short-distance connections within racks and between adjacent racks, providing direct connectivity between compatible networking equipment.
Key Features of CE TP-Link Compatible Direct Attach Copper Cable
10Gbps SFP+ Direct Attach Cable
3m cable length
Passive Twinax cable construction
10G SFP+ connectors on both ends
Supports 10 Gigabit Ethernet
Silver-plated copper conductor
Suitable for short-distance rack connections
10Gbps SFP+ Connectivity
The cable supports 10 Gigabit Ethernet through integrated 10G SFP+ connectors on both ends. Its passive construction provides a direct copper connection for compatible networking equipment without requiring separate optical transceivers.
Passive Twinax Cable
The 3m Twinax assembly uses silver-plated copper conductors and is suited to short-distance connections within individual racks or between adjacent racks. The cable provides a practical direct connection between compatible SFP+ ports.
*Images used for illustrative purposes only; product may differ in appearance
The CE UACC-DAC-SFP10-3M Ubiquiti Compatible Direct Attach Copper Cable provides a 3m copper connection for networking equipment fitted with SFP+ ports. Supporting 1Gbps and 10Gbps data rates, this passive cable uses SFP+ connectors at both ends for direct device-to-device links across short distances.
Key Features of CE Ubiquiti Compatible Direct Attach Copper Cable
3m direct attach copper cable
SFP+ to SFP+ connector configuration
Supports 1Gbps and 10Gbps data rates
Passive copper cable construction
6mm PVC cable jacket outer diameter
Minimum bend radius of 32mm for the 3m cable
10Gbps Direct Attach Connectivity
The cable supports up to 10Gbps connectivity while also supporting 1Gbps operation, making it suitable for short-distance links between compatible switches, gateways and other networking equipment.
SFP+ to SFP+ Connection
Both ends use SFP+ connectors, allowing the cable to connect directly between compatible SFP+ interfaces without separate transceiver modules. Its passive copper construction is suited to short rack and adjacent-rack connections.
Cable Construction
The 3m uses a black PVC jacket with a 6mm outer diameter and a minimum bend radius of 32mm. The cable is specified for ambient operating temperatures from 0 to 70°C.
*Images used for illustrative purposes only; product may differ in appearance
The CE JD095C HPE Compatible Direct Attach Copper Cable provides a 10Gbps connection between compatible SFP+ network interfaces. Measuring 0.65m in length, this passive copper cable has SFP+ connectors permanently attached at both ends and uses 100 Ohm copper cabling for short-distance 10 Gigabit Ethernet connections.
Key Features of CE HPE Compatible Direct Attach Copper Cable
10Gbps 10 Gigabit Ethernet connectivity
0.65m cable length
Passive direct attach copper construction
SFP+ to SFP+ connector configuration
SFP+ connectors permanently attached to both ends
100 Ohm copper cable
10Gbps Direct Attach Connectivity
The cable supports 10 Gigabit Ethernet connectivity between compatible SFP+ ports, providing a direct copper connection for short-distance networking applications.
SFP+ to SFP+ Connection
SFP+ connectors are permanently attached to both ends of the cable, allowing direct connection between compatible SFP+ network interfaces without separate transceiver modules.
Compact 0.65m Cable
The 0.65m cable length is suited to connections between nearby networking equipment. HPE identifies the cable as a passive direct attach copper cable with a 100 Ohm cable construction.
*Images used for illustrative purposes only; product may differ in appearance
The CE AXC765 Netgear Compatible Direct Attach Copper Cable provides 10Gbps connectivity between compatible networking equipment using SFP+ interfaces. The 5m passive Twinax cable uses SFP+ connectors at both ends and supports 10GBase-CU connections for short-distance network links between switches, servers and storage equipment.
Key Features of CE Netgear Compatible Direct Attach Copper Cable
10GBase-CU connectivity
10Gbps data transfer rate
Passive Twinax copper cable
5m cable length
SFP+ connectors at both ends
24 AWG copper conductors
100 Ohm cable impedance
10Gbps Direct Attach Connectivity
The cable provides a direct SFP+ to SFP+ connection for 10 Gigabit Ethernet networking. Its copper Twinax construction provides a short-distance interconnect between compatible switches, servers, storage systems and other networking equipment.
Passive Twinax Construction
The passive copper cable assembly uses SFP+ connectors on both ends and a 5m Twinax cable. The compatible AXC765 specification identifies 24 AWG copper wiring and a 100 Ohm cable impedance for the direct attach connection.
Network Equipment Compatibility
The cable is intended for compatible NETGEAR AXC765 applications and provides an SFP+ interconnect for suitable 10 Gigabit networking equipment. The 5m length is suitable for short equipment-to-equipment connections within network installations.
*Images used for illustrative purposes only; product may differ in appearance
The CE SFP-H10GB-CU5M Cisco Compatible Direct Attach Copper Cable provides 10Gbps connectivity between compatible networking equipment through SFP+ interfaces. The 5m passive Twinax cable uses SFP+ connectors at both ends and provides a direct copper interconnect for compatible switches, routers, servers and other network equipment.
Key Features of CE Cisco Compatible Direct Attach Copper Cable
10GBASE-CU connectivity
10Gbps data rate
Passive Twinax copper construction
5m cable length
SFP+ to SFP+ connectivity
24 AWG or 26 AWG cable assembly
Direct attach copper design
10Gbps Direct Attach Connectivity
The cable provides a direct SFP+ connection for 10 Gigabit Ethernet equipment. Its passive copper construction supports short-distance links between compatible switches, routers, servers and other networking devices.
Passive Twinax Construction
The cable uses passive Twinax copper cabling with a 24 AWG or 26 AWG cable assembly. The integrated SFP+ connectors provide direct connection to compatible SFP+ ports without requiring separate transceiver modules.
*Images used for illustrative purposes only; product may differ in appearance
The CE J9283B HPE Aruba Compatible Direct Attach Copper Cable provides a 10Gbps connection between compatible networking equipment using SFP+ connectors at both ends. With a 3m cable length and passive copper construction, it provides a direct connection for short-distance 10GbE links. The cable uses 100-ohm copper cabling and operates at temperatures from 0 to 70°C.
Key Features of CE HPE Aruba Compatible Direct Attach Copper Cable
10Gbps data rate
3m cable length
SFP+ to SFP+ connector configuration
Passive direct attach copper cable
100-ohm copper cabling
10GbE Connectivity
The cable supports 10Gbps data transmission between compatible devices fitted with SFP+ ports. Its direct attach configuration provides a direct copper connection for short-distance network links.
SFP+ Connection
SFP+ connectors are permanently attached to both ends of the cable, providing a ready-to-use connection between compatible SFP+ interfaces. The 3m length is suitable for connections between nearby networking devices.
*Images used for illustrative purposes only; product may differ in appearance
The CE JD097C HPE Compatible Direct Attach Copper Cable provides a 3-metre 10Gbps connection between compatible SFP+ ports. It is part of the HPE X240 range and uses permanently attached SFP+ connectors at both ends with 100-ohm copper cabling. The cable is suitable for direct 10GbE connections between compatible networking equipment where a short copper link is required.
Key Features of CE HPE Compatible Direct Attach Copper Cable
10G SFP+ to SFP+ direct attach copper cable
3-metre cable length
Supports 10 Gbps Ethernet connectivity
100-ohm copper cable
Permanently attached SFP+ connectors
Suitable for compatible HPE networking equipment
Direct copper connection between SFP+ ports
10GbE SFP+ Connectivity
The cable provides a 10 Gbps SFP+ to SFP+ direct attach connection over a 3-metre copper link. HPE identifies JD097C as an X240 10G SFP+ to SFP+ 3-metre DAC cable.
SFP+ Connectors
It has SFP+ connectors permanently attached to each end of the copper cable, providing a direct connection between compatible SFP+ network ports.
HPE X240 Compatibility
As part of the X240 direct attach copper cable range and is supported as an option for compatible HPE networking equipment. Compatibility should be checked against the specific switch or adapter before installation.
*Images used for illustrative purposes only; product may differ in appearance
The CE SFP-H10GB-ACU7M Cisco Compatible Direct Attach Copper Cable provides 10 Gigabit Ethernet connectivity over a 7-metre active Twinax copper link. It features integrated SFP+ connectors for direct connection to compatible SFP+ ports and incorporates active components within the connector housings to support signal transmission.
Key Features of CE Cisco Compatible Direct Attach Copper Cable
10GBASE-CU SFP+ direct-attached active copper cable
7-metre cable length
10 Gbps Ethernet connectivity
Active Twinax copper cable assembly
Integrated SFP+ connectors at both ends
30 AWG cable assembly
Suitable for compatible Cisco networking equipment
10 Gigabit Ethernet Connectivity
The cable provides a 10GBASE-CU SFP+ direct-attached copper connection with a 7-metre reach. Cisco lists SFP-H10GB-ACU7M as a 10GBASE-CU SFP+ direct-attached active copper cable.
Active Twinax Construction
The 7-metre cable uses an active Twinax copper assembly with 30 AWG cabling. Cisco distinguishes the 7-metre ACU model from its shorter passive CU cable assemblies.
Integrated SFP+ Connections
The cable has SFP+ connectors integrated at both ends, allowing it to connect directly to compatible SFP+ receptacles without separate transceiver modules.
*Images used for illustrative purposes only; product may differ in appearance
The CE J9284D HPE Aruba Compatible Direct Attach Copper Cable provides a 5m passive Twinax connection between compatible SFP+ ports for high-speed network links. Supporting 10GBase-CU connectivity, it uses copper media with SFP+ connectors at both ends and supports data rates of up to 10Gb/s.
Key Features of CE HPE Aruba Compatible Direct Attach Copper Cable
5m passive Twinax copper direct attach cable
SFP+ to SFP+ connectivity
Supports 10GBase-CU and data rates up to 10Gb/s
Compatible with HPE Aruba networking equipment
Compliant with SFP+ MSA and SFF-8431 standards
High-Speed Copper Connectivity
The passive Twinax copper construction provides a direct electrical connection between SFP+ interfaces, supporting 10Gb/s network connections over a 5m cable length. It is suitable for short-distance connections between compatible switches, routers and other network equipment.
SFP+ Interface
With SFP+ connectors on both ends, the cable provides point-to-point connectivity for equipment fitted with compatible SFP+ ports. Its MSA-compliant configuration supports interoperability across suitable networking platforms.
Operating Conditions
The cable uses a 3.3V power supply and supports operation from 0°C to 70°C, making it suitable for standard data centre and networking environments. Its passive construction also avoids the need for additional active components within the cable assembly.
*Images used for illustrative purposes only; product may differ in appearance
The CE UACC-AOC-SFP10-5M Ubiquiti Compatible Active Optical Cable provides a 5m optical connection between SFP+ interfaces for high-speed network links. Using OM3 multimode fibre and an 850nm wavelength, it supports data rates of up to 10Gbps while also supporting 1Gbps connections.
Key Features of CE Ubiquiti Compatible Active Optical Cable
5m active optical cable
10Gbps maximum data rate
Supports 1Gbps and 10Gbps connections
850nm optical wavelength
OM3 multimode fibre
SFP+ to SFP+ connectors
3.0mm PVC cable jacket
10Gbps Optical Connectivity
The active optical cable supports 10Gbps network connections between compatible SFP+ ports. Its 850nm optical transmission and OM3 multimode fibre provide a practical connection for short-range equipment interconnects.
SFP+ Interfaces
SFP+ connectors are integrated at both ends of the cable, allowing direct connection between compatible switches, routers, servers and other networking equipment with SFP+ ports. The cable also supports 1Gbps operation where supported by the connected equipment.
Cable Construction
The cable uses OM3 multimode optical fibre within a 3.0mm PVC jacket. It operates across a commercial temperature range of 0°C to 70°C, making it suitable for standard networking environments.
The CE SFP-10G-AOC10M Cisco Compatible Active Optical Cable provides a 10m optical connection between compatible SFP+ ports for high-speed network links. Using 850nm multimode fibre, it supports data rates of up to 10Gbps and uses integrated SFP+ connectors at both ends.
Key Features of CE Cisco Compatible Active Optical Cable
10m active optical cable
Supports data rates up to 10Gbps
850nm optical wavelength
Multimode fibre (MMF)
SFP+ to SFP+ connectivity
Supports 10Gb Ethernet applications
SFP+ MSA compliant
Hot-pluggable SFP+ interfaces
10Gbps Optical Connectivity
The active optical cable provides up to 10Gbps connectivity between compatible SFP+ interfaces over a 10m distance. Its optical construction provides a direct cable connection without requiring separate optical transceivers and patch leads.
850nm Multimode Fibre
The cable uses 850nm optical transmission over multimode fibre, making it suitable for short-distance 10Gb network connections within and between adjacent racks. The integrated SFP+ ends connect directly to compatible SFP+ ports.
Network Compatibility
The cable follows SFP+ MSA requirements and supports 10Gb Ethernet applications. It operates from 0°C to 70°C and is available as a Cisco-compatible alternative to the SFP-10G-AOC10M 10m active optical cable assembly.
The CE UACC-AOC-SFP10-10M Ubiquiti Compatible Active Optical Cable provides 10Gbps connectivity between compatible SFP+ interfaces over a 10m OM3 multimode fibre connection. Using 850nm optical transmission and integrated SFP+ connectors at both ends, it supports both 10Gbps and 1Gbps data rates.
Key Features of CE Ubiquiti Compatible Active Optical Cable
10m active optical cable
10Gbps maximum data rate
Supports 1Gbps and 10Gbps connections
850nm optical wavelength
OM3 multimode fibre
SFP+ to SFP+ connectors
3.0mm PVC cable jacket
30mm minimum bend radius
10Gbps Optical Connectivity
The active optical cable provides a direct 10Gbps connection between compatible SFP+ interfaces over a 10m distance. It also supports 1Gbps operation where supported by the connected equipment.
OM3 Multimode Fibre
The cable uses OM3 multimode optical fibre with an 850nm wavelength, providing a suitable connection for short-range high-speed network interconnections.
SFP+ Connectivity
Integrated SFP+ connectors at both ends allow direct connection to compatible SFP+ ports. The cable uses a 3.0mm PVC jacket, has a minimum bend radius of 30mm and operates from 0°C to 70°C.
The CE UACC-AOC-SFP10-30M Ubiquiti Compatible Active Optical Cable provides 10Gbps connectivity between SFP+ network ports over 30 metres of OM3 multimode fibre.
Key Features of CE Ubiquiti Compatible Active Optical Cable
30m active optical cable
Supports 10Gbps and 1Gbps data rates
850nm wavelength
OM3 multimode fibre
SFP+ to SFP+ connectors
3.0mm PVC jacket
30mm minimum bend radius
10Gbps Active Optical Connectivity
This 30m active optical cable provides high-speed connectivity between compatible SFP+ ports, supporting data rates of up to 10Gbps and compatibility with 1Gbps interfaces.
850nm Multimode Fibre
The cable uses OM3 multimode fibre with an 850nm wavelength for short- to medium-distance data centre and networking connections.
Flexible Cable Construction
A 3.0mm PVC jacket and 30mm minimum bend radius support convenient cable routing between network switches and other SFP+ equipment. The cable operates from 0°C to 70°C.
