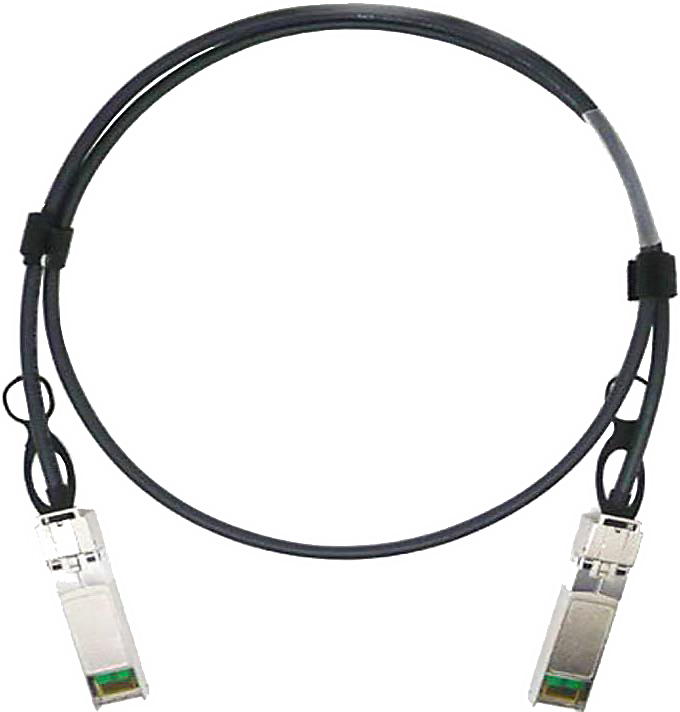

10G SFP+ to SFP+ Direct Attach Cable - Passive

10G SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.

Features

• Support multi-gigabit data rates up to 10.5Gbps
• Support 1x, 2x, 4x and 8x Fiber Channel data rates
• Hot-pluggable SFP 20PIN footprint
• Serial ID module on MOD(0-2)
• AC coupling of PECL signals
• EMI/EMC performance
• Low Power Consumption < 0.5W
• Power Supply :+3.3V
• Compliant to SFP+ MSA
• Temperature Range: 0 ~ 70 °C
• ROHS

Applications

• Storage Area Networks(SAN), Network Attached Storage and Storage Servers
• Switched fabric I/O such as ultra high bandwidth switches and routers
• High density connections among network equipment
• Data center cabling infrastructure
• 1G/2G/4G/8G Fiber Channel
