| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DLDNH-100 |
| Manufacturer No: | DNH-100 |
| Delivery: | In Stock: Next Day |
 |

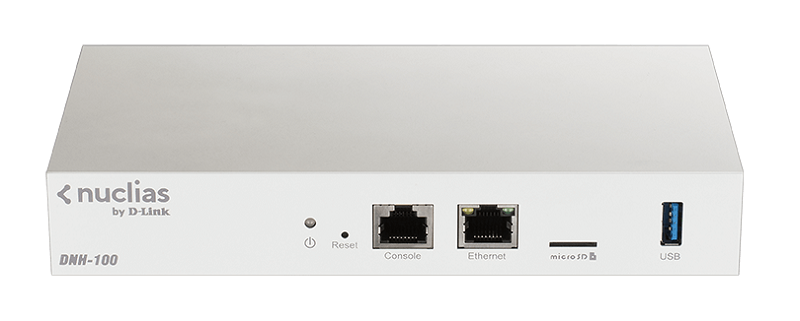

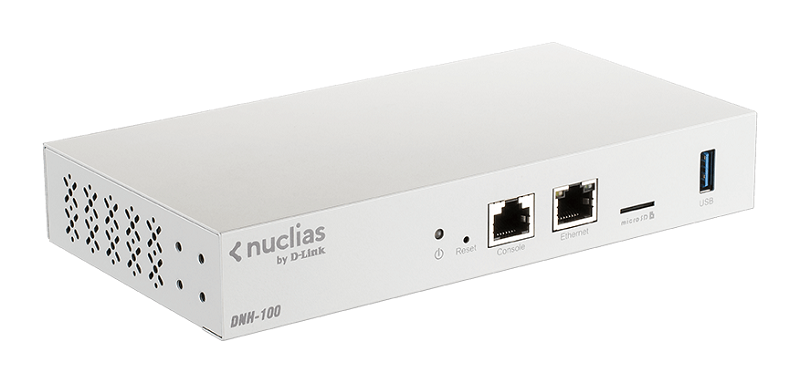

Nuclias Connect Hub
The Nuclias Connect Hub is a standalone controller pre-loaded with the Nuclias Connect centralised network management software. Designed to support small-to-medium business and larger enterprise environments, the Nuclias Connect Hub provides network administrators with the capability to manage up to 100 access points through one single device. It features a comprehensive set of network management, security, monitoring and troubleshooting functionalities as well as multiple access management tools

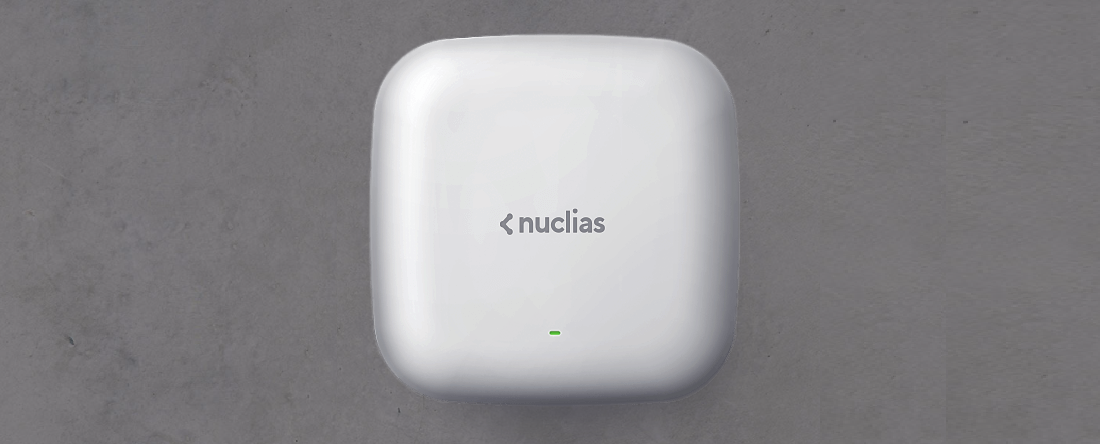

The Nuclias Connect Hub is compatible with a wide range of indoor and outdoor wireless access points, including support for PoE and the latest 802.11ac Wave 2 standard. Multiple Nuclias Connect Hubs can be centrally managed through the single sign-on portal, which can be accessed through the dedicated mobile app or via a web browser

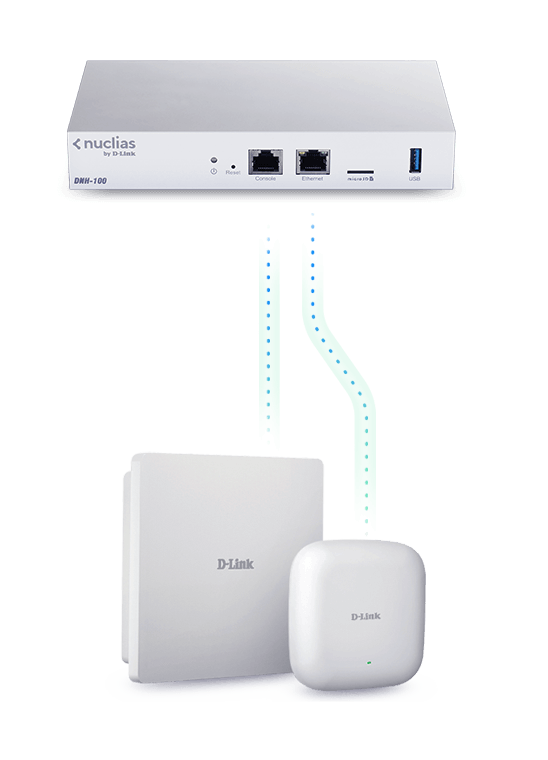

The Hub features centralised monitoring and management of all wireless APs on your network. Designed to perfectly fit in network environments, the DNH-100 Hub is an inexpensive dedicated hardware option with the Nuclias Connect software pre-installed, so you don’t need to purchase and install Nuclias Connect on a separate compatible third-party server.

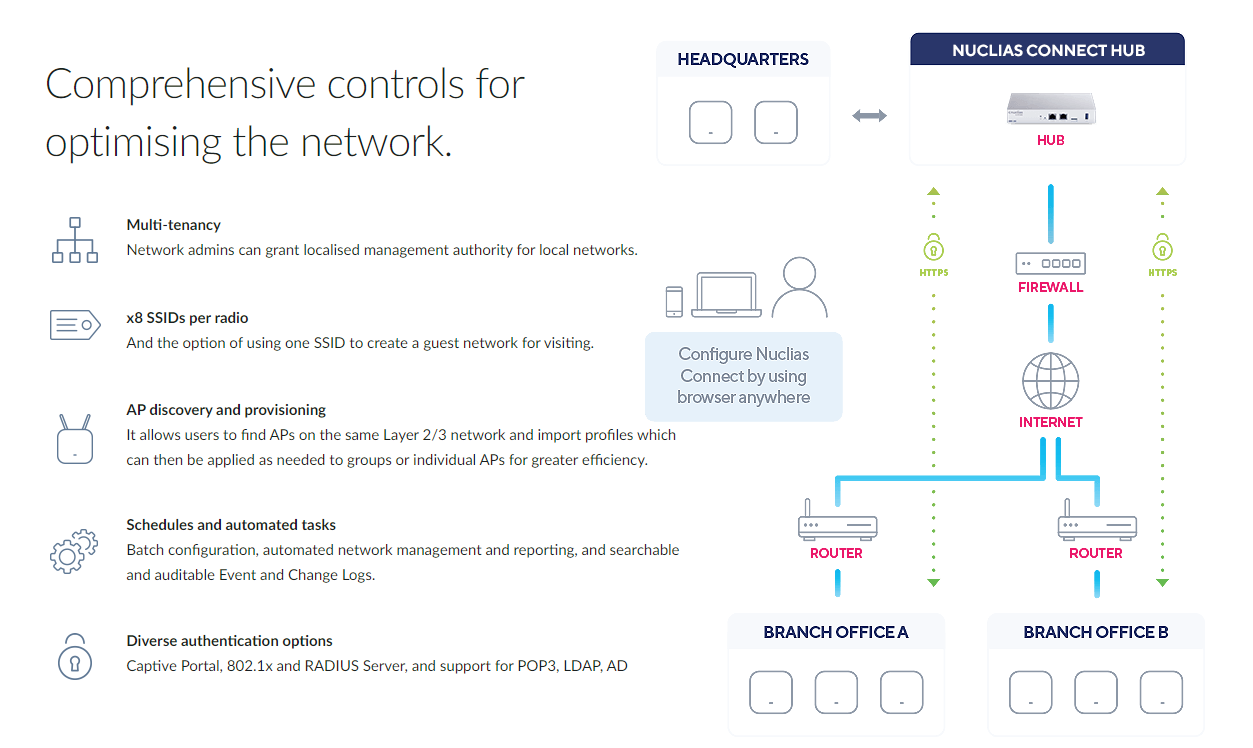

Since Nuclias Connect’s software operates transparently on the network, an AP can be deployed anywhere in a NAT environment. Moreover, administrators can provide and manage a variety of distributed deployments, including the option to configure settings and administrator accounts for each deployment. The built-in Nuclias Connect software allows for multiple user authentications and also makes it possible to configure specific access controls for each SSID, giving admins the option of configuring separate internal networks for different subnets. This means that more advanced Value-Added Services, such as Captive Portal or Wi-Fi Hotspot, can be used to help manage wireless network traffic.

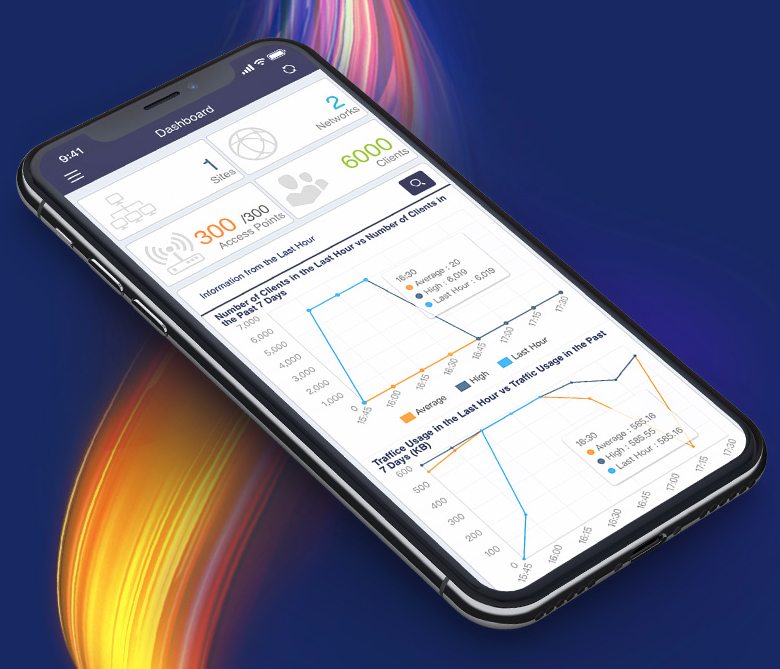

Manage the network remotely with the free Nuclias Connect app. Instantly detect your devices in the network and push configurations remotely by using the app’s intuitive interface. Available on both iOS and Android phones, enjoy the convenience of remote network management on the go.
The Nuclias Connect Hub gives you the financial and technical flexibility to scale up the network simply by adding more Hubs while retaining a robust and centralised management system. Device information is stored locally and the network can be monitored in real-time.

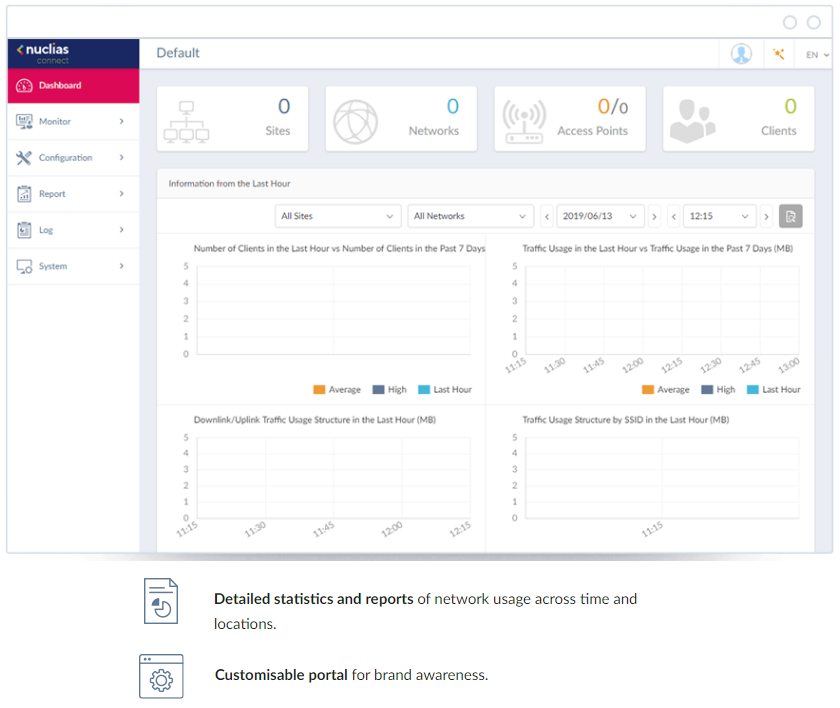

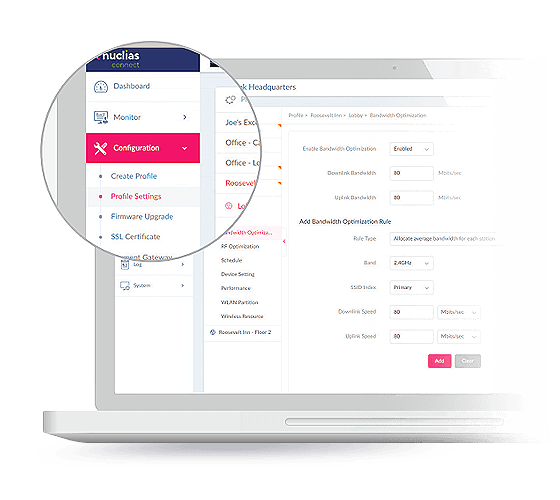

Use the Hub’s built-in Nuclias Connect software to monitor and remotely manage your wireless networks. It also makes it easier to scale the network as new APs are automatically discovered enabling them to be quickly configured and deployed. Easily manage your network on the go, get an instant overview of live usage and your network’s health, and delegate access to your teams. You can even upload your own map to visually show the location of your devices and create Wi-Fi access log-in pages that can be fully branded.
| Physical | |
| Max. Power Consumption | 6.5 W |
| Power Supply | Internal power supply |
| Operating Temperature | 0 to 40 °C / 32 to 104 °F |
| Temperature (Storage) | -20 to 65 °C / -4 to 149 °F |
| Humidity (Operating) | 10% to 90% non-condensing |
| Humidity (Storage) | 5% to 95% non-condensing |
| Dimensions | 190 x 100 x 31 mm / 7.48 x 3.94 x 1.22 in |
| Weight | 529 g (1.16 lbs) without mcroSD card |
| General | |
| Device Interfaces | 1 x Gigabit LAN, 1 x USB 3.0 (offers 5V / 1A power), 1 x MicroSD Slot, 1 x RJ45 Console |
| Standards | IEEE 802.3u/ab IEEE / 802.3x Flow Control |
Full specification and details can be found in the PDF file
