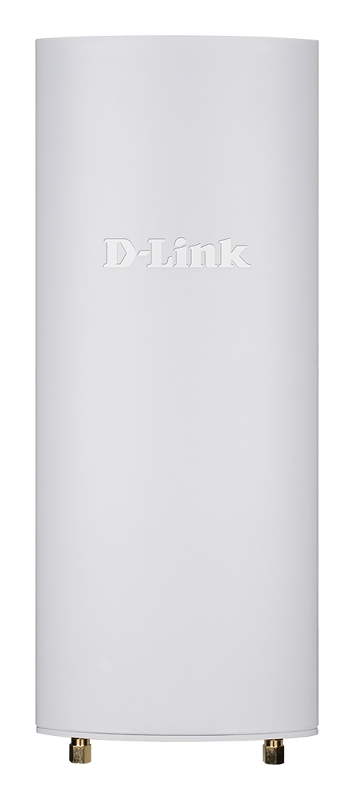

D-Link Nuclias Cloud DBA-3620P AC1300 Wave 2 Outdoor Access Point
scroll
to top

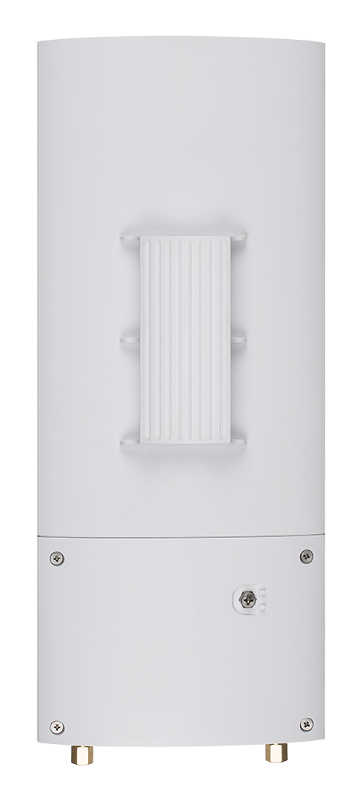

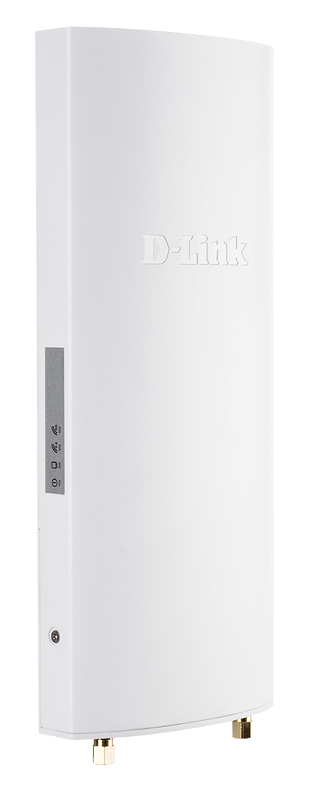

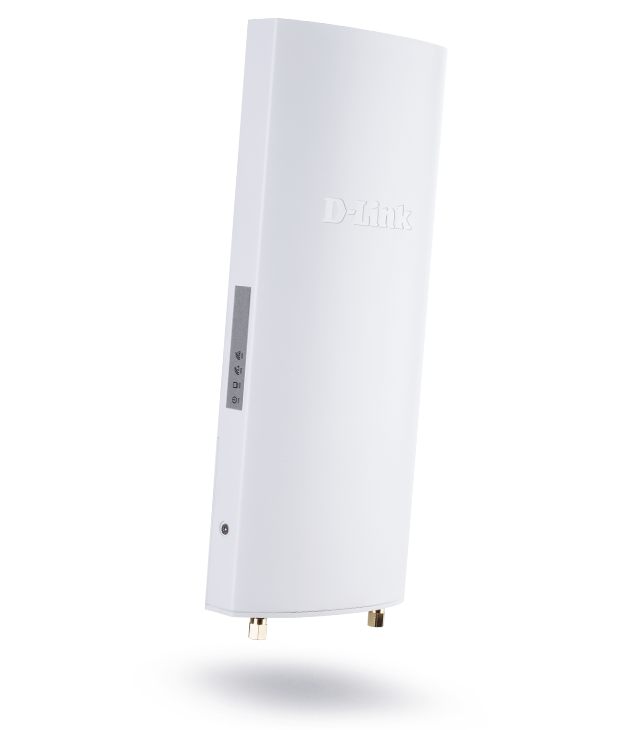

D-Link Nuclias Cloud DBA-3620P AC1300 Wave 2 Outdoor Access Point

Nuclias Cloud Wireless, Cloud Managed (With 1 year license)

by D-Link
See more product details
Part No:DLDBA-3620P
Manufacturer No:DBA-3620P
Delivery: In Stock: Next Day

/assets/images/gallery/large/1636447238DBA-3620P - 1.png

D-Link Nuclias Cloud DBA-3620P AC1300 Wave 2 Outdoor Access Point
scroll
to top
More Related Items
Email product to a friend
X
  • Scroll to top
    D-Link Nuclias Cloud DBA-3620P AC1300 Wave 2 Outdoor Access Point
    Nuclias Cloud Wireless, Cloud Managed (With 1 year license)

    Nuclias Wireless AC1300 Wave 2 Outdoor Cloud-Managed Access Point

    The DBA-3620P Nuclias Wireless AC1300 Wave 2 Outdoor Cloud-Managed Access Points are high-performance outdoor access points designed specifically for SMB, retail, hospitality, campus, as well as managed service providers. They offer impressive protection ratings to withstand harsh outdoor environments, high combined data rates of up to 1,300 Mbps over two dedicated wireless bands and the latest 192-bit wireless encryption.

    The DBA-3620P can be easily deployed with zero-touch provisioning and controlled through Nuclias Cloud Management1 via the web-browser portal or the Nuclias mobile app for tablets. Once connected, the DBA-3620P automatically retrieves configuration settings, enabling deployment at remote locations without an on-site network administrator. With D-Link Nuclias, businesses can now more effectively organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This allows network administrators to focus more on providing reliable connectivity and services and spend less time managing devices.


    Product Features:

    • Nuclias cloud-based remote management (1-year license included)
    • Dual-band AC1300 Wave 2, 2x2 MU-MIMO
    • IP55 water, dust-proof, weather-resistant housing (-40 to 50°C)
    • Zero-Touch Provisioning, cloud-based auto-configuration, unlimited scalability
    • Instant alerts, real-time statistics, WPA3 encryption, captive portal
    • Register for Limited Lifetime Warranty





    Cloud-managed outdoor Wi-Fi

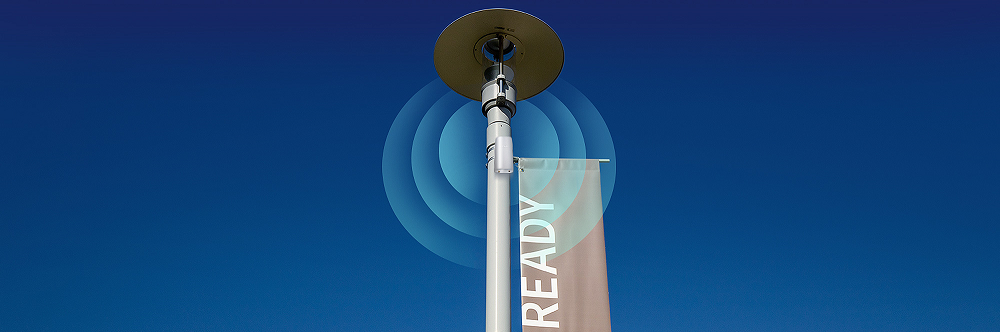

    Manage your outdoor wireless network from anywhere with this Nuclias Cloud outdoor access point. Designed to give you Wi-Fi connectivity in outdoor spaces, it’s ideal for education, retail and hospitality and a great option for managed service providers. Deliver high-combined data rates of up to 1,300 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.




    • Network management has never been this easy

      Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.





    Exceptional connectivity, exceptional performance

    The DBA-3620P delivers reliable, high-speed AC1300 Wave 2 Wi-Fi with maximum combined wireless speeds of up to 1.3 Gbps2. Band steering, MU-MIMO, beam forming and load balancing support further enhance the overall connectivity performance.




  • A more effective and efficient network

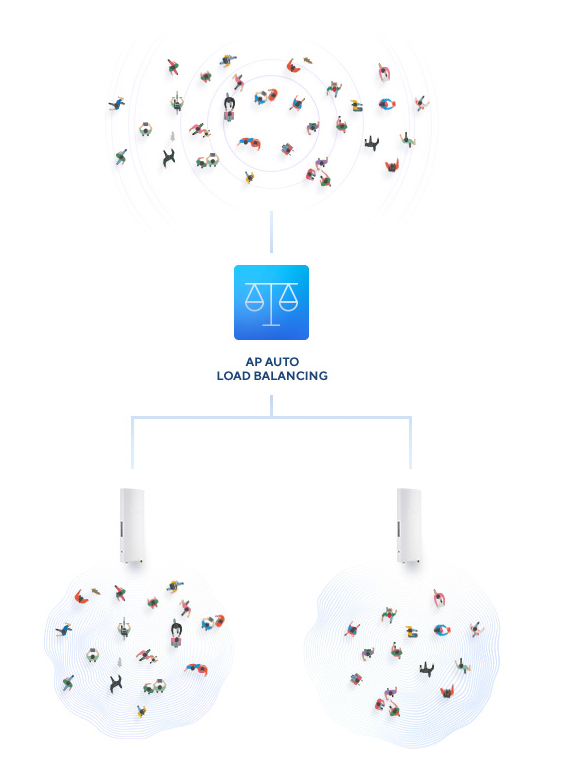

    When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time.





    • Get your networks up and running from anywhere easily and quickly.

      The DBA-3620P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.



    • Complete control over your network

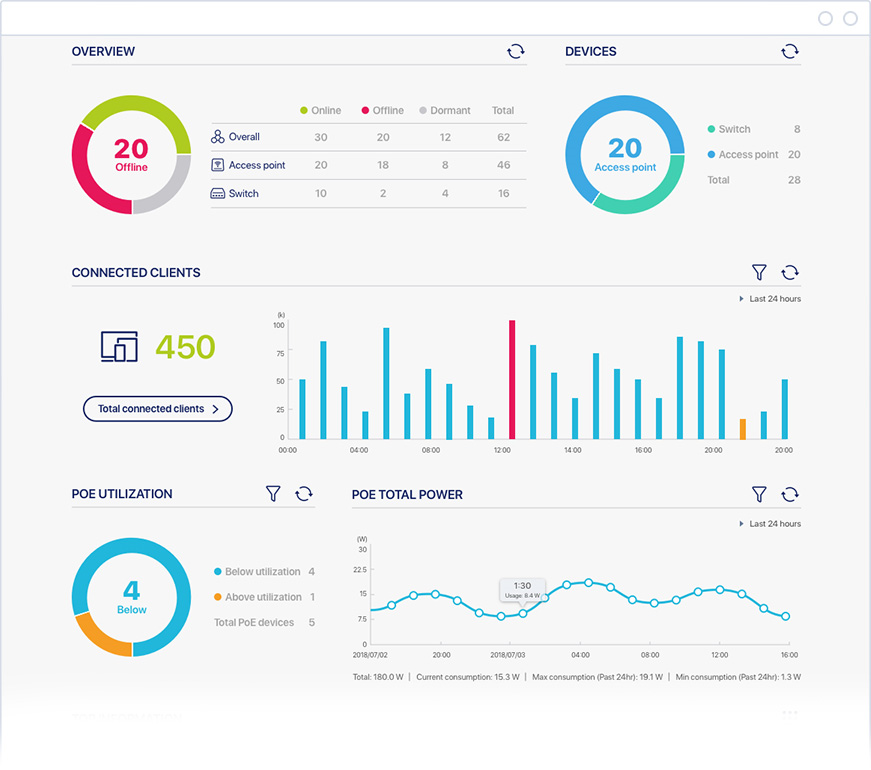

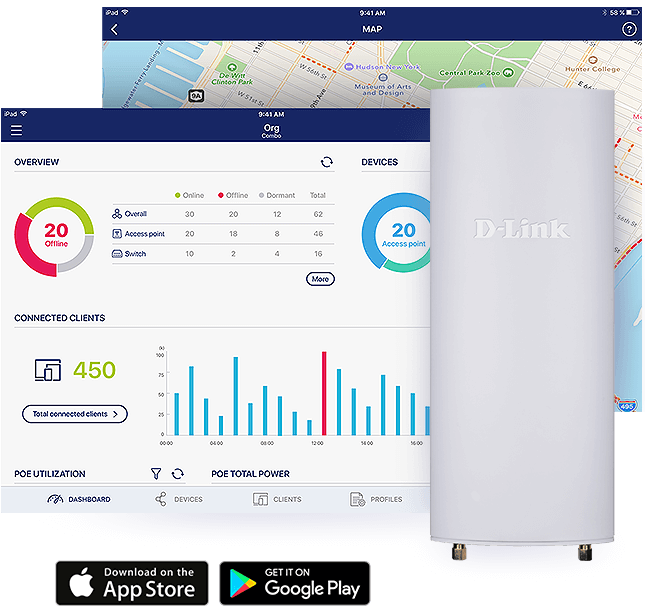

      With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices. Intuitive app. Real-time network information. Manage multiple sites and devices. Over-the-air firmware updates





    • Your Guests Online in No Time with a Captive Portal

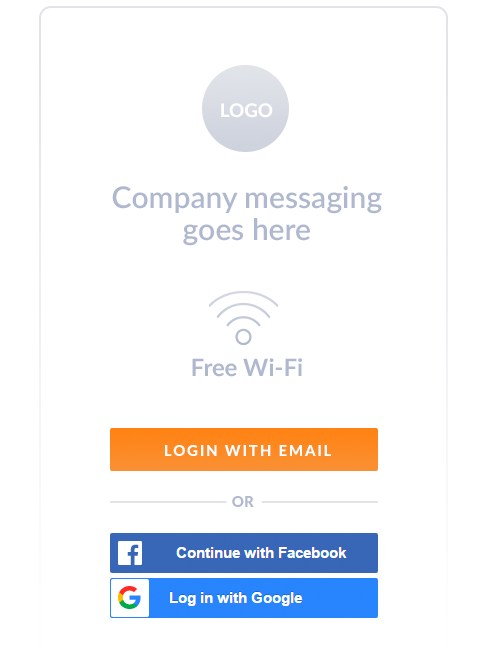

      Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.



    • Scale your Wi-Fi alongside your business

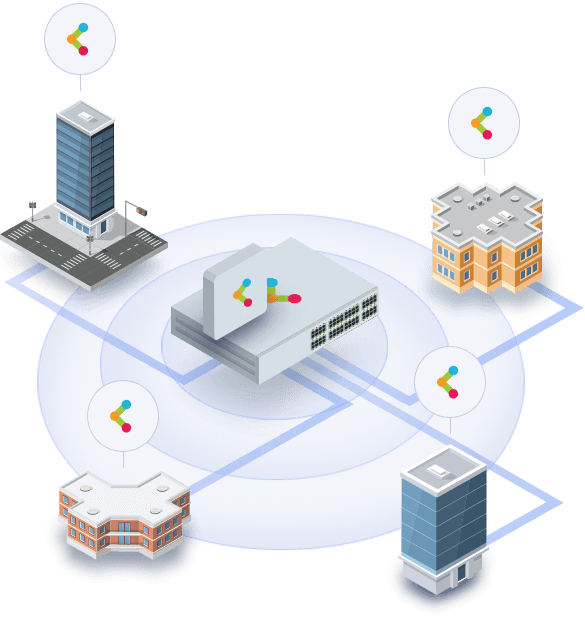

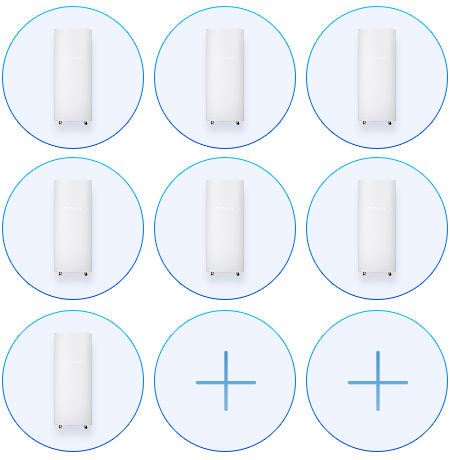

      Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.











    Main Features:

    • Zero-touch provisioning
    • Role-based administration
    • Auditable change logs
    • Authentication via customisable captive portal, 802.1x and RADIUS server
    • Social login for Wi-Fi access supported
    • Advanced traffic report and data analysis
    • Intuitive web-based interface with multilingual support
    • Automatic monitoring and alerts
    • Over-the-web firmware upgrades
    • Searchable network-wide event log
    • Intuitive VLAN Configuration
    • Cloud based RF Optimisation






    Physical
    Dimensions 291.9 x 115 x 65.5 mm

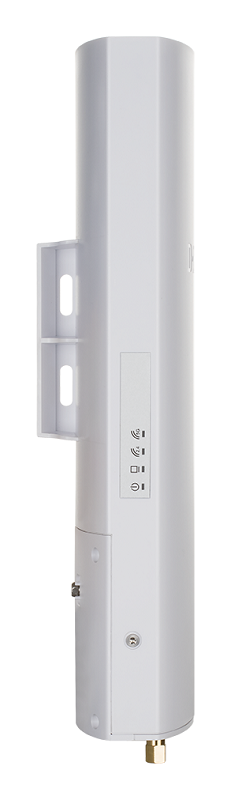

    Weight With bracket: 0.822 kg / Without bracket: 0.853 kg
    Power Input IEEE 802.3af Power over Ethernet (PoE)
    Power Consumption PoE: 13.5 W
    Temperature (Operating) -40 to 50 °C
    Temperature (Storage) -40 to 65 °C
    Humidity (Operating) 10% to 90% non-condensing
    Humidity (Storage) 5% to 95% non-condensing
    Mean Time Between Failure (MTBF) 1,142,136 hours
    General
    Interfaces 1 x 10/100/1000 Mbps Ethernet port / 1 x RJ45 Console port / IEEE 802.11a/b/g/n/ac Wave 2 wireless
    Standards IEEE 802.11a/b/n/g/ac Wave 2 / IEEE 802.3az Energy-Efficient Ethernet (EEE) / IEEE 802.3af Power over Ethernet (PoE) / IEEE 802.3i/u/ab / IEEE 802.3x Flow Control

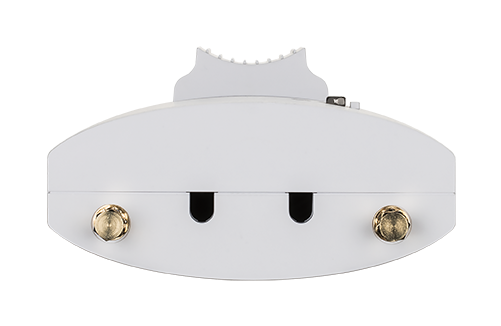

    Antenna • Built-in internal omnidirectional antenna - 2.4 GHz: 3.5 dBi / 5 GHz: 5 dBi / 2 x R-SMA connectors for external antennas
    Data Signal Rate2 2.4 GHz: Up to 400 Mbps / 5 GHz: Up to 867 Mbps

    Full specification and details can be found in the PDF file

    A users manual be found in the PDF file
