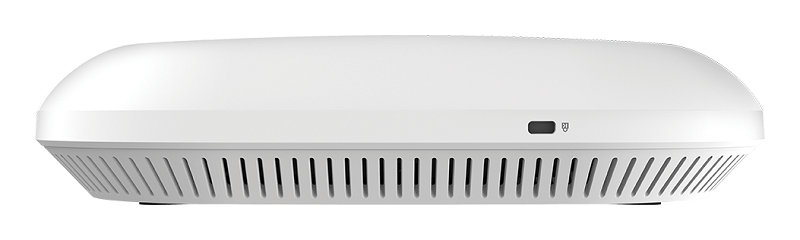

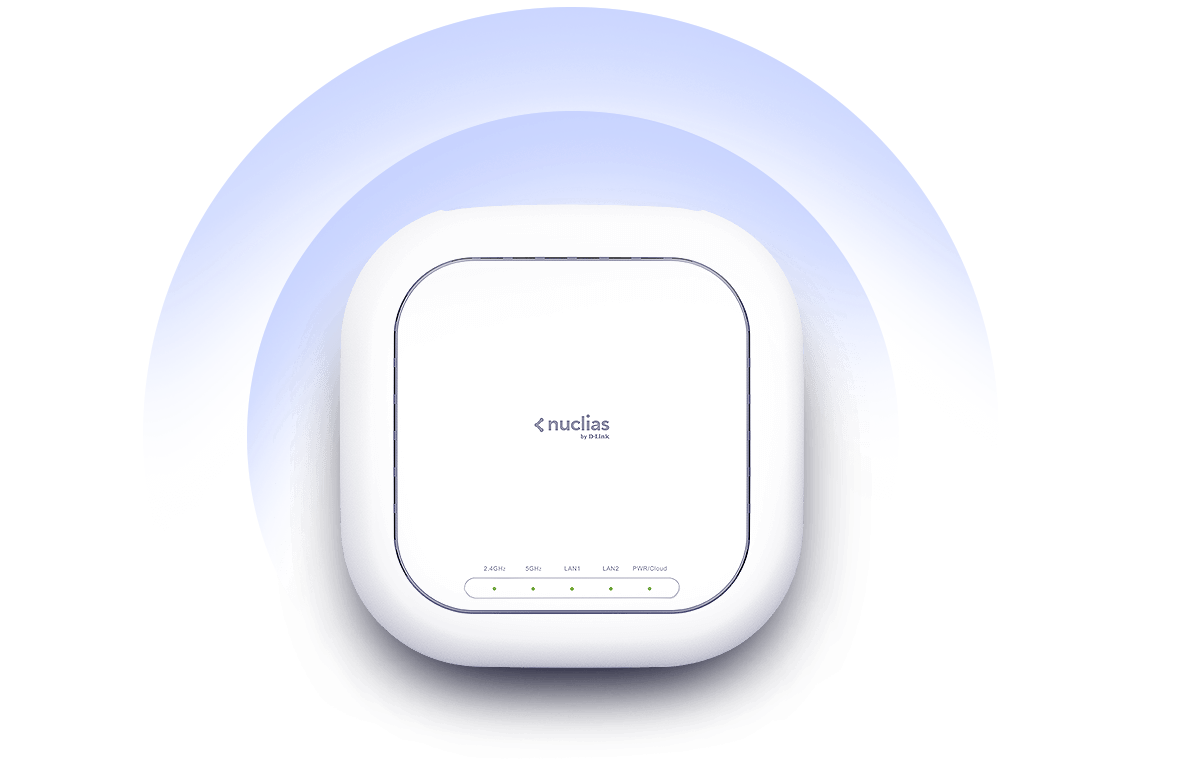

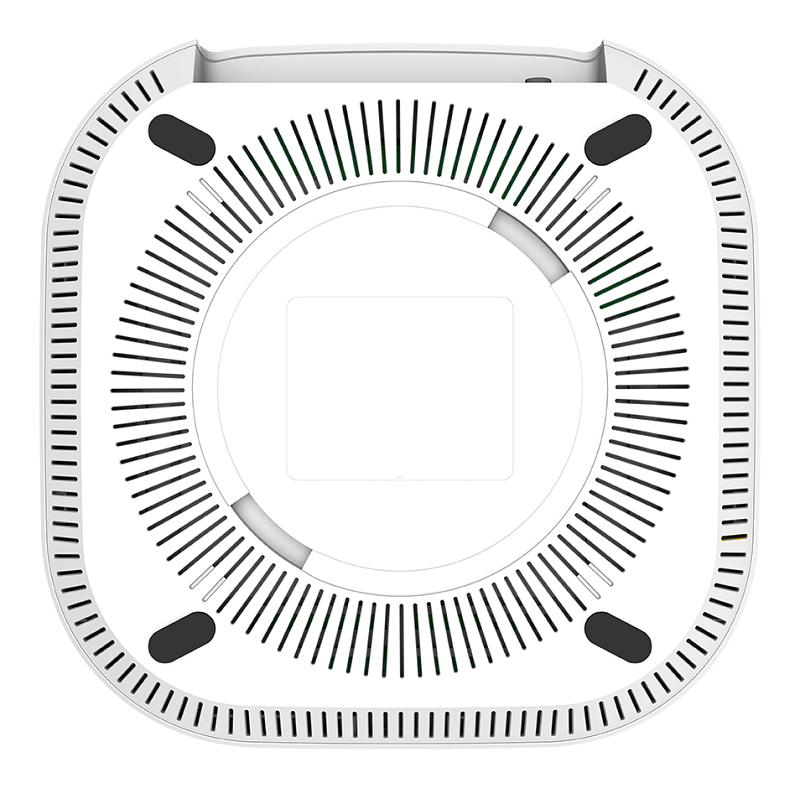

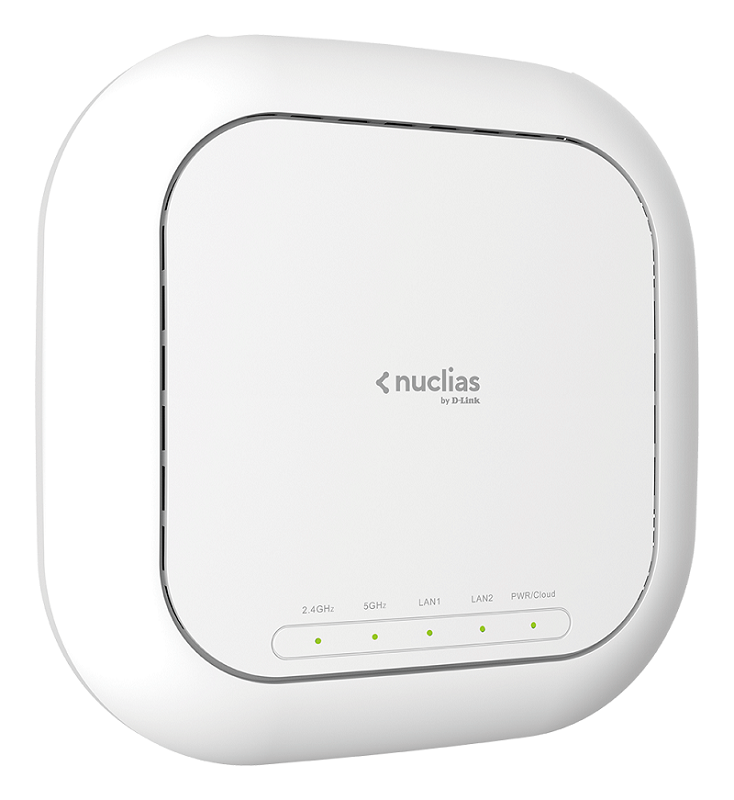

Nuclias Wireless AC1900 Wave 2 Cloud-Managed Access Point
The DBA-2520P Nuclias Wireless AC1900 Wave 2 Cloud-Managed Access Point is a highperformance indoor access point designed specifically for SMB, retail, hospitality, campus, as well as managed service providers. It offers high combined data rates of up to 1,900 Mbps over 2 dedicated wireless bands and enhanced WPA3 wireless security.
The DBA-2520P can be easily deployed with zero-touch provisioning and controlled through Nuclias Cloud Management1 via the web-browser portal or the Nuclias mobile app for tablets. Once connected, the DBA-2520P automatically retrieves configuration settings, enabling deployment at remote locations without an on-site network administrator. With D-Link Nuclias, businesses can now more effectively organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This allows network administrators to focus more on providing reliable connectivity and services and spend less time managing devices.
Manage wireless networks remotely anywhere in the world with this Nuclias Cloud indoor access point designed for SMB, retailers, hospitality, campuses, and managed service providers. Deliver high-combined data rates of up to 1,900 Mbps2 over 2 dedicated wireless bands with advanced WPA3 wireless security.
Built to be fast
The DBA-2520P is a workhorse designed to handle bandwidth-intensive network applications involving numerous clients
It delivers reliable high-speed wireless AC (Wave 2) connections, and performance is optimised via the Nuclias Cloud platform which adjusts channel selection, transmission power, and the maximum number of client connections
• 1.9 Gbps Max. Wireless Signal Rayes - Combined data rates of up to 1,900 Mbps2 throughput over 2 dedicated wireless bands
• 3x3 MU-MIMO - Three spatial streams for efficiently delivering higher speeds to multiple devices simultaneously
Centralised management through a single pane of glass
Manage your Nuclias network from anywhere using D-Link’s easy-to-use Nuclias Cloud Management1 platform. Organise the wireless network, manage multiple APs simultaneously, monitor live network statistics remotely, all from the cloud with a few simple clicks. The DBA-2520P is set up in seconds with the help of the simple Nuclias web-browser portal or the tablet app
• Zero-Touching Provisioning - Plug-and-connect deployments without the need for additional configuration
• Cloud-management simplicity - It automatically retrieves its configuration settings from the cloud, enabling rapid deployments at remote locations without an on-site network administrator
Increase network speeds and efficiency
Enjoy a more efficient wireless network which balances network traffic and improves productivity
• High-speed wave 2 Wi-Fi - Reliable, high-speed wireless AC wave 2 Wi-Fi with maximum wireless signal rates of up to 1,900 Mbps2

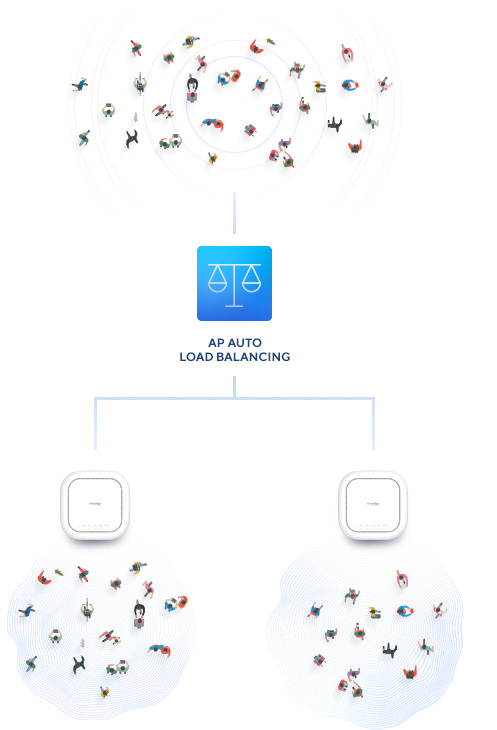

• Smart load balancing - Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network.
Deployment versatility

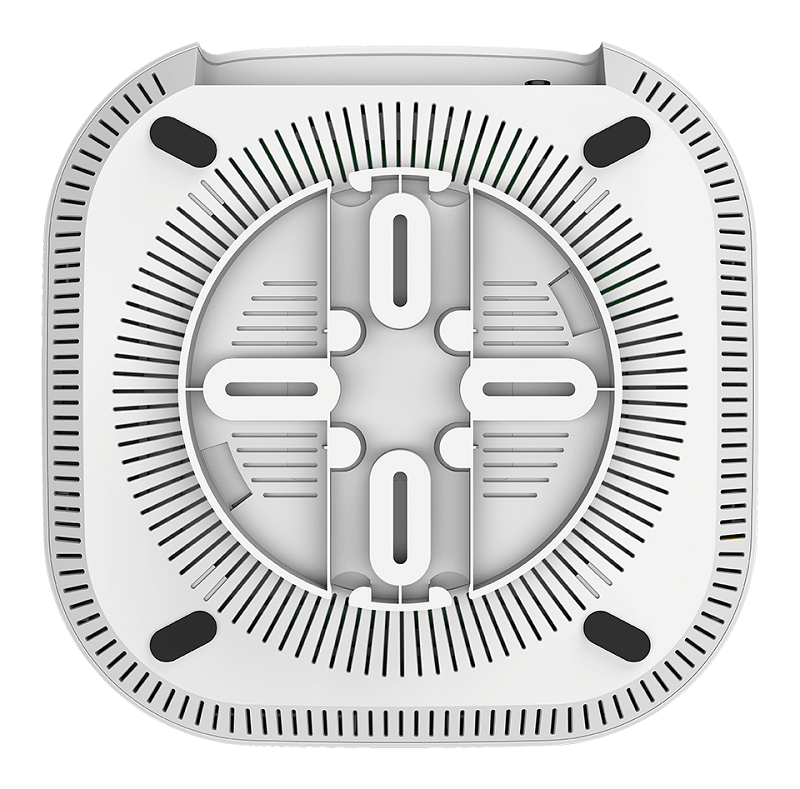

Deploy an easily manageable and extremely robust wireless network, with optimal wireless coverage, using DBA-2520P access points. For deployment flexibility, it can be mounted on a ceiling, wall, or placed on a desktop.
It also supports 802.3at Power over Ethernet (PoE), allowing the device to be powered by a single Ethernet cable in areas without power outlets.
Enterprise-grade security
The DBA-2520P supports Personal and Enterprise versions of WPA, WPA2 and the latest WPA3 Wi-Fi encryption, with support for a back-end RADIUS server, to help maintain network security. It also features MAC address filtering, wireless LAN segmentation, SSID broadcast disabling, and wireless broadcast scheduling to enhance security.
It also supports up to 16 virtual access points to help segment users on the network using multiple SSIDs. And it features wireless client isolation, which allows limitations to be placed on direct client-to-client communication.
| Physical | |
| Dimensions | 224.5 x 223.85 x 50 mm |
| Weight | • Without mount: 811 g |
| Power Input | IEEE 802.3at Power over Ethernet (PoE) / Power adapter: 100 to 240 V AC, 50/60 Hz |
| Power Consumption | PoE: 19.68 W / Power adapter: 16.92 W |
| Temperature (Operating) | 0 to 40 °C / 32 to 104 °F |
| Temperature (Storage) | -20 to 65 °C / -4 to 149 °F |
| Humidity (Operating) | 10% to 90% non-condensing |
| Humidity (Storage) | 5% to 95% non-condensing |
| Mean Time Between Failure (MTBF) | 548,000 hours |
| General | |

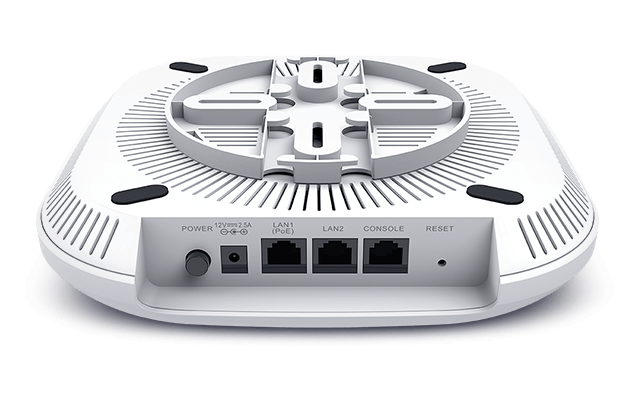

| Interfaces | 2 x 10/100/1000 Mbps Ethernet PoE port / 1 x 10/100/1000 Mbps serial console port / IEEE 802.11a/b/g/n/ac Wave 2 wireless |
| Standards | IEEE 802.11a/b/n/g/ac Wave 2 / IEEE 802.3az Energy-Efficient Ethernet (EEE) / IEEE 802.3at Power over Ethernet (PoE) / IEEE 802.3i/u/ab / IEEE 802.3x Flow Control |
| LEDs | 2.4 GHz, 5 GHz, LAN 1, LAN 2, Power/Cloud |
| Antenna | Internal omnidirectional antennas - 2.4 GHz: 3 dBi / 5 GHz: 4 dBi |
Full specification and details can be found in the PDF file
A quick installation guide be found in the PDF file
A users manual can be found in the PDF file
