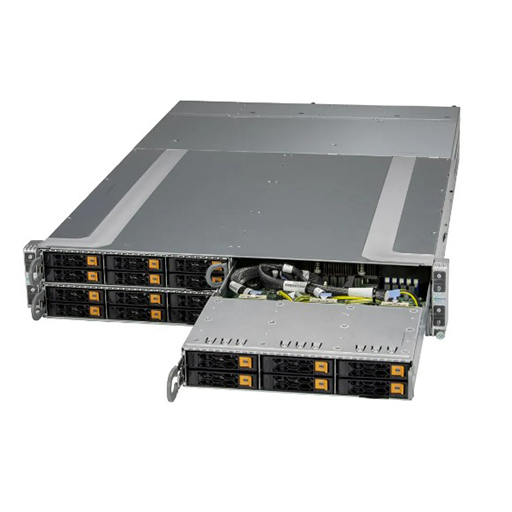

The Supermicro AS-2115GT-HNTR-01-G2 is a 2U four-node GrandTwin A+ server that combines four independent hot-pluggable systems in a compact rackmount chassis. Each node comes with an AMD EPYC 9534 processor, 512GB of DDR5-4800 ECC RDIMM memory, a 960GB 2.5-inch SATA SSD, and dual 100GbE QSFP28 network connectivity. Shared redundant 2200W Titanium Level power supplies provide the power capacity required by this high-density platform.
Key Features of Supermicro AS-2115GT-HNTR-01-G2
AMD EPYC 9534 processor with 64C/2.45GHz per node
512GB DDR5-4800 ECC RDIMM memory per node
960GB 2.5-inch SATA SSD per node
Dual 100GbE QSFP28 network ports per node
Dual 2200W redundant Titanium Level power supplies
*NVMe/SATA functionality depends on configuration chosen. Additional parts are required
Four-Node Computing Density
The four-node configuration places four independent server systems into a single 2U chassis, making efficient use of rack space while allowing each node to operate with its own processor, memory, storage, and networking resources.
AMD EPYC Processing
Each pre-configured node includes an AMD EPYC 9534 processor with 64 cores and a 2.45GHz base frequency. The underlying platform also supports AMD EPYC 9004 and 9005 series processors, with processor support dependent on the motherboard revision.
512GB Memory Per Node
Every node is supplied with 512GB of DDR5-4800 ECC RDIMM memory, providing substantial capacity for virtualised environments, web applications, storage services, and other memory-intensive workloads. Each node has 12 DIMM slots and can support up to 3TB of DDR5 memory depending on the processor and motherboard revision.
High-Speed Network Connectivity
Each node provides dual 100GbE QSFP28 network ports, giving the four-node platform high-bandwidth connectivity for demanding data transfer requirements, clustered applications, and distributed workloads.
Flexible Storage Capacity
The pre-configured system includes a 960GB 2.5-inch SATA SSD per node. Each node can accommodate up to six hot-swap 2.5-inch NVMe or SATA drives when the required optional components are installed.
Redundant Titanium Power
The chassis uses two 2200W redundant Titanium Level power supplies shared across the four nodes. The power configuration provides additional continuity for systems operating in demanding 24-hour environments, with full redundancy dependent on the system configuration and workload.
*Full redundancy based on configuration and application load

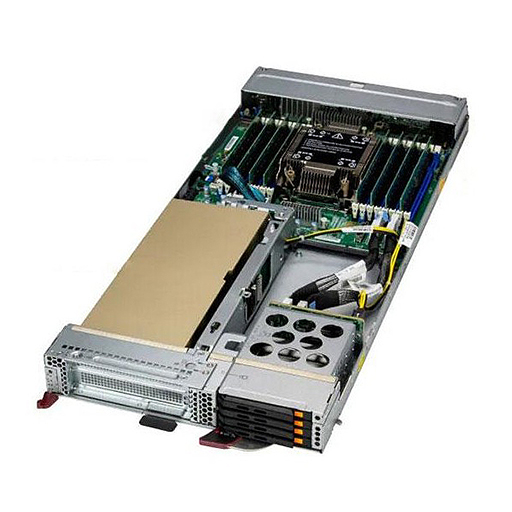

The Supermicro SBI-612B-1NE34-01-G2 SuperBlade SuperServer is a high-density blade server platform designed around modular compute nodes that share chassis-level power, cooling, and networking. Each blade node operates independently while fitting into a compact 6U enclosure, supporting workloads that require consistent compute performance, scalable memory bandwidth, and efficient rack utilization. With support for DDR5 memory speeds up to 6400 MT/s and modern Intel Xeon processor architecture, it is suited for clustered computing environments where multiple nodes work in parallel.
Key Features of Supermicro SBI-612B-1NE34-01-G2
Blade-based architecture supporting multiple independent compute nodes within a single 6U chassis
DDR5 ECC memory support up to 6400 MT/s for high memory bandwidth per node
Up to 128GB memory configuration per node for balanced compute workloads
Intel Xeon single-socket CPU platform designed for modern data processing demands
PCIe Gen5 connectivity for high-speed expansion and I/O throughput
Flexible NVMe storage options including high-speed E3.S form factor drives
Shared chassis infrastructure for power delivery, cooling, and networking efficiency
Compute Architecture
Each blade node is built for independent operation while benefiting from the shared SuperBlade chassis design. This structure allows multiple servers to operate side by side, supporting parallel workloads and distributed processing tasks without requiring separate physical servers for each node.
Memory Configuration
The platform supports DDR5 ECC memory with high-frequency operation up to 6400 MT/s under ideal channel population. A 128GB per node configuration provides a balanced memory footprint suitable for virtualization, analytics, and compute-focused workloads that rely on consistent bandwidth.
System Density
The blade design concentrates multiple compute nodes into a single chassis, reducing rack space requirements while maintaining separation between workloads. This approach allows scaling of compute capacity without expanding physical footprint significantly.
The Supermicro AS-3015MR-H8TNR-01-G2 MicroCloud A+ Server brings exceptional compute density to modern data centre environments by integrating eight independent server nodes within a compact 3U chassis. Designed for cloud hosting, virtualisation, edge deployments, and service provider infrastructures, each node delivers dedicated processing power, DDR5 memory, and NVMe storage capabilities. Support for AMD EPYC 4005 Series processors, high-speed networking, and optional GPU acceleration allows organisations to deploy multiple workloads efficiently while maintaining a streamlined hardware footprint.
Key Features of the Supermicro AS-3015MR-H8TNR-01-G2
3U MicroCloud chassis with 8 independent server nodes
64GB DDR5-5600 ECC memory installed per node
AMD EPYC 4005 Series processor support
Dual front-accessible U.2 NVMe drive bays per node
PCIe 5.0 expansion capability
Dual-port 10GbE/25GbE SFP28 networking per node
Support for single-width GPU accelerators
Redundant 2200W Titanium power supplies
Compact chassis depth suitable for a wide range of rack environments
High-Density Multi-Node Design
With eight individual server nodes housed in a single chassis, the AS-3015MR-H8TNR-01-G2 enables organisations to deploy separate applications, virtual machines, or customer environments without requiring multiple standalone servers. This architecture helps maximise rack utilisation while simplifying infrastructure planning.
Modern AMD Processing Platform
Built around AMD EPYC 4005 Series processors, each node provides strong multi-threaded performance for demanding workloads. Combined with DDR5 memory technology, the platform is well suited for hosting platforms, business applications, virtualised environments, and distributed computing tasks.
Fast Storage and Connectivity
Dual NVMe drive support per node delivers rapid access to data, helping applications respond quickly to user requests and transactional workloads. Integrated 10GbE and 25GbE networking options provide the bandwidth required for cloud services, storage traffic, and high-volume network operations.
Flexible Expansion Options
Support for PCIe 5.0 expansion and single-width GPU accelerators gives each node additional flexibility for specialised workloads. Whether deployed for AI inference, media processing, virtual desktop infrastructure, or application hosting, the platform can be tailored to meet a wide range of operational requirements.
