Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

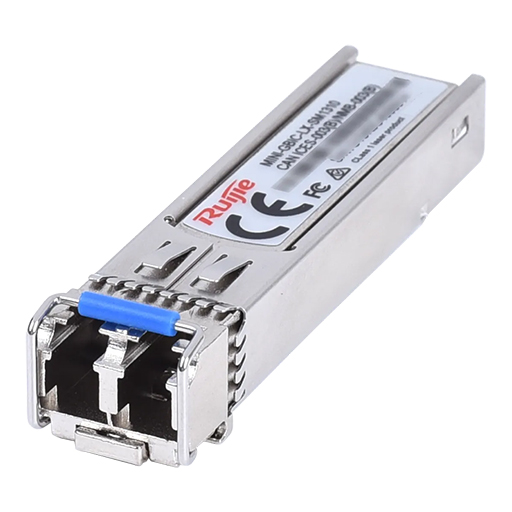

MINI-GBIC-LX-SM1310 Module
The MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

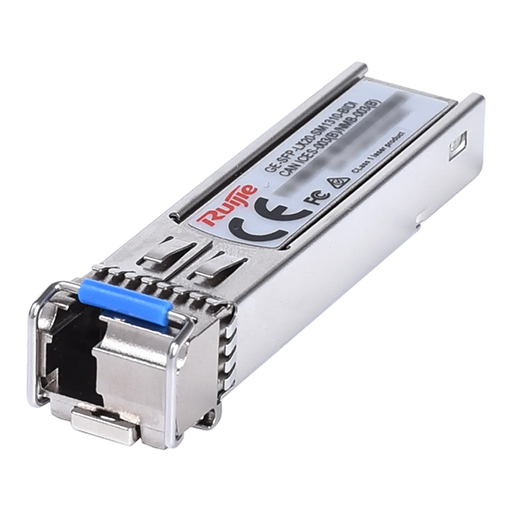

GE-SFP-LX20-SM1310-BIDI Module
The GE-SFP-LX20-SM1310-BIDI is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 20 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to the IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.
GE-SFP-LH40-SM1310-BIDI Module
The GE-SFP-LH40-SM1310-BIDI is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

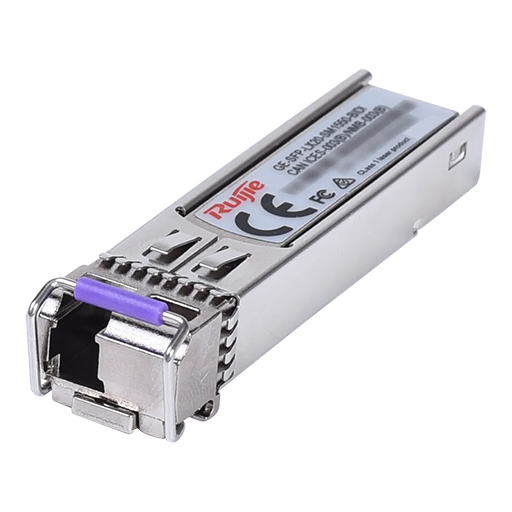

GE-SFP-LX20-SM1550-BIDI Module
The GE-SFP-LX20-SM1550-BIDI is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 20 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver is compliant to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

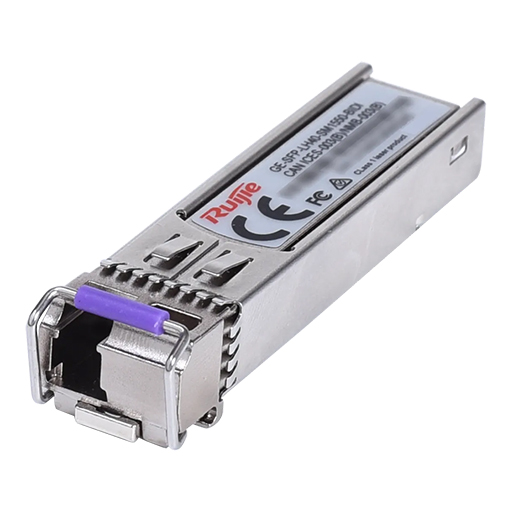

GE-SFP-LH40-SM1550-BIDI Module
The GE-SFP-LH40-SM1550-BIDI is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

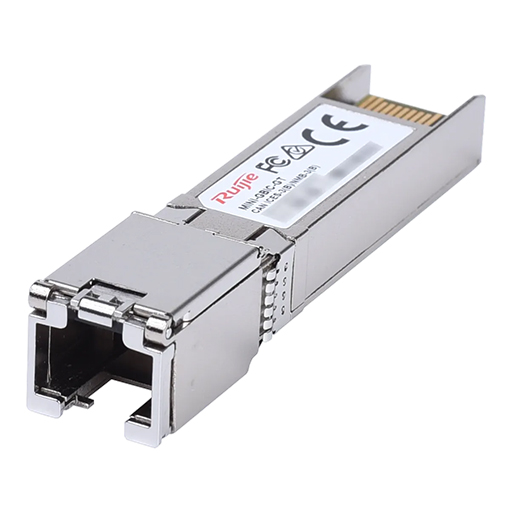

MINI-GBIC-GT Module
The MINI-GBIC-GT is an IEEE 1000base-X to 1000base-T media converter and supports a link length of up to 100 meters over a Cat 5e/6/6a cable with an RJ45 connector. It adopts the SFP form factor. The port needs to be conffgured with auto-negotiation. The transceiver conforms to IEEE 802.3ab, SFP+ MSA, and RoHS standards.
Highlights
High-speed data transmission of up to 1.25Gbps
Maximum transmission distance of up to 100 meters
Hot-pluggable feature allows for easy installation or removal without disrupting the network
Compatible with various networking equipment, making it a versatile choice for different setups
Conforming to IEEE 802.3ab, SFP+ MSA, and RoHS standards
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

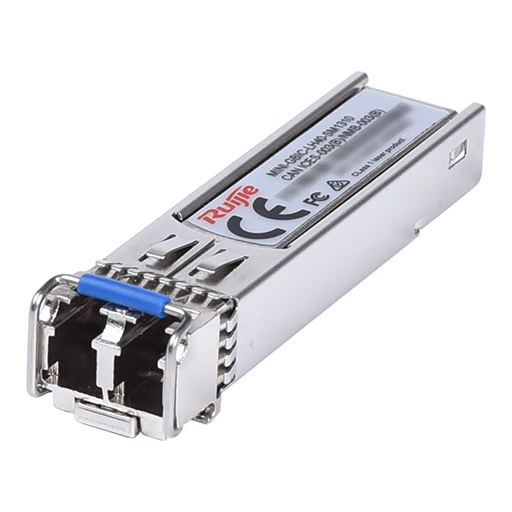

MINI-GBIC-LH40-SM1310 Module
The MINI-GBIC-LH40-SM1310 is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a broad range of low-power and high-density 10G optical modules to its clients. They can be used with campus and data centre networks, allowing switches, routers, servers, and network interface controllers (NICs) to be connected at a low cost, with fast speed, and with efficiency.

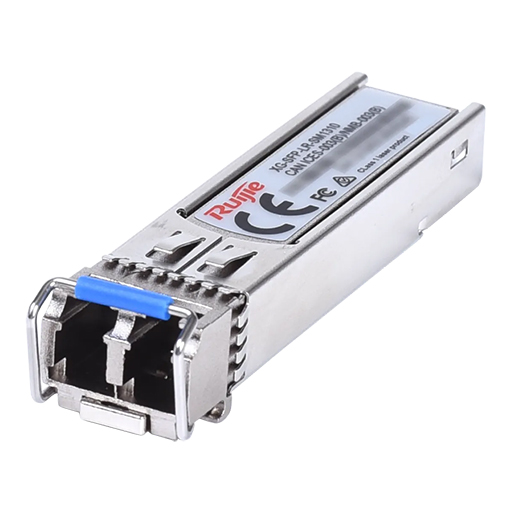

The XG-SFP-LR-SM1310 is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Hot pluggable SFP+ MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.
MINI-GBIC-ZX80-SM1550 Module
The MINI-GBIC-ZX80-SM1550 is aligned to IEEE 1000BASE-ZX optical specifications and supports a link length of up to 80 kilometers over an SMF with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to the IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Ruijie, a market leader in ICT infrastructure and industry solutions, provides a broad range of low-power and high-density 10G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.

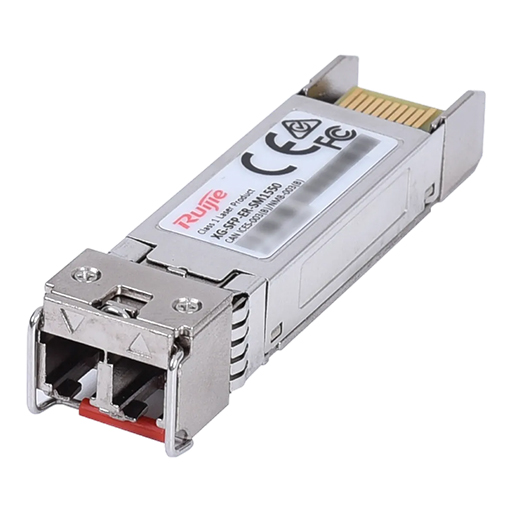

The XG-SFP-ER-SM1550 is aligned to IEEE 10GBASE-ER optical specifications and supports a link length of up to 40 kilometers over an SMF with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1550 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards.
Highlights
Max. power consumption 1.5 W
Hot pluggable SFP+ MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
