Ruijie, a market leader in ICT infrastructure and industry solutions, provides a large range of low-power, high-density 1G optical modules to its clients. They allow for the economical, effective, and fast interconnection of switches, routers, servers, and network interface controllers (NICs) in data centre and campus networks.
MINI-GBIC-SX-MM850 Module

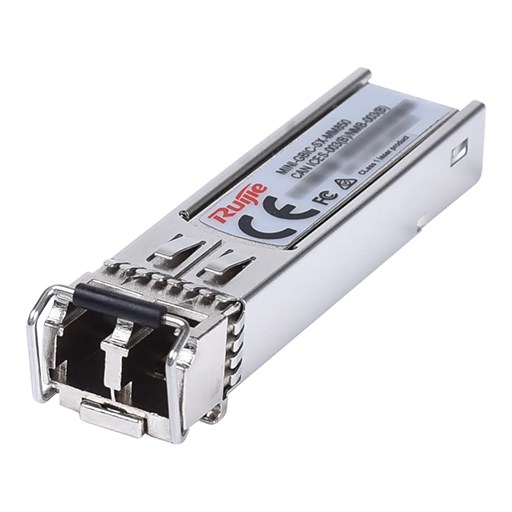

The MINI-GBIC-SX-MM850 is aligned to IEEE 1000BASE-SR optical specifications and supports a link length of up to 550 meters over a multimode fiber (MMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ Multisource Agreement (MSA), and RoHS standards.
Highlights
Max. power consumption 1.5 W
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 10G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

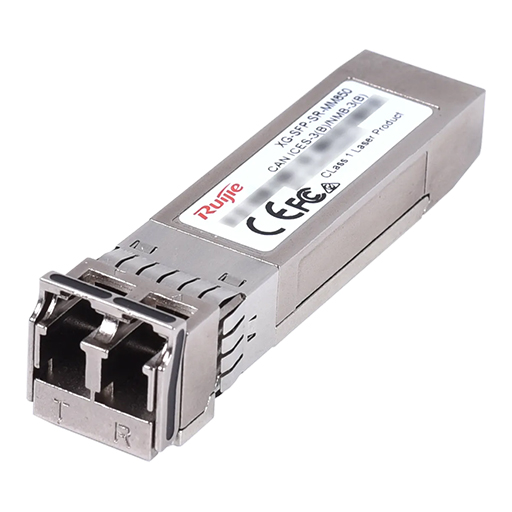

The XG-SFP-SR-MM850 is aligned to IEEE 10GBASE-SR optical specifications and supports a link length of up to 300 m (984.25 ft., with OM3 optical cables) or 400 m (1312.34 ft., with OM4 optical cables) over a multimode fiber (MMF) with a Duplex LC connector. It adopts the SFP+ form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ Multisource Agreement (MSA), and RoHS standards.
Highlights
Max. power consumption 1.5 W
Hot pluggable SFP+ MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
