Ruijie Cloud Managed Enabled Network Switches

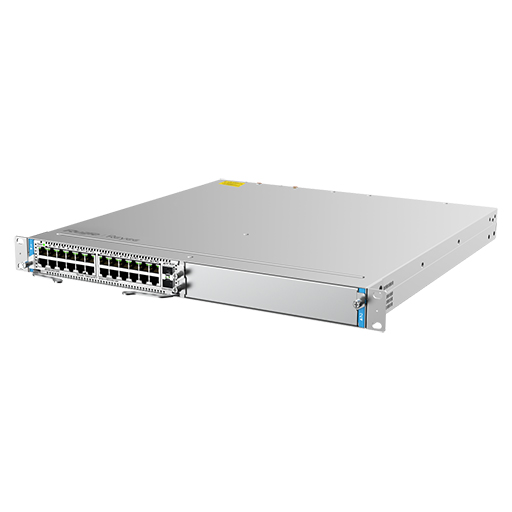

Small and medium-sized enterprises can use the Ruijie Reyee RG-NBS6002 2-Slot L3 Cloud Managed Modular Core Switch Chassis, a 1U swappable box-style network switch. With two (2) line card slots for up to forty-eight (48) ports of gigabit connectivity, the modular design guarantees scalability and flexibilit

Highlight Modular design provides scalability and flexibility
High-Level redundancy, ensuring nonstop Service
Whole network solution specially designed for SMB scenarios
Lifetime management on Ruijie Cloud at anytime anywhere
Efficient Layered Functionality The RG-NBS6002 is a Layer 3 Cloud Managed switch, tailored to meet the evolving needs of SMB environments. With a switching capacity of 176Gbps and a forwarding rate of 132Mpps, this switch chassis ensures efficient data handling and transmission. The Layer 2 features include Jumbo Frame support, Flow Control, STP, RSTP, and more, empowering administrators with versatile network management tools. Equipped with advanced software features such as ACL Entries and SNMP the RG-NBS6002 provides a robust foundation for network customisation and optimisation.

Modular Design The RG-NBS6002 offers a modular design, which is a standout feature for scalability and flexibility. This design supports two (2) service slots for switch modules, accommodating various networking needs. This flexibility is crucial for businesses looking to expand their network infrastructure without the need for a complete overhaul, making the switch a future-proof investment.

High Connectivity With the capability to support up to forty-eight (48) ports of Gigabit connectivity via service modules (sold separately), this switch chassis is well-suited for small to medium-sized businesses that require high-speed network connections. The high number of ports ensures that a wide range of devices can be connected, providing ample networking capacity for growing businesses.

High-Level Redundancy The RG-NBS6002 is engineered with high-level redundancy, ensuring nonstop service and minimal downtime. This feature is particularly important for businesses where continuous network availability is critical. The redundancy ensures that the network remains operational even in the event of a component failure, thereby safeguarding against potential business disruptions.

Lifetime Cloud Management A significant feature of the RG-NBS6002 is its lifetime management on Ruijie Cloud, accessible anytime and anywhere. This cloud-based management simplifies network operations, allowing for remote monitoring and management of the network infrastructure. The convenience of cloud management is a huge plus for businesses seeking efficient and flexible network administration.

*Images are for illustrative purposes only; Product does not include switch module or power supplies in the slots

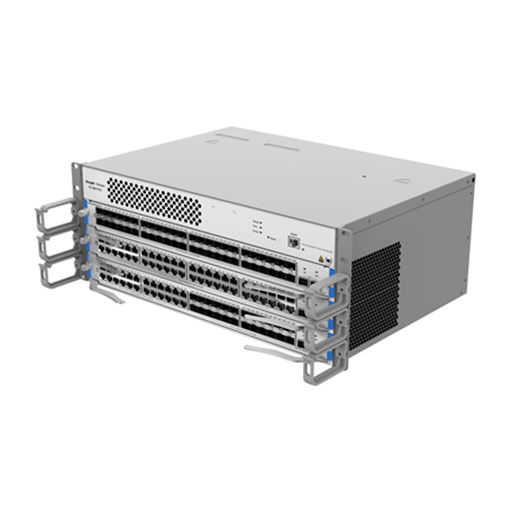

For small and medium-sized enterprises, the Ruijie Reyee RG-NBS7003 L3 Cloud Managed Modular Core Switch Chassis is optimal. When inserted in Slot 1, any line card (separately sold) can serve as a supervisor engine module thanks to a redesigned traffic and chip-intensive architecture, increasing efficiency. Scalability and flexibility are guaranteed by the modular design, which supports up to 48 ports with full 10 Gigabit connectivity and seven (7) different types of line cards. Because of its Virtual Cluster Switching (VCS), which allows for smooth service failover in a matter of seconds, it is a complete network solution designed especially for SMB settings.

Highlights Modular design provides scalability and flexibility
High-Level redundancy, ensuring nonstop Service
Whole network solution specially designed for SMB scenarios
Lifetime management on Ruijie Cloud at anytime anywhere
Compatibility Switch Modules:
M7000-24GT2XS-EA
M7000-48GT2XS-EA
M7000-24SFP2XS-EA
M7000-48SFP2XS-EA
M7000-24GT24SFP2XS-EA
M7000-8XS-EA
M7000-16XS-EA
Power Supply Modules:
RG-PA300I-FS
RG-PA460I-FS
Hardware Excellence With a focus on scalability and flexibility, this innovative switch chassis supports seven (7) types of line cards (sold separately). The architecture innovation ensures higher performance at a lower cost, featuring a new traffic and chip-intensive design where each line card can function as a supervisor engine module when installed in Slot 1. High-level redundancy safeguards against service interruptions, offering two (2) power slots for continuous operation (power supply modules sold separately, see accessories tab). This robust hardware solution not only supports up to 2000 terminal devices or 1000 CCTV (2MP H.265), but also guarantees nonstop service for SMB scenarios.

Efficient Layered Functionality The RG-NBS7003 is a Layer 3 Cloud Managed switch, tailored to meet the evolving needs of SMB environments. With a switching capacity of 480Gbps and a forwarding rate of 360Mpps, this switch chassis ensures efficient data handling and transmission. The Layer 2 features include Jumbo Frame support, Flow Control, STP, RSTP, and more, empowering administrators with versatile network management tools. Equipped with advanced software features such as ACL Entries, Static Routing, SNMP, and OSPF, the RG-NBS7003 provides a robust foundation for network customisation and optimisation.

*Images are for illustrative purposes only; Product does not include switch module or power supplies in the slots

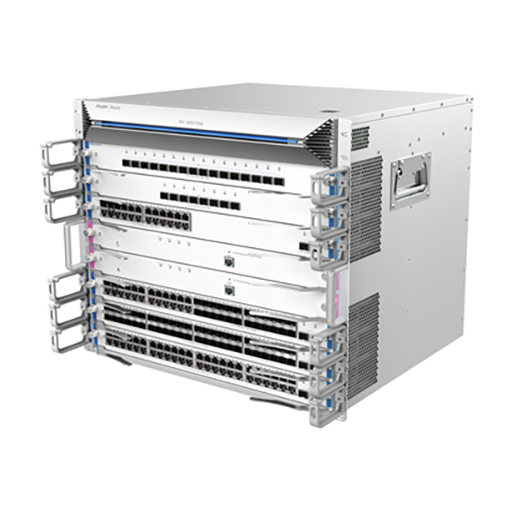

Small and medium-sized enterprises can use the Ruijie Reyee RG-NBS7006 6-Slot L3 Cloud Managed Modular Core Switch Chassis, a 9U swappable box-style network switch. Scalability and flexibility are guaranteed by the modular design, which supports up to 288 gigabit connections through six (6) line card slots. Additionally, the switch has two (2) supervisor engine slots to assist switching and management.

Highlights Modular design provides scalability and flexibility
High-Level Redundancy, Ensuring Nonstop Service
Whole Network Solution Specially Designed for SMB Scenarios
Lifetime management on Ruijie Cloud at anytime anywhere
Efficient Layered Functionality The RG-NBS7006 is a Layer 3 Cloud Managed switch, tailored to meet the evolving needs of SMB environments. With a switching capacity of 1920Gbps and a forwarding rate of 1440Mpps, this switch chassis ensures efficient data handling and transmission. The Layer 2 features include Jumbo Frame support, Flow Control, STP, RSTP, and more, empowering administrators with versatile network management tools. Equipped with advanced software features such as ACL Entries and SNMP the RG-NBS7006 provides a robust foundation for network customisation and optimisation.

Modular Design The RG-NBS7006 offers a modular design, which is a standout feature for scalability and flexibility. This design supports six (6) service slots for switch modules, accommodating various networking needs. This flexibility is crucial for businesses looking to expand their network infrastructure without the need for a complete overhaul, making the switch a future-proof investment.

High Connectivity With the capability to support up to 288 ports of Gigabit connectivity via service modules (sold separately), this switch chassis is well-suited for small to medium-sized businesses that require high-speed network connections. The high number of ports ensures that a wide range of devices can be connected, providing ample networking capacity for growing businesses.

High-Level Redundancy The RG-NBS7006 is engineered with high-level redundancy, ensuring nonstop service and minimal downtime. This feature is particularly important for businesses where continuous network availability is critical. The redundancy ensures that the network remains operational even in the event of a component failure, thereby safeguarding against potential business disruptions.

Lifetime Cloud Management A significant feature of the RG-NBS7006 is its lifetime management on Ruijie Cloud, accessible anytime and anywhere. This cloud-based management simplifies network operations, allowing for remote monitoring and management of the network infrastructure. The convenience of cloud management is a huge plus for businesses seeking efficient and flexible network administration.

*Images are for illustrative purposes only; Product does not include switch module or power supplies in the slots
