QNAP makes it easy to take control of your data with some of the most versatile and powerful NAS systems available. At Comms Express, we offer the complete range, including compact desktop NAS for your home office and heavy-duty rackmount servers for enterprise data centres.
These systems do more than just store files; they act as complete hubs for virtualisation, creative workflows, and secure data protection. Whether you need high-speed connectivity or a reliable backup solution that grows with you, QNAP has a high-performance option ready to go, all backed by our fast delivery and expert advice.
The QNAP TS-h765eU-8G is a compact 1U rackmount NAS designed for environments where space is limited but dependable storage is essential. Built with four 3.5" SATA drive bays and additional NVMe expansion options, it supports flexible storage configurations for backups, file sharing, and virtualization workloads.
Powered by an Intel Atom processor and running the QuTS hero operating system with ZFS-based data protection, this NAS provides reliable performance, advanced snapshot capabilities, and strong data integrity. Its short-depth chassis makes it suitable for small racks, edge deployments, and network cabinets while still delivering the connectivity and storage versatility required for modern IT environments.
Key Features of QNAP TS-h765eU-8G
1U short-depth design, Intel® Atom 4-core processor (Up to 3.4GHz)
3x E1.S/M.2 PCIe NVMe slots, 2 x 2.5GbE, USB 3.2 Gen 1 (5Gbps)
Long-term availability (until 2031)
The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Connect a QNAP short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
1U short-depth design for flexible deployment
The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
Powerful expansion with E1.S / M.2 PCIe NVMe slots
The TS-h765eU comes with three E1.S / M.2 PCIe NVMe slots that offer unparalleled NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h765eU to support high-speed 10GbE networking and pair it with M.2 SSDs.
Create SSD system drive
Use the E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
Create SSD storage pool
Create E1.S / M.2 PCIe NVMe SSD volumes to boost intensive data transfer and access performance.
Enable SSD caching
Install E1.S / M.2 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
Upgrade to 10GbE
Install QXG-ES10G1T 10GbE network module for faster network connectivity.
Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade
In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h765eU comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.
Built-in 2.5GbE
The TS-h765eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
Upgradable to 10GbE
You can install up to two QXG-ES10G1T E1.S to single 10GbE network modules via the E1.S / M.2 PCIe NVMe slots.
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking.
The QNAP TBS-h574TX-i5UC-05S01-UK is a compact all-flash NASbook designed for creative professionals and small teams who need high-speed storage and direct workstation connectivity. With Thunderbolt 4, multiple network options, and hot-swappable SSD slots, it delivers quick access to files and smooth collaboration for video editing, graphics, and content creation tasks.
Key Features of QNAP TBS-h574TX-i5UC-05S01-UK
13th Gen Intel® Core™ hybrid-architecture CPU
Five E1.S/M.2 PCIe NVMe SSD slots; hot-swappable
2x Thunderbolt™ 4, 1x 2.5GbE, 1x 10GbE, 2x USB 3.2 Gen 2 (10Gbps)
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.
Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.
The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.
TBS-h574TX is a Thunderbolt™ 4 all-flash NASbook designed for on-location shoots, small studios, small-scale video production teams, and SOHO users. Featuring an Intel® Core™ processor and high-speed I/O, TBS-h574TX enables online editing, visual effects (VFX), file transfer and backup for both Mac® and Windows® creators. Hot-swappable SSD support also ensures uninterrupted project flows. Pre-installed with QuTS hero OS, it supports ZFS data integrity, immutability, and advanced SSD optimization technologies.
All-flash NASbook supporting E1.S SSDs - a perfect companion for video production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook provides five SSD slots in a compact and portable design. Its high-speed read/write performance is specifically tailored for video editors and VFX professionals. Equipped with QNAP enterprise-grade E1.S SSDs, users benefit from a robust combination of performance, stability, and data security. The TBS-h574TX seamlessly works with USB DAS (such as TR-004) for efficient file backup and archiving, that keeps it in optimal condition for a seamless flow into every creative challenge.
Maximize uptime with hot-swappable E1.S / M.2 SSD
Frontline video production teams are sometimes at risk of project interruptions due to unexpected SSD failures in storage devices. The TBS-h574TX supports hot-swappable SSDs, along with conditional automatic RAID replacement with spares. If an SSD enters a critical state, the system automatically moves data from the affected drive to a spare in the RAID group, seamlessly integrating it into the existing RAID without the need for RAID rebuilding. This significantly reduces the risk of data loss.
QNAP Enterprise E1.S SSDs: Performance, Reliability, Security
QNAP-certified enterprise E1.S SSDs are built for high-density data access and include multiple layers of data protection, ensuring stable, high-speed performance for creative professionals.
High-performance SSDs. Effective heat dissipation.
Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.
Thunderbolt™ 4 direct connection to workstations for higher productivity
The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.
Compact, aesthetic, yet unmatched performance
The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving - smaller than A4 paper and with only 2.54 liters in volume - ideal for small-scale studios or video production teams looking for a portable solution.
Next-gen Intel® Core™ processors with hybrid architecture for multitasking potential
The TBS-h574TX adopts the 13th Gen Intel® Core™ hybrid-architecture processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.
Ultimate visual experience with real-time video transcoding and 4K HDMI™ output
The TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.
The QNAP TBS-h574TX-i5UC-05S02 is a compact all-flash NASbook designed for creators and teams that require fast, dependable shared storage in a space-saving form factor. Powered by an Intel® Core™ i5 processor and built around high-speed NVMe SSD storage, this system delivers rapid data access for large files, media libraries, and collaborative projects.
Dual Thunderbolt™ 4 connectivity allows direct workstation connections for quick transfers and smooth editing workflows, while integrated 10GbE networking supports high-bandwidth environments. Its portable design, quiet operation, and flash-based architecture make it a practical choice for studios, creative professionals, and small teams working with demanding digital content.
Key Features of QNAP TBS-h574TX-i5UC-05S02
13th Gen Intel® Core™ hybrid-architecture CPU
Five E1.S/M.2 PCIe NVMe SSD slots; hot-swappable
2x Thunderbolt™ 4, 1x 2.5GbE, 1x 10GbE, 2x USB 3.2 Gen 2 (10Gbps)
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.
Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.
The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.
All-flash NASbook supporting E1.S SSDs - a perfect companion for video production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook provides five SSD slots in a compact and portable design. Its high-speed read/write performance is specifically tailored for video editors and VFX professionals. Equipped with QNAP enterprise-grade E1.S SSDs, users benefit from a robust combination of performance, stability, and data security. The TBS-h574TX seamlessly works with USB DAS (such as TR-004) for efficient file backup and archiving, that keeps it in optimal condition for a seamless flow into every creative challenge.
Maximize uptime with hot-swappable E1.S / M.2 SSD
Frontline video production teams are sometimes at risk of project interruptions due to unexpected SSD failures in storage devices. The TBS-h574TX supports hot-swappable SSDs, along with conditional automatic RAID replacement with spares. If an SSD enters a critical state, the system automatically moves data from the affected drive to a spare in the RAID group, seamlessly integrating it into the existing RAID without the need for RAID rebuilding. This significantly reduces the risk of data loss.
QNAP Enterprise E1.S SSDs: Performance, Reliability, Security
QNAP-certified enterprise E1.S SSDs are built for high-density data access and include multiple layers of data protection, ensuring stable, high-speed performance for creative professionals.
High-performance SSDs. Effective heat dissipation.
Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.
Thunderbolt™ 4 direct connection to workstations for higher productivity
The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.
Compact, aesthetic, yet unmatched performance
The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving - smaller than A4 paper and with only 2.54 liters in volume - ideal for small-scale studios or video production teams looking for a portable solution.
Next-gen Intel® Core™ processors with hybrid architecture for multitasking potential
The TBS-h574TX adopts the 13th Gen Intel® Core™ hybrid-architecture?processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.
Ultimate visual experience with real-time video transcoding and 4K HDMI™ output
The TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.
Build the best music server with Roon
Designed for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX, and consolidates it into Roon's interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.
Leverage AI to predict NVMe SSD drive failure
Featuring AI-powered diagnostics technology, ULINK DA Drive Analyzer leverages historical usage data of millions of drives to intelligently predict drive failure. It supports NVMe SSD failure prediction*, allowing you to prepare in advance for drive failure before it occurs and ensure the safety of data stored on the TBS-h574TX.

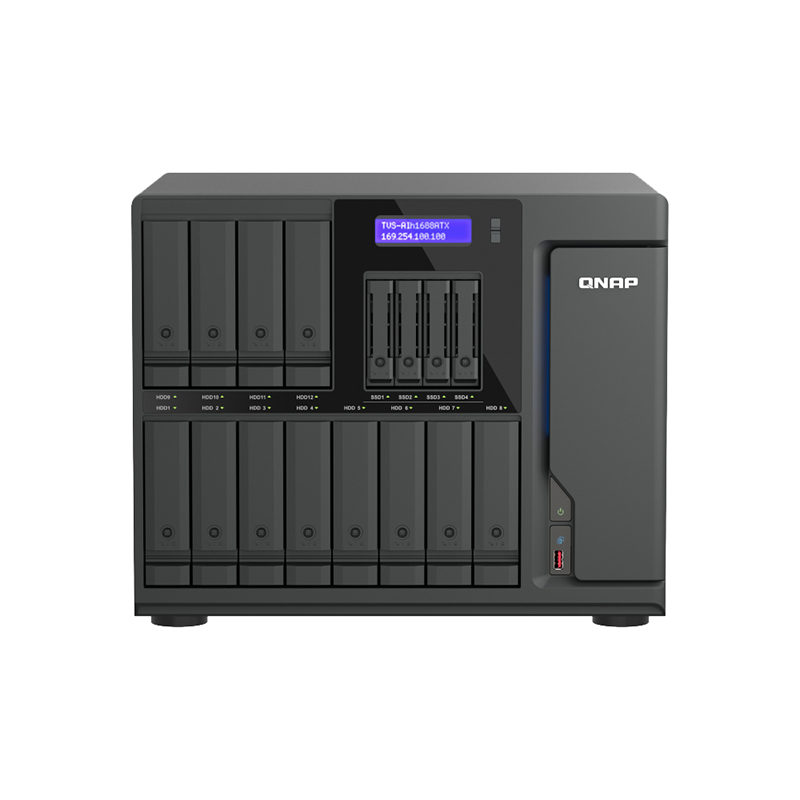

The QNAP TVS-AIh1688ATX-U7-32G combines high-capacity storage and advanced computing in a single tower, ideal for handling AI workloads, virtualization, and high-speed data access. With 12 SATA bays and 4 U.2 NVMe slots, it offers versatile storage options while the Intel Core Ultra 7 processor and 32 GB DDR5 memory support demanding tasks with precision. This system caters to large-scale file management, content editing, and AI-driven analytics without compromise.
Key Features of QNAP TVS-AIh1688ATX-U7-32G
Intel® Core™ Ultra CPU; up to 36 TOPS AI performance
12x HDD and 4x U.2 SSD hybrid storage
2x 2.5GbE, 2x 10GBASE-T, 3x PCIe Gen 4 slots
Integrated CPU, GPU, and NPU accelerate AI image applications, enabling faster facial and object recognition.
Equipped with 12 SATA HDD bays and 4 U.2 NVMe / SATA SSD slots, balancing massive capacity with high-speed performance.
Expand via PCIe cards to 25/100GbE, ideal for virtualization, intensive file access, media transfer, and high-speed backup/restore tasks.
Delivers outstanding graphics processing and compute performance to accelerate AI inference, media transcoding, and multitasking efficiency.
Connect multiple QNAP JBODs to flexibly scale with business growth and store massive datasets or backups.
Powerful Intel® Core™ Ultra processor with up to 24 cores
The TVS-AIh1688ATX is powered by the next-generation Intel® Core™ Ultra processor, delivering a major leap in multitasking performance, AI computing, and energy efficiency. It accelerates AI inference, multimedia processing, and virtual machine workloads—providing a smarter storage platform with higher performance and lower power consumption.
CPU: Intel® Core™ Ultra 9 24-core (8P+16E)/24-thread processor (Up to 5.6 GHz); with built-in Intel® Arc™ Graphics
Memory: DDR5 ECC (Error-Correcting Code) RAM, up to 192 GB (4 x 48 GB)
Up to 36 TOPS, accelerating AI computing and image recognition
The TVS-AIh1688ATX combines powerful CPU, GPU, and NPU resources to deliver up to 36 TOPS of AI performance. Optimized for the QNAP AI Core engine, it supercharges NAS image recognition workloads—making applications faster, smarter, and more efficient.
DDR5 ECC RAM
The TVS-AIh1688ATX is equipped with DDR5 ECC memory for server-grade stability, working seamlessly with its powerful processor to maximize overall system performance. With support for up to 192 GB of memory, it easily handles memory-intensive workloads and complex multitasking applications.
High-speed U.2 NVMe /SATA SSD slots to tackle performance demands
The TVS-AIh1688ATX features four 2.5-inch SSD slots that support high-performance U.2 NVMe PCIe Gen 4 x2 SSDs (up to 32 Gb/s per slot) or economical SATA 6Gb/s SSDs. By pairing with ultra-fast U.2 NVMe SSDs, it significantly boosts performance for latency-sensitive and intensive workloads such as AI applications, virtualization, and multimedia processing.
Enable SSD caching
Accelerates random read/write performance (IOPS) and reduce latency.
Configure SSD storage pool
Boosts data transfer speeds and access efficiency.
Configure SSD system drive
Use U.2 SSD storage pool as system drives for QuTS hero, greatly improving metadata management and database efficiency for overall system performance.
Standard 2.5/10GbE, expandable to ultra-fast 100GbE
The TVS-AIh1688ATX supports multi-port high-speed networking to meet enterprise demands for large file transfers, high-speed backup/restore, and running multiple virtual machines.
Built-in 2.5/10GbE ports
Two 2.5GbE and two 10GBASE-T ports, supports Port Trunking for higher bandwidth potential and network redundancy.
Scalable to 100GbE
Empowers organizations to tackle the most demanding, performance-intensive applications.
Built-in high-speed connectivity
The TVS-AIh1688ATX features built-in USB 4 Type-C ports and an HDMI™ 2.1 output. These interfaces provide high-speed direct connections and local display output without additional configuration.
PCIe expansion options
Equipped with three PCIe Gen 4 expansion slots, the TVS-AIh1688ATX delivers double the bandwidth of PCIe Gen 3. Users can install a wide range of expansion cards to tailor the system for specific workloads.
Flexible expansion to petabyte-scale storage
The TVS-AIh1688ATX can be daisy-chained with multiple high-performance QNAP SAS-interface JBOD expansion enclosures. For example, by connecting eight 16-bay TL-R1620Sep-RP JBOD units, you can add up to 128 additional drives—eliminating storage capacity concerns as your data grows.
The QNAP TS-h1277AFX-R7-32G is a 12-bay all-flash desktop NAS designed for demanding workloads. Powered by an AMD Ryzen 7 8-core processor and 32GB DDR5 memory, it delivers high-speed data access, seamless multi-user operations, and reliable storage performance for creative projects, virtualization, and large file management.
Key Features of QNAP TS-h1277AFX-R7-32G
12-bay SATA all-flash NAS
AMD Ryzen™ 9000 Series processor
2x 10GBASE-T, 2x 2.5GbE, 3x PCIe Gen 4 slots
Featuring advanced DDR5 ECC memory with up to 192 GB support, delivering exceptional stability for demanding workloads.
Boosts efficiency and durability with real-time deduplication and SSD failure prevention.
WORM (Write Once, Read Many) technology ensures data integrity and protection against tampering.
Upgrade to 25GbE, add M.2 SSDs, or connect JBOD units to scale performance and storage capacity.
Multiple network ports for seamless connectivity, with expansion via network switches for more devices and workstations.
Power-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and simultaneously runs multiple tasks.
Powered by AMD Ryzen™ 7 9000 Series and DDR5 RAM
The TS-h1277AFX, featuring the AMD Ryzen™ 9000 Series processor with Zen 5 architecture and DDR5 memory, offers higher bandwidth, lower latency, and reduced power consumption, delivering exceptional performance for critical applications.
CPU: AMD Ryzen™ 7 9000 Series 8-core/16-thread processor (Up to 5.5 GHz)
Memory: DDR5 ECC (Error-Correcting Code) RAM (up to 192 GB, 4 x 48 GB)
Designed to blend in, built to stand out
The TS-h1277AFX features advanced cooling for near-silent operations, providing effective cooling without distracting noises. With a lightweight and stylish design, the TS-h1277AFX is a perfect fit for modern work environments.
Noise under standby mode: 19.0 dBA
Noise under normal mode: 32.0 dBA
Essential and fast for creative projects
The TS-h1277AFX all-flash storage solution is engineered to meet the demands of modern data-intensive workflows, including 4K/8K video editing, visual effects (VFX), and virtual desktop infrastructure (VDI). Facilitating cross-platform collaboration, streamlined workflows, and robust data security, it's ideal for professional media production, enterprise environments, and beyond.
Built-in 10GbE & 2.5GbE, upgradeable to 25GbE
Direct connectivity for up to 10 PC/workstations: With 2 x 10GbE and 2 x 2.5GbE ports, plus PCIe slots for expansion, the TS-h1277AFX supports direct connection of up to 10 PCs/workstations without a switch.
Multi-user collaboration with network switch: Upgrade with a 25GbE expansion card and high-speed switch for seamless multimedia collaboration, enabling efficient file access and real-time editing across multiple workstations.
Supercharge your workstation with PCIe Gen 4 slots
The TS-h1277AFX features three PCIe Gen 4 slots, delivering double the I/O performance of PCIe Gen 3. This provides versatile expansion options, optimizing application performance and overall system efficiency.
Network Expansion: 2.5/10/25GbE Expansion Card
Maximize bandwidth for large file access, backup, and virtualization with expansion cards, and further boost transfer speeds through SMB Multichannel connection aggregation.
M.2 Slot Expansion: QM2 Expansion Card
Add M.2 SSDs for high-speed storage pools or cache acceleration, reducing latency and improving overall system responsiveness.
GPU Expansion: Graphics Card
Enhance video editing and transcoding capabilities, or leverage GPU Passthrough for accelerating virtual machine graphics processing.
Storage Expansion: Storage Expansion Cards
Expand storage capacity by connecting multiple high-performance QNAP JBOD devices, ideal for large-scale data storage, backups, and long-term archiving.
Future-proof your storage with JBOD scalability
As file volumes and storage needs grow, the TS-h1277AFX can connect up to eight QNAP 16-bay TL-R1620Sep-RP JBOD expansion units, adding up to 128 additional hard drives and providing substantial storage capacity.
Note: QNAP JBOD enclosures can only be used as an independent storage pool or volume. They cannot be combined with the storage pool or disk volume of the NAS host. NAS applications can only be installed on the host NAS.
The QNAP TS-h2477AXU-RP is a high-capacity 24-bay rackmount NAS built for demanding storage environments. Powered by an AMD Ryzen™ 7 PRO 7000 Series processor and equipped with the ZFS-based QuTS hero operating system, it delivers fast data access, strong multi-tasking performance, and comprehensive data integrity features. Its combination of large storage capacity, expandable memory, and high-speed networking makes it ideal for businesses handling large files, virtual machines, and multi-user workflows.
Key Features of QNAP TS-h2477AXU-RP-R7-32G
QuTS hero OS supports WORM, ZFS deduplication, compression, and high-volume snapshots to ensure data integrity and long-term retention.
Supports up to 192 GB DDR5 RAM, delivering stability and performance for memory-intensive applications and multi-VM workloads (ECC RAM is also supported).
Easily scale with 25GbE adapters, GPUs, or storage expansion cards—customize hardware to match evolving performance needs.
Equipped with dual 10GbE and dual 2.5GbE ports, ideal for fast multi-user file sharing, low-latency virtualization, and high-throughput media workflows.
Compatible with QNAP SAS and PCIe JBOD expansion units—build a flexible, high-capacity storage infrastructure for long-term growth.
Supported until 2030 to ensure stability for enterprise IT planning and infrastructure lifecycle management.
Processor
AMD Ryzen™ 7 PRO 7000 series processor features 8 cores and 16 threads, with speeds up to 5.3 GHz. Integrated AMD Radeon™ Graphics provides hardware-accelerated graphics processing.
Memory
Equipped with DDR5 non-ECC memory, expandable to 192 GB (4 x 48 GB).
Note:ECC memory is supported but cannot be mixed with non-ECC modules.
Flexible Expansion to Petabyte-Scale Storage
The TS-h2477AXU-RP, when equipped with 24 × 30 TB drives, provides up to 600 TB of storage capacity. You can further scale by connecting multiple high-performance QNAP JBOD expansion units that support SAS or SATA drives. For example, connecting 8 × 24-bay PCIe JBOD TL-R2400PES-RP units adds 192 additional drives, eliminating your storage capacity concerns.
Built-in 10GbE & 2.5GbE, upgradeable to 25GbE
Supports Port Trunking for redundant connections: Dual 10GbE and 2.5GbE ports with optional 25GbE expansion. Aggregates bandwidth and ensures network fault tolerance for stable data transfer under load or failure.
Multi-user collaboration with network switch: Upgrade with a 25GbE expansion card and high-speed switch for seamless multimedia collaboration, enabling efficient file access and real-time editing across multiple workstations.
M.2 PCIe Gen 5 slots enable flexible upgrades
The TS-h2477AXU-RP features two M.2 2280 PCIe Gen 5 slots which support NVMe SSDs for exceptional read/write speeds. PCIe Gen 5 is backwards compatible with PCIe Gen 4 and Gen 3, providing flexible storage performance and expansion options.
Note: M.2 SSDs are sold separately. Due to limited physical space, you should remove large heatsinks from M.2 SSDs and replace them with QNAP’s M.2 SSD heatsink before installing in the TS-h2477AXU-RP.
Optimized PCIe Gen 4 Slots for Advanced Expansion Cards
The TS-h2477AXU-RP has three PCIe Gen 4 slots which provide versatile expansion options, optimizing application performance and overall system efficiency.
Network Expansion: 2.5/10/25GbE Expansion Card
Add more network ports and bandwidth to speed up large file transfers, backups, and virtualization. Port Trunking boosts performance further while ensuring network resilience.
M.2 Slot Expansion: QM2 Expansion Card
Add M.2 SSDs for high-speed storage pools or cache acceleration, reducing latency and improving overall system responsiveness.
GPU Expansion: Graphics Card
Enhance video editing and transcoding capabilities or leverage GPU Passthrough to accelerate virtual machine graphics processing.
Storage Expansion: Storage Expansion Cards
Expand storage capacity by connecting multiple high-performance QNAP JBOD devices, ideal for large-scale data storage, backups, and long-term archiving.
Secure data access at your fingertips
Access NAS data like from a local folder: Map your TS-h2477AXU-RP NAS folders as network drives on your computer, and access files like they were stored locally.
Cross-platform file sharing: Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-h2477AXU-RP enables seamless file sharing and transfer across Windows®, macOS® and Linux® computers, without compatibility concerns.
Secure remote access: Use QVPN to create a secure virtual private network to access to the TS-h2477AXU-RP. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.
Compatible with top-tier solutions
The TS-h2477AXU-RP supports VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™ mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes®, the TS-h2477AXU-RP is also ideal block storage for Kubernetes® containerized apps.
The QNAP TVS-AIh1688ATX-U9-48G is a high-performance NAS designed to handle demanding storage and AI workloads. With 12 SATA bays and 4 U.2 NVMe slots, it delivers fast access to large datasets while supporting AI-driven applications and virtualization tasks. Integrated CPU, GPU, and NPU accelerate image and object recognition, making it suitable for organizations that require speed, reliability, and versatility in a single system.
Key Features of QNAP TVS-AIh1688ATX-U9-48G
Intel Core Ultra U7 CPU with integrated GPU and NPU for AI acceleration
16-bay storage: 12 x 3.5" SATA + 4 x U.2 NVMe slots
48GB DDR5 ECC memory, expandable to 192GB
2 x 10GBASE-T + 2 x 2.5GbE network ports
3 x PCIe Gen 4 slots for network or storage expansion
Supports QuTS hero OS with ZFS for data integrity, snapshots, and deduplication
High-speed AI image processing up to 36 TOPS
Hot-swappable drives and RAID support for flexible storage configurations
Powerful Intel® Core™ Ultra processor with up to 24 cores
The TVS-AIh1688ATX is powered by the next-generation Intel® Core™ Ultra processor, delivering a major leap in multitasking performance, AI computing, and energy efficiency. It accelerates AI inference, multimedia processing, and virtual machine workloads—providing a smarter storage platform with higher performance and lower power consumption.
Up to 36 TOPS, accelerating AI computing and image recognition
The TVS-AIh1688ATX combines powerful CPU, GPU, and NPU resources to deliver up to 36 TOPS of AI performance. Optimized for the QNAP AI Core engine, it supercharges NAS image recognition workloads—making applications faster, smarter, and more efficient.
DDR5 ECC RAM
The TVS-AIh1688ATX is equipped with DDR5 ECC memory for server-grade stability, working seamlessly with its powerful processor to maximize overall system performance. With support for up to 192 GB of memory, it easily handles memory-intensive workloads and complex multitasking applications.
High-speed U.2 NVMe /SATA SSD slots to tackle performance demands
The TVS-AIh1688ATX features four 2.5-inch SSD slots that support high-performance U.2 NVMe PCIe Gen 4 x2 SSDs (up to 32 Gb/s per slot) or economical SATA 6Gb/s SSDs. By pairing with ultra-fast U.2 NVMe SSDs, it significantly boosts performance for latency-sensitive and intensive workloads such as AI applications, virtualization, and multimedia processing.
Enable SSD caching
Accelerates random read/write performance (IOPS) and reduce latency.
Configure SSD storage pool
Boosts data transfer speeds and access efficiency.
Configure SSD system drive
Use U.2 SSD storage pool as system drives for QuTS hero, greatly improving metadata management and database efficiency for overall system performance.
Standard 2.5/10GbE, expandable to ultra-fast 100GbE
The TVS-AIh1688ATX supports multi-port high-speed networking to meet enterprise demands for large file transfers, high-speed backup/restore, and running multiple virtual machines.
Built-in 2.5/10GbE ports
Two 2.5GbE and two 10GBASE-T ports, supports Port Trunking for higher bandwidth potential and network redundancy.
Scalable to 100GbE
Empowers organizations to tackle the most demanding, performance-intensive applications.
Built-in high-speed connectivity
The TVS-AIh1688ATX features built-in USB 4 Type-C ports and an HDMI™ 2.1 output. These interfaces provide high-speed direct connections and local display output without additional configuration.
PCIe expansion options
Equipped with three PCIe Gen 4 expansion slots, the TVS-AIh1688ATX delivers double the bandwidth of PCIe Gen 3. Users can install a wide range of expansion cards to tailor the system for specific workloads.
Flexible expansion to petabyte-scale storage
The TVS-AIh1688ATX can be daisy-chained with multiple high-performance QNAP SAS-interface JBOD expansion enclosures. For example, by connecting eight 16-bay TL-R1620Sep-RP JBOD units, you can add up to 128 additional drives—eliminating storage capacity concerns as your data grows.
