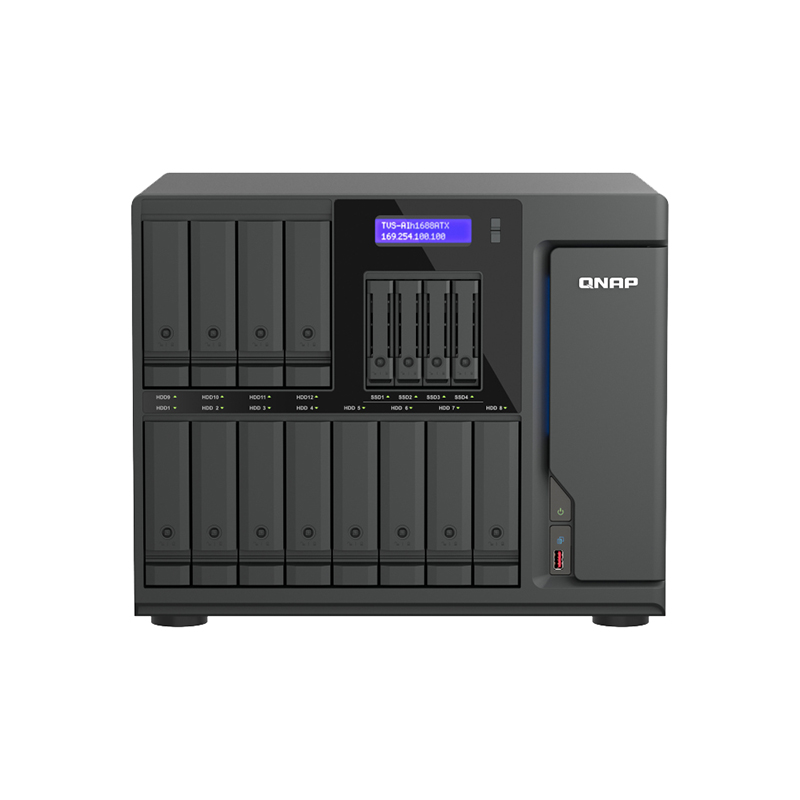

The QNAP TVS-AIh1688ATX-U7-32G combines high-capacity storage and advanced computing in a single tower, ideal for handling AI workloads, virtualization, and high-speed data access. With 12 SATA bays and 4 U.2 NVMe slots, it offers versatile storage options while the Intel Core Ultra 7 processor and 32 GB DDR5 memory support demanding tasks with precision. This system caters to large-scale file management, content editing, and AI-driven analytics without compromise.
The TVS-AIh1688ATX is powered by the next-generation Intel® Core™ Ultra processor, delivering a major leap in multitasking performance, AI computing, and energy efficiency. It accelerates AI inference, multimedia processing, and virtual machine workloads—providing a smarter storage platform with higher performance and lower power consumption.
CPU: Intel® Core™ Ultra 9 24-core (8P+16E)/24-thread processor (Up to 5.6 GHz); with built-in Intel® Arc™ Graphics
Memory: DDR5 ECC (Error-Correcting Code) RAM, up to 192 GB (4 x 48 GB)
The TVS-AIh1688ATX combines powerful CPU, GPU, and NPU resources to deliver up to 36 TOPS of AI performance. Optimized for the QNAP AI Core engine, it supercharges NAS image recognition workloads—making applications faster, smarter, and more efficient.
The TVS-AIh1688ATX is equipped with DDR5 ECC memory for server-grade stability, working seamlessly with its powerful processor to maximize overall system performance. With support for up to 192 GB of memory, it easily handles memory-intensive workloads and complex multitasking applications.

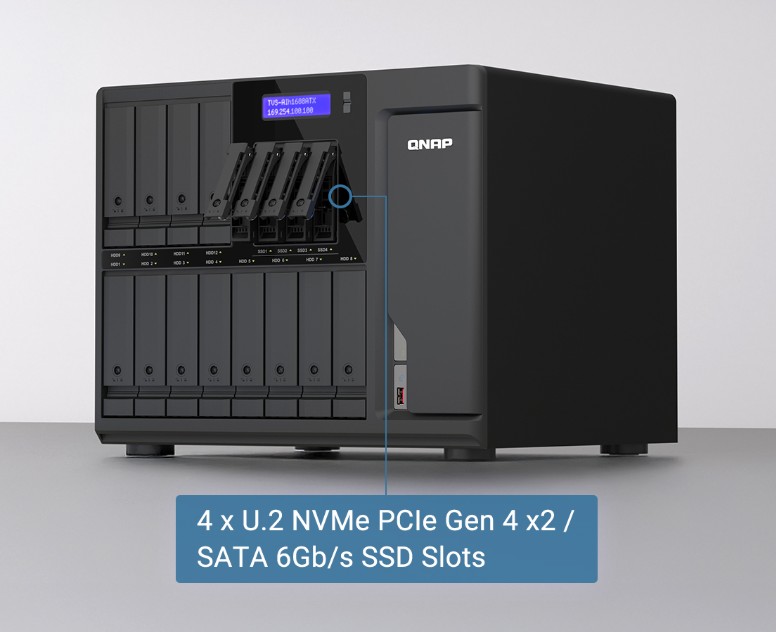

The TVS-AIh1688ATX features four 2.5-inch SSD slots that support high-performance U.2 NVMe PCIe Gen 4 x2 SSDs (up to 32 Gb/s per slot) or economical SATA 6Gb/s SSDs. By pairing with ultra-fast U.2 NVMe SSDs, it significantly boosts performance for latency-sensitive and intensive workloads such as AI applications, virtualization, and multimedia processing.
Accelerates random read/write performance (IOPS) and reduce latency.
Boosts data transfer speeds and access efficiency.
Use U.2 SSD storage pool as system drives for QuTS hero, greatly improving metadata management and database efficiency for overall system performance.
The TVS-AIh1688ATX supports multi-port high-speed networking to meet enterprise demands for large file transfers, high-speed backup/restore, and running multiple virtual machines.
Two 2.5GbE and two 10GBASE-T ports, supports Port Trunking for higher bandwidth potential and network redundancy.
Empowers organizations to tackle the most demanding, performance-intensive applications.

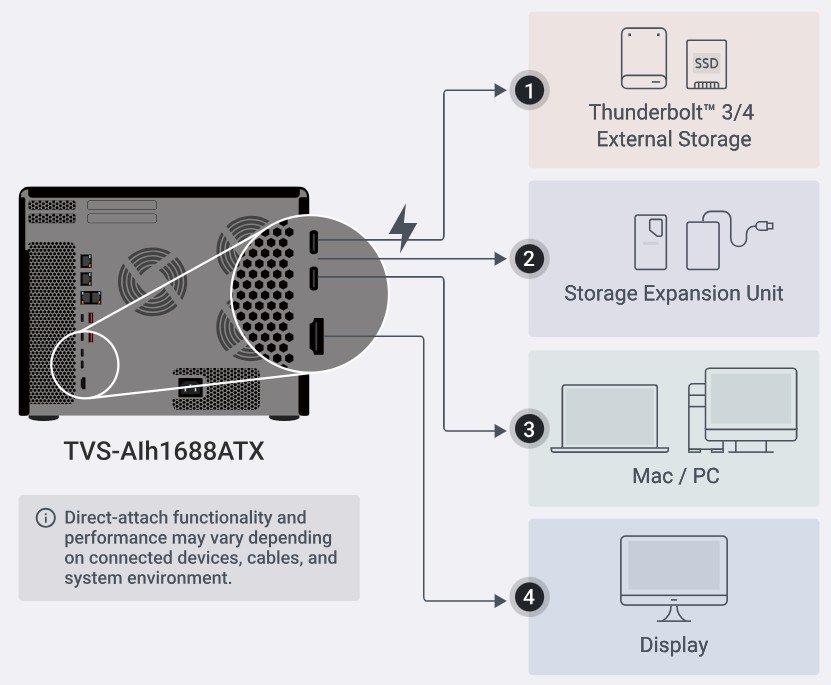

The TVS-AIh1688ATX features built-in USB 4 Type-C ports and an HDMI™ 2.1 output. These interfaces provide high-speed direct connections and local display output without additional configuration.
Equipped with three PCIe Gen 4 expansion slots, the TVS-AIh1688ATX delivers double the bandwidth of PCIe Gen 3. Users can install a wide range of expansion cards to tailor the system for specific workloads.
The TVS-AIh1688ATX can be daisy-chained with multiple high-performance QNAP SAS-interface JBOD expansion enclosures. For example, by connecting eight 16-bay TL-R1620Sep-RP JBOD units, you can add up to 128 additional drives—eliminating storage capacity concerns as your data grows.
The QNAP TVS-AIh1688ATX-U7-32G combines high-capacity storage and advanced computing in a single tower, ideal for handling AI workloads, virtualization, and high-speed data access. With 12 SATA bays and 4 U.2 NVMe slots, it offers versatile storage options while the Intel Core Ultra 7 processor and 32 GB DDR5 memory support demanding tasks with precision. This system caters to large-scale file management, content editing, and AI-driven analytics without compromise.
The TVS-AIh1688ATX is powered by the next-generation Intel® Core™ Ultra processor, delivering a major leap in multitasking performance, AI computing, and energy efficiency. It accelerates AI inference, multimedia processing, and virtual machine workloads—providing a smarter storage platform with higher performance and lower power consumption.
CPU: Intel® Core™ Ultra 9 24-core (8P+16E)/24-thread processor (Up to 5.6 GHz); with built-in Intel® Arc™ Graphics
Memory: DDR5 ECC (Error-Correcting Code) RAM, up to 192 GB (4 x 48 GB)
The TVS-AIh1688ATX combines powerful CPU, GPU, and NPU resources to deliver up to 36 TOPS of AI performance. Optimized for the QNAP AI Core engine, it supercharges NAS image recognition workloads—making applications faster, smarter, and more efficient.
The TVS-AIh1688ATX is equipped with DDR5 ECC memory for server-grade stability, working seamlessly with its powerful processor to maximize overall system performance. With support for up to 192 GB of memory, it easily handles memory-intensive workloads and complex multitasking applications.
The TVS-AIh1688ATX features four 2.5-inch SSD slots that support high-performance U.2 NVMe PCIe Gen 4 x2 SSDs (up to 32 Gb/s per slot) or economical SATA 6Gb/s SSDs. By pairing with ultra-fast U.2 NVMe SSDs, it significantly boosts performance for latency-sensitive and intensive workloads such as AI applications, virtualization, and multimedia processing.
Accelerates random read/write performance (IOPS) and reduce latency.
Boosts data transfer speeds and access efficiency.
Use U.2 SSD storage pool as system drives for QuTS hero, greatly improving metadata management and database efficiency for overall system performance.
The TVS-AIh1688ATX supports multi-port high-speed networking to meet enterprise demands for large file transfers, high-speed backup/restore, and running multiple virtual machines.
Two 2.5GbE and two 10GBASE-T ports, supports Port Trunking for higher bandwidth potential and network redundancy.
Empowers organizations to tackle the most demanding, performance-intensive applications.
The TVS-AIh1688ATX features built-in USB 4 Type-C ports and an HDMI™ 2.1 output. These interfaces provide high-speed direct connections and local display output without additional configuration.
Equipped with three PCIe Gen 4 expansion slots, the TVS-AIh1688ATX delivers double the bandwidth of PCIe Gen 3. Users can install a wide range of expansion cards to tailor the system for specific workloads.
The TVS-AIh1688ATX can be daisy-chained with multiple high-performance QNAP SAS-interface JBOD expansion enclosures. For example, by connecting eight 16-bay TL-R1620Sep-RP JBOD units, you can add up to 128 additional drives—eliminating storage capacity concerns as your data grows.
