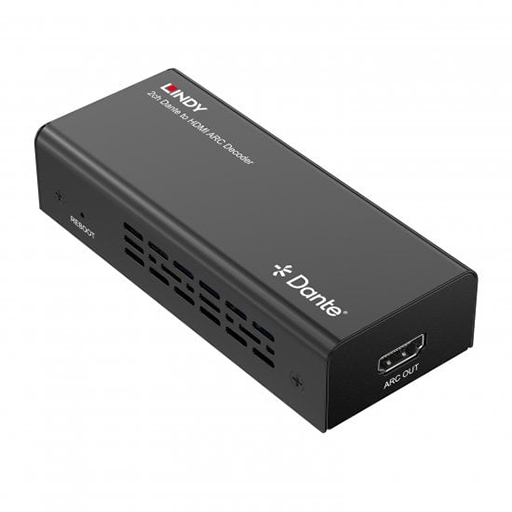

The Lindy 2ch Dante to HDMI ARC Decoder provides a simple way to bridge professional networked audio systems with HDMI ARC-enabled displays and audio equipment. Designed for modern AV environments, it converts Dante and AES67 audio streams into high-quality stereo HDMI ARC output, making it ideal for conference rooms, education facilities, hospitality venues, and digital signage installations. With support for high-resolution 24-bit audio, flexible power options, and seamless integration into existing Dante networks, this compact decoder helps deliver clear and reliable audio across a wide range of applications.
Key Features of Lindy 70621
Converts Dante and AES67 network audio to HDMI ARC output
Supports 2-channel stereo audio transmission
24-bit audio with sample rates up to 96kHz
Compatible with Dante Controller for network management
Powered via PoE or USB-C connection
Compact metal housing for professional installations
Supports network cable runs up to 100 metres
Suitable for conference, education, hospitality, and signage environments
Convert Dante Audio into HDMI ARC Output
The Lindy 2ch Dante to HDMI ARC Decoder provides a reliable solution for converting Dante network audio into high quality HDMI ARC audio making it ideal for professional AV conferencing education and digital signage environments.
Professional Dante Audio Decoding for HDMI ARC Systems
Designed for modern IP-based AV systems this compact decoder extracts 2 channel audio from Dante and AES67 audio networks and converts it into HDMI ARC output with support for multiple sample rates and configurable latency settings. Flexible PoE or USB-C powering and straightforward configuration make it ideal for scalable professional AV installations and distributed audio systems.
Dante to HDMI ARC conversion
Converts Dante audio streams into HDMI ARC audio output.
Supports multiple sample rates
Provides accurate and flexible audio system integration.
PoE or USB-C powered
Supports simplified installation with flexible powering options.
Compact professional design
Ideal for AV racks displays and distributed audio systems.
The 2ch Dante to HDMI ARC Decoder is ideal for routing networked audio to HDMI ARC-enabled displays and AV systems within meeting rooms lecture theatres hospitality venues digital signage installations and distributed audio environments. It is also suitable for corporate AV education and professional audio systems requiring reliable Dante audio playback.
The decoder supports Dante and AES67 protocols with 24-bit audio at 44.1 48 and 96kHz sample rates. It features one RJ45 network input one HDMI ARC output and supports transmission distances up to 100m (328.08ft) over standard Ethernet infrastructure.
Power can be supplied via 802.3af PoE or optional USB-C power input with maximum power consumption of 1W. The compact metal enclosure measures 114 x 48 x 26mm and is designed for dependable deployment within professional AV and distributed audio systems.

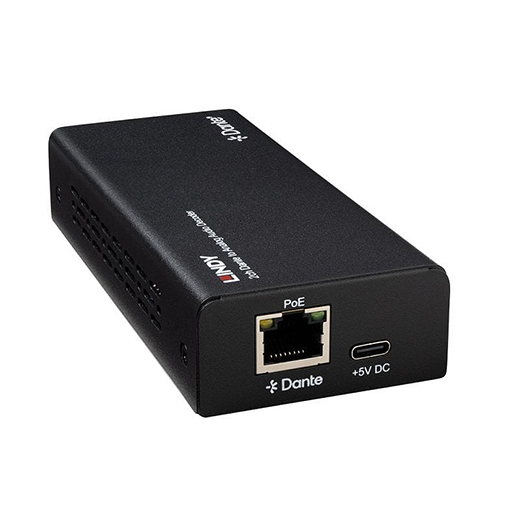

The Lindy 70623 2ch Dante to Analogue Audio Decoder provides an efficient bridge between modern Dante audio networks and traditional analogue audio equipment. Designed for professional AV installations, it converts Dante and AES67 audio streams into high-quality analogue stereo output, making it suitable for integration with amplifiers, mixers, powered speakers, and audio distribution systems. Its compact design, flexible power options, and compatibility with Dante management tools make it a practical choice for environments where networked audio needs to be delivered to analogue playback devices.
Key Features of Lindy 70623
Converts Dante and AES67 network audio to analogue stereo output
Supports 2-channel audio transmission
24-bit audio processing for clear sound reproduction
Compatible with Dante Controller software
Powered via PoE or USB-C connection
Compact metal enclosure for professional installations
Supports network cable runs up to 100 metres
Suitable for AV, education, hospitality, and commercial environments
Convert Dante Audio into Analogue Audio Output
The Lindy 2ch Dante to Analog Audio Decoder provides a reliable and professional solution for converting Dante network audio into high quality analogue audio output making it ideal for AV broadcast installed audio and live sound environments.
Professional Dante Audio Decoding with Flexible Output Control
Designed for dependable audio playback and signal distribution this compact decoder converts Dante and AES67 network audio into balanced or unbalanced analogue output with support for sample rates up to 96kHz at 24-bit resolution. Independent channel gain adjustment configurable latency settings and flexible PoE or USB-C powering provide the precision and adaptability required for modern AV and audio environments.
Integrates Dante network audio into analogue AV systems.
Up to 96kHz / 24-bit audio
Supports high quality audio reproduction and playback.
Independent channel gain control
Allows precise audio level adjustment for connected equipment.
PoE or USB-C powered
Supports simplified and flexible installation options.
The 2ch Dante to Analog Audio Decoder is ideal for connecting Dante network audio systems to analogue amplifiers speakers mixers and audio distribution equipment. It is well suited to corporate AV systems hospitality environments education spaces broadcast facilities and distributed audio installations requiring reliable networked audio playback.
The decoder supports Dante and AES67 protocols with 24-bit audio and sample rates of 44.1 48 88.2 and 96kHz. It features one RJ45 network input a 6-pin Phoenix analogue audio output and supports transmission distances up to 100m (328.08ft) over standard Ethernet infrastructure.
Independent gain adjustment is provided for each channel allowing precise output level configuration across a range of analogue audio systems. Latency settings of 1 2 or 5ms can be configured using Dante Controller for optimised synchronisation within larger AV deployments.

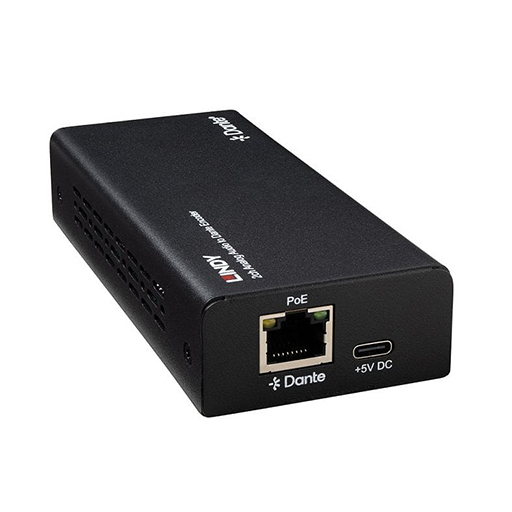

The Lindy 70622 2ch Analogue Audio to Dante Encoder provides an efficient way to bring traditional audio equipment into modern networked audio environments. Supporting both balanced and unbalanced analogue sources, it converts two-channel audio into Dante and AES67 streams for distribution across standard IP networks. With high-resolution audio support, flexible gain adjustment, and compatibility with Dante Controller, this encoder is well suited to professional AV installations where reliable audio transport and straightforward integration are essential.
Key Features of Lindy 70622
Converts analogue audio signals to Dante and AES67 network audio streams
Supports balanced and unbalanced two-channel audio inputs
24-bit audio processing with sample rates up to 96kHz
Independent channel sensitivity adjustment
Selectable input gain settings via integrated DIP switches
Compatible with Dante Controller software
Powered via PoE or USB-C power input
Suitable for broadcast, education, live sound, and corporate AV environments
2ch Analog Audio to Dante Encoder
The Lindy 2ch Analog Audio to Dante Encoder delivers a streamlined and dependable way to transition analogue audio into high quality Dante digital streams enabling seamless integration of legacy equipment within modern IP-based audio systems. Engineered for professional AV corporate broadcast and live sound installations it supports both balanced and unbalanced two channel analogue inputs while maintaining pristine signal fidelity across diverse application environments.
High Quality Audio Conversion
The encoder operates at 44.1 48 88.2 and 96kHz / 24bit ensuring clean and accurate audio conversion suitable for demanding workflows. Each channel includes independent sensitivity adjustment allowing precise alignment with source devices from +24dBu down to -10dBV. Additionally the unit incorporates 2x 5 position DIP switches providing selectable input gain levels at +18dBu +4dBu 0dBu 0dBV and -10dBV.
Flexible Signal Adjustment
This granular control makes it easy to optimise the audio signal for downstream Dante systems or mixed-format installations enhancing interoperability and consistent performance.
Simple Deployment and Network Integration
Designed for simple scalable deployment the encoder supports plug and play operation powered via 802.3af PoE from any compatible network switch or through an optional 5V DC USB C local power supply. Latency settings of 1 2 or 5ms can be configured using Dante Controller allowing integration into both small and complex networked audio environments. The addition of AES67 RTP transport ensures broad compatibility across AV over IP platforms expanding its usefulness in hybrid Dante/AES67 ecosystems.
Built for Professional Installations
Compact robust and professionally engineered the Lindy 2ch Analog Audio to Dante Encoder is an essential tool for bringing non Dante sources such as mixing consoles amplifiers computers and distribution products into advanced networked audio systems.

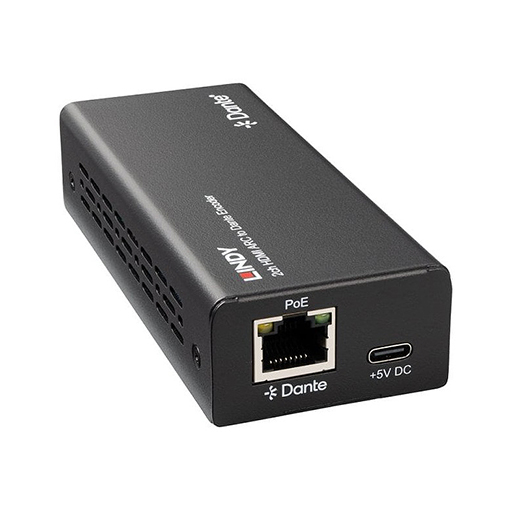

The Lindy 70620 2ch HDMI ARC to Dante Encoder provides a convenient way to bring audio from HDMI ARC-enabled displays into a Dante network. Designed for professional AV environments, it converts two-channel HDMI ARC audio into Dante and AES67 streams, allowing audio to be distributed across standard network infrastructure with minimal complexity. Its compact form factor, flexible power options, and broad compatibility make it a practical addition to meeting spaces, education facilities, hospitality venues, and digital signage installations.
Key Features of Lindy 70620
Converts HDMI ARC audio to Dante and AES67 network audio streams
Supports 2-channel audio transmission
24-bit audio processing at 44.1kHz and 48kHz sample rates
Compatible with Dante Controller for network management
Supports AES67 interoperability for mixed AV-over-IP environments
Powered via PoE or USB-C connection
Compact metal enclosure for professional installations
Suitable for conference, education, hospitality, and signage applications
The Lindy 2ch HDMI ARC to Dante Encoder is an advanced audio interface engineered to convert HDMI ARC 2 channel audio into a pristine Dante digital signal. Developed for seamless integration into modern AV infrastructures this compact plug and play device delivers exceptional clarity precise synchronisation and robust interoperability. Its ability to bridge consumer HDMI ARC audio sources with professional Dante networks makes it an indispensable component for corporate meeting spaces hospitality displays educational environments and Pro AV systems.
Designed for uncompromising audio performance the encoder supports 44.1 / 48kHz sample rates at 24-bit resolution ensuring transparent sound reproduction across a range of applications. With native AES67 RTP support extends compatibility across interoperable ecosystem architectures making the encoder fully suitable for Dante/AES67 deployments.
User friendly control options are central to the device’s design. Input sensitivity and volume levels can be managed via CEC the intuitive web based GUI or through API commands providing complete operational flexibility for system integrators. Powering is equally versatile: the unit operates easily via 802.3af PoE or through an optional 5V DC USB C local power input for installations where PoE is unavailable. This adaptable power strategy simplifies deployment and ensures maximum installation efficiency.

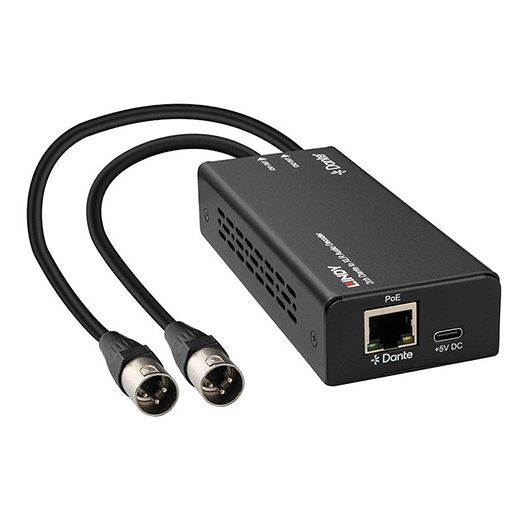

The Lindy 70619 2ch Dante to XLR Audio Decoder provides a straightforward way to connect modern Dante and AES67 audio networks to professional XLR-based audio equipment. Designed for environments where networked audio must be delivered to traditional analogue devices, it converts high-quality digital audio streams into two-channel XLR output. Its compact metal housing, flexible powering options, and compatibility with standard Dante management tools make it well suited to broadcast, live sound, studio, education, and commercial AV installations.
Key Features of Lindy 70619
Converts Dante and AES67 audio streams to analogue XLR output
Supports two-channel audio transmission
24-bit audio processing with sample rates up to 96kHz
Powered via PoE or USB-C connection
Compact metal enclosure for professional deployments
Supports network cable runs up to 100 metres
Convert Dante Audio to Professional XLR Outputs
The Lindy 2ch Dante to XLR Audio Decoder provides a reliable way to convert Dante digital audio into high quality analogue XLR output making it ideal for professional AV broadcast studio and live sound environments.
Professional Dante Audio Decoding for Modern AV Systems
Designed for dependable audio playback and signal distribution this compact decoder converts Dante network audio into two channels of analogue XLR audio with support for sample rates up to 96kHz at 24-bit resolution. With flexible USB-C or PoE power options and compatibility with a wide range of professional audio equipment it offers simple integration into studios live production systems and installed AV environments.
Dual XLR audio outputs
Compatible with amplifiers mixers monitors and other pro audio equipment.
Delivers accurate studio-grade audio performance.
USB-C or PoE powered
Flexible installation options for portable and fixed AV systems.
Robust metal construction for demanding production environments.
The 2ch Dante to XLR Audio Decoder is ideal for connecting Dante network audio systems to analogue amplifiers mixers powered speakers and monitoring equipment. It is well suited to live sound systems studios broadcast facilities corporate AV installations education environments and venues requiring dependable networked audio playback and distribution.
The decoder supports Dante and AES67 protocols with 24-bit audio and sample rates of 44.1 48 88.2 and 96kHz. It features one RJ45 network input two XLR male outputs and supports transmission distances up to 100m (328.08ft) over standard Ethernet infrastructure.
Power can be supplied via USB-C or 802.3af PoE with maximum power consumption of 2W. The compact metal enclosure measures 127 x 53 x 26mm and is designed for practical deployment within professional AV and audio systems.

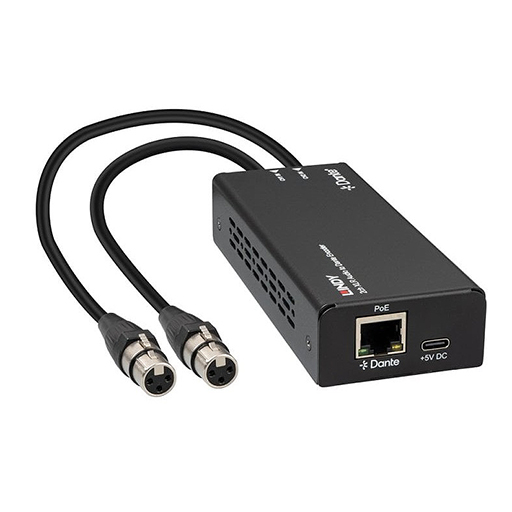

The Lindy 70618 2ch XLR Audio to Dante Encoder provides a convenient way to integrate professional XLR audio equipment into modern Dante and AES67 network environments. Designed for applications where analogue audio sources need to be distributed across an IP network, it converts two channels of XLR audio into high-quality digital streams while maintaining excellent audio fidelity. With support for professional audio standards, flexible power options, and compatibility with Dante management tools, it is well suited to broadcast, studio, live sound, and commercial AV installations.
Key Features of Lindy 70618
Converts two channels of XLR audio to Dante and AES67 network audio streams
Supports professional 24-bit audio with sample rates up to 96kHz
Compatible with Dante Controller for network management
Provides AES67 interoperability for mixed audio-over-IP environments
Powered via PoE or USB-C connection
Compact metal enclosure for professional deployments
Supports network cable runs up to 100 metres
Suitable for live sound, broadcast, studio, and AV installations
Bring Analogue XLR Audio into Dante Networks
The Lindy 2ch XLR Audio to Dante Encoder provides a simple and reliable way to integrate analogue XLR audio sources into Dante networked audio systems making it ideal for professional AV live sound broadcast and installed audio environments.
Seamless Two Channel XLR Conversion for Dante Workflows
Designed to bridge traditional analogue audio equipment with modern digital audio networks this compact encoder converts two XLR input channels into low latency uncompressed Dante audio. With support for PoE USB-C power and Dante Controller software it offers a flexible and scalable solution for integrating mixers DSPs DI boxes compressors and wireless receivers into professional networked audio systems.
The 2ch XLR Audio to Dante Encoder is ideal for connecting analogue audio sources such as mixers DSPs DI boxes compressors and wireless microphone receivers to Dante enabled networks. It is well suited to live sound systems broadcast environments corporate AV installations education spaces houses of worship and venues where reliable long-distance audio distribution is required.
The encoder supports Dante and AES67 protocols with 24-bit audio and sample rates of 44.1 48 88.2 and 96kHz. It provides two XLR female inputs one RJ45 network output and supports transmission distances up to 100m (328.08ft) over standard network infrastructure.
Power can be supplied via USB-C or 802.3af PoE with maximum power consumption of 2.35W. The compact metal housing measures 127 x 53 x 26mm and is designed for practical use in portable rack-mounted and fixed installation environments.

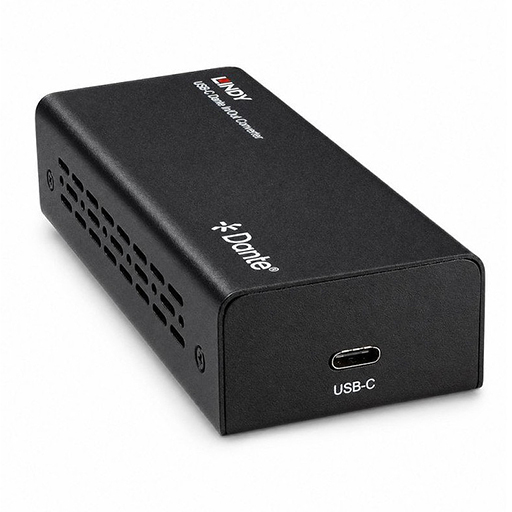

The Lindy 70617 USB-C Dante In/Out Converter provides a convenient connection between USB-C devices and Dante audio networks, allowing two-way audio transmission without the need for additional audio interfaces. Designed for professional AV, conferencing, broadcasting, and content creation environments, it enables laptops, tablets, and mobile devices to send and receive audio across a Dante infrastructure with minimal setup. Its compact design, broad platform compatibility, and support for Dante and AES67 audio standards make it a practical choice for both fixed installations and portable applications.
Key Features of Lindy 70617
Connects USB-C devices directly to Dante and AES67 audio networks
Supports simultaneous 2-channel audio input and output
Compatible with Windows, macOS, iOS, and Android devices
Driver-free operation for quick deployment
Supports professional networked audio workflows
Powered via PoE or USB connection
Compact and portable design
Suitable for conferencing, broadcasting, recording, and AV installations
Simple USB-C Connectivity for Dante Audio Networks
The Lindy USB-C Dante In/Out Converter provides a reliable and straightforward way to integrate modern USB-C devices into Dante audio networks supporting high quality 2 channel recording and playback across professional AV broadcast conferencing and installed audio environments.
Compact Dante Audio Integration with Plug and Play Simplicity
Designed for dependable professional audio workflows this converter allows USB-C equipped devices to connect directly to Dante and AES67 audio networks without additional drivers or complicated configuration. Supporting 44.1/48kHz sampling rates and powered via USB or PoE it offers flexible deployment across portable setups meeting spaces studios and fixed AV installations.
The USB-C Dante In/Out Converter is ideal for conference rooms professional AV systems live sound environments streaming setups studios and installed audio networks where USB-C devices need to exchange audio reliably across Dante infrastructure. Its compact size and simple connectivity also make it suitable for portable production systems and temporary event installations.
The converter supports Dante Ultimo and AES67 protocols with a supported bandwidth of 100Mbps and transmission distances up to 100m (328.08ft). It features a USB Type C input and RJ45 network connection supporting reliable 2 channel audio recording and playback at 44.1/48kHz sampling rates.
Power can be supplied via USB or 802.3af PoE with maximum power consumption of 9W. The compact metal enclosure measures 114 x 48 x 26mm and is suitable for both portable and fixed installation environments.
