Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

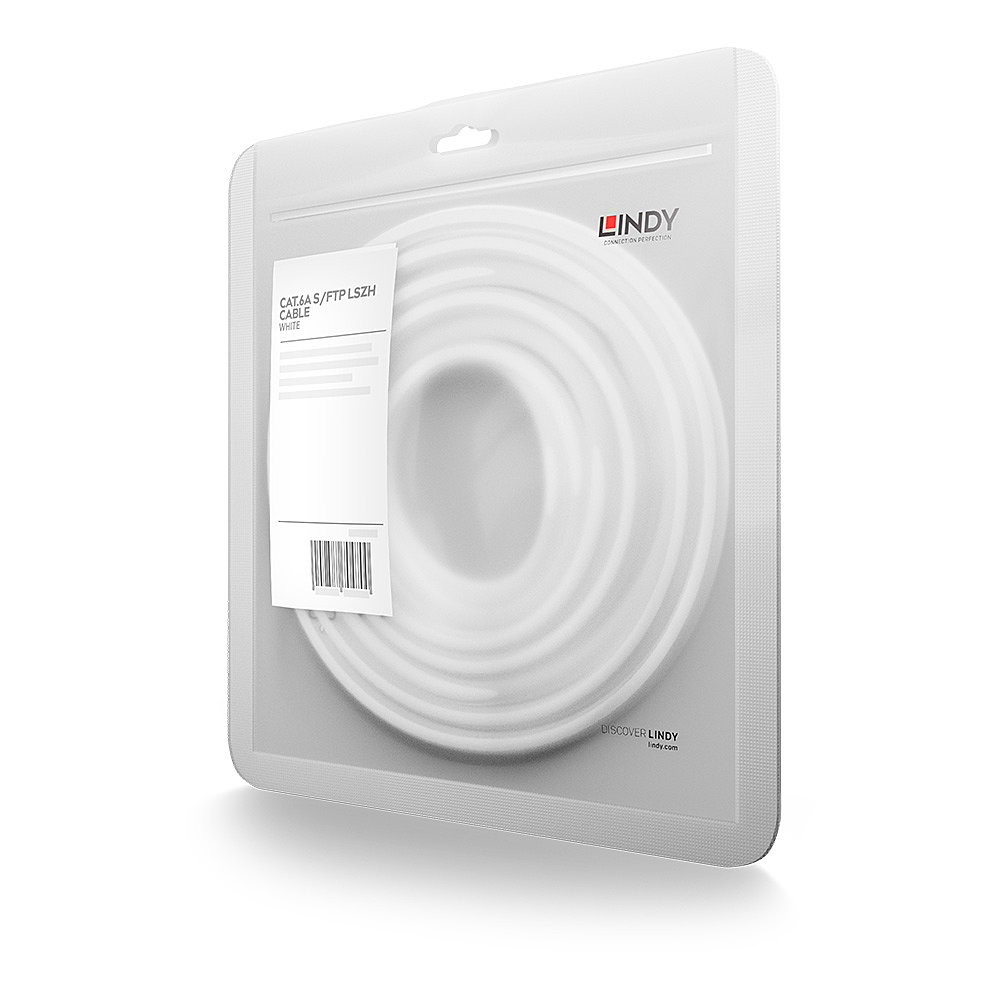

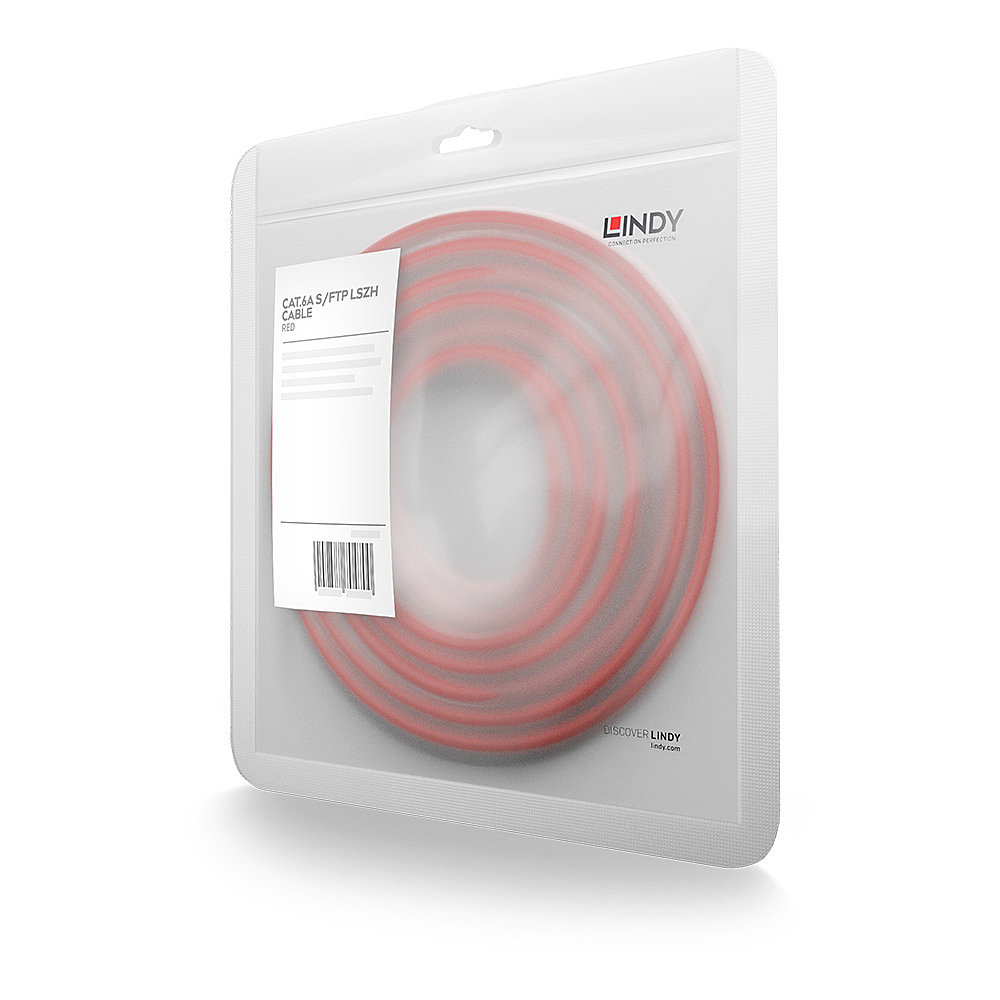

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Features
Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Technical Information
Connectors
Connector A
RJ45 Male
Connector B
RJ45 Male
Housing Material
Polycarbonate
Pin Construction
Brass
Pin Plating
Gold Plated
Connector Plating
Nickel
Dimensions WxDxH
(approx.)
11.6x21.5x8.3mm
(0.46x0.85x0.33in)
Cable Construction
Lengths Available
0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 20m and 30m
Colour
Grey
Type
Cat.6a
Jacket Diameter
6.0mm (0.24in)
Jacket Material
LSZH
Conductor Material
Copper
Conductor Gauge
27AWG
Shielding
Aluminium Braid
Specifications
Supported Bandwidth
500MHz
Nominal Attenuation
49.3dB/100m @ 500MHz
Minimum Bend Radius
72mm (2.84in)
Operating Temperature
-10°C - 60°C (14°F - 140°F)
Storage Temperature
-20°C - 75°C (-4°F - 167°F)
