The S4A29A#AC HPE Networking Instant On Switch 1940 provides eight Gigabit Ethernet ports with Class 6 PoE support, giving small and growing networks a compact way to connect and power devices from a single switch. With two 1GbE SFP uplink ports, 20Gbps switching capacity and Layer 2+ capabilities with static routing, it supports wired connectivity for access points, cameras, VoIP phones, computers and other network equipment. Instant On cloud, mobile and local web management provides convenient access to configuration and monitoring, while built-in security features help protect network traffic and management access.
Key Features of Compulocks S4A29A#AC
8 x autosensing 10/100/1000BASE-T Gigabit Ethernet ports
IEEE 802.3af/at/bt Class 6 PoE support on all 8 ports
124W total PoE power budget
Up to 60W PoE power per port
2 x 1GbE SFP uplink ports
20Gbps switching capacity
16,000 MAC address entries
9216-byte jumbo frame support
Layer 2+ switching with static routing
Gigabit Ethernet Connectivity
The eight RJ-45 ports provide autosensing 10/100/1000BASE-T connectivity for a range of wired network devices. Gigabit Ethernet supports high-speed connections for computers, printers, wireless access points, cameras, VoIP equipment and other compatible devices.
Class 6 PoE Support
All eight Gigabit ports support IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Class 6 PoE. The switch provides a 124W total PoE budget, with up to 60W available from an individual port for compatible high-power devices such as wireless access points, cameras and IoT equipment.
Fibre Uplink Ports
Two 1GbE SFP ports provide additional uplink options for fibre-based network connections. These ports operate separately from the eight copper Ethernet interfaces, allowing the switch to connect with upstream network equipment over suitable SFP transceivers.
Layer 2+ Networking
The switch provides Layer 2+ functionality with static routing for networks requiring more control over traffic between network segments. Features include VLANs, Spanning Tree Protocol, Rapid Spanning Tree Protocol, link aggregation, LLDP, LLDP-MED, IGMP snooping, QoS and port mirroring.
Instant On Management
Network administrators can manage the switch through the HPE Networking Instant On Cloud Portal, mobile application or local web interface. These management options provide access to network configuration, monitoring and device administration without requiring a dedicated on-site management platform.
Network Security
Security capabilities include TPM 2.0, automatic denial-of-service protection, access control lists, port security, VLAN-based traffic separation and management access controls. These features provide additional controls for protecting connected devices and network administration.
The S4A30A#ACC HPE Networking Instant On Switch 1940 provides 24 Gigabit Ethernet ports and four high-speed SFP+ uplinks for growing business networks that need additional connectivity and flexible uplink options. It combines smart-managed Layer 2+ switching with static routing, allowing network administrators to manage traffic between network segments while maintaining straightforward control through the Instant On Cloud Portal, mobile app or local web interface. With 10GbE uplink capability, a USB-C console port and a comprehensive selection of network management and security features, this switch provides a practical foundation for offices and other demanding small and midsize business environments.
Key Features of HPE S4A30A#ACC
24 x autosensing 10/100/1000BASE-T Gigabit Ethernet ports
4 x SFP+ 1/10GbE uplink ports
20Gbps switching capacity
Layer 2+ switching with static routing
USB-C console port
Instant On Cloud Portal, mobile app and local web management
VLAN, STP, RSTP, MSTP and LACP support
LLDP, LLDP-MED and IGMP snooping support
QoS and port mirroring capabilities
TPM 2.0 security
Automatic denial-of-service protection
Access control and management security features
Gigabit Network Connectivity
Twenty-four autosensing 10/100/1000BASE-T ports provide Gigabit Ethernet connectivity for computers, printers, access points, cameras, VoIP equipment and other wired network devices. The combination of 24 access ports and four SFP+ uplinks gives administrators plenty of connectivity for expanding business networks.
High-Speed SFP+ Uplinks
Four SFP+ ports support 1GbE and 10GbE connections, providing flexible high-speed uplink options for connecting the switch to servers, aggregation switches, storage equipment or other network infrastructure. The SFP+ interfaces can also help accommodate longer-distance fibre connections when suitable transceivers are used.
Layer 2+ Switching and Static Routing
The switch provides Layer 2+ networking with static routing for handling traffic between network segments. VLANs, Spanning Tree Protocol, Rapid Spanning Tree Protocol, Multiple Spanning Tree Protocol and link aggregation provide additional control over network traffic and connectivity.
Smart Network Management
Administrators can manage the switch through the HPE Networking Instant On Cloud Portal, mobile application or local web interface. These management options provide access to configuration, monitoring and day-to-day network administration without requiring a separate dedicated management platform.
Network Security
Security capabilities include TPM 2.0, automatic denial-of-service protection, access control lists and management access controls. These functions provide administrators with additional ways to control network access and protect switch management.
Flexible Business Deployment
The 24-port configuration provides a useful balance of copper connectivity and high-speed uplink capacity for offices and growing business networks. With four SFP+ ports supporting up to 10GbE, the switch can connect to faster network infrastructure while continuing to provide standard Gigabit Ethernet access for everyday endpoints.
The HPE S4A31A#ACC Instant On Switch Series 1940 provides 24 Gigabit Ethernet ports with smart-managed Layer 2+ networking, making it suitable for connecting computers, access points, VoIP phones, cameras and other network devices. With Class 4 PoE across all 24 RJ-45 ports and a total 240W PoE budget, it can supply power and data over compatible Ethernet connections while reducing the need for separate power supplies.
Key Features of HPE S4A31A#ACC
24 x autosensing 10/100/1000BASE-T RJ-45 Gigabit Ethernet ports
IEEE 802.3af/at Class 4 PoE on all 24 Gigabit ports
240W total PoE power budget
4 x SFP+ uplink ports supporting 1GbE and 10GbE connectivity
Layer 2+ smart-managed switching with static IPv4 routing
VLAN, link aggregation and Spanning Tree Protocol support
Access Control Lists (ACLs) for traffic filtering and network access control
IPv6 Host support
Cloud-based management through the HPE Networking Instant On web portal
Mobile management through the HPE Networking Instant On app
Gigabit Connectivity and PoE
All 24 ports support 10/100/1000BASE-T connectivity and Class 4 PoE, allowing compatible devices to receive both network connectivity and power through Ethernet cabling. The 240W power budget provides capacity for multiple powered devices across the network.
10GbE Uplink Options
Four SFP+ uplink ports support 1GbE and 10GbE connections, providing higher-speed links for network aggregation, servers, storage systems and other compatible equipment. This gives the switch additional bandwidth for networks with increasing data demands.
Smart Network Management
The Instant On 1940 can be configured and monitored through the HPE Networking Instant On cloud portal or mobile application. Management features include VLAN configuration, link aggregation, access control lists, static routing and Spanning Tree Protocol support, giving administrators greater control over connected devices and network traffic.
Network Security and Local Access
Security features include traffic segmentation, access control and management access controls to help restrict network activity. A USB-C console port is also provided for local administration and configuration when direct switch access is required.
The HPE S4A32A#ACC Instant On Switch Series 1940 provides a versatile combination of Gigabit Ethernet and multi-gigabit connectivity for networks supporting modern wireless access points, IoT devices, surveillance equipment and other bandwidth-intensive hardware. It combines 20 Gigabit ports with four HPE Smart Rate multi-gigabit ports supporting speeds up to 2.5GbE, while four SFP+ ports provide 1GbE or 10GbE uplink connectivity.
Key Features of HPE S4A32A#ACC
20 x 10/100/1000BASE-T Gigabit Ethernet ports
4 x HPE Smart Rate 100M/1G/2.5GBASE-T ports
4 x SFP+ 1GbE/10GbE uplink ports
Class 6 PoE on the four Smart Rate ports
Class 4 PoE on the 20 Gigabit ports
370W total PoE power budget
Layer 2+ smart-managed switching
Static IPv4 routing and wire-speed inter-VLAN routing
VLAN and link aggregation support
Access Control Lists for traffic management
USB-C console port
TPM 2.0 security
TACACS+ and AAA authentication and accounting
SNMP read-only cloud access
Multi-Gigabit Connectivity
The four HPE Smart Rate ports support 100M, 1G and 2.5GBASE-T connections, providing additional bandwidth for compatible wireless access points, IoT equipment and other network devices. The remaining 20 RJ-45 ports provide standard 10/100/1000BASE-T Gigabit connectivity.
Power over Ethernet
PoE support is available across all 24 RJ-45 ports, with Class 6 PoE available on the four Smart Rate ports and Class 4 PoE on the 20 Gigabit ports. The 370W power budget provides capacity for powering compatible access points, cameras, phones and other PoE devices directly through network cabling.
High-Speed Uplinks
Four dedicated SFP+ ports support both 1GbE and 10GbE connections, providing high-speed links to servers, storage, aggregation switches and other network infrastructure. These uplinks provide additional bandwidth for environments with substantial traffic between network segments.
Smart Network Management
The switch can be managed through the HPE Networking Instant On Cloud Portal, mobile application or local web GUI. Layer 2+ features include VLANs, link aggregation, static routing and inter-VLAN routing, while Direct Ops Commands and diagnostic functions provide additional administration and troubleshooting capabilities.
Security Features
Security capabilities include TPM 2.0, TACACS+, AAA authentication and accounting, access control lists and management access controls. These features provide administrators with additional methods for controlling device access and network traffic.
The HPE S4A33A#ACC Instant On Switch Series 1940 provides 48 Gigabit Ethernet ports for connecting a broad range of computers, access points, phones, cameras and other network devices. Four dedicated SFP+ ports provide 1GbE or 10GbE uplink connectivity, while Layer 2+ features such as VLANs, link aggregation, access control lists and IPv4 static routing provide extensive network management capabilities.
Key Features of HPE S4A33A#ACC
48 x autosensing 10/100/1000BASE-T Gigabit Ethernet RJ-45 ports
4 x SFP+ 1GbE/10GbE uplink ports
Layer 2+ smart-managed switching
128 Gbps switching capacity
Up to 95 Mpps throughput
Static IPv4 routing and wire-speed inter-VLAN routing
16,000-entry MAC address table
Up to 9216-byte jumbo frames
VLAN, link aggregation and Spanning Tree Protocol support
Access Control Lists for network traffic management
HPE Networking Instant On mobile app and cloud portal management
USB-C console port
48-Port Gigabit Connectivity
The switch provides 48 autosensing 10/100/1000BASE-T RJ-45 ports, giving connected devices access to Gigabit Ethernet networking. The ports support 10BASE-T, 100BASE-TX and 1000BASE-T standards, with automatic speed detection for compatible network equipment.
10GbE Uplink Connectivity
Four dedicated SFP+ ports support 1GbE and 10GbE connections for high-speed links to servers, storage equipment, aggregation switches and other network infrastructure. The uplink ports help provide additional bandwidth between the switch and other parts of the network.
Layer 2+ Network Management
Layer 2+ functionality includes VLANs, link aggregation, Spanning Tree Protocol and static IPv4 routing. Wire-speed inter-VLAN routing allows traffic between supported network segments to be handled directly by the switch.
Security and Access Control
Security features include IEEE 802.1X port access authentication, Access Control Lists, TPM 2.0, TACACS+ and AAA authentication and accounting. These functions provide administrators with controls for managing access to the switch and restricting network traffic.
Cloud and Local Management
The Instant On mobile application and cloud-based web portal provide tools for setting up, monitoring and managing the switch. Local web management and a USB-C console port are also available for direct administration and configuration.
The HPE S4A34A#ACC Instant On Switch Series 1940 provides 48 Gigabit Ethernet ports with IEEE 802.3af/at Class 4 PoE, giving compatible network devices both data connectivity and power through a single Ethernet cable. Four SFP+ ports support 1GbE and 10GbE uplinks, while Layer 2+ switching, static IPv4 routing and wire-speed inter-VLAN connectivity provide flexible network management for growing business environments.
Key Features of HPE S4A34A#ACC
48 x autosensing 10/100/1000BASE-T Gigabit Ethernet RJ-45 ports
370W total PoE power budget
4 x SFP+ 1GbE/10GbE uplink ports
Layer 2+ smart-managed switching
Static IPv4 routing
Wire-speed inter-VLAN routing
16,000-entry MAC address table
Up to 9216-byte jumbo frames
Spanning Tree Protocol, RSTP and MSTP support
Access Control Lists for network traffic management
TPM 2.0 hardware security
TACACS+ and AAA authentication and accounting
USB-C console port
48-Port Gigabit Connectivity
The switch provides 48 autosensing 10/100/1000BASE-T RJ-45 ports for connecting computers, wireless access points, IP phones, cameras and other Ethernet devices. The ports support 10BASE-T, 100BASE-TX and 1000BASE-T connectivity with automatic speed detection.
Power over Ethernet
All 48 Gigabit Ethernet ports support IEEE 802.3af/at Class 4 PoE, allowing compatible devices to receive power and network connectivity over Ethernet cabling. The 370W PoE budget provides power for multiple connected PoE devices across the network.
10GbE Uplink Connectivity
Four SFP+ uplink ports support 1GbE and 10GbE connections, providing high-speed links to servers, storage systems, aggregation switches and other compatible network equipment. The uplinks provide additional bandwidth for traffic moving between network segments.
Layer 2+ Switching and Routing
Layer 2+ capabilities include VLANs, link aggregation and Spanning Tree Protocol support, while static IPv4 routing and wire-speed inter-VLAN routing allow traffic between supported network segments to be handled directly by the switch.
Network Security
Security features include IEEE 802.1X port access authentication, Access Control Lists, TPM 2.0, TACACS+ and AAA authentication and accounting. These controls help administrators manage access to the network and restrict traffic according to configured policies.
Management and Administration
The HPE Networking Instant On Cloud Portal and mobile application provide remote setup, monitoring and management, while local web management and the USB-C console port provide additional options for direct configuration and administration.
The HPE S4A35A#ACC Instant On Switch Series 1940 provides a 48-port access platform combining 40 Gigabit Ethernet ports with 8 Smart Rate 2.5GbE ports for higher-speed network connections. With Class 4 PoE on the Gigabit ports, Class 6 PoE on the multi-gigabit ports and a 600W PoE budget, it can support access points, cameras, phones and other powered network devices while four SFP+ ports provide 1GbE and 10GbE uplink connectivity.
Key Features of HPE S4A35A#ACC
40 x autosensing 10/100/1000BASE-T Gigabit Ethernet ports
8 x autosensing 100M/1G/2.5GBASE-T Smart Rate ports
IEEE 802.3af/at Class 4 PoE on 40 Gigabit ports
IEEE 802.3af/at/bt Class 6 PoE on 8 Smart Rate ports
600W total PoE power budget
4 x SFP+ 1GbE/10GbE uplink ports
Layer 2+ smart-managed switching
Static IPv4 routing and wire-speed inter-VLAN connectivity
16,000-entry MAC address table
TACACS+ and AAA authentication and accounting
Local web GUI management
USB-C console port
Gigabit and Multi-Gigabit Connectivity
The switch combines 40 autosensing 10/100/1000BASE-T ports with 8 Smart Rate 100M/1G/2.5GBASE-T ports. This arrangement provides standard Gigabit connectivity for everyday network devices while allowing compatible equipment such as newer wireless access points and high-throughput endpoints to connect at up to 2.5GbE.
High-Power PoE
Class 4 PoE is available across the 40 Gigabit ports, while the 8 Smart Rate ports support Class 6 PoE. The 600W power budget provides substantial capacity for powering wireless access points, surveillance cameras, VoIP equipment and other compatible network devices directly through Ethernet cabling.
10GbE Uplinks
Four SFP+ uplink ports support 1GbE and 10GbE connections, providing high-speed links to servers, storage systems, aggregation switches and other compatible network equipment. The uplink ports provide additional bandwidth for traffic between the access network and higher-level network infrastructure.
Layer 2+ Switching and Routing
Layer 2+ functionality includes VLANs, link aggregation and Spanning Tree support, while static IPv4 routing and wire-speed inter-VLAN connectivity allow traffic between supported network segments to be handled directly at the switch.
Network Security
Security capabilities include IEEE 802.1X authentication, Access Control Lists, TPM 2.0, TACACS+, AAA authentication and accounting, and management access controls. These features provide administrators with controls for user access, device management and network traffic.
Cloud and Local Management
The HPE Networking Instant On Cloud Portal and mobile application provide remote setup, monitoring and administration, while the local web interface and USB-C console provide additional methods for configuring and managing the switch. Direct Ops Commands, SNMP read-only cloud access and diagnostics are also available for network administration and troubleshooting.

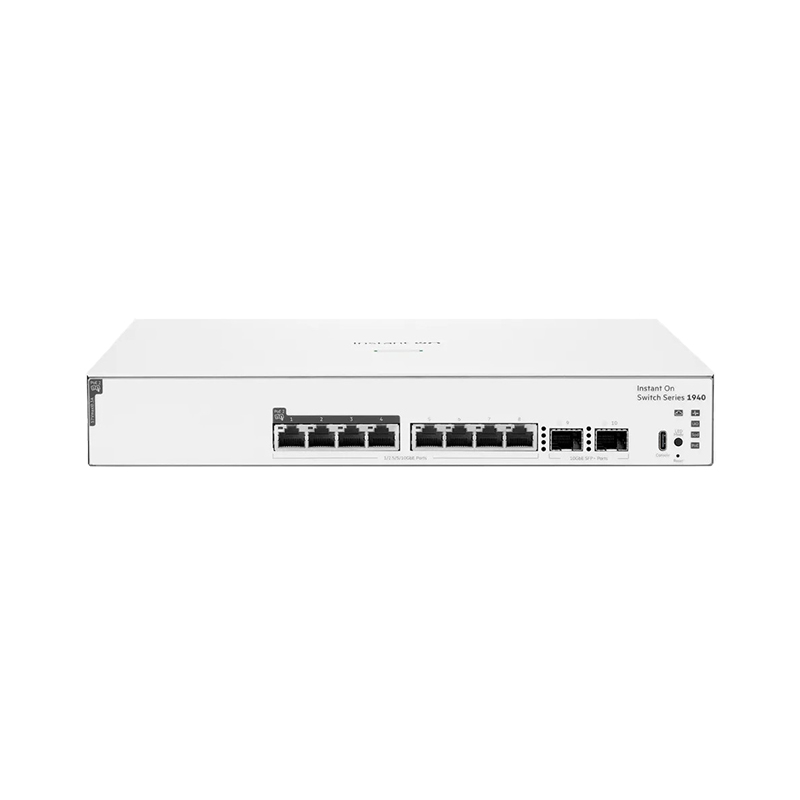

The HPE S4A36A#ACC Instant On Switch Series 1940 brings high-speed Smart Rate connectivity to compact network deployments, with eight SR10 ports supporting speeds from 100Mbps through 10GbE. Four of these ports provide Class 6 PoE for compatible high-power devices, while two SFP+ ports provide 1GbE or 10GbE uplink connectivity for connections to higher-speed network infrastructure.
Key Features of HPE S4A36A#ACC
8 x Smart Rate 100M/1G/2.5G/5G/10GBASE-T ports
4 x Class 6 PoE ports
120W total PoE power budget
2 x SFP+ 1GbE/10GbE uplink ports
Smart-managed Layer 2+ switching
Wire-speed inter-VLAN connectivity
16,000-entry MAC address table
Up to 9216-byte jumbo frames
VLAN and link aggregation support
Spanning Tree Protocol, RSTP and MSTP support
Access Control Lists
TPM 2.0 hardware security
TACACS+ and AAA authentication and accounting
USB-C console port
Smart Rate Multi-Gigabit Connectivity
The switch provides eight Smart Rate RJ-45 ports supporting 100Mbps, 1GbE, 2.5GbE, 5GbE and 10GbE speeds. This gives compatible wireless access points, workstations, servers and other high-bandwidth devices access to faster Ethernet connections without requiring a separate access switch for different network speeds.
Class 6 Power over Ethernet
Four of the Smart Rate ports support IEEE 802.3af/at/bt Class 6 PoE, with a total power budget of 120W. This allows compatible devices such as high-performance wireless access points, cameras and other powered network equipment to receive both data and electrical power through Ethernet cabling.
10GbE Uplink Connectivity
Two SFP+ ports support 1GbE and 10GbE uplink connections, providing a high-speed path to servers, aggregation switches, storage equipment and other compatible network infrastructure. These uplinks complement the multi-gigabit access ports for applications requiring greater network bandwidth.
Layer 2+ Switching and Routing
Layer 2+ functionality includes VLANs, link aggregation and Spanning Tree support, together with static IPv4 routing and wire-speed inter-VLAN connectivity. These capabilities allow network traffic to be segmented and routed between supported VLANs directly through the switch.
Security Features
Network security features include TPM 2.0, IEEE 802.1X authentication, Access Control Lists, TACACS+, AAA authentication and accounting, and management access controls. These functions provide administrators with controls for device access, user authentication and network traffic.
Cloud and Local Management
The HPE Networking Instant On Cloud Portal and mobile app provide remote management and monitoring, while the local web GUI and USB-C console offer direct administration options. Direct Ops Commands, SNMP read-only cloud access and diagnostics provide additional tools for configuration and troubleshooting.
