The Fluke DSX2-8000OI/GLD-INT Versiv kit is a comprehensive cable certification and testing platform designed for high-speed network infrastructure work. It combines copper certification, fiber testing, and inspection capabilities within a single modular system, giving technicians a unified way to validate structured cabling in demanding data center environments. Built on the Versiv platform, it supports detailed diagnostics and reporting for both copper and fiber links used in modern high-bandwidth networks.
Key Features of Fluke DSX2-8000OI/GLD-INT
Copper certification support from Cat 3 through Cat 8 cabling systems
Testing bandwidth capability up to 2000 MHz for high-speed networks
Integrated fiber testing for both single-mode and multimode links
OTDR-based fault detection for accurate fiber issue identification
Wi-Fi enabled data transfer with LinkWare Live reporting support
Fast certification cycles for efficient field testing workflows
Comprehensive diagnostics including NEXT, return loss, and wire mapping
Compatibility with Versiv modular test architecture for flexible field use
Testing Capabilities
This system supports detailed copper and fiber validation, including advanced measurement of signal integrity, distance-to-fault detection, and compliance verification for industry cabling standards. It is suitable for high-density installations where accurate certification is required.
Workflow Integration
The DSX2-8000OI integrates with Fluke's reporting ecosystem through Wi-Fi connectivity, allowing test results to be stored, managed, and shared via LinkWare platforms. This supports structured documentation and consistent project tracking across multiple job sites.
Use Case Context
This kit is typically used during commissioning, validation, and troubleshooting of structured cabling systems in environments where both copper and fiber infrastructure must meet strict performance requirements.

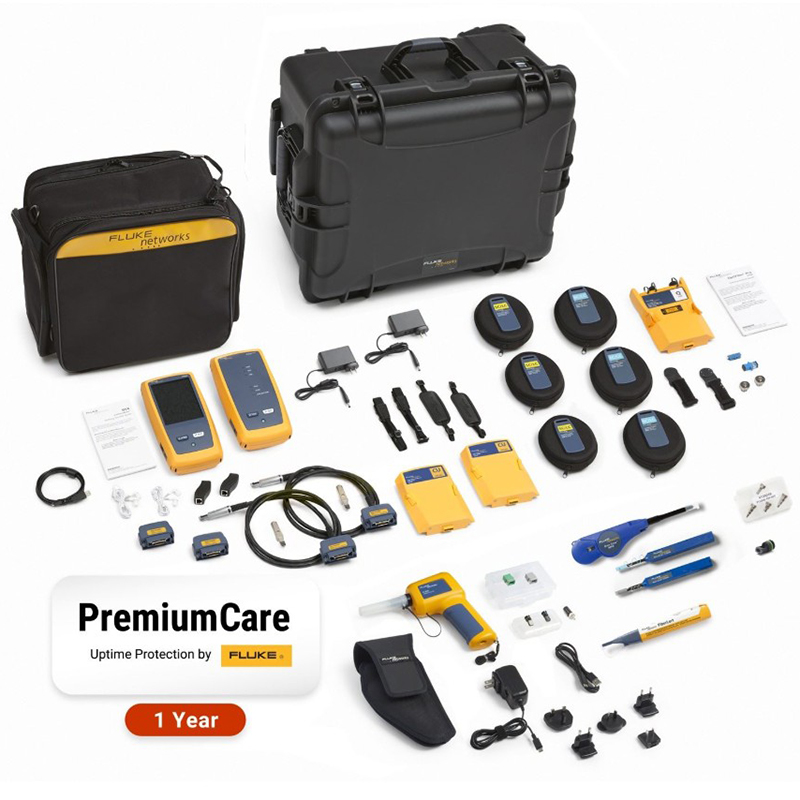

Kit Includes
Versiv Mainframe & Remote
2x DSX-8000 CableAnalyzer modules
Set of Cat 8/Class I permanent link adapters, Set of Cat 8/Class I channel adapters
2x headsets, 2x wrist straps, 2x shoulder straps, Carrying bag
USB-interface cable
2x AC chargers, 2x universal couplers, 2x AxTalk terminating resistors
OptiFiber Pro Quad OTDR-module
3x SC/LC multimode feeder cable - 50 µm, 3x SC/LC singlemode feeder cable - 9 µm
2x OTDR source port interchangeable LC adapters, SC/SC-simplex adapter, LC/LC simplex adapter
2x suspension straps and magnets for launch fibers
FI-3000 FiberInspector Ultra camera
Tip set (12/24 UPC, 12/24 and Keyless APC 12/24, 16/32)
Single fiber adapter for FI-1000 tips, FC/SC bulkhead tip
2.5-mm universal tip, 1.25 mm universal tip, LC bulkhead tip
AC charger
Holster
QuickClean cleaner for QC-MPO-12/24 1.25 and 2.25 ferrule plugs/connectors
FiberLert Live Fiber Detector (850-1625 nm)
Integrated Wi-Fi
Hard-shell carrying case
Calibration statement and quick start guide
One year Gold Support
*Product may differ in appearance; Images used are for illustrative purposes only

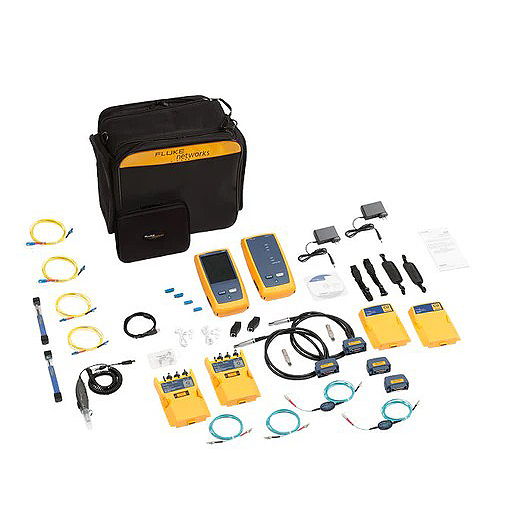

The Fluke DSX2-8000OI-INT Versiv Data Center Fiber, Copper Troubleshooting Kit with Wi-Fi brings together advanced copper certification, fiber analysis, and network troubleshooting tools in a portable platform built for demanding data center environments. Designed for technicians working with high-speed structured cabling systems, the kit supports detailed testing across Cat 8 copper links and multimode or single-mode fiber infrastructure. Integrated Wi-Fi connectivity allows test results to be transferred quickly, while the modular Versiv platform keeps workflows consistent across installation, maintenance, and diagnostics tasks.
Key Features of Fluke DSX2-8000OI-INT
Certifies copper cabling up to Cat 8 and 2000 MHz
Supports single-mode and multimode fiber troubleshooting
Integrated Wi-Fi for test management and result uploads
Includes OTDR testing capabilities for fiber fault detection
Designed for high-speed data center and structured cabling environments
Modular Versiv platform compatibility
Supports advanced Alien Crosstalk testing
Portable kit with field-ready accessories and carrying hardware
Compatible with 10G, 25G, and 40G network infrastructure
Fast Cat 6A certification and simplified results management
The Versiv platform completes Cat 6A copper certification testing in as little as 8 seconds and can certify dual-fiber links at two wavelengths in only 3 seconds. Designed to keep installation projects moving efficiently, the system delivers clear Pass or Fail results instantly while allowing technicians to review detailed measurements and graphical test data with minimal navigation. Recognized by cabling manufacturers worldwide, Versiv helps reduce testing time and speeds up project sign-off across copper and fiber infrastructure deployments.
Visual fault mapping for quicker cable diagnostics
The DSX CableAnalyzer Series simplifies troubleshooting by identifying the exact location of cable faults through detailed graphical diagnostics. A single-button autotest performs all required measurements while automatically saving the collected data for later review. Technicians can quickly pinpoint issues such as crosstalk, return loss, and shield faults directly along the cable path, making repairs faster and easier to manage.
Unlike earlier testers with limited diagnostic frequency ranges, the DSX platform provides expanded analysis capabilities across modern high-performance cabling systems. The clear visual interface is easy to interpret for both experienced installers and newer technicians, while stored test results allow convenient off-site analysis and documentation review.
Store and organize up to 12,000 Cat 6A test records with detailed graphical data
Large cabling projects often involve multiple technicians, testing devices, and site requirements, making test management increasingly difficult as projects grow in size. The DSX CableAnalyzer Series includes the ProjX management system, allowing users to create dedicated project files that store test parameters, job details, and reporting information under a single project name. This helps reduce repetitive data entry, keeps test records organized, and lowers the risk of misplaced files or setup mistakes when moving between different jobs or using multiple testers across the same installation project.
Advanced Copper Certification
The DSX2-8000OI-INT delivers detailed copper cable certification for modern high-bandwidth networks. It supports testing for Cat 5e, Cat 6, Cat 6A, and Cat 8 cabling standards, helping installers verify performance across critical network links with accurate diagnostics and detailed reporting.
Integrated Fiber Troubleshooting
With included fiber testing and OTDR functionality, the kit allows technicians to identify bends, breaks, splice losses, and connector issues across both multimode and single-mode fiber installations. This makes it suitable for data center backbone infrastructure and long-distance network runs.
Built for Data Center Workflows
The Versiv platform simplifies testing across large infrastructure projects by combining multiple testing modules into a single system. Integrated Wi-Fi support allows quick synchronization of test results, reducing delays when managing certifications and project documentation on-site.
Portable Field-Ready Design
Supplied with accessories, adapters, charging hardware, and carrying equipment, the DSX2-8000OI-INT is designed for technicians working across server rooms, communications cabinets, and large-scale network installations where mobility and fast deployment are important.
*Product may differ in appearance; Images used are for illustrative purposes only
The Fluke DSX2-8000OI-NW-INT Versiv Data Center Fiber and Copper Troubleshooting Kit delivers detailed certification and diagnostic testing for modern structured cabling environments. Built for high-speed network installations, this kit supports copper and fiber validation across data centers, commercial buildings, and large infrastructure deployments. Its non-Wi-Fi configuration is well suited for secure sites where wireless communication is restricted, while the Versiv platform streamlines project handling, result storage, and reporting for teams working across multiple testing locations.
Key Features of the Fluke DSX2-8000OI-NW-INT
Certifies Cat 5e, Cat 6, Cat 6A, Cat 8, and Class I/II cabling
Supports copper and fiber troubleshooting within one platform
Non-Wi-Fi model designed for secure working environments
Tests high-speed 25G and 40G Ethernet infrastructure
Fast autotest performance for reduced testing time
Stores thousands of test results with graphical reporting
Large touchscreen interface for simplified navigation
Supports LinkWare reporting and project management tools
Includes fiber inspection and diagnostic capabilities
Designed for data centers and structured cabling projects
Built for High-Speed Cabling
The DSX2-8000OI-NW-INT is engineered for environments where network performance and certification accuracy are critical. It supports advanced copper testing standards up to Cat 8, making it suitable for modern high-bandwidth infrastructure installations.
Copper and Fiber Testing in One Kit
This Versiv kit combines copper certification with fiber inspection and troubleshooting tools, allowing technicians to handle multiple testing tasks without switching platforms. The integrated workflow helps reduce downtime during installations and maintenance work.
Project Management and Reporting
Large cabling projects can be managed more efficiently with onboard project organisation features and extensive result storage. Compatibility with LinkWare reporting software allows teams to compile certification records and share test data across multiple locations.
Designed for Secure Environments
The no-Wi-Fi configuration is ideal for government facilities, secure data centers, and controlled industrial sites where wireless communication is not permitted. This allows teams to maintain compliance with site-specific security requirements while carrying out certification and troubleshooting tasks.

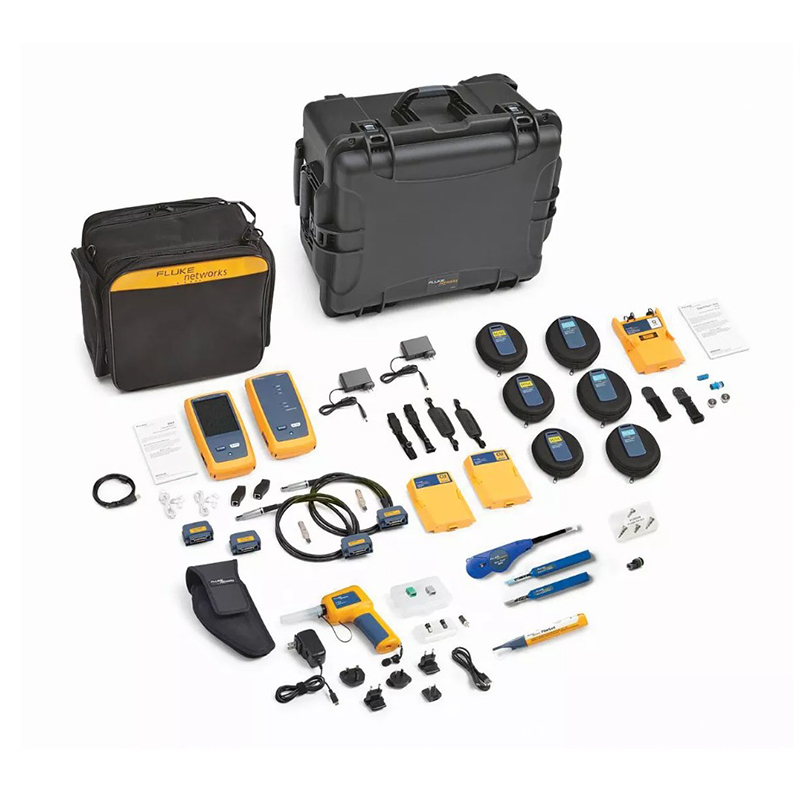

Kit Includes
Versiv Mainframe & Remote
2x DSX-8000 CableAnalyzer modules without Wi-Fi
Set of Cat 8/Class I permanent link adapters, Set of Cat 8/Class I channel adapters
2x Headsets, 2x wrist straps, 2x shoulder straps, Carrier bag
USB interface cable
2x AC chargers
2x Universal couplers
2x AxTalk terminating resistors
OptiFiber Pro Quad OTDR Module
3x SC/LC multimode starter cables - 50 µm, 3x SC/LC single-mode lead-in cables - 9 µm
2x OTDR source connector interchangeable LC adapters
SC/SC simplex adapter, LC/LC simplex adapter
2x suspension straps and magnets for pilot fibers
FI-3000 FiberInspector Ultra camera
Top set (12/24 UPC, 12/24 and Keyless APC 12/24, 16/32)
Single fiber adapter for FI-1000 tips
FC/SC Schottspitze
2.5 mm universal tip, 1.25 mm universal tip
LC bulkhead
AC charger
Holster
QuickClean cleaner for QC-MPO-12/24 1.25 and 2.25 ferrule plugs/connectors
FiberLert Live Fiber Detector (850-1625 nm)
Hard-shell transport case
Calibration statement and quick start guide
*Product may differ in appearance; Images used are for illustrative purposes only
