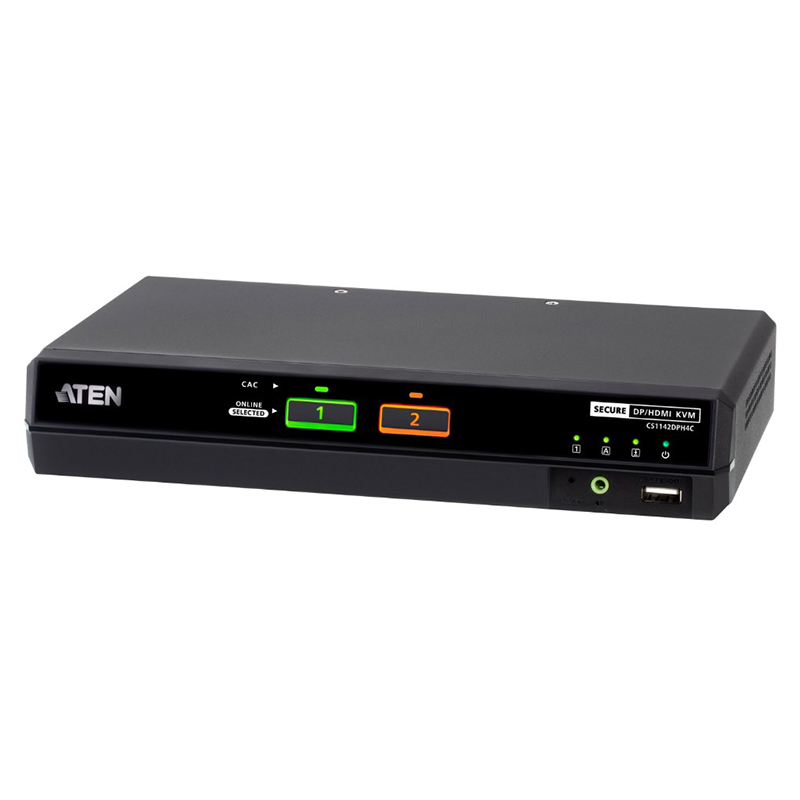

The ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C allows multiple computers with different security classifications to share a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader while maintaining strict separation between connected systems and peripherals. Its compliance with PSD PP v4.0 helps protect user data during port switching by preventing unauthorized data transfer or leakage between connected computers.
The switch includes isolated and unidirectional data channels, restricted peripheral connectivity with device filtering, automatic user data protection, configurable device management, strict audio filtering, and continuous tamper-detection features, providing secure operation and straightforward deployment in security-sensitive environments.
Key Features of Aten CS1142DPH4C
NIAP Common Criteria Compliant
Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
Listed on the NATO NIAPC Product Registry
Multi-Layered Security
Always-on chassis intrusion detection renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
Tamper-evident labels provide visual indication of any attempt to access the ATEN PSD PP v4.0 Universal Secure KVM Switch's internal components
Non-reprogrammable firmware prevents reprogramming the ATEN PSD PP v4.0 Universal Secure KVM Switch's firmware
Restricted peripheral connectivity rejects non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
Port selection via pushbuttons / Remote Port Selector (RPS) 1 only to enhance security
Configurable Port LED color and Port Name Labels for easier identification between ports connected to different security classification levels
LED indicators for peripheral filtering and KVM security status
Strict audio filtration protects against audio leakage
Compact size and rugged metal enclosure
Data Channel Isolation and Unidirectional Data Flow
True data path isolation prevents data transfer between computers
The ATEN PSD PP v4.0 Universal Secure KVM Switch controls and isolates data flow between the console devices and connected computers
Unidirectional data flow between console devices and the selected computer is ensured
Supports analog audio (speaker only) 2 via isolated audio paths
Supports DisplayPort (or HDMI) embedded digital audio
User Data Protection
The ATEN PSD PP v4.0 Universal Secure KVM Switch's keyboard/mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
Security Management
Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
Provides administrative functions for authorized administrators to audit KVM log data
Supports enable / disable CAC function by port
Superior Video Quality and Flexible Connectivity
Superior video quality up to 5K (5120 x 2880 @ 60Hz)
DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces on both PC and Console sides
Video DynaSync™ technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
Note:
Only analog speaker data input is supported.
Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz
ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1. 5K resolution provides greater screen real estate and sharper detail, allowing users to view multiple classified sessions, monitoring dashboards, or data-intensive applications side by side with uncompromised clarity. This enhanced visual precision helps minimize task-switching and potential errors, improving both operational accuracy and overall productivity in mission-critical or security-conscious workplaces.
To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

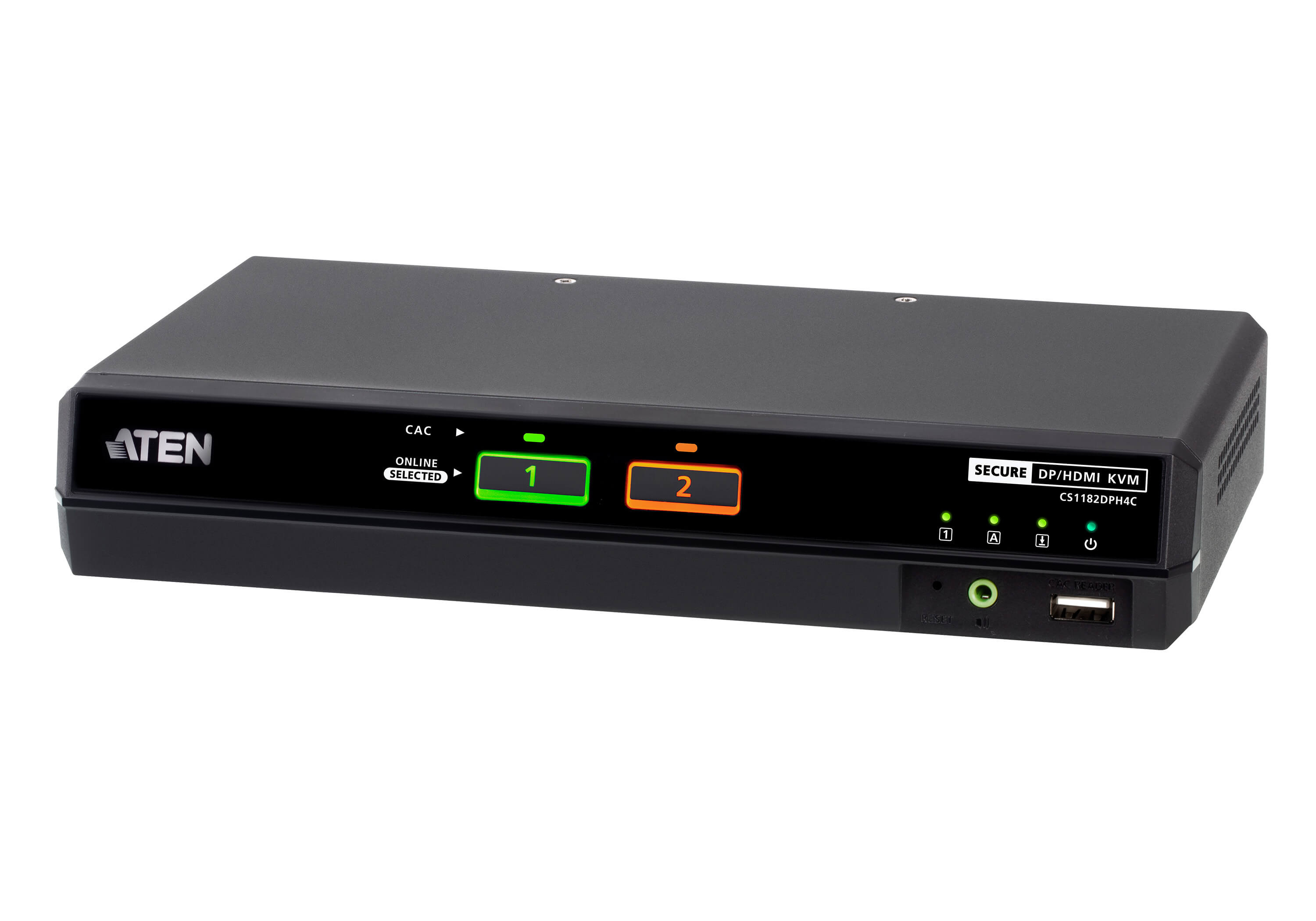

The ATEN PSD PP v4.0 Universal Secure KVM Switch CS1182DPH4C is intended for defence, intelligence, and other security-sensitive environments that require strict system isolation and controlled peripheral sharing. It complies with the PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard and has been certified by the National Information Assurance Partnership (NIAP).
Key Features of Aten CS1182DPH4C
NIAP Common Criteria Compliant
Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
Listed on the NATO NIAPC Product Registry
Multi-Layered Security
Always-on chassis intrusion detection renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
Tamper-evident labels provide visual indication of any attempt to access the ATEN PSD PP v4.0 Universal Secure KVM Switch's internal components
Non-reprogrammable firmware prevents reprogramming the ATEN PSD PP v4.0 Universal Secure KVM Switch's firmware
Restricted peripheral connectivity rejects non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
Configurable Port LED color and Port Name Labels for easier identification between ports connected to different security classification levels
LED indicators for peripheral filtering and KVM security status
Strict audio filtration protects against audio leakage
Compact size and rugged metal enclosure
Data Channel Isolation and Unidirectional Data Flow
True data path isolation prevents data transfer between computers
The ATEN PSD PP v4.0 Universal Secure KVM Switch controls and isolates data flow between the console devices and connected computers
Unidirectional data flow between console devices and the selected computer is ensured
Supports analog audio (speaker only) via isolated audio paths
Supports DisplayPort (or HDMI) embedded digital audio
User Data Protection
The ATEN PSD PP v4.0 Universal Secure KVM Switch's keyboard/mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
Security Management
Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
Provides administrative functions for authorized administrators to audit KVM log data
Supports enable / disable CAC function by port
Superior Video Quality and Flexible Connectivity
Superior video quality up to 5K (5120 x 2880 @ 60Hz)
DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
Video DynaSync™ technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
Note:
Only analog speaker data input is supported.
Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz
ATEN PSD PP v4.0 Universal Secure KVM Switch CS1182DPH4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources.
Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1. 5K resolution provides greater screen real estate and sharper detail, allowing users to view multiple classified sessions, monitoring dashboards, or data-intensive applications side by side with uncompromised clarity. This enhanced visual precision helps minimize task-switching and potential errors, improving both operational accuracy and overall productivity in mission-critical or security-conscious workplaces.
To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1182DPH4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1182DPH4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

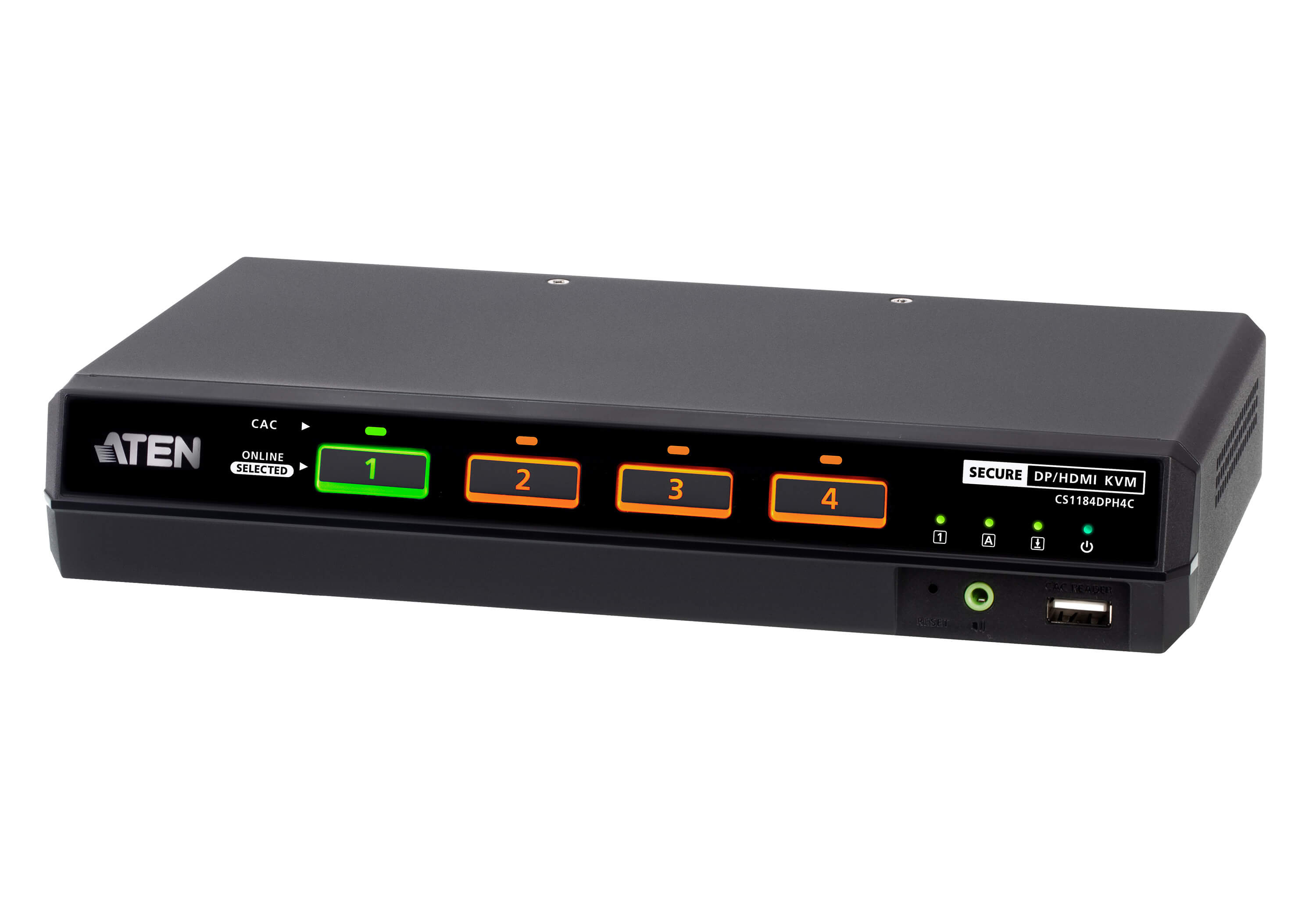

The ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C is intended for defence, intelligence, and other security-focused environments where strict system isolation and controlled peripheral sharing are essential. It complies with the PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard and has been certified by the National Information Assurance Partnership (NIAP).
Key Features of Aten CS1184DPH4C
NIAP Common Criteria Compliant
Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
Listed on the NATO NIAPC Product Registry
Multi-Layered Security
Always-on chassis intrusion detection renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
Tamper-evident labels provide visual indication of any attempt to access the ATEN PSD PP v4.0 Universal Secure KVM Switch's internal components
Non-reprogrammable firmware prevents reprogramming the ATEN PSD PP v4.0 Universal Secure KVM Switch's firmware
Restricted peripheral connectivity rejects non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
Configurable Port LED color and Port Name Labels for easier identification between ports connected to different security classification levels
LED indicators for peripheral filtering and KVM security status
Strict audio filtration protects against audio leakage
Compact size and rugged metal enclosure
Data Channel Isolation and Unidirectional Data Flow
True data path isolation prevents data transfer between computers
The ATEN PSD PP v4.0 Universal Secure KVM Switch controls and isolates data flow between the console devices and connected computers
Unidirectional data flow between console devices and the selected computer is ensured
Supports analog audio (speaker only) via isolated audio paths
Supports DisplayPort (or HDMI) embedded digital audio
User Data Protection
The ATEN PSD PP v4.0 Universal Secure KVM Switch's keyboard/mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
Security Management
Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
Provides administrative functions for authorized administrators to audit KVM log data
Supports enable / disable CAC function by port
Superior Video Quality and Flexible Connectivity
Superior video quality up to 5K (5120 x 2880 @ 60Hz)
DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
Video DynaSync™ technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
Note:
Only analog speaker data input is supported.
Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz
ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources.
Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1. 5K resolution provides greater screen real estate and sharper detail, allowing users to view multiple classified sessions, monitoring dashboards, or data-intensive applications side by side with uncompromised clarity. This enhanced visual precision helps minimize task-switching and potential errors, improving both operational accuracy and overall productivity in mission-critical or security-conscious workplaces.
To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
