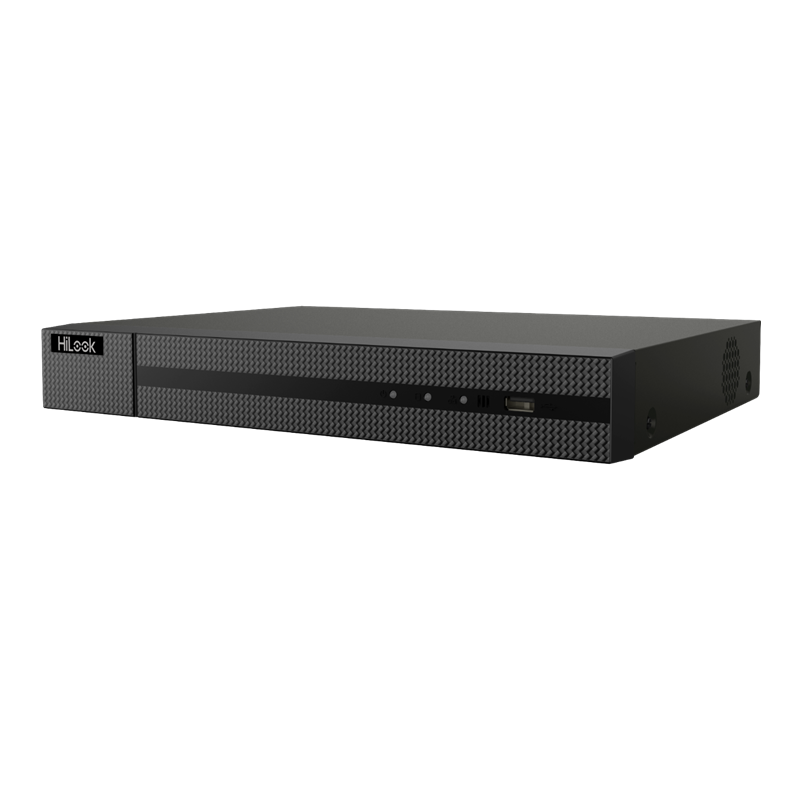

8-ch Mini 1U 8 PoE NVR
Key Features
• H.265+/H.265/H.264+/H.264 video compression
• Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 8-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output
Compression and Recording
• H.265+ compression effectively reduces the storage space by up to 75%
• Full channel recording at up to 4 MP resolution
Storage and Playback
• 2-ch@4 MP or 4-ch @1080p playback resolution
• 1 SATA interface (up to 6 TB capacity per HDD)
Smart Function
• Supports line crossing and intrusion detection
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Automatically search and add network cameras after device is activated
Network & Ethernet Access
• 4/8 independent PoE network interfaces
• 1 self-adaptive 10/100 Mbps Ethernet interface
• HiLookVision for easy network management
Full specification and details can be found in the Product Datasheet PDF file
A user manual can be found in the User Manual PDF file
A user quick start guide can be found in the User Quick Start Guide PDF file
4-ch Mini 1U 4 PoE NVR
Key Features
• H.265+/H.265/H.264+/H.264 video compression
• Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 4-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output
Compression and Recording
• H.265+ compression effectively reduces the storage space by up to 75%
• Full channel recording at up to 4 MP resolution
Storage and Playback
• 2-ch@4 MP or 4-ch @1080p playback resolution
• 1 SATA interface (up to 6 TB capacity per HDD)
Smart Function
• Supports line crossing and intrusion detection
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Automatically search and add network cameras after device is activated
Network & Ethernet Access
• 4/8 independent PoE network interfaces
• 1 self-adaptive 10/100 Mbps Ethernet interface
• HiLookVision for easy network management
Full specification and details can be found in the Product Datasheet PDF file
A user manual can be found in the User Manual PDF file
A user quick start guide can be found in the User Quick Start Guide PDF file
8-ch Mini 1U 8 PoE NVR
Key Features
• H.265+/H.265/H.264+/H.264 video compression
• Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 4/8-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output
Compression and Recording
• H.265+ compression effectively reduces the storage space by up to 75%
• Full channel recording at up to 4 MP resolution
Storage and Playback
• 2-ch@4 MP or 4-ch@1080p playback resolution
• 1 SATA interface (up to 6 TB capacity per HDD)
Smart Function
• Supports line crossing and intrusion detection
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Automatically search and add network cameras after device is activated
Network & Ethernet Access
• 4/8 independent PoE network interfaces
• 1 self-adaptive 10/100 Mbps Ethernet interface
• HiLookVision for easy network management
Full specification and details can be found in the Product Datasheet PDF file
A user manual can be found in the User Manual PDF file
A user quick start guide can be found in the User Quick Start Guide PDF file
