Hikvision HiLook IP Network Video Recorders

4-ch Mini 1U 4 PoE NVR




Key Features • H.265+/H.265/H.264+/H.264 video compression

• Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth

• Up to 4/8-ch network camera inputs

• Up to 4-ch 1080p decoding capability

• HDMI and VGA simultaneous output













Compression and Recording • H.265+ compression effectively reduces the storage space by up to 75%

• Full channel recording at up to 4 MP resolution




Storage and Playback • 2-ch@4 MP or 4-ch @1080p playback resolution

• 1 SATA interface (up to 6 TB capacity per HDD)




Smart Function • Supports line crossing and intrusion detection

• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

• Automatically search and add network cameras after device is activated




Network & Ethernet Access • 4/8 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

4-ch Mini 1U 4 PoE NVR




Key Features • H.265+/H.265/H.264+/H.264 video compression

• Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth

• Up to 4-ch network camera inputs

• Up to 4-ch 1080p decoding capability

• HDMI and VGA simultaneous output













Compression and Recording • H.265+ compression effectively reduces the storage space by up to 75%

• Full channel recording at up to 4 MP resolution




Storage and Playback • 2-ch@4 MP or 4-ch @1080p playback resolution

• 1 SATA interface (up to 6 TB capacity per HDD)




Smart Function • Supports line crossing and intrusion detection

• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

• Automatically search and add network cameras after device is activated




Network & Ethernet Access • 4/8 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

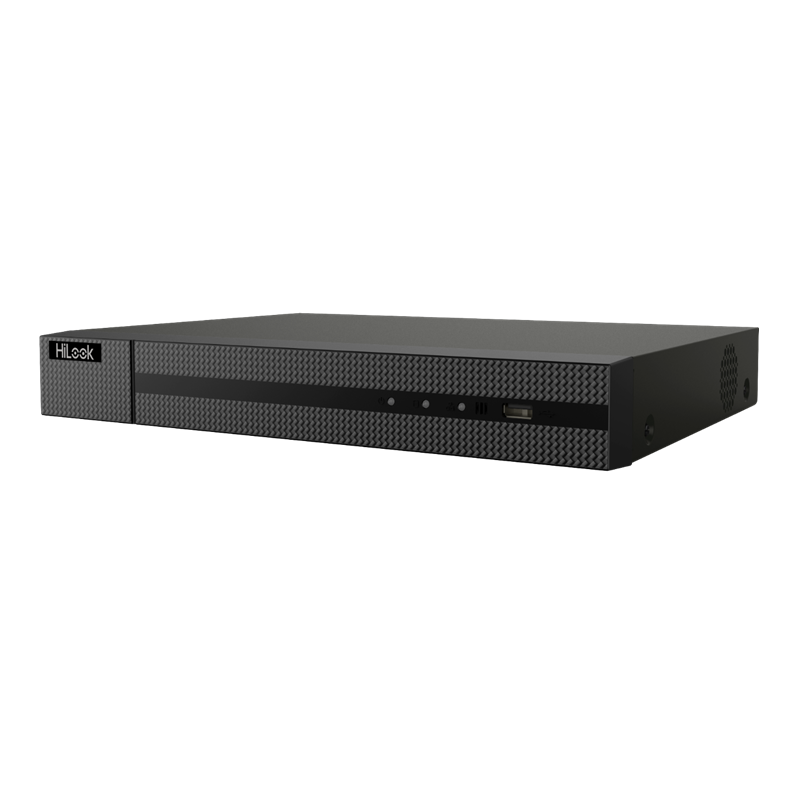

HiLook 4K H.265+ 4ch NVR




Key Features • Up to 4-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

• Up to 40 Mbps incoming bandwidth













Professional and Reliability • H.265+ compression effectively reduces the storage space by up to 75%




HD Video Output • Provide simultaneous HDMI and VGA outputs

• HDMI video output at up to 4K resolution




Storage and Playback • 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)

• Smart search/smart playback to improve the playback efficiency




Smart Function • 1-ch Motion Detection 2.0

• Support multiple VCA (Video Content Analytics) events

• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)




Network & Ethernet Access • 4 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

8-ch Mini 1U 8 PoE NVR




Key Features • H.265+/H.265/H.264+/H.264 video compression

• Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth

• Up to 8-ch network camera inputs

• Up to 4-ch 1080p decoding capability

• HDMI and VGA simultaneous output













Compression and Recording • H.265+ compression effectively reduces the storage space by up to 75%

• Full channel recording at up to 4 MP resolution




Storage and Playback • 2-ch@4 MP or 4-ch @1080p playback resolution

• 1 SATA interface (up to 6 TB capacity per HDD)




Smart Function • Supports line crossing and intrusion detection

• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

• Automatically search and add network cameras after device is activated




Network & Ethernet Access • 4/8 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

8-ch Mini 1U 8 PoE NVR




Key Features • H.265+/H.265/H.264+/H.264 video compression

• Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth

• Up to 4/8-ch network camera inputs

• Up to 4-ch 1080p decoding capability

• HDMI and VGA simultaneous output













Compression and Recording • H.265+ compression effectively reduces the storage space by up to 75%

• Full channel recording at up to 4 MP resolution




Storage and Playback • 2-ch@4 MP or 4-ch@1080p playback resolution

• 1 SATA interface (up to 6 TB capacity per HDD)




Smart Function • Supports line crossing and intrusion detection

• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

• Automatically search and add network cameras after device is activated




Network & Ethernet Access • 4/8 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

HiLook 4K H.265+ 8ch NVR




Key Features • Up to 8-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity

• Up to 80 Mbps incoming bandwidth













Professional and Reliability • H.265+ compression effectively reduces the storage space by up to 75%




HD Video Output • Provide simultaneous HDMI and VGA outputs

• HDMI video output at up to 4K resolution




Storage and Playback • 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)

• Smart search/smart playback to improve the playback efficiency




Smart Function • 4-ch Motion Detection 2.0

• Support multiple VCA (Video Content Analytics) events

• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)




Network & Ethernet Access • 8 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

HiLook 4K H.265+ 8ch NVR with Twin HDD Slots




Key Features • Up to 8-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

• Up to 80 Mbps incoming bandwidth













Professional and Reliability • H.265+ compression effectively reduces the storage space by up to 75%




HD Video Output • Provide simultaneous HDMI and VGA outputs

• HDMI video output at up to 4K resolution




Storage and Playback • 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)

• Smart search/smart playback to improve the playback efficiency




Smart Function • 4-ch Motion Detection 2.0

• Support multiple VCA (Video Content Analytics) events

• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)




Network & Ethernet Access • 8 independent PoE network interfaces

• 1 self-adaptive 10/100 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file

HiLook 4K 16Ch NVR with Dual HDD Slots




Key Features • Up to 16-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

• Up to 160 Mbps incoming bandwidth













Professional and Reliability • H.265+ compression effectively reduces the storage space by up to 75%




HD Video Output • Provide simultaneous HDMI and VGA outputs

• HDMI video output at up to 4K resolution




Storage and Playback • 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)

• Smart search/smart playback to improve the playback efficiency




Smart Function • 4-ch Motion Detection 2.0

• Support multiple VCA (Video Content Analytics) events

• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)




Network & Ethernet Access • 16 independent PoE network interfaces

• 1 self-adaptive 10/100/1000 Mbps Ethernet interface

• HiLookVision for easy network management


Full specification and details can be found in the Product Datasheet PDF file

A user manual can be found in the User Manual PDF file

A user quick start guide can be found in the User Quick Start Guide PDF file
