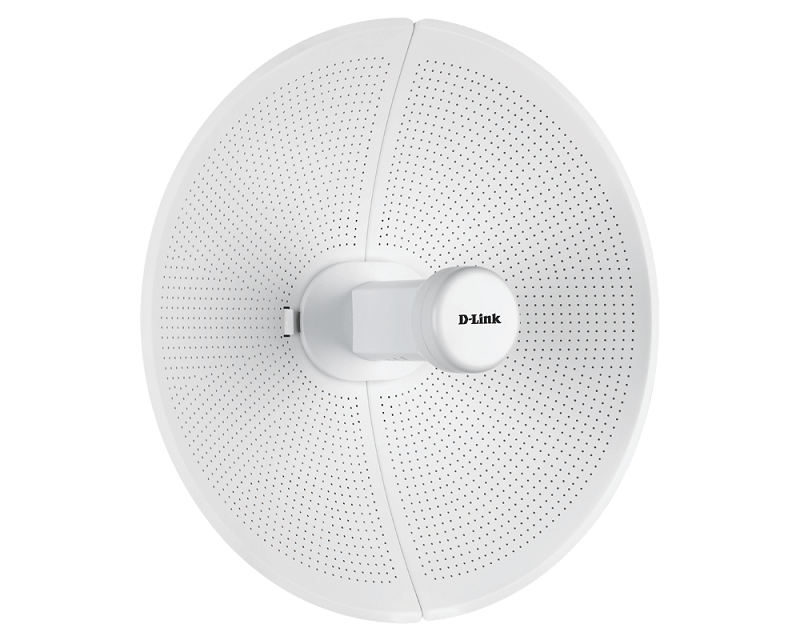

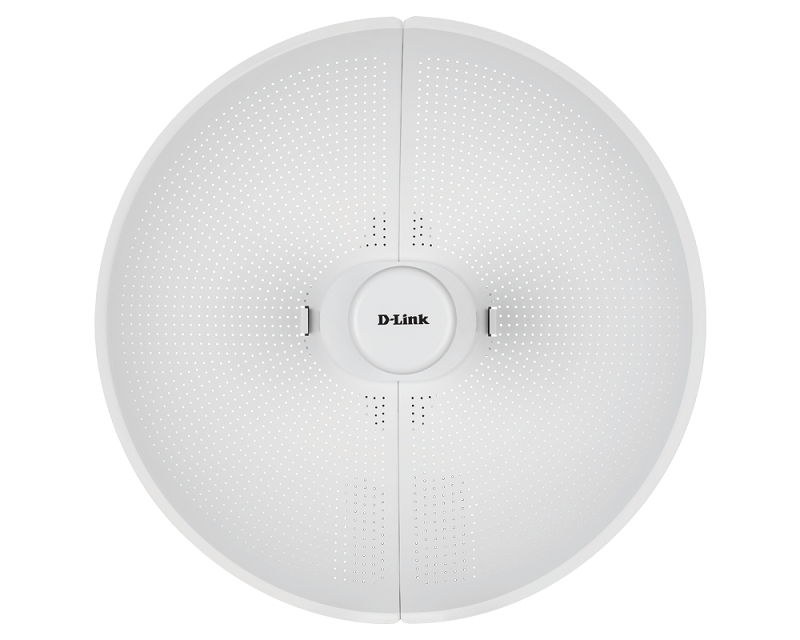

D-Link Nuclias CONNECT DAP-3712 20km Long Range Wireless AC Bridge

D-Link Nuclias CONNECT DAP-3712 20km Long Range Wireless AC Bridge

by D-Link
See more product details
Part No:DLDAP-3712
Manufacturer No:DAP-3712
Delivery: In Stock: 1-2 Weeks

/assets/images/gallery/large/1636624402DAP-3712 - 1.png

D-Link Nuclias CONNECT DAP-3712 20km Long Range Wireless AC Bridge
More Related Items
Click to change options
Colour:
Apply
£108.49 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top
    D-Link Nuclias CONNECT DAP-3712 20km Long Range Wireless AC Bridge

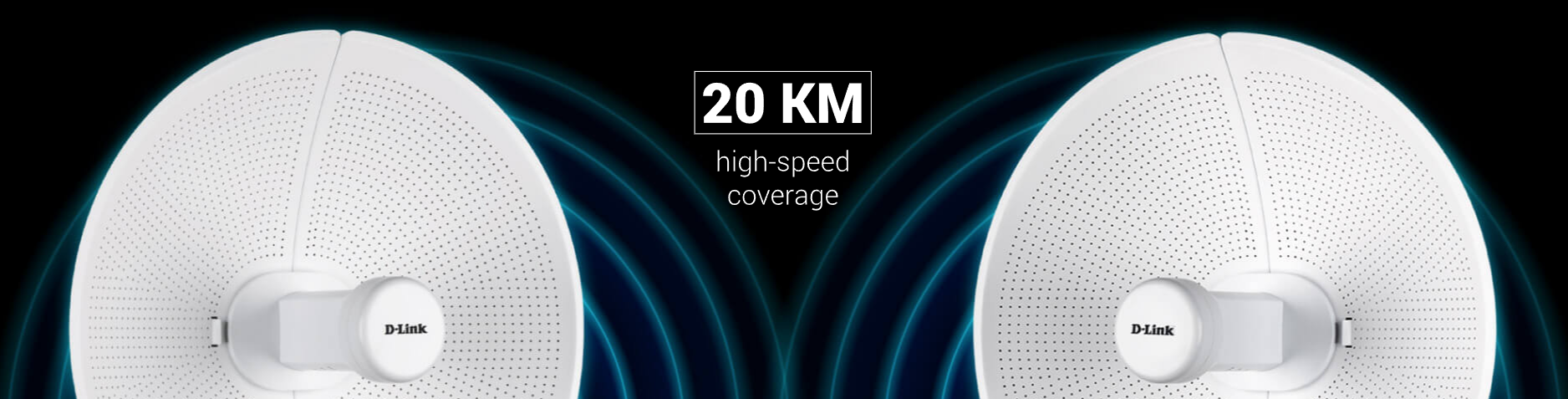

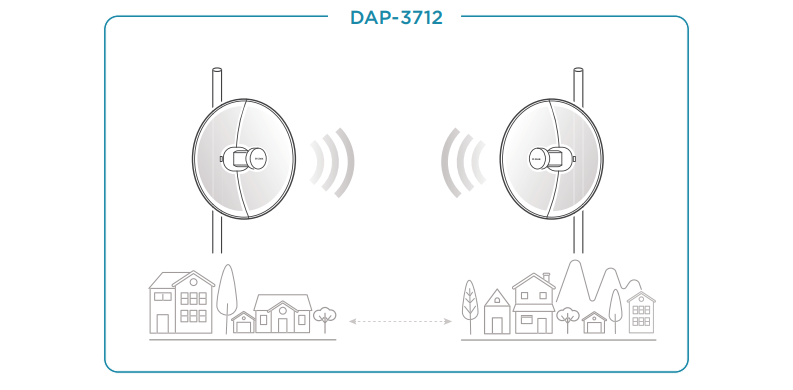

    20 km Long Range 802.11ac Wireless Bridge

    A resilient solution that overcomes the challenges of rural areas and tricky terrain to supply stable, high-speed connectivity over vast distances

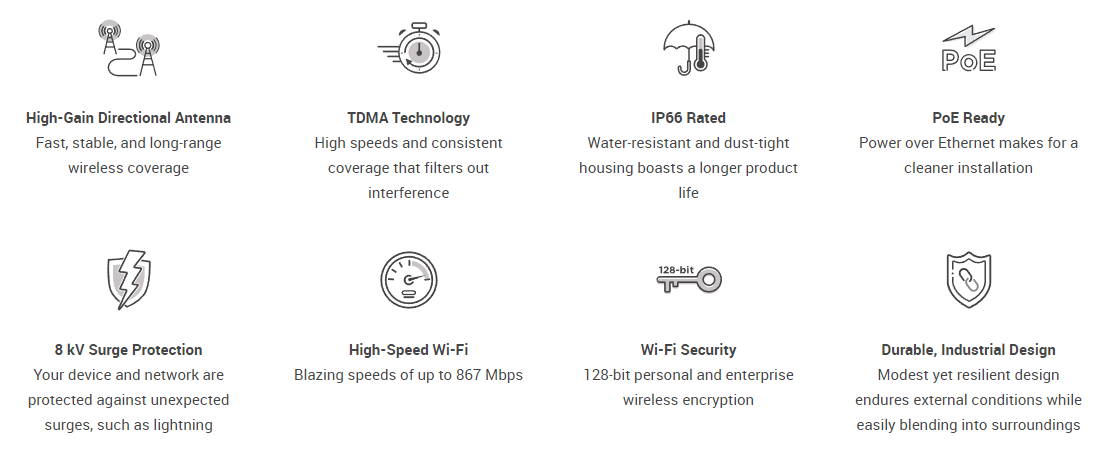

    Product Features:

    • Features high-gain 23 dBi directional antenna supplying high-speed, stable coverage to up to 20 km away
    • Integrated TDMA Technology cuts through interference to ensure high-speed, consistent coverage
    • Superior throughput with single-band transfer speeds of up to 867 Mbps

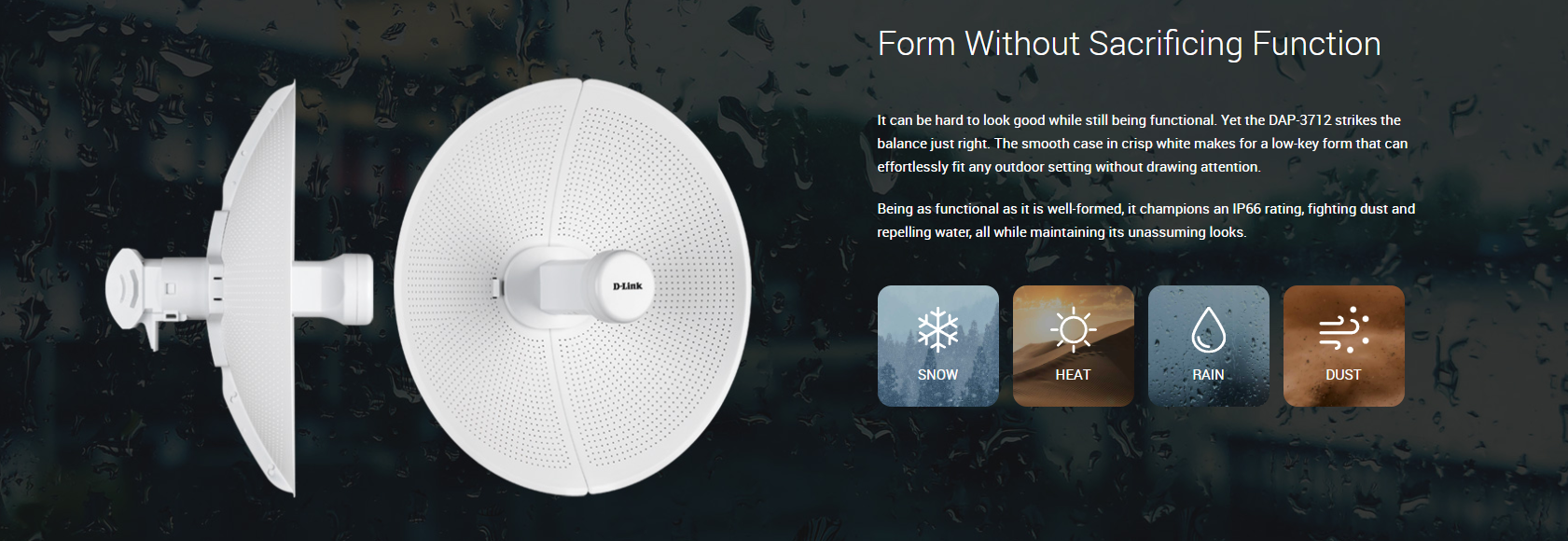

    • Refined design effortlessly blends into any setting
    • Supports WPA2™ - Wi-Fi security for more protection
    • Support for Power over Ethernet means less wires, for cleaner and easier deployment
    • Features an IP66 rating, boasting water-resistant and dust-tight housings





      Highlights

      The DAP-3712 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.

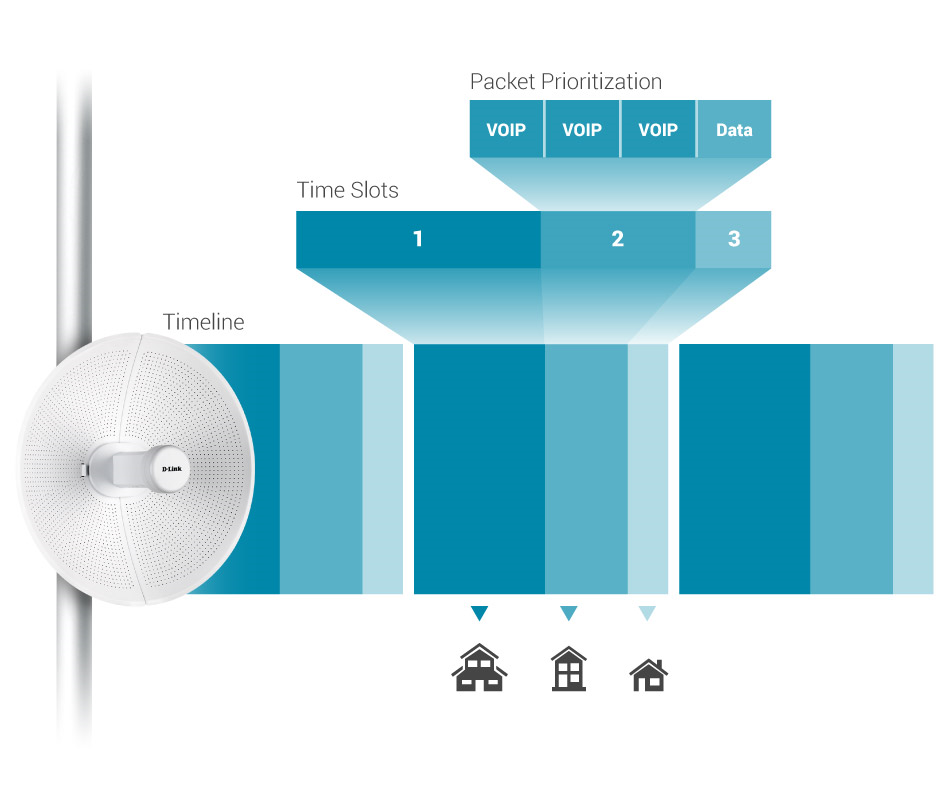

    • TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage

      The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

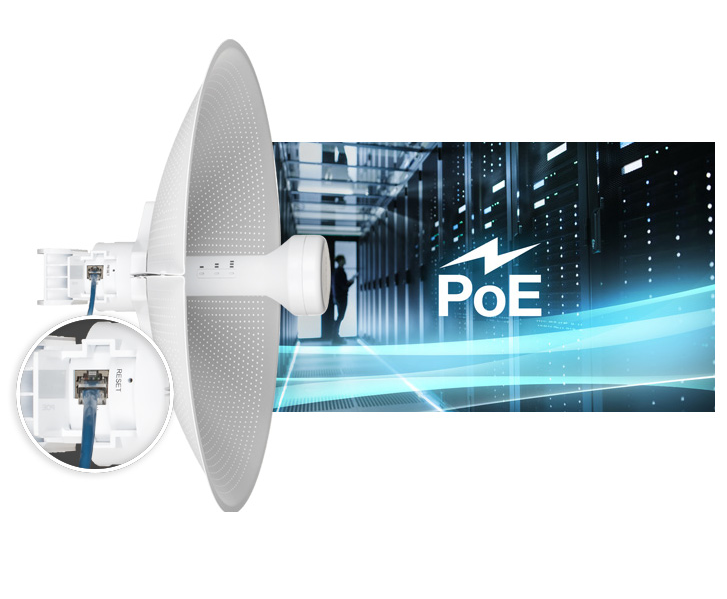

    • Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)

      Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.








    Cutting Edge Hardware Makes the Previously Impossible, Possible

    The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.





    Physical
    Power Input PoE+ 48 V
    Power Consumption ? 15 W
    Operating Temperature -40ºC to 65ºC
    Temperature (Storage) -40ºC to 85ºC
    Humidity (Operating) 0% to 90% non-condensing
    Humidity (Storage) 0% to 90% non-condensing
    Dimensions 372 x 372 x 241 mm / 14.6 x 14.6 x 9.5 in
    Weight 900 g / 2.0 lbs
    General
    Device Interfaces 1 x 100/1000 Mbps Ethernet port, reset button
    LEDs Signal strength
    Antenna Type Dish
    Antenna Gain 23 dBi
    Beamwidth H: 10°, V: 10°
    Standards 802.11a/n/ac

    Full specification and details can be foun in the PDF file

    20 km Long Range 802.11ac Wireless Bridge

    A resilient solution that overcomes the challenges of rural areas and tricky terrain to supply stable, high-speed connectivity over vast distances


    Product Features:

    • Features high-gain 23 dBi directional antenna supplying high-speed, stable coverage to up to 20 km away
    • Integrated TDMA Technology cuts through interference to ensure high-speed, consistent coverage
    • Superior throughput with single-band transfer speeds of up to 867 Mbps
    • Refined design effortlessly blends into any setting
    • Supports WPA2™ - Wi-Fi security for more protection
    • Support for Power over Ethernet means less wires, for cleaner and easier deployment
    • Features an IP66 rating, boasting water-resistant and dust-tight housings





      Highlights

      The DAP-3712 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.



    • TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage

      The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.


    • Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)

      Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.








    Cutting Edge Hardware Makes the Previously Impossible, Possible

    The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.





    Physical
    Power Input PoE+ 48 V
    Power Consumption ? 15 W
    Operating Temperature -40ºC to 65ºC
    Temperature (Storage) -40ºC to 85ºC
    Humidity (Operating) 0% to 90% non-condensing
    Humidity (Storage) 0% to 90% non-condensing
    Dimensions 372 x 372 x 241 mm / 14.6 x 14.6 x 9.5 in
    Weight 900 g / 2.0 lbs
    General
    Device Interfaces 1 x 100/1000 Mbps Ethernet port, reset button
    LEDs Signal strength
    Antenna Type Dish
    Antenna Gain 23 dBi
    Beamwidth H: 10°, V: 10°
    Standards 802.11a/n/ac

    Full specification and details can be foun in the PDF file
