| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Pairs: |
| Part No: | 500CW11 |
| Manufacturer No: | TCJF5005PB |
| Delivery: | In Stock: 1-2 Days |
 |

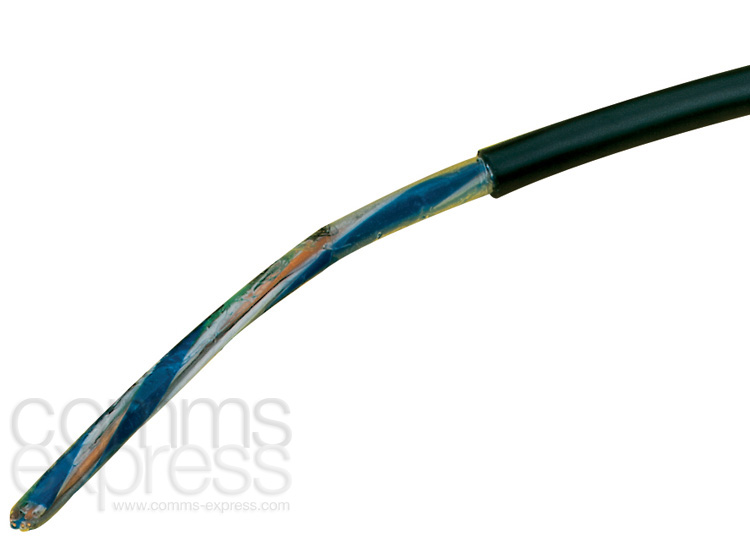

Excel external grade telecommunication cables are made up from conductors of solid plain copper insulated with cellular (foamed) polyethylene. These conductors are twisted into pairs and the required number of pairs are laid up into units which are identified by coloured tapes. The cables are petroleum jelly filled and sheathed in black polyethylene, and are manufactured in accordance with BT type CW 1128.
Features:| Conductor | Total Number of Cores | 10-200 |
| Diameter | 0.5mm | |
| Conductor category | Class 1 = solid | |
| Stranding element | Pairs | |
| Insulation | Materials | Foam Skin PE |
| Core Identification | Colour + rings | |
| Pair Grouping Identification: | Layers | |
| Jacket | Materials | LDPE |
| Colours | Black | |
| Outdoor Use Permitted | Yes | |
| Overall Screening | None | |
| Conductor Screening | None | |
| Armour | None | |
| Reaction-to-fire class according to EN 13501-6 | Fca | |
| Longitudinal water blocking | Yes | |
