| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FUTPS6A3-CE |
| Delivery: | Out Of Stock |
 |
Cat6A Cable - Solid conductor 4 pair U/FTP cable with low smoke zero halogen outer sheath, CRP Rating Class B2ca
Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These are twisted together to form 4 pairs with varying lay lengths.

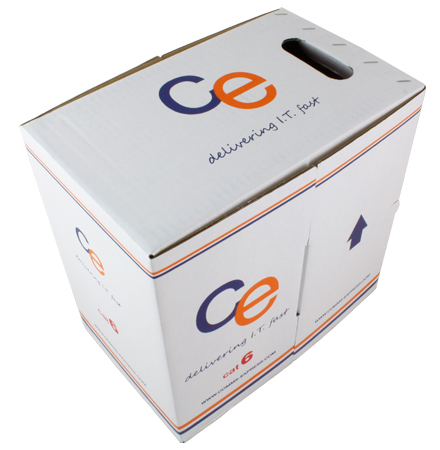

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.
Product Features
Product Specification
|
Construction and Characteristics |
||||||
|
Conductor |
Material/Size |
Bare Copper / 23AWG |
||||
|
Insulation |
Material |
PE |
||||
|
Thickness |
Nominal: 0.385mm |
|||||
|
Diameter |
Nominal: 1.32mm |
|||||
|
Colours |
Blue/White |
Orange/White |
Green/White |
Brown/White |
||
|
Unaged Elongation |
Min. 100% |
|||||
|
Unaged Tensile Strength |
Min.0.816 Kgf/mm² |
|||||
|
Screen |
Material |
Individual Foil and without overall braid screened. |
||||
|
Material |
Stranded tinned copper drain wire |
|||||
|
Jacket |
Material |
LS0H |
||||
|
Thickness |
Nominal: 0.5mm |
|||||
|
Diameter |
Nominal: 7.1mm |
|||||
|
Colour |
Ice Blue |
|||||
|
Unaged Elongation |
Min. 125% |
|||||
|
Unaged Tensile Strength |
Min. 0.918Kgf/mm² |
|||||
|
Aging at 100°C for 168hrs |
Min. elongation retention: 70% |
|||||
|
Min. tensile strength retention: 70% |
||||||
|
Electrical Performances |
||||||
|
Dielectric Strength of Insulation |
1500 V dc/2 Seconds |
|||||
|
Insulation Resistance Test |
Min. 5000 M?/Km |
|||||
|
Conductor Resistance |
Max. 9.38 ?/100m at 20°C |
|||||
|
Resistance Unbalance |
Max. 2% |
|||||
|
Capacitance Unbalance |
Max. 160 pF/100m |
|||||
|
Mutual Capacitance |
Max. 5600 pF/100m |
|||||
|
Impedance |
1~100MHz |
100? ± 15% |
||||
|
100~250MHz |
100? ± 22% |
|||||
|
251~500MHz |
100? ± 25% |
|||||
|
Attenuation & Near End Cross Talk |
Frequency |
Attenuation |
NEXT |
PSNEXT |
||
|
1MHz |
1.9* |
65.0* |
62.0* |
|||
|
10MHz |
5.5* |
57.8* |
55.5* |
|||
|
100MHz |
18.0* |
41.8* |
39.9* |
|||
|
200MHz |
26.1* |
36.9* |
34.3* |
|||
|
250MHz |
29.5* |
35.3* |
32.7* |
|||
|
300MHz |
32.7* |
34.0* |
31.4* |
|||
|
400MHz |
38.4* |
29.9* |
27.1* |
|||
|
500MHz |
43.8* |
26.7* |
23.8* |
|||
Cat6A Cable - Solid conductor 4 pair U/FTP cable with low smoke zero halogen outer sheath, CRP Rating Class B2ca.
Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These are twisted together to form 4 pairs with varying lay lengths.
The printing detail on the sheath includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.
