Veracity CCTV Camera Installation Tools

IP Camera configuration made easy - and FAST Veracity's PINPOINT adapter solves a common problem. How do you view the image or configuration page of an IP camera locally, without disconnecting it from the network and losing POE power?

By routing installed Power over Ethernet power to the camera, but diverting its network connection to your laptop or PDA, PINPOINT lets you get your camera focused and set-up quickly and accurately.

Save time and money

Setting up the focus and direction of IP cameras often involves the installer working with a partner in the control room who can see its image.  It is a trial and error process, using phone or radio communication to attempt to get a satisfactory image.

Using PINPOINT however, a single installer can get the camera set up in considerably less time, while being able to configure the camera precisely for the best image possible.

Universal compatibility

PINPOINT is compatible with the IEEE 802.3af POE that is used by most IP cameras, as well as most POE Plus and non-standard types of POE up to 30 watts.  An LED indicator confirms that POE is being delivered to the camera.

It is compatible with both 10BASE-T and 100BASE-TX Ethernet, and includes network crossover to enable direct connection to a laptop or netbook computer using a standard Cat5E patch cable.

Designed for your tool kit

Simple, tough construction and compact dimensions mean that PINPOINT can be used again and again as a reliable IP video installation tool.



Key technical features:

Network connections:
POE in (from installed network, RJ45 socket)
Ethernet (to laptop, RJ45 socket)
POE out + Ethernet (to IP camera, RJ45 plug)
Network specification:
10BASE-T or 100BASE-TX compliant
Half or Full Duplex supported
Integrated network crossover
Cat5e patch cable included
POE standards supported:
IEEE 802.3af (regular POE)
IEEE 802.3at non-LLDP (regular POE Plus)
"Always-on", and "spare-pair only" POE
Most proprietary high-power POE to 30 watts
LED indicates POE is active
Dimensions:
65 x 32 x 20mm (2.6 x 1.3 x 0.8 in)
58g (2oz)

Focus and adjust IP cameras on your smart device with PINPOINT Wireless Veracity's PINPOINT Wireless solves a common problem and makes POE IP camera installation easy by adding a wireless link near the camera, allowing connection to a smartphone, tablet or laptop for local image display.

Save time and money

Setting up the focus and direction of IP cameras often involves the installer working with a partner in the control room who can see its image.  It is a trial and error process, using phone or radio communication to attempt to get a satisfactory image.

Using PINPOINT Wireless however, a single installer can get the camera set up in considerably less time, while being able to configure the camera precisely for the best image possible.

Universal compatibility

PINPOINT Wireless is compatible with the IEEE 802.3af POE that is used by most IP cameras, as well as most POE Plus and non-standard types of POE up to 30 watts.  An LED indicator confirms that POE is being delivered to the camera.

It is compatible with both 10BASE-T and 100BASE-TX Ethernet, and includes wireless connection to a smartphone or tablet.

Designed for your tool kit

Simple, tough construction and compact dimensions mean that PINPOINT Wireless can be used again and again as a reliable IP video installation tool.



Network connections:
POE in (from installed network, RJ45 socket)
POE out (to IP camera, RJ45 socket)
Network specification:
10BASE-T or 100BASE-TX compliant
Wireless network:
IEEE 802.11 b/g/n/ac
2.4GHz and 5GHz
Viewer:
CAMPOINT App
iOS and Android compatible
POE standards supported:
IEEE 802.3af (regular POE)
IEEE 802.3at (regular POE Plus)
LED indicates POE is active
Dimensions:
128 x 82 x 28mm (2.6 x 1.3 x 0.8 in)
128g (4.5oz)
Applications:
Fast on-site configuration of IP cameras
Accurate positioning of viewing direction
Accurate setting of variable focal length lenses
Viewing of IP camera images on smartphone or tablet
Increases installation speed and efficiency

Portable POE Installation Tool with Rechargeable Battery POINTSOURCE Plus is ideal for powering POE IP cameras in-situ, when in-line POE is not yet available. It permits complete camera alignment, focus, configuration and test from a locally-connected laptop.

Portable, Rechargeable, Power Where You Need It

Veracity’s POINTSOURCE Plus is a portable, rechargeable battery - powered POE (Power over Ethernet) injector. It is designed for field use, being compact, easy to handle, with a useful shoulder strap, which leaves your hands free. It can deliver enough power to support a full day’s IP camera installation work.

POINTSOURCE Plus provides a similar functionality to Veracity’s PINPOINT, but includes a built-in POE power source to allow installation and set-up of IP cameras before POE power is available through the network.

On Site Configuration

The most common application for POINTSOURCE Plus is the in-situ configuration, set-up and fine adjustment of IP cameras on an installation site. By simply connecting a laptop to the IP camera through POINTSOURCE Plus, all aspects of the camera image (focus, direction, aperture, zoom, resolution, compression etc.) can easily be viewed and adjusted.

On Site Surveys and Pre-Installation Trials

POINTSOURCE Plus allows the rapid set-up of an IP camera during site surveys, allowing the integrator to capture snapshots or video clips of the actual on-site scenes for presentation to the prospective end-user. This is an effective example of the saying "A picture paints a thousand words.”

Customer Demonstrations Can Be Given Anywhere

Any new IP camera can very quickly be demonstrated to a client or consultant using just the camera, a laptop and the POINTSOURCE Plus package. No external power or network switch is required, allowing demonstrations to be done anywhere, from a café table top to a desert road.

Mobile & Temporary Installations

A POINTSOURCE Plus and IP camera with an SD-card slot are all that is required for a very compact and easily transported temporary IP video surveillance recording system.

POE and POE Plus

POINTSOURCE Plus complies with universal IEEE 802.3af and IEEE 802.3at POE standards, and can deliver up to 25 watts of POE power. Integrated network crossover ports allow the direct connection of a laptop (shown in the diagram opposite).

USB Charging Point

A convenient 5V USB port is provided for charging smart phones and tablets, whilst on site. The USB port has no data connection function.

LED Indicator

The POE port LED indicates when POE is being delivered to a compatible device connected to the Camera port. If an incompatible device is connected (or needs too much power) then the red LED will flash indicating the problem.

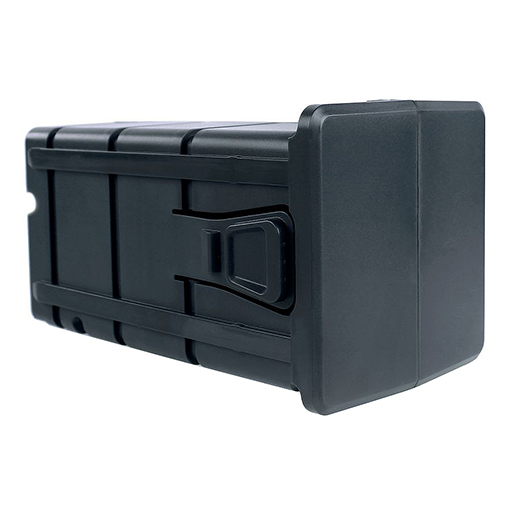

Removable Battery Module

POINTSOURCE Plus has a removable, rechargeable battery module which provides enough power for a full day’s installation work. The battery module is removed for recharging purposes. Additional battery modules are also available as an option.

Battery Life and Status

POINTSOURCE Plus has a battery life of 3 to 5 years, or 200 - 1000 cycles depending upon discharge depth and operating temperature. The battery status indicator shows the remaining charge in steps of 25%. The simple design of the system allows the removable battery to be recharged whilst POINTSOURCE Plus continues to be used with a second battery.



Portable POE Installation Tool with Rechargeable Battery POINTSOURCE Plus is ideal for powering POE IP cameras in-situ, when in-line POE is not yet available. It permits complete camera alignment, focus, configuration and test from a locally-connected laptop.

Portable, Rechargeable, Power Where You Need It

Veracity’s POINTSOURCE Plus is a portable, rechargeable battery - powered POE (Power over Ethernet) injector. It is designed for field use, being compact, easy to handle, with a useful shoulder strap, which leaves your hands free. It can deliver enough power to support a full day’s IP camera installation work.

POINTSOURCE Plus provides a similar functionality to Veracity’s PINPOINT, but includes a built-in POE power source to allow installation and set-up of IP cameras before POE power is available through the network.

On Site Configuration

The most common application for POINTSOURCE Plus is the in-situ configuration, set-up and fine adjustment of IP cameras on an installation site. By simply connecting a laptop to the IP camera through POINTSOURCE Plus, all aspects of the camera image (focus, direction, aperture, zoom, resolution, compression etc.) can easily be viewed and adjusted.

On Site Surveys and Pre-Installation Trials

POINTSOURCE Plus allows the rapid set-up of an IP camera during site surveys, allowing the integrator to capture snapshots or video clips of the actual on-site scenes for presentation to the prospective end-user. This is an effective example of the saying "A picture paints a thousand words.”

Customer Demonstrations Can Be Given Anywhere

Any new IP camera can very quickly be demonstrated to a client or consultant using just the camera, a laptop and the POINTSOURCE Plus package. No external power or network switch is required, allowing demonstrations to be done anywhere, from a café table top to a desert road.

Mobile & Temporary Installations

A POINTSOURCE Plus and IP camera with an SD-card slot are all that is required for a very compact and easily transported temporary IP video surveillance recording system.

POE and POE Plus

POINTSOURCE Plus complies with universal IEEE 802.3af and IEEE 802.3at POE standards, and can deliver up to 25 watts of POE power. Integrated network crossover ports allow the direct connection of a laptop (shown in the diagram opposite).

USB Charging Point

A convenient 5V USB port is provided for charging smart phones and tablets, whilst on site. The USB port has no data connection function.

LED Indicator

The POE port LED indicates when POE is being delivered to a compatible device connected to the Camera port. If an incompatible device is connected (or needs too much power) then the red LED will flash indicating the problem.

Removable Battery Module

POINTSOURCE Plus has a removable, rechargeable battery module which provides enough power for a full day’s installation work. The battery module is removed for recharging purposes. Additional battery modules are also available as an option.

Battery Life and Status

POINTSOURCE Plus has a battery life of 3 to 5 years, or 200 - 1000 cycles depending upon discharge depth and operating temperature. The battery status indicator shows the remaining charge in steps of 25%. The simple design of the system allows the removable battery to be recharged whilst POINTSOURCE Plus continues to be used with a second battery.



 Key technical features:

Allows local viewing of IP camera on laptop close to camera
Enables rapid, precise adjustment of camera alignment, focus and field of view
Includes USB power port for charging phones and tablets
Removable, rechargeable battery with sufficient power for a full day’s installation work
Supports all classes of 802.3af and 802.3at POE devices
Installs and removes in seconds and reduces on-site time
Additional spare batteries available for rapid swap over

Portable POE Installation Tool with Wireless Link Install, configure, focus and align IP cameras with a wireless link to your tablet or smartphone.

POINTSOURCE Wireless is a battery-powered POE injector, with a wireless network link, designed to allow simple and efficient IP camera installation with live video to smartphones, tablets and laptops.

Battery Powered POE Injector with Wireless Network Access

Portable POE battery pack with removable, rechargeable battery module, for site installation of IP cameras and site surveys

Allows local viewing of IP camera video wirelessly on smart devices
Enables rapid, precise adjustment of camera alignment, focus and field of view
Removable, rechargeable battery - sufficient power for a day’s installation work
Additional spare batteries available as an option for rapid swap over
Using POINTSOURCE Wireless as an installation tool eliminates any need for trailing cables or costly return visits to site, to set up IP cameras when power or POE is available.

Makes Camera Installation Easy and Fast

Veracity’s POINTSOURCE Wireless is a portable, battery-powered POE injector providing wireless network access to the IP camera it is powering. The POINTSOURCE Wireless device is connected directly to the camera using a standard Ethernet network cable. This delivers POE to the camera and connects the IP camera to the embedded wireless access point within POINTSOURCE Wireless. By logging into the wireless network, live video can be viewed wirelessly on a smartphone or tablet. POINTSOURCE Wireless features automatic camera discovery, including ONVIF.

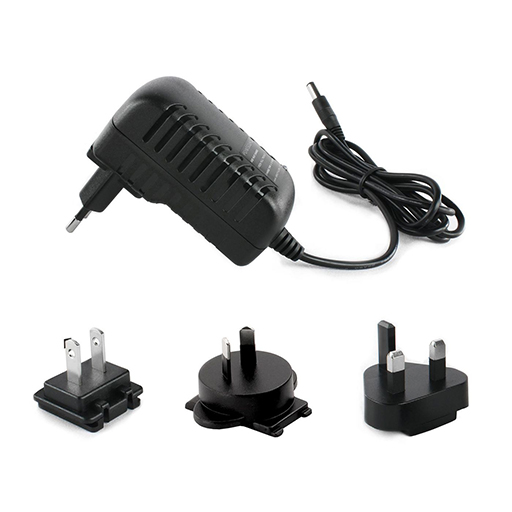

POINTSOURCE Wireless includes battery and POE status LEDs, and a separate charging adapter.  It is designed to last a full day of network camera installation, and can be safely left to recharge overnight.

Portable, rechargeable, power where and when you need it

POINTSOURCE Wireless has a rechargeable, removable, battery module which provides enough power for a typical full day’s camera installation work. The POE output is 802.3af and 802.3at compatible, outputting POE power up to 30W. The battery module is removed for charging purposes. The spring-loaded battery module is easily released by pressing in locking tabs on either side of POINTSOURCE Wireless and reinserted by pushing the module back in until it clicks and locks firmly into place. Additional battery modules are available as an option.


Connections:

RJ45 - network & POE out
RJ45 - network only
USB Charging Port - 5 volt out
Network:
10 BASE-T / 100BASE-TX
Power over Ethernet:
IEEE 802.3af/at compliant (POE, POE Plus up to 30W)
30 watts maximum power output
5 volt output:
Max current 2.1 amps
Smartphone/tablet charging point
Dimensions:
205 x 100 x 150mm (5 5/16 x 3 15/16 x 8 1/16 in)
Weight 2.2kg (4.8lb) unpackaged

Portable POE Installation Tool with Wireless Link Install, configure, focus and align IP cameras with a wireless link to
your tablet or smartphone.

POINTSOURCE Wireless is a battery-powered POE injector, with a wireless network link, designed to allow simple and efficient IP camera installation with live video to smartphones, tablets and laptops.

Battery Powered POE Injector with Wireless Network Access

Portable POE battery pack with removable, rechargeable battery module, for site installation of IP cameras and site surveys

Allows local viewing of IP camera video wirelessly on smart devices
Enables rapid, precise adjustment of camera alignment, focus and field of view
Removable, rechargeable battery - sufficient power for a day’s installation work
Additional spare batteries available as an option for rapid swap over
Using POINTSOURCE Wireless as an installation tool eliminates any need for trailing cables or costly return visits to site, to set up IP cameras when power or POE is available.

Makes Camera Installation Easy and Fast

Veracity’s POINTSOURCE Wireless is a portable, battery-powered POE injector providing wireless network access to the IP camera it is powering. The POINTSOURCE Wireless device is connected directly to the camera using a standard Ethernet network cable. This delivers POE to the camera and connects the IP camera to the embedded wireless access point within POINTSOURCE Wireless. By logging into the wireless network, live video can be viewed wirelessly on a smartphone or tablet. POINTSOURCE Wireless features automatic camera discovery, including ONVIF.

POINTSOURCE Wireless includes battery and POE status LEDs, and a separate charging adapter.  It is designed to last a full day of network camera installation, and can be safely left to recharge overnight.

Portable, rechargeable, power where and when you need it

POINTSOURCE Wireless has a rechargeable, removable, battery module which provides enough power for a typical full day’s camera installation work. The POE output is 802.3af and 802.3at compatible, outputting POE power up to 30W. The battery module is removed for charging purposes. The spring-loaded battery module is easily released by pressing in locking tabs on either side of POINTSOURCE Wireless and reinserted by pushing the module back in until it clicks and locks firmly into place. Additional battery modules are available as an option.

Key techincal features:

Connections:
RJ45 - network & POE out
RJ45 - network only
USB Charging Port - 5 volt out
Network:
10 BASE-T / 100BASE-TX
Power over Ethernet:
IEEE 802.3af/at compliant (POE, POE Plus up to 30W)
30 watts maximum power output
5 volt output:
Max current 2.1 amps
Smartphone/tablet charging point
Dimensions:
205 x 100 x 150mm (5 5/16 x 3 15/16 x 8 1/16 in)
Weight 2.2kg (4.8lb) unpackaged
