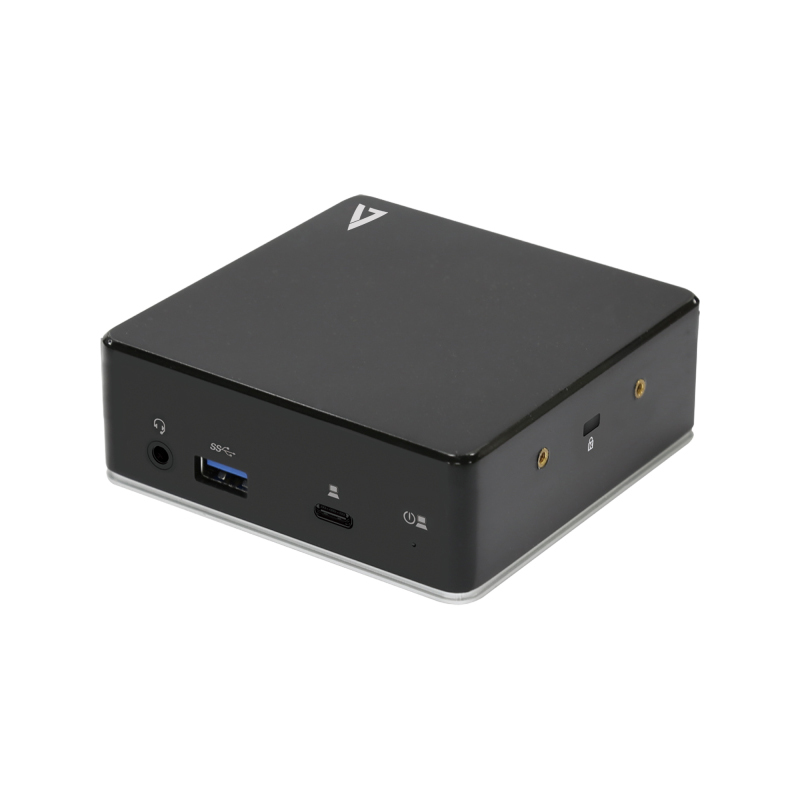

The V7 UCDDS1080P universal USB-C docking station adds dual HDMI display connectivity, Gigabit Ethernet, USB 3.1 ports and 3.5mm audio to a compatible computer through a single USB-C connection. It supports up to two displays at 1920 x 1080 resolution and provides up to 85W USB-C Power Delivery, while the included 100W power supply provides the required input power. A front USB port supports BC 1.2 and Apple charging, and the compact black unit also includes a Kensington security slot for added physical security.
Key Features of V7 UCDDS1080P
Dual HDMI display outputs
Supports up to two displays at 1920 x 1080 resolution
Up to 85W USB-C Power Delivery
Includes a 100W power supply
Three USB 3.1 Gen 1 Type-A ports
Gigabit Ethernet with 10/100/1000 Mbps support
3.5mm combo audio connection
Front USB port with BC 1.2 and Apple charging support
USB-C host interface
Dual Display Connectivity
Two HDMI outputs allow compatible computers to connect with up to two external displays, supporting resolutions up to 1920 x 1080. The outputs can be used to extend or mirror the desktop for multi-screen working.
USB-C Power Delivery
USB-C Power Delivery provides up to 85W of power to a compatible connected computer, while the included 100W power supply provides power to the docking station. This allows users to connect peripherals and displays while keeping a compatible computer powered through the dock.
High-Speed Peripheral Connections
Three USB 3.1 Gen 1 Type-A ports provide connections for peripherals such as keyboards, mice, storage devices and other compatible accessories. The front USB port also supports BC 1.2 and Apple charging for compatible devices.
Gigabit Ethernet and Audio
The RJ-45 network connection supports 10/100/1000 Mbps Ethernet for wired network access, while the 3.5mm combo audio connection supports audio input and output. Together, these connections provide additional desktop connectivity through a single USB-C host connection.
Compact Desktop Connectivity
Measuring 95 x 95 x 34mm, the compact black docking station takes up limited desk space while bringing multiple connections together in one unit. A Kensington security slot is also included for use with compatible physical security cables.
