Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure. Unit Dimensions (hwd / cm) 96,52 x 50,01 x 41,05

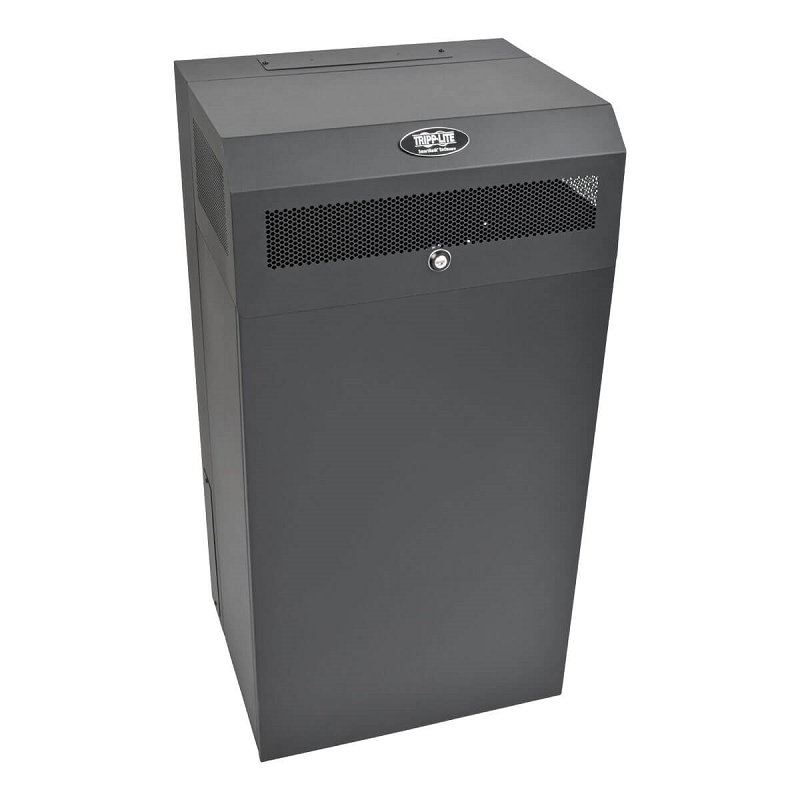

SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure
Wall-mount cabinet secures and organizes 12U of 19-in. rack equipment in network wiring closets and other locations with limited floor space. Houses equipment up to 35 in. deep, but extends just 16 in. from wall
Features
Maximum load capacity of 400 lbs (181.4 kgs)
Locking steel cabinet vented to keep equipment cool
Secures 8U of 19 in. rack equipment up to 35 in. deep
Includes additional 4U of space for patch panels
Modular design for easy disassembly and assembly
5-year limited warranty
Unit Dimensions (hwd / cm) 96,52 x 50,01 x 41,05
The SRWF12U38 SmartRack® 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 lbs (181.4 kgs).
Because the low-profile cabinet mounts vertically, it extends only 16 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 8U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels.
The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing.
The SRWF12U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks.
Saves Valuable Workspace
Recommended for areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 8U of space
Also includes 4U of mounting space at the top of the enclosure for patch panels
Extends only 16 in. from the wall while housing equipment up to 35 in. deep
Maximum load capacity of 400 lbs (181.4 kgs)
Keeps Important Equipment Secure
Top cover locks securely to help prevent damage, tampering or theft
Vented cabinet keeps equipment cool
Convenient ports with removable covers allow cable routing through top, bottom and sides
Easy Enclosure and Equipment Installation
Modular design for easy disassembly and assembly
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Threaded mounting holes support 12-24 mounting in 2-post racks
Rack spaces marked for easy reference
Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
Package Includes
SRWF12U38 SmartRack® 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet
(2) Keys
Owner’s manual
Overview
UPC Code
037332195852
Device Compatibility
Network Switch; Patch Panel; Server
Rack Type
Enclosure
Physical
Colour
Black
Maximum Device Depth
88.90 cm / 889 mm
Rack Height
12U
Shipping Dimensions (height x width x depth)
47.98 x 57.00 x 108.99 cm
Shipping Weight
37.65 kg
Unit Dimensions (height x width x depth)
96.52 x 50.01 x 41.05 cm
Unit Weight
30.30 kg
Weight Capacity - Stationary
181 kg
Rack Depth
Standard
Number of Vertical Mounting Rails
2
Full specification and details can be found in the
