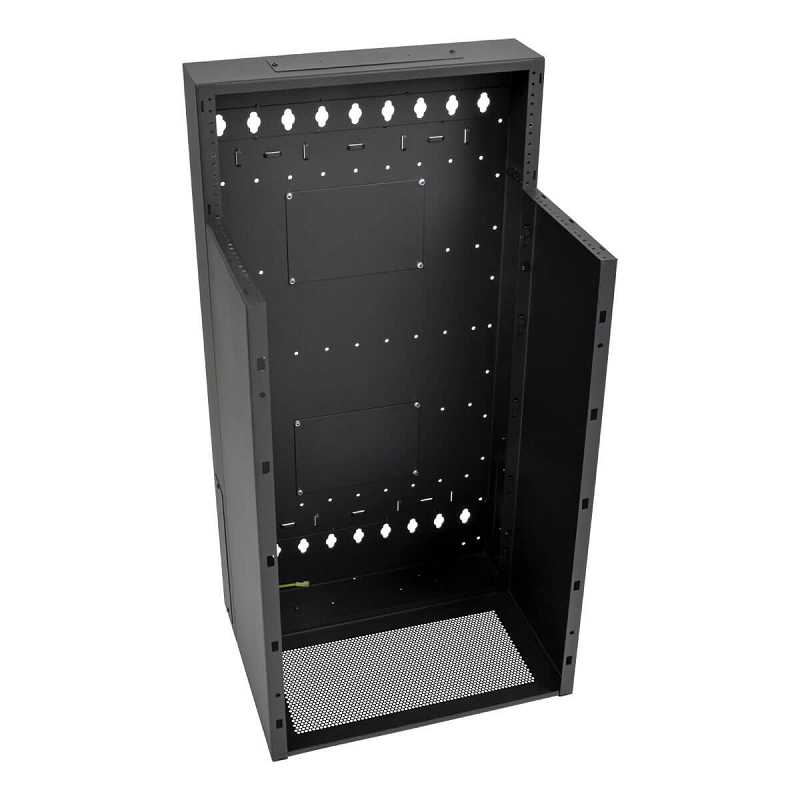

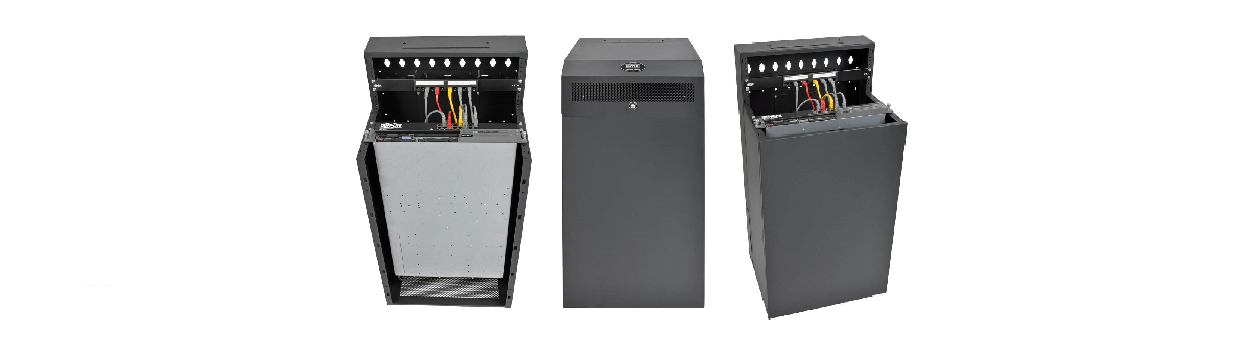

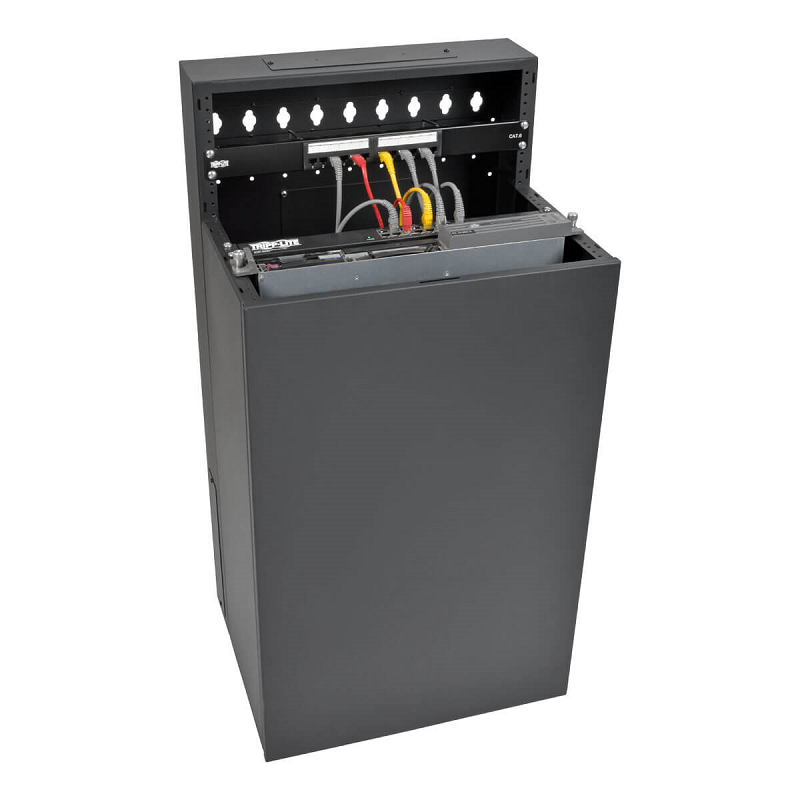

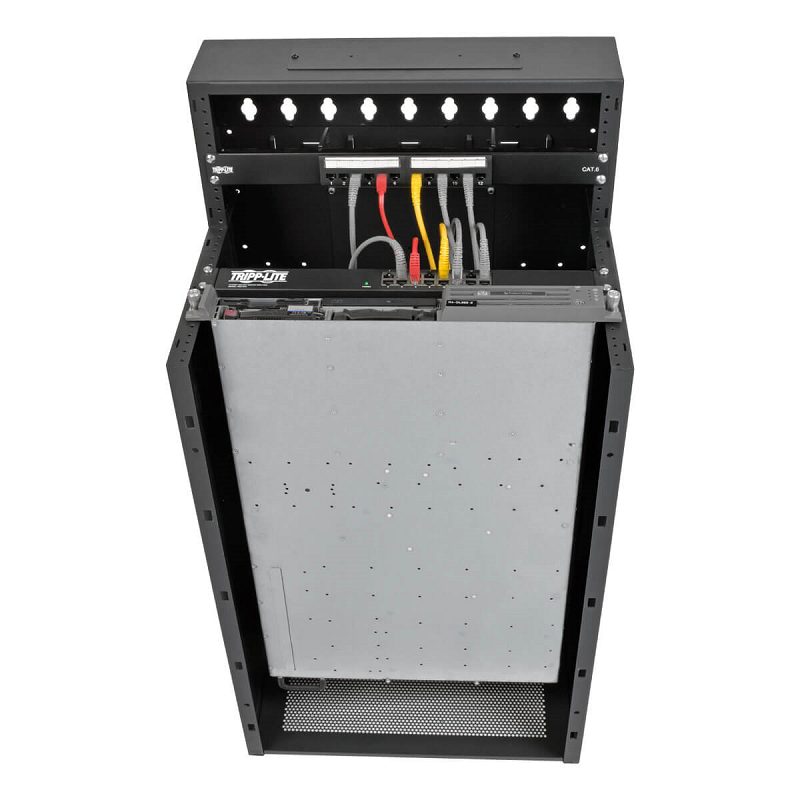

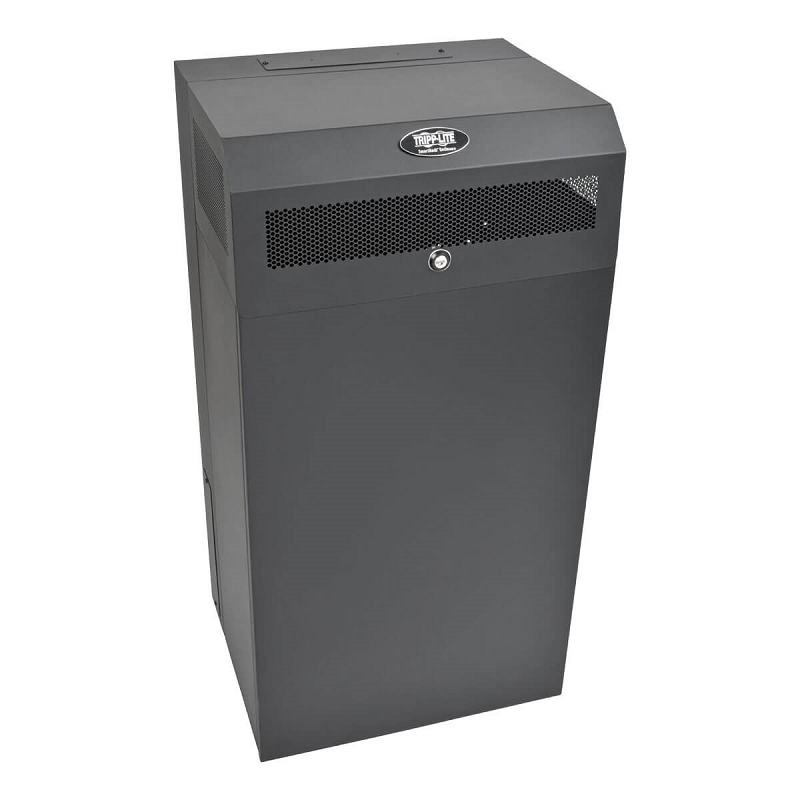

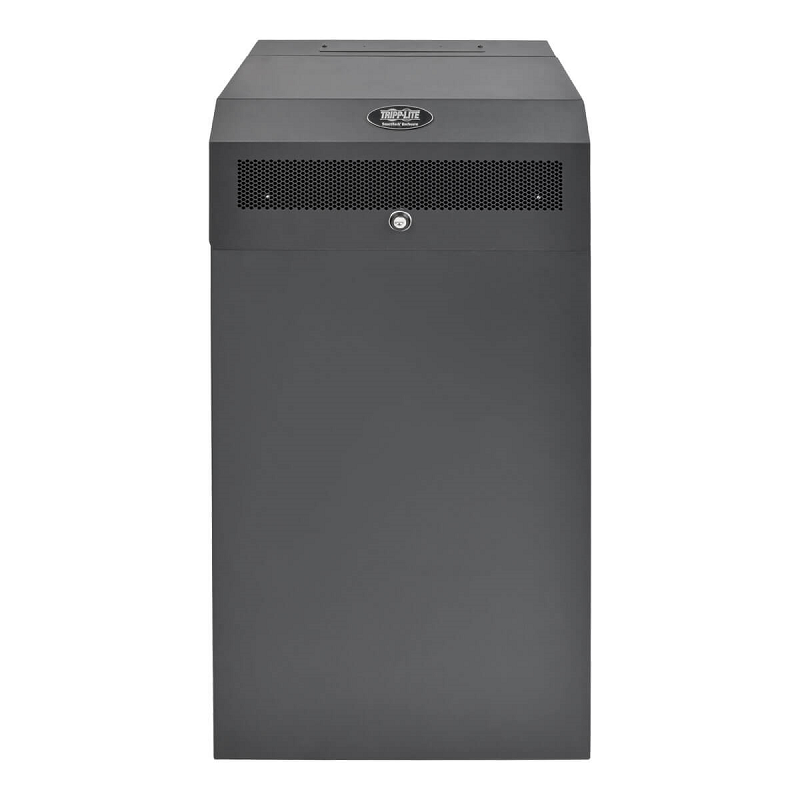

SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure
Wall-mount cabinet secures and organizes 12U of 19-in. rack equipment in network wiring closets and other locations with limited floor space. Houses equipment up to 35 in. deep, but extends just 16 in. from wall
Features
The SRWF12U38 SmartRack® 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 lbs (181.4 kgs).
Because the low-profile cabinet mounts vertically, it extends only 16 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 8U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels.
The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing.
The SRWF12U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks.
Package Includes
| Overview | |
| UPC Code | 037332195852 |
| Device Compatibility | Network Switch; Patch Panel; Server |
| Rack Type | Enclosure |
| Physical | |
| Colour | Black |
| Maximum Device Depth | 88.90 cm / 889 mm |
| Rack Height | 12U |
| Shipping Dimensions (height x width x depth) | 47.98 x 57.00 x 108.99 cm |
| Shipping Weight | 37.65 kg |
| Unit Dimensions (height x width x depth) | 96.52 x 50.01 x 41.05 cm |
| Unit Weight | 30.30 kg |
| Weight Capacity - Stationary | 181 kg |
| Rack Depth | Standard |
| Number of Vertical Mounting Rails | 2 |
Full specification and details can be found in the PDF file
