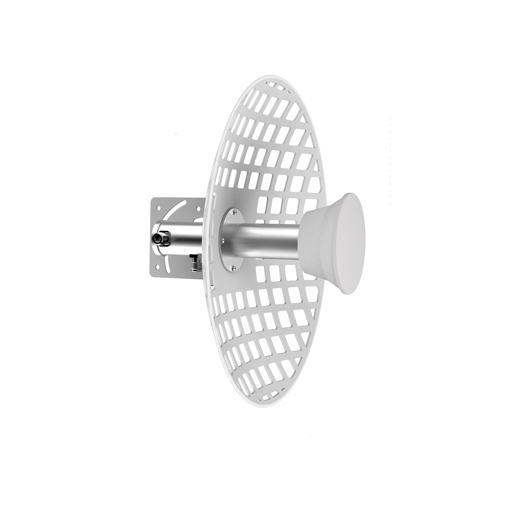

The SilverNet SIL GAN 5824 Smart Beam GRID Antenna is built for high-precision, long-distance wireless links in demanding outdoor environments. Operating within the 4.9-6 GHz band, it delivers a focused 24 dBi gain through a narrow 9° beam, allowing stable connectivity over extended ranges while reducing unwanted interference. Its grid design ensures durability in windy conditions, making it a reliable choice for coastal and open landscapes.
Key Features
Frequency range: 4.9-6.0 GHz
24 dBi high-gain performance
Narrow 9° beamwidth for precise targeting
Dual polarization with two N-type female connectors
400 mm diameter grid construction
Wind-resistant design for exposed installations
Compatible with SIL BASE 500 and SIL AP1200 radios
CE and RoHS compliant
High-Gain Directional Performance
The SIL GAN 5824 focuses wireless energy into a concentrated beam, delivering consistent connectivity for point-to-point links over significant distances. Its tight beamwidth also helps reduce interference from surrounding signals.
Built for Harsh Outdoor Conditions
With a sturdy grid construction, this antenna stands up to challenging weather, including high winds. The open-frame design reduces wind load, making it suitable for coastal, rural, and exposed installations.
Seamless Integration
Equipped with two N-type female connectors for dual polarization, the SIL GAN 5824 is designed for easy pairing with compatible radios such as the SIL BASE 500 and SIL AP1200. It supports LMR400 cabling for secure and reliable signal transmission.

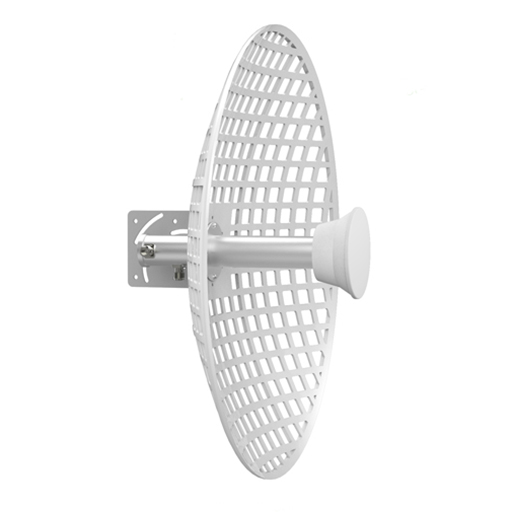

The SilverNet SIL GAN 5829 Smart Beam GRID Antenna is engineered for precise, high-performance outdoor wireless links. Its narrow beam width and substantial gain make it ideal for long-distance point-to-point connections where signal focus and reliability are essential. Designed to perform across a broad frequency range, it provides consistent results in challenging conditions while maintaining a durable, weather-ready build.
Key Features
29 dBi high-gain design for long-range connectivity
6° horizontal x 6° vertical beam width for precise targeting
Dual polarisation for improved link stability
Durable 600 mm grid construction with mounting kit
4.9 - 6 GHz frequency range for broad compatibility
2 x N-type female connectors for easy integration
Performance Across Distance
The antenna's narrow beam width concentrates signal power, enabling stable and reliable wireless connections over significant distances. This makes it well-suited for linking sites where clear line-of-sight is available.
Durability in the Field
With its weather-resistant grid design and strong mounting structure, the SIL GAN 5829 is built to maintain performance in outdoor environments without compromise.
Broad Frequency Range
Covering the 4.9 - 6 GHz spectrum, this antenna works with a variety of wireless equipment, allowing it to adapt to different deployment requirements.

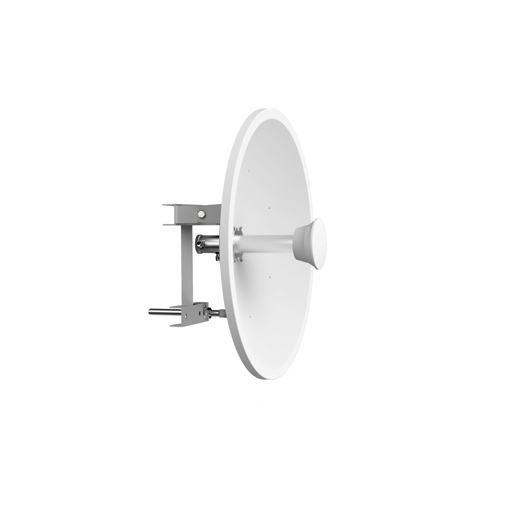

The SilverNet SIL DAN 5829 Smart Beam Dish Antenna is designed for precise, long-distance wireless connectivity in the 4.9-6 GHz frequency range. With a 60 cm parabolic design and dual-polarized capability, it delivers 29 dBi gain for stable, high-performance point-to-point links. Built to withstand demanding outdoor environments, it combines reliable construction with accurate directional focus for professional networking applications.
Key Features
4.9-6 GHz operating frequency
29 dBi high-gain parabolic design
Dual polarization with 2x N-type female connectors
6° horizontal and 6° vertical beamwidth
60 cm diameter; 6.15 kg weight
Wind survival up to 200.1 km/h
Wall or pole mounting with included hardware
CE and RoHS certified
Precision Wireless Performance
Engineered for dependable outdoor use, this antenna supports consistent and secure wireless bridging over extended distances. Its focused beam design minimizes interference, ensuring reliable connectivity even in high-density environments.
Durable Construction
Manufactured in the United Kingdom, the SIL DAN 5829 features a weather-resistant finish and sturdy build, making it capable of withstanding challenging conditions while maintaining performance integrity.
Simple Deployment
Supplied with a complete mounting kit, the antenna can be installed on walls or poles with ease. Its dual-polarized configuration supports flexible integration into various network setups.

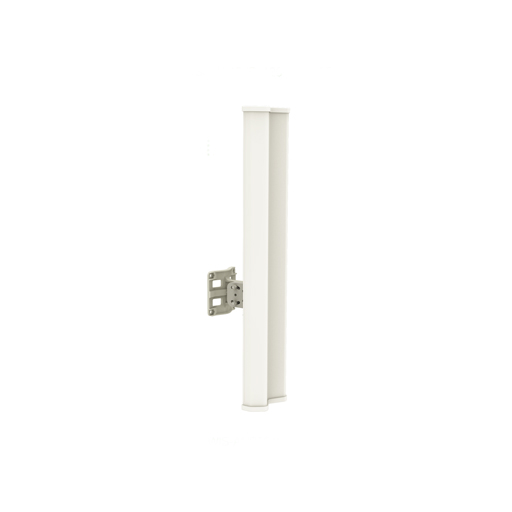

The SilverNet SIL SAN 5819-120 is a high-performance sector antenna designed for outdoor wireless networks. Operating in the 4.9-6.0 GHz frequency range, it delivers reliable coverage with a 19 dBi gain and dual-polarization, making it ideal for point-to-multipoint deployments. Its 120° horizontal and 4° vertical beamwidth provides wide area coverage while maintaining signal clarity.
Key Features
Frequency Range: 4.9-6.0 GHz
Gain: 19 dBi
Beamwidth: 120° horizontal / 4° vertical
Dual-polarization (horizontal and vertical)
Connectors: 2 x N-type female
VSWR: 1.5
Front-to-Back Ratio: 25 dB
Wind Load Rating: 150 mph
Wall or pole mountable
Housing Material: ABS and metal
Waterproof and weather resistant
Physical Specifications
The antenna measures 700 mm in height, 133 mm in width, and 57 mm in depth, weighing 2.1 kg. Its compact design allows for easy installation on poles or walls without requiring significant mounting space.
Included Accessories
Each SIL SAN 5819-120 package includes the sector antenna itself and a complete mounting kit, ensuring a straightforward setup for outdoor network deployments.
Compatibility
This antenna is recommended for use with SilverNet radios such as the SIL BASE and SIL AP1200. LMR400 cables with N-type connectors are also available for connecting the antenna to compatible devices.

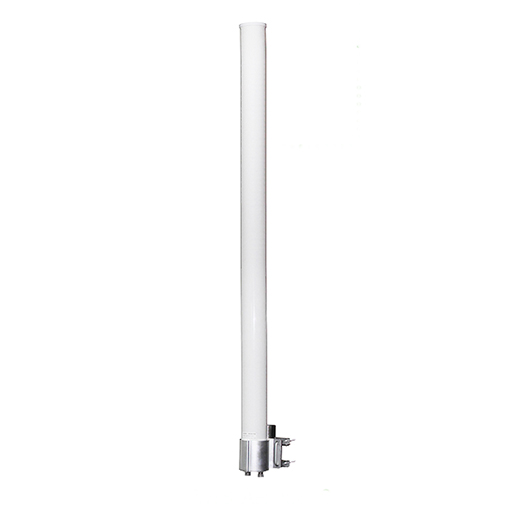

The SilverNet SIL OAN 5812 is an outdoor omni-directional antenna engineered for high-performance wireless connectivity in the 4.9-6.0 GHz range. Its 360° horizontal coverage ensures consistent signal distribution, making it suitable for point-to-multipoint networks and demanding outdoor environments.
Key Features
Frequency range: 4.9-6.0 GHz
Gain: 12 dBi
Dual polarization
360° horizontal beamwidth, 7° vertical beamwidth
Weatherproof ABS and metal housing
Wall or pole mount with U-bolt clamp
Wind survival up to 241.4 km/h
Operating temperature: -40°C to +65°C
Design and Durability
The SIL OAN 5812 combines a lightweight structure with durable materials to withstand harsh outdoor conditions. Its protective housing resists extreme temperatures and high winds, maintaining stable performance throughout.
Performance and Coverage
Offering 360° horizontal coverage and focused vertical gain, this antenna provides dependable connectivity across wide areas. It supports dual polarization for more efficient signal transmission and reception.
Installation Flexibility
Equipped with a versatile mounting system, the antenna can be easily attached to poles or walls. Its compact form factor allows for unobtrusive placement without compromising performance.

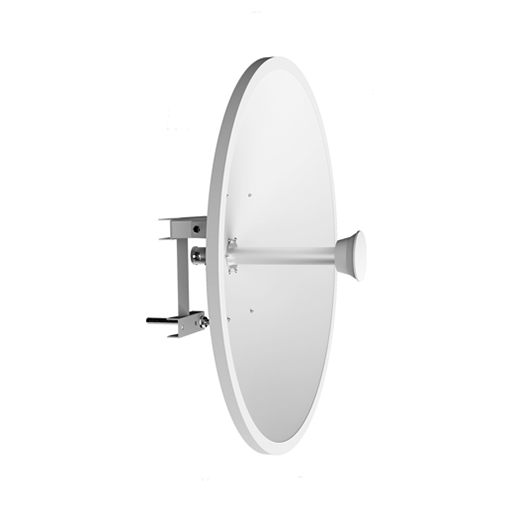

The SilverNet SIL DAN 5832 Smart Beam Dish Antenna is a precision-engineered parabolic dish built for long-distance, high-performance wireless connectivity. Designed for the 4.9 GHz to 6.0 GHz spectrum, it delivers exceptional gain and beam control, making it ideal for point-to-point and targeted network applications. With its dual-polarised connectors, durable construction, and resistance to extreme weather, this antenna ensures stable and reliable performance in demanding environments.
Key Features
Frequency range: 4.9 GHz - 6.0 GHz
High gain: 32 dBi
Beamwidth: 4° horizontal x 4° vertical
Dual N-type female connectors for polarisation
Dish diameter: 950 mm
Wind survival: up to 125 mph
Compliant with CE and RoHS standards
Precision Long-Range Performance
Engineered with a narrow beamwidth for minimal interference, this antenna is ideal for creating highly focused, long-distance links. Its high gain ensures strong signal strength even over extended ranges.
Durable Outdoor Build
Constructed to withstand harsh outdoor conditions, the SIL DAN 5832 maintains performance in high winds and varying climates, ensuring uninterrupted connectivity.
Flexible Integration
Compatible with SilverNet's BASE 500, AP1200, and other professional-grade radios, the antenna offers versatile deployment for various wireless networking needs.

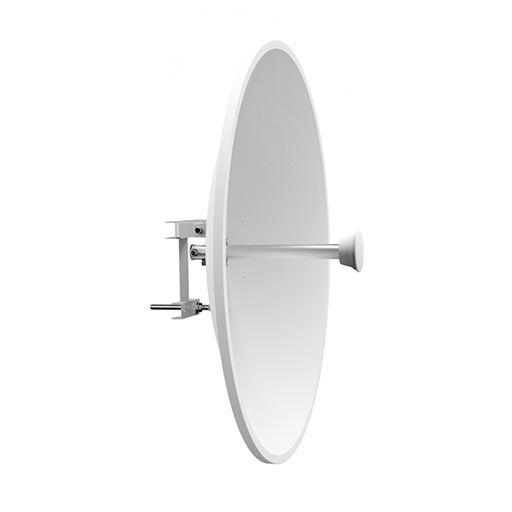

The SilverNet SIL DAN 5834 Smart Beam Dish Antenna is a high-performance outdoor antenna designed for precise long-range point-to-point wireless communication. Its narrow beamwidth and powerful gain make it an ideal choice for connecting distant network locations with stable, focused transmission. Built with durable materials and engineered to withstand extreme weather conditions, it delivers consistent performance in demanding environments.
Key Features
Frequency range: 4.9-6.0 GHz
High gain of 34 dBi for long-distance links
Narrow 3° beamwidth for precision targeting
Dual polarization for improved signal stability
Diameter of 125 cm with weather-resistant design
Wind survival up to approximately 200 km/h
Two N-type female connectors
CE and RoHS compliant
Performance Built for Distance
Operating within the 4.9-6.0 GHz frequency band, the SIL DAN 5834 delivers strong, reliable signals over long distances. Its 34 dBi gain and dual polarization provide stable connectivity even in challenging conditions.
Engineered for Harsh Environments
With a durable 125 cm parabolic design and sturdy mounting options, this antenna is made to withstand high winds and extreme weather. Its CE and RoHS certifications ensure quality and compliance for professional-grade deployments.
Precise Point-to-Point Communication
The narrow 3° beamwidth focuses transmission power where it's needed, reducing interference and improving link quality. This makes it a reliable choice for linking network sites with pinpoint accuracy.
