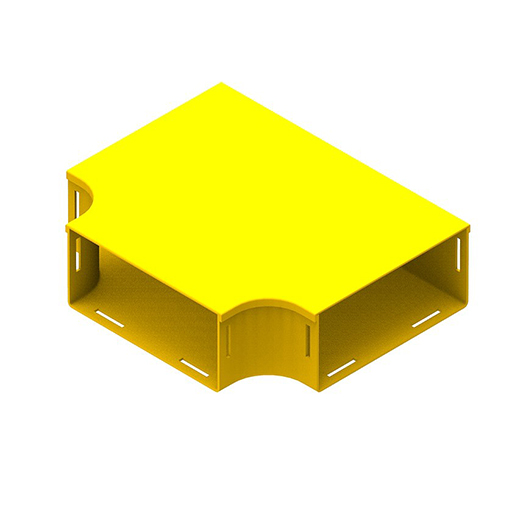

The Molex FR-TEE-220MM-ASS-Y tee assembly is designed to create a clean branch point within a 220mm fiber raceway duct system. Finished in high-visibility yellow, this component helps guide fiber cables safely through overhead routing paths commonly found in data centers, telecom rooms, and structured cabling environments.
The tee configuration allows installers to divide a single raceway pathway into two directions while maintaining proper cable routing and protection. Built to integrate with compatible Molex fiber raceway sections, it supports organised cable management and helps maintain controlled bend paths for sensitive fiber infrastructure.
Key Features of Molex FR-TEE-220MM-ASS-Y
220mm tee assembly designed for Molex fiber raceway duct systems
Creates a three-way branch point within overhead fiber pathways
Bright yellow finish for clear identification of fiber cable routes
Helps maintain organised and protected fiber cable routing
Compatible with modular raceway sections and accessories
Suitable for structured cabling, telecom rooms, and data centre installations
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas
emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Purpose-Built Raceway Branching
The tee design provides a controlled junction where fiber raceways need to split into multiple directions. This makes it easier to expand routing paths while keeping cables neatly organised and separated within the duct system.
High Visibility Fibre Pathways
The yellow finish is commonly used to indicate fibre optic cable routes in IT environments. This visual identification helps technicians quickly distinguish fibre raceways from other infrastructure components during installation and maintenance work.

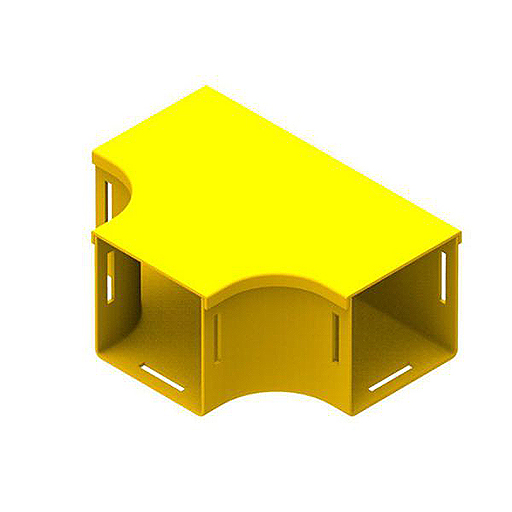

The Molex FR-TEE-100MM-ASS-Y 100mm Tee Assembly is designed to create a clean branch point within fibre raceway ducting systems. Built for structured cable pathways, it allows fibre runs to split from a main 100mm duct into a secondary route while keeping cables organised and protected. The bright yellow finish provides clear visual identification for fibre infrastructure, making it suitable for data centres, network rooms, and high-density telecom installations where tidy cable routing and accessibility are essential.
Key Features of Molex FR-TEE-100MM-ASS-Y
100mm fibre raceway tee assembly for creating branch pathways
Designed for use with Molex fibre raceway duct systems
Bright yellow colour for easy fibre pathway identification
Helps organise and guide fibre optic cable routes
Suitable for data centres and structured cabling environments
Supports neat overhead cable management layouts
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas
emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Structured Fibre Branching
This tee assembly allows installers to create a T-junction within a 100mm fibre raceway run, enabling fibre cables to branch off from the main pathway without disrupting the overall cable layout. It supports organised routing across racks, cabinets, and overhead cable systems.
Designed for Fibre Raceway Systems
Engineered to work with compatible Molex fibre raceway components, the assembly integrates into modular duct systems that include straight sections, elbows, reducers, and crosses. This modular approach allows flexible pathway planning as networks expand.
Clear Fibre Infrastructure Identification
The high-visibility yellow finish commonly used in fibre management systems helps technicians quickly identify fibre routes. This makes maintenance and future upgrades easier in busy equipment rooms and large-scale installations.
Supports Neat Cable Management
By guiding fibre cables through a defined pathway, the tee assembly helps maintain tidy cable runs and reduces clutter in overhead spaces. This organised structure supports easier cable tracing.

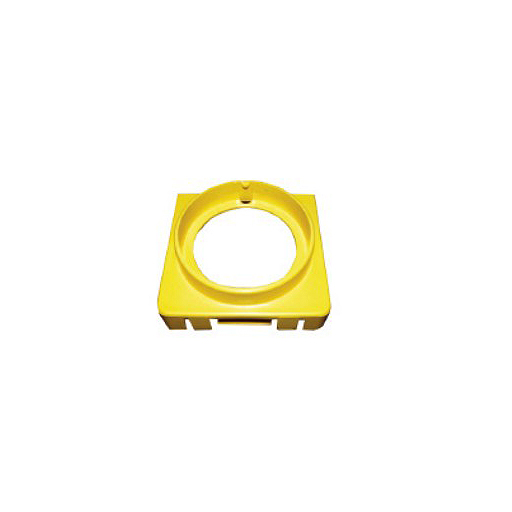

The Molex FR-ECADT100/88-Y is a 100mm endcap designed for structured cabling systems, featuring an integrated 88mm adaptor that allows seamless connection to smaller conduits. Crafted from durable, fire-retardant yellow plastic, it ensures secure termination of duct runs while maintaining system integrity. Ideal for data centers and network installations, this component simplifies duct transitions and keeps cable pathways organized and protected.
Key Features of Molex FR-ECADT100/88-Y:
100mm endcap for duct termination
Integrated 88mm adaptor for conduit connection
Maintains secure and clean duct runs
Designed for fiber optic and structured cabling systems
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Seamless Duct Integration
The endcap allows a smooth transition from a 100mm duct to an 88mm conduit, reducing the need for additional adapters or modifications.
Durable and Safe Material
Constructed from fire-retardant and low smoke plastic, the component meets safety standards while ensuring longevity in demanding installation environments.
Organized Cable Management
By capping off ducts cleanly, it helps maintain a tidy and organized network setup, protecting cables from dust, debris, and accidental damage.

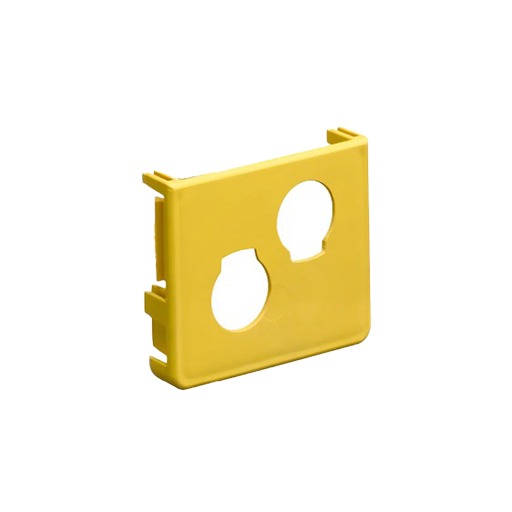

The Molex FR-DCTEN100-2X50-Y duct end cover provides a practical way to close off a 100mm duct run while allowing two 50mm convolute conduits to pass through. Designed for fibre raceway systems, this yellow end cover ensures neat cable exits and maintains organization within structured cabling setups. Its fire-retardant, low-smoke material supports safe use in data centres and telecom environments.
Key Features of Molex FR-DCTEN100-2X50-Y
100mm duct end cover with two 50mm convolute passthroughs
High-visibility yellow color for easy identification
Compatible with Molex fibre raceway systems
Simple installation with snap-on fit to duct ends
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Flexible Cable Management
Allows for clean routing of cables through pre-formed openings, keeping ducts organized and accessible for future changes or expansions.
Safety and Compliance
Constructed from fire-retardant, LSZH material, the end cover meets industry standards for safe deployment in critical environments.
Durable Design
Built to securely snap onto 100mm ducts while withstanding typical handling and installation pressures, ensuring long-lasting performance.

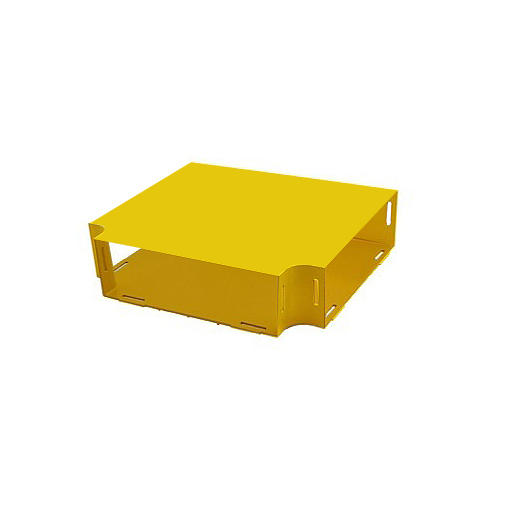

The Molex FR-TEE300-ASS-Y 300mm tee assembly in yellow is designed to streamline the organization of fiber raceway systems. Its T-shaped configuration allows for efficient branching of cable pathways, ensuring clean and secure routing in data centers, network rooms, and structured cabling environments. Crafted from flame-retardant, halogen-free materials, it integrates seamlessly with other components in the Molex FR series.
Key Features of Molex FR-TEE300-ASS-Y
300mm T-junction assembly for branching fiber raceways
Yellow color for easy identification and standard compliance
Compatible with Molex FR series duct systems
Ideal for data centers and structured cabling installations
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Flexible Branching
The T-shaped design allows for smooth routing of cables in three directions, reducing congestion and simplifying layout adjustments within cable pathways.
Durable Construction
Made from fire-retardant and halogen-free materials, this assembly meets industry safety standards while maintaining longevity in high-traffic cable areas.
Easy Integration
Engineered to fit seamlessly with other Molex FR series components, the tee assembly supports modular growth and reconfiguration of fiber raceway systems.
*Images used for illustrative purposes only; product may differ in appearance

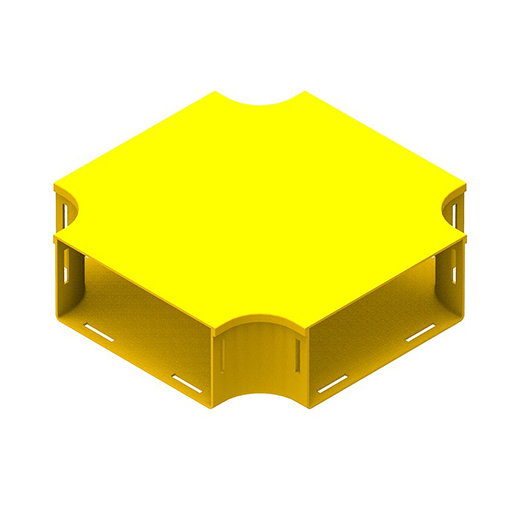

The Molex FR-XCONN220-ASS-Y is a 220 mm cross connector assembly in yellow designed for structured cable management within fiber raceway systems. It provides a straightforward way to link multiple fiber pathways at a junction, keeping routing organized and predictable while maintaining clear visual identification through its color.
Key Features of Molex FR-XCONN220-ASS-Y
220 mm cross connector assembly for fiber raceway networks
Yellow housing for quick visual distinction
Compatible with a wide range of Molex raceway components
Strong mechanical design suitable for repeated installation cycles
Molded to maintain alignment of intersecting cable runs
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Intended Use and Benefits
This connector piece fits into larger duct layouts where four directions of fiber track meet, keeping pathways clear and orderly. The color coding helps technicians rapidly identify segments during installation or maintenance, and the consistent geometry supports predictable routing and junction creation within structured cabling environments.
Visual and Physical Characteristics
The unit's bright yellow casing distinguishes it from other raceway components, and its molded configuration provides a consistent footprint for system planners. Its solid construction supports frequent handling and integration into modular cable pathways without concern for distortion or misalignment.

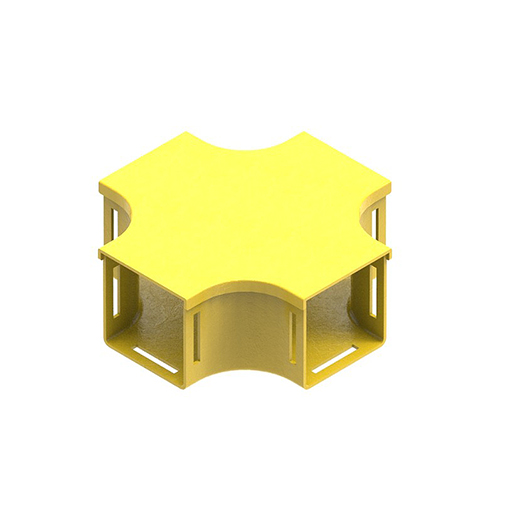

The Molex FR-XCONN100-ASS-Y is a 100 x 100mm connector assembly in yellow, designed for seamless integration within fiber raceway systems. This connector enables secure junctions for modular duct sections, maintaining organized pathways for optical fiber cabling in data centers, offices, and industrial setups. Its bright yellow color provides clear visual identification, ensuring quick installation and system management.
Key Features of Molex FR-XCONN100-ASS-Y
100 x 100mm connector assembly for fiber raceway systems
Yellow color for easy identification
Durable material compatible with standard duct sections
Enables secure and tidy junctions for optical fiber pathways
Simple installation and maintenance
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Compact Design
The compact form factor allows the connector to fit neatly within a 100mm x 100mm raceway grid, minimizing space usage while maintaining clear cable pathways.
Visual Identification
The bright yellow color ensures quick recognition of connection points, aiding installation teams in tracing and managing network paths efficiently.

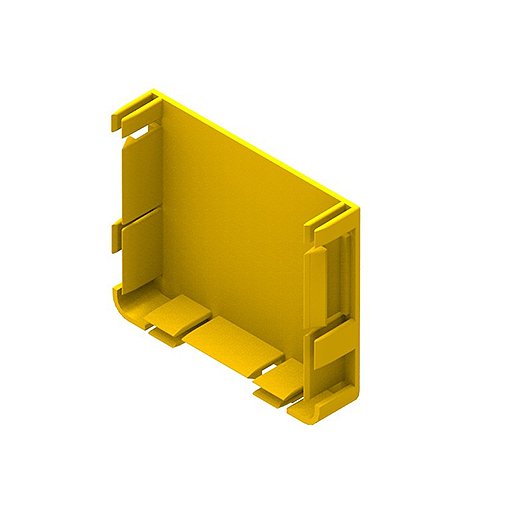

The Molex FR-DCTENDCOV100-Y duct end cover in yellow is designed to neatly seal the open ends of 100mm duct runs. This end cover provides a clean finish, protects the internal cabling from dust and debris, and fits seamlessly with Molex fiber raceway systems. Its durable material and snap-on design make it an essential component for orderly cable management in data centers and telecom environments.
Key Features of Molex FR-DCTENDCOV100-Y
Fits 100mm duct runs in Molex fiber raceway systems
Durable, flame-retardant material
Snap-on design for easy installation
Protects cables from dust and physical damage
Yellow color for clear identification in cabling pathways
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Installation and Fit
The end cover snaps onto the open end of the duct, providing a secure closure that requires no additional tools or hardware.
Material and Durability
Constructed from flame-retardant, halogen-free material, the cover withstands environmental exposure while maintaining safety and performance standards.

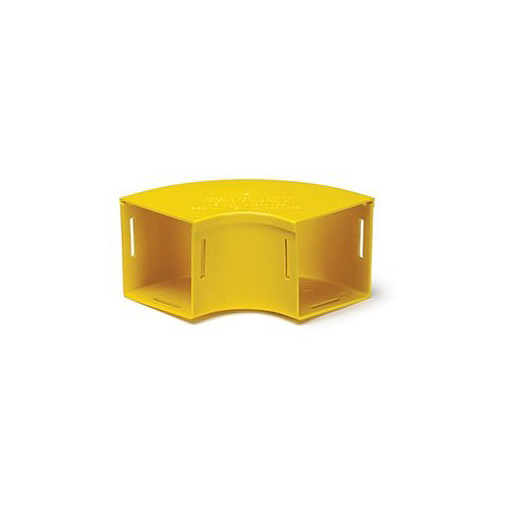

The Molex FR-90HRZELBW100-Y is a horizontal 90° elbow designed for 100mm duct systems, providing a clean and efficient way to route cables around corners. Its yellow finish allows for easy identification in structured cabling setups, while the durable, flame-retardant material ensures reliable performance in demanding installations.
Key Features of Molex FR-90HRZELBW100-Y
90° horizontal elbow for smooth cable routing
Compatible with 100mm duct systems
Yellow color for easy visibility and identification
Maintains cable integrity while changing direction
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Simple Installation
Designed for easy integration into existing duct systems, allowing quick and efficient setup.
Organized Cabling
Maintains proper bend radius and cable alignment to prevent strain and clutter in complex installations.

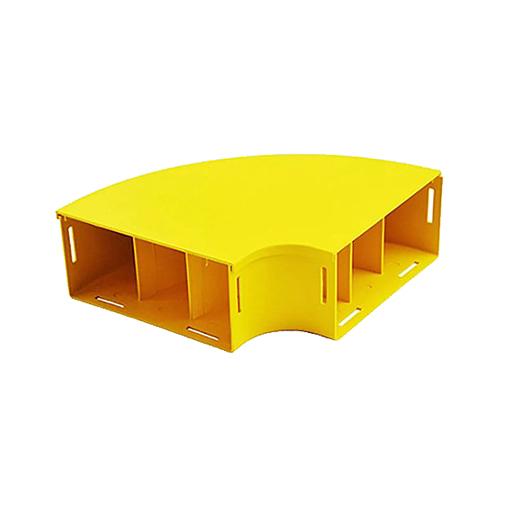

The Molex FR-90HRZELBW220-Y is a 90-degree horizontal elbow assembly designed for 220mm fibre duct systems. It provides a secure and structured pathway for fibre optic cables, maintaining proper bend radius while allowing smooth directional changes in cabling routes. Its bright yellow colour makes it easily identifiable in network installations, and the assembly integrates seamlessly with compatible duct sections for straightforward setup.
Key Features of Molex FR-90HRZELBW220-Y
90-degree horizontal elbow for fibre duct systems
Compatible with 220mm duct sections
Maintains proper bend radius to protect cables
Bright yellow for easy identification
Snap-fit installation with duct sections
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Simple Installation
The assembly snaps directly onto the duct system, allowing quick and precise installation without additional tools.
Cable Protection
Internal surfaces are smooth and shaped to maintain fibre integrity, preventing stress or signal loss during directional changes.
System Integration
Designed to work seamlessly with Molex 220mm duct sections, making it ideal for structured cabling in data centres and telecom rooms.

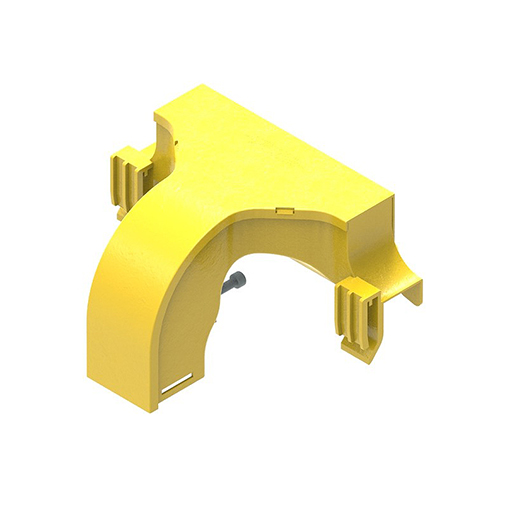

The Molex FR-TOVDRPSLT-50-Y is a top outlet vertical drop designed for 50 mm duct systems, finished in yellow. Its slotted design allows for neat and controlled routing of fiber or communication cables from the main duct to equipment or panels. This component integrates seamlessly with other raceway sections, providing a clean transition point and maintaining orderly cable management in data centers and telecom installations.
Key Features Molex FR-TOVDRPSLT-50-Y
50 mm vertical drop for controlled cable routing
Slotted opening for flexible cable exit points
Yellow finish for easy identification in raceway systems
Compatible with modular Molex duct components
Designed for structured fiber or communication cable management
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Integration with Duct Systems
Clips and joins directly with other Molex duct sections, including straight runs, tees, and elbows, to maintain a continuous and organized cable pathway.
Installation Flexibility
Provides a reliable vertical outlet for fiber drops to equipment racks or panels, ensuring cables remain neat and accessible.

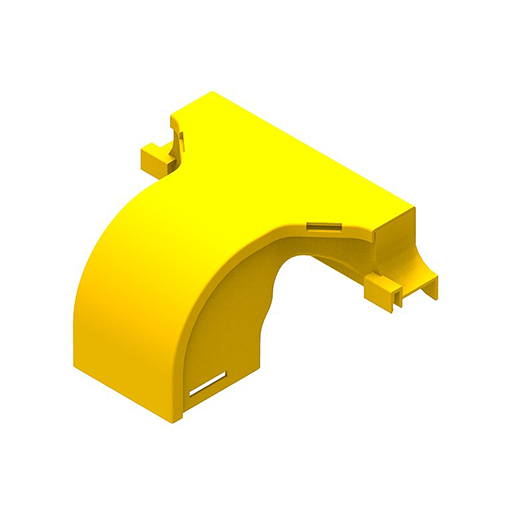

The FR-TOVDRPSLT100-Y is a top outlet vertical drop designed to integrate seamlessly into cable raceway systems. Its 100mm slot allows cables to be routed cleanly from overhead ducting, maintaining organization while keeping pathways accessible. The bright yellow color makes it easy to identify within larger installations, supporting quick maintenance and adjustments.
Key Features of FR-TOVDRPSLT100-Y
100mm vertical drop slot for cable routing
Top outlet design for easy integration into duct systems
Durable material suitable for structured cabling environments
Yellow color for high visibility in installations
Simple installation with standard raceway fittings
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Easy Identification
The yellow color coding ensures the outlet is quickly located for inspection or modification without disrupting the system.
Integration with Raceway Systems
Designed to fit standard Molex raceway ducts, it slots into place without the need for additional adapters, maintaining tidy cable management.

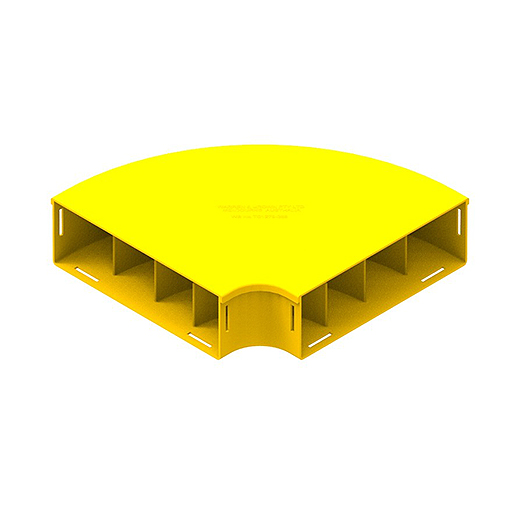

The Molex FR-90HRZELB300-Y is a 90° horizontal elbow designed for the FR-90 fiber raceway system. This component allows cabling to navigate sharp turns while maintaining proper bend radius, ensuring orderly and secure routing in data and telecommunication installations. Its 300mm width accommodates a wide range of fiber runs, and its bright yellow color provides clear identification within any structured cabling setup.
Key Features of Molex FR-90HRZELB300-Y
90° horizontal elbow for precise cable routing
Yellow color for clear visual identification
Supports safe bend radius for optical fiber
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Horizontal Configuration
Designed to create a smooth 90° turn in horizontal cabling paths, the elbow maintains a consistent pathway for fiber cables, preventing stress and potential signal loss.
Durable Construction
Manufactured to match the FR-90 system specifications, the elbow integrates seamlessly with straight runs, tees, and other elbows, supporting orderly cable management.
Visual Identification
The yellow finish ensures the elbow is easily located within the raceway system, aiding installation, maintenance, and auditing processes.

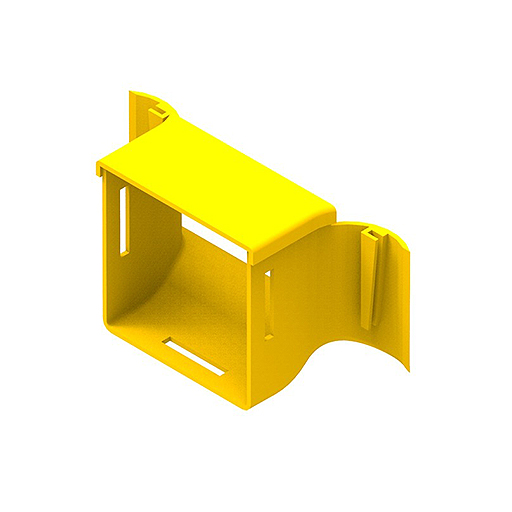

The Molex FR-BRO100-ASS-Y break out assembly provides a reliable method to manage and route cables within your fiber raceway system. Designed with a 100 x 100mm footprint and finished in yellow, this assembly allows for organized cable branching and simplified network management in data center and telecom environments.
Key Features of Molex FR-BRO100-ASS-Y
100 x 100mm break out assembly for structured cable routing
Bright yellow color for easy identification in raceway systems
Compatible with Molex FR series fiber raceways
Helps maintain organized pathways for optical fiber and network cables
Durable construction suitable for professional data center setups
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Compact Design
The assembly's 100 x 100mm size ensures it fits neatly into standard raceway layouts without consuming extra space.
Easy Integration
Designed to work seamlessly with other FR series components, allowing for quick installation and consistent cable management.
High Visibility
The yellow finish makes it simple to identify and trace cables during maintenance or expansion tasks.

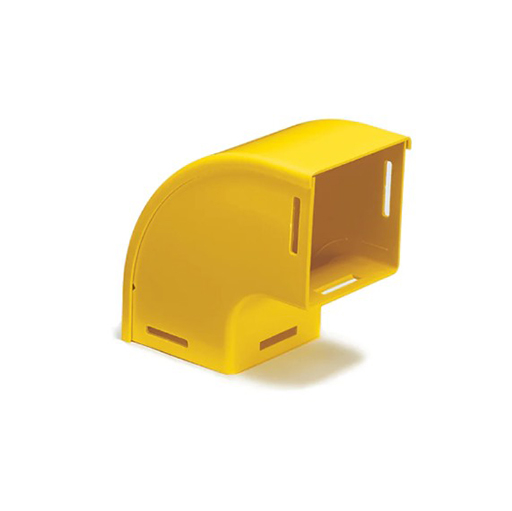

The Molex FR-90VERTELB100-Y is a 100mm 90-degree downward elbow assembly designed to guide fibre optic cables safely through vertical transitions in duct systems. Its bright yellow finish allows for easy identification within complex cable pathways, while its design maintains proper bend radius, reducing strain on the cables and keeping pathways organized.
Key Features of Molex FR-90VERTELB100-Y
90-degree downward elbow for vertical duct transitions
100mm dimension fits standard fibre raceway systems
Snap-together assembly for quick installation
Halogen-free, flame-retardant material
Bright yellow color for visibility and identification
Fire Resistant: Made from Low Smoke Zero Halogen (LSZH) material certified to UL94V0 specifications, reducing toxic and corrosive gas emissions during a fire.
High Quality Standards: Manufactured to the highest quality standards (ISO9001), complying with UL2024A & ROHS
Installation Flexibility
Designed to connect seamlessly with Molex fibre raceway components, this elbow ensures smooth cable transitions in vertical orientations while maintaining pathway integrity.
Cable Protection
Maintains proper bend radius to minimize stress on fibre optic cables, preventing damage and signal loss during routing.
Durable Construction
Manufactured from flame-retardant, halogen-free materials, this component provides a long-lasting and safe routing option for data centres and network installations.
