Note: Minimum Order Quantity of 90

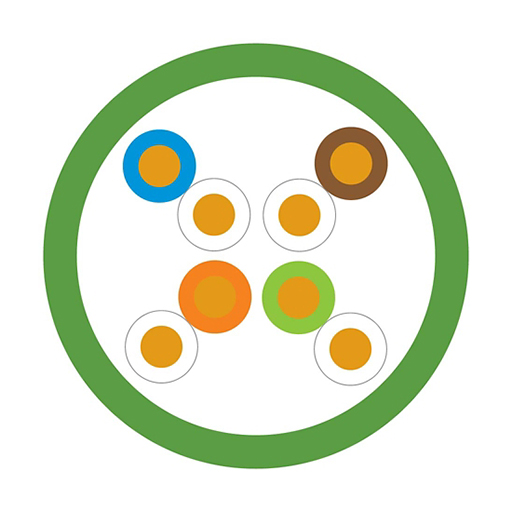

Designed for reliable structured cabling performance, the Leviton C6U-Cca-B305GN4 Cat 6 U/UTP Cable delivers consistent data transmission across demanding network environments. With a 305m reel length, 24AWG solid copper conductors, and EuroClass Cca compliance, this green Category 6 cable supports Gigabit Ethernet, PoE applications, and high-frequency data transfer up to 250MHz, making it a practical choice for modern installations.
Key Features of C6U-Cca-B305GN4
Category 6 U/UTP cable rated up to 250MHz
305m box length for large-scale installations
24AWG solid annealed copper conductors
Supports Gigabit Ethernet and Class E protocols
Compatible with PoE, PoE+, UPoE, and HDBaseT applications
EuroClass Cca s1a d1 a1 fire performance rating
Halogen-free, flame-retardant low smoke (HFFR-LS) jacket
4 unshielded twisted pairs for stable signal transmission
Fully recyclable packaging
Suitable for voice, data, and video distribution
High-Speed Data Transmission
Engineered to meet Category 6 standards, this cable supports frequencies up to 250MHz, enabling stable Gigabit Ethernet performance. It ensures efficient data handling for network infrastructures requiring consistent speed and bandwidth.
Advanced Fire Safety Compliance
With a EuroClass Cca s1a d1 a1 rating, the cable meets strict fire safety regulations, including low smoke emission and limited flame spread. The halogen-free jacket enhances safety in enclosed or public environments.
Optimised for Power over Ethernet
Supporting multiple PoE standards including IEEE 802.3bt Types 1 through 4, Cisco UPoE, and HDBaseT PoH, this cable is suitable for powering network devices such as cameras, access points, and VoIP systems.
Robust Construction
Built with 24AWG solid copper conductors and polyolefin insulation, the cable maintains signal integrity while minimising resistance and interference. The four unshielded twisted pairs ensure consistent performance across installations.
Standards Compliance
Fully aligned with international standards including ISO/IEC 11801 Class E, ANSI/TIA 568.2-D, and EN50173-1, this cable is designed to deliver dependable electrical performance across a wide range of structured cabling systems.
Installation Flexibility
The cable supports installation temperatures from 0°C to +50°C and operates between -20°C and +60°C. Its flexible bend radius and manageable tensile load make it suitable for both new installations and upgrades.
Reliable Electrical Performance
With controlled impedance, low insertion loss, and strong crosstalk suppression, the cable maintains signal quality over long distances. It is engineered to meet demanding electrical performance benchmarks across industry standards.
Efficient Packaging Design
Supplied in a 305m recyclable box, the cable is easy to deploy on-site while reducing environmental impact. Its packaging design supports efficient handling and storage during installation projects.
Note: Minimum Order Quantity of 105

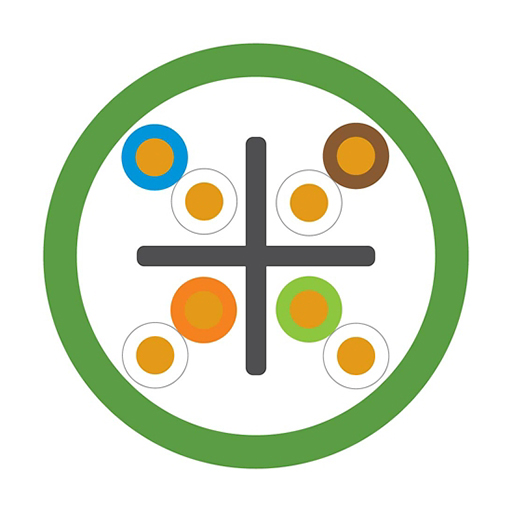

The Leviton C6U-Cca-Rlx-305GN Cat 6 U/UTP Cable is built for high-performance structured cabling systems, offering enhanced signal stability and reliable data transmission. Featuring 23AWG solid copper conductors, a 305m length, and EuroClass Cca compliance, this green Category 6 cable supports Gigabit Ethernet, PoE applications, and bandwidth-intensive networking up to 250MHz.
Key Features of C6U-Cca-Rlx-305GN
Category 6 U/UTP cable exceeding 250MHz performance standards
305m box length suitable for large installations
23AWG solid annealed copper conductors
Central separator for improved crosstalk reduction
Supports Gigabit Ethernet and Class E systems
Compatible with PoE, PoE+, UPoE, and HDBaseT applications
EuroClass Cca s1a d1 a1 fire safety rating
Halogen-free, flame-retardant low smoke (HFFR-LS) jacket
CE and UKCA marked for CPR compliance
Manufactured in a carbon-neutral UK facility
100% recyclable packaging
Enhanced Signal Performance
Exceeding Category 6 standards, this cable is engineered for frequencies up to 250MHz, delivering stable and consistent data transmission for modern network infrastructures.
Advanced Crosstalk Reduction
The inclusion of a central separator improves pair isolation, reducing internal crosstalk and ensuring higher signal integrity across demanding data environments.
Optimised for High-Power PoE
Designed to support a wide range of PoE standards, including IEEE 802.3bt up to 100W, this cable is ideal for powering high-demand devices such as IP cameras, wireless access points, and smart building systems.
Fire Safety and Compliance
Meeting EuroClass Cca s1a d1 a1 standards, the cable offers controlled flame spread, low smoke emission, and reduced hazardous gas output, making it suitable for regulated building environments.
Durable Cable Construction
Constructed with 23AWG solid copper conductors and a robust HFFR-LS jacket, the cable maintains performance while providing durability and protection during installation and long-term use.
Standards Compliance
Aligned with ISO/IEC 11801 Class E, ANSI/TIA 568.2-D, and EN standards, this cable ensures compatibility and consistent electrical performance across structured cabling systems.
Reliable Electrical Characteristics
Low resistance, controlled impedance, and strong crosstalk suppression contribute to consistent signal quality, even across extended cable runs in high-demand network setups.
Flexible Installation Capabilities
Supporting installation temperatures from 0°C to +50°C and operation up to +75°C, the cable offers flexibility with a practical bend radius and manageable tensile strength for easier deployment.
Sustainable Manufacturing
Produced in a carbon-neutral UK facility and supplied in fully recyclable packaging, this cable supports environmentally conscious installation projects.

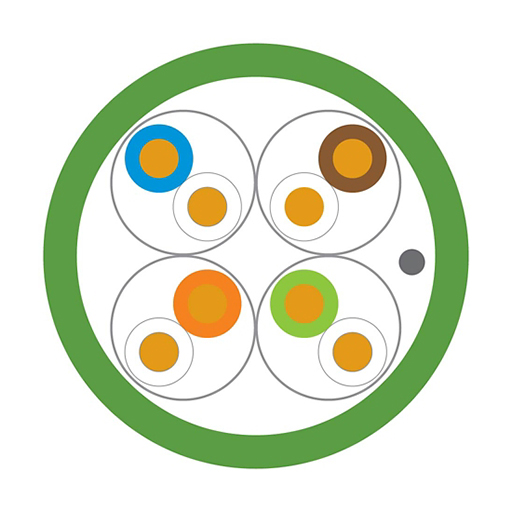

The Leviton AC6U/FTP-Cca-Rlx-305GN Cat 6A U/FTP Cable is engineered for high-speed, high-frequency network environments, delivering reliable performance across 10 Gigabit Ethernet and advanced PoE applications. With a 305m box length, 23AWG solid copper conductors, and shielding on each pair, this EuroClass Cca compliant green cable supports data transmission up to 500MHz, making it ideal for demanding structured cabling systems.
Key Features of AC6U/FTP-Cca-Rlx-305GN
Category 6A U/FTP cable rated up to 500MHz
305m box for efficient large-scale installations
23AWG solid annealed copper conductors
Individually screened twisted pairs for EMI protection
Supports 10 Gigabit Ethernet and Class EA systems
Compatible with PoE, PoE+, and high-power PoE up to 100W
EuroClass Cca s1a d1 a1 fire performance rating
Halogen-free, flame-retardant low smoke (HFFR-LS) jacket
Manufactured in a carbon-neutral UK facility
CE marked for CPR compliance
100% recyclable packaging
High-Frequency Performance
Exceeding Category 6A standards, this cable operates at frequencies up to 500MHz, enabling stable 10 Gigabit Ethernet transmission and supporting bandwidth-intensive applications.
Shielded Pair Design
Each twisted pair is individually screened, significantly reducing electromagnetic interference and crosstalk. This design ensures consistent signal integrity in high-density or electrically noisy environments.
Optimised for Advanced PoE
Supporting IEEE 802.3 PoE Types 1 through 4, along with Cisco UPoE and HDBaseT PoH, the cable is suitable for powering high-demand devices such as surveillance systems, wireless infrastructure, and smart building technologies.
Fire Safety Compliance
With a EuroClass Cca s1a d1 a1 rating, the cable meets stringent fire safety standards, offering controlled flame spread, low smoke emission, and reduced harmful gas release.
Robust Construction
Built using 23AWG solid copper conductors and a durable HFFR-LS jacket, the cable provides consistent electrical performance while maintaining strength and flexibility during installation.
Standards Alignment
Compliant with ISO/IEC 11801 Class EA, ANSI/TIA 568.2-D, and EN standards, this cable ensures compatibility and dependable performance across structured cabling systems.
Reliable Electrical Characteristics
Engineered with controlled impedance, low delay skew, and strong attenuation performance, the cable maintains signal quality over extended distances and high data loads.
Installation Flexibility
With a wide operating temperature range and practical bend radius, the cable is suited for a variety of installation environments, from commercial builds to infrastructure upgrades.
Sustainable Manufacturing
Produced in a carbon-neutral UK facility and supplied in fully recyclable packaging, this cable supports environmentally responsible deployment without compromising performance.

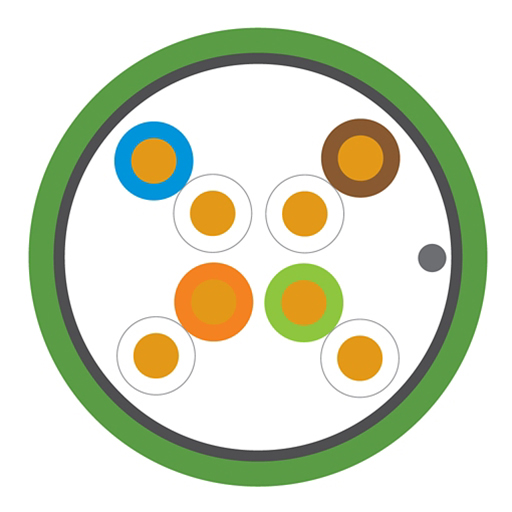

The Leviton FDT-Cca-B305GN FDT Cat 6A F/UTP Cable is designed for high-density network environments where performance, efficiency, and space-saving installation are critical. With a reduced 6.2mm diameter, 305m box format, and shielding for improved signal integrity, this EuroClass Cca compliant green cable supports 10 Gigabit Ethernet and high-power PoE applications up to 500MHz.
Key Features of FDT-Cca-B305GN
Category 6A F/UTP cable rated up to 500MHz
Reduced diameter design (6.2mm) for improved cable density
305m box for streamlined installation
23AWG solid annealed copper conductors
Foil shielding for enhanced noise reduction
Supports 10 Gigabit Ethernet and Class EA systems
Compatible with PoE, PoE+, and high-power PoE up to 100W
EuroClass Cca s1a d1 a1 fire performance rating
Halogen-free, flame-retardant low smoke (HFFR-LS) jacket
REELEX box with TekLok™ for faster cable deployment
Manufactured in a carbon-neutral UK facility
100% recyclable packaging
Space-Saving Cable Design
The reduced 6.2mm diameter allows for higher cable density within containment systems, improving airflow and making it easier to manage large-scale installations.
Enhanced Signal Protection
The F/UTP construction incorporates foil shielding around the cable core, reducing external interference and maintaining consistent data transmission in demanding environments.
High-Speed Data Capability
Supporting frequencies up to 500MHz, this cable enables reliable 10 Gigabit Ethernet performance, making it suitable for data-intensive applications and future-ready network infrastructure.
Optimised for PoE Applications
Designed to exceed IEEE 802.3bt standards, the cable supports high-power PoE delivery, making it ideal for powering modern devices such as IP cameras, access points, and smart systems.
Improved Heat Management
The F/UTP design enhances heat dissipation compared to traditional constructions, supporting consistent performance in bundled cable installations and high-load PoE environments.
Fire Safety Compliance
Meeting EuroClass Cca s1a d1 a1 standards, the cable provides controlled flame spread, low smoke emission, and reduced hazardous gas output for safer installation in regulated environments.
Streamlined Installation
Supplied in a REELEX box with TekLok™, the cable allows for smoother, faster pulling while reducing tangling and installation time. The absence of a cross-filler also minimises waste on-site.
Standards Compliance
Aligned with ISO/IEC 11801 Class EA, ANSI/TIA 568.2-D, and EN standards, this cable ensures consistent and reliable performance across structured cabling systems.
Sustainable Manufacturing
Manufactured in a carbon-neutral UK facility and free from Red List chemicals, this cable supports environmentally responsible installations while maintaining high performance standards.

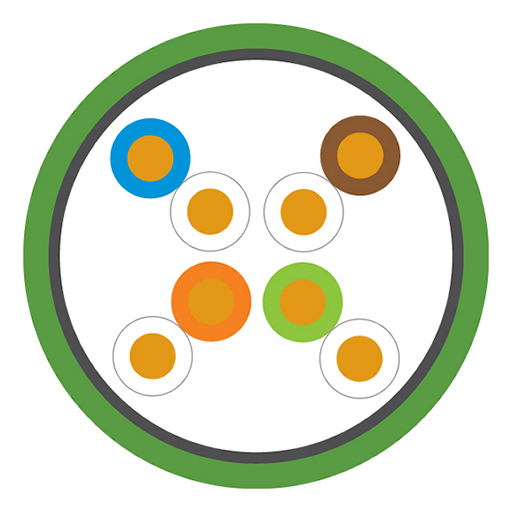

The Leviton RDT-Cca-B305GN RDT Cat 6A U/UTP Cable is engineered for high-density network environments, combining reduced diameter design with reliable 10 Gigabit performance. Supplied in a 305m box and rated to 500MHz, this green EuroClass Cca compliant cable delivers efficient cable management, strong signal isolation, and dependable support for PoE and high-speed data transmission.
Key Features of RDT-Cca-B305GN
Category 6A U/UTP cable rated up to 500MHz
Reduced diameter design (6.1mm) for improved cable density
305m box for efficient installation
23AWG solid annealed copper conductors
Supports 10 Gigabit Ethernet and Class EA systems
Compatible with PoE, PoE+, and high-power PoE up to 100W
EuroClass Cca s1a d1 a1 fire performance rating
Halogen-free, flame-retardant low smoke (HFFR-LS) jacket
Enhanced alien crosstalk performance
REELEX® box with TekLok for faster cable pulling
Manufactured in a carbon-neutral UK facility
100% recyclable packaging
Reduced Diameter for High-Density Installations
The 6.1mm cable diameter allows for improved tray fill ratios and better airflow, making it easier to manage large volumes of cabling in confined spaces.
Reliable High-Speed Performance
Exceeding Category 6A standards and operating up to 500MHz, this cable supports 10 Gigabit Ethernet and ensures stable transmission across demanding network infrastructures.
Optimised Cable Management
Designed for flexibility and ease of handling, the reduced diameter and lightweight construction simplify routing and installation in both new and retrofit projects.
Enhanced Signal Isolation
Engineered to minimise interference and alien crosstalk, the cable maintains signal integrity across high-density deployments without the need for additional shielding.
High-Power PoE Support
Supporting IEEE 802.3 PoE Types 1 through 4, along with Cisco UPoE and HDBaseT PoH, the cable is suitable for powering modern network devices in high-demand environments.
Fire Safety Compliance
With a EuroClass Cca s1a d1 a1 rating, the cable meets stringent fire safety standards, offering controlled flame spread and reduced smoke emission for safer installations.
Streamlined Installation
Supplied in a REELEX® box with TekLok, the cable allows for smoother pulling and faster deployment, while eliminating cross-fillers reduces waste and speeds up installation.
Standards Compliance
Compliant with ISO/IEC 11801 Class EA, ANSI/TIA 568.2, and EN standards, this cable ensures consistent and reliable performance across structured cabling systems.
Sustainable Manufacturing
Manufactured in a carbon-neutral UK facility and supplied in fully recyclable packaging, this cable supports environmentally responsible installation practices.
