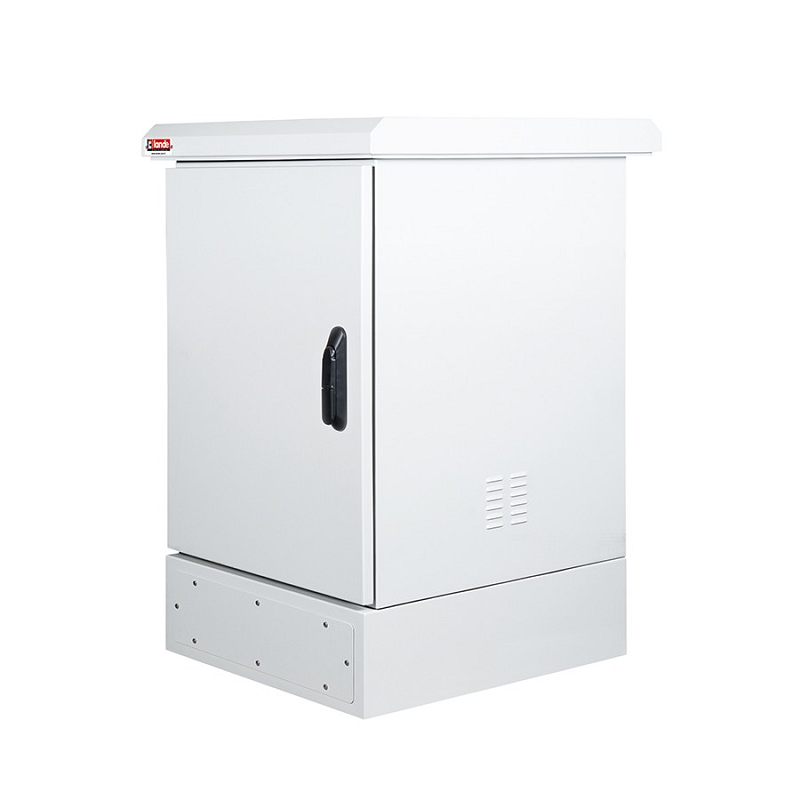

Lande Outdoor IP65 12U Cabinets
Based on the application areas, the corrosive agents, humidity effects, salty environmental effects in seaports Lande OD series enclosures constructed from different corrosive resistance reaction level materials.
Key Features:
• This IP65 Outdoor Cabinet range provides a high quality design, with a welded construction for strength and corrosion protection
• This Cabinet is suitable for using within a wide range of markets to protect your equipment from the elements
• Ideal for housing equipment used in data and networking, telecoms, FTTx Communications, industrial and transportation
• IP65 Protection Level (EN60529), Polyurethane infused sealing system
• NEMA-250 classifications 3, 3S, 4, 4X, 5, 12, 12K, 13
• Standard Material (Hot Dip Pre Galv DX51 D+275gr/m, zinc plated)
• Double layer structure
• Insulation material between external and internal layers
• Gland plate supplied with 2x PG21 and 1x PG48 gland and 2x 28mm PVC blind caps
• Spare blank gland plate included
• All enclosures with a hinged canopy roof
• Hidden ventilation louvres to allow hot air discharge through the roof
• Refer to fan system parts 829606 and 829607
• Plinth 200mm high with front and rear access panel
• Polyester outdoor paint Light Grey RAL7035 as standard
• Option for Anti-graffiti and insul-paint, Signal White RAL9003 Polyurethane finish
• We can also offer in Stainless Steel Grades 430, 304 & 316
• Contact us for details on lead time and supply options
Construction Details:
Front side has inner door, which is lockable provides additional security and additional protection especially for dust entry once main door is not locked.
The cabinet can be equipped with mechanical or magnet door sensors on demand.
Construction Drawings (Width: 600 mm / Depth: 650 mm):
1.
FRONT DOOR EXTERNAL SKIN
2.
LOCKING SYSTEM 3 POINT WK2 Antivandalism Certified
3.
FRONT DOOR INNER SKIN
4.
INTERNAL COVER / DOOR
5.
SIDE INNER SKIN
6.
VENTILATION CHANNEL
7.
MOUNTING RAILS 19"
8.
MAIN BODY WELDED
9.
PLINTH H200 mm
10.
PLINTH ACCESS WINDOW
11.
FAN UNIT HOUSING
12.
ROOF CANOPY- 2 INCLINED INNER FIXING SCREWS- 2 HINGES and CANOPY STOPPER MECHANISM
13.
REAR MOUNTING PLATE with DIN RAIL
14.
REAR INNER SKIN
15.
GLAND PLATE WITH PG GLAND / GLAND PLATE PLAIN
Construction Drawings (Width: 600 mm / Depth: 800 mm):
1.
FRONT & REAR DOOR EXTERNAL SKIN
2.
FRONT & REAR DOOR INNER SKIN
3.
LOCKING SYSTEM 3 POINT WK2 Antivandalism Certified
4.
FRONT & REAR INTERNAL COVER DOOR
5.
SIDE INNER SKIN
6.
VENTILATION CHANNEL
7.
MOUNTING RAILS 19"
8.
MAIN BODY WELDED
9.
PLINTH H200 mm
10.
PLINTH ACCESS WINDOW
11.
FAN UNIT HOUSING
12.
ROOF CANOPY- 4 INCLINED INNER FIXING SCREWS- NO HINGE / NO CANOPY STOPPER MECHANISM
13.
GLAND PLATE WITH PG GLAND / GLAND PLATE PLAIN
Additional information can be found in the Catalogue PDF file
Drawing information can be found in the 600x650 Cabinet PDF file
Drawing information can be found in the 600x800 Cabinet PDF file
