Kramer Auto Switchers

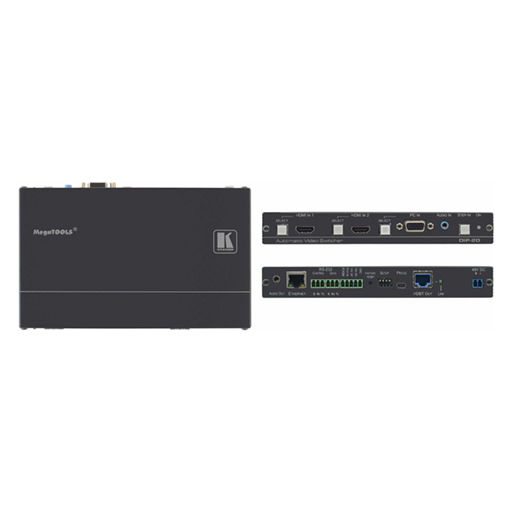

DIP 20 is a high-performance multi-format switcher transmitter of 4K video signals over extended-reach HDBaseT. Offering intelligent Maestro application, with priority and last-connected switching options, it automatically switches and operates room according to the selected switching scheme based on active video signal detection.

Simple and Powerful Maestro Room Automation

Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.

High Performance Switcher Transmitter

Professional HDBaseT Switcher transmitter for providing extended reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market available HDBaseT compliant extension product.

BYOD Plug & Play Auto Switcher

Automatically plays the switched user device source signal on the connected display according to user configured preferences, such as priority or last connected input. When the user manually switches, by pressing a button, the auto switching is overridden.

Simple Switching Operation

Local buttons or remotely connected contact closure buttons for flexible user input selection and switching control.

HDMI™ Signal Switching

HDCP compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, 2K, 4K, and 3D as specified in HDMI 2.0.

I EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling, processing, locking and pass through algorithm ensures plug & play operation for HDMI source and display systems.

Multi channel Audio Switching

Up to 32 channels of digital stereo uncompressed signals for supporting studio grade surround sound.

Audio Embedding

An auto-detected analog stereo audio input, per user selection, is converted into a digital signal and embedded in the output HDMI signal, replacing the source HDMI audio input signal. This enables, for example, a presenter to temporarily override the playing source audio with speech description.

Audio De embedding

The digital audio signal passing through to the output, is de embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).

Ethernet Extension

Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.

Bidirectional RS–232 Extension

Serial interface data flows in both directions, allowing data transmission and device control.

Reliable PoE (Power over Ethernet) Powering

Provides power via the extension line to a remote PoE acceptor device, such as a PoE receiver.

Cost-effective Maintenance

Status LED indicators for HDMI, VGA and HDBT ports facilitate easy local maintenance and troubleshooting. Remote IP-driven device management via built in web pages and RS-232 connection. Local and remote firmware upgrade via RS–232 or Ethernet connection tool ensure lasting, field proven deployment.

Easy Installation

Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for flexible table mounting.

WP 20 is a high-performance, 4K, multi-format, wall-plate switcher and transmitter over extended-reach HDBaseT. Offering intelligent Maestro automation, with priority and last−connected switching options, it automatically switches and operates the room according to the selected switching scheme based on active video signal detection.

Simple and Powerful Maestro Room Automation

Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.

High Performance Switcher Transmitter

Professional HDBaseT Switcher transmitter for providing extended–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market-available HDBaseT-compliant extension product.

BYOD Plug & Play Auto Switcher

Automatically plays the switched user device source signal on the connected display according to user-configured preferences, such as priority or last–connected input. When the user manually switches, by pressing a button, the auto switching is overridden.

Simple Switching Operation

Local buttons or remotely connected contact–closure buttons for flexible user input selection and switching control.

HDMI™ Signal Switching

HDCP compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.

I-EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling, processing, locking and pass–through algorithm ensures plug & play operation for HDMI source and display systems.

Multi–channel Audio Switching

Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.

Audio Embedding

An auto-detected analog stereo audio input, per user selection, is converted into a digital signal and embedded in the output HDMI signal, replacing the source HDMI audio input signal. This enables, for example, a presenter to temporarily override the playing source audio with speech description.

Audio Deembedding

The digital audio signal passing–through to the output, is de–embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).

Ethernet Extension

Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.

Bidirectional RS-232 Extension

Serial interface data flows in both directions, allowing data transmission and device control.

Reliable PoE (Power over Ethernet) Powering

Auto-senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.

Cost–effective Maintenance

Status LED indicators for HDMI, VGA and HDBT ports facilitate easy local maintenance and troubleshooting. Remote IP-driven device management via built-in web pages and RS–232 connection. Local and remote firmware upgrade via RS–232 or Ethernet connection tool ensure lasting, field-proven deployment.

Easy Installation

Compactly fits into standard US, EU and UK 2-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.

WP-20-BLNK is an alternate cover plate for the US-D size WP-20 that provides an opening for the HDMI connector, and covers the Ethernet connector.

Features
Available in white


Covers the Ethernet connection site on WP-20


For US-D size Wall Plate Only

DIP-31 is a high-performance multi-format switcher of 4K video signals. Offering intelligent Maestro automation, with priority and last-connected switching options, it automatically switches and operates the room according to the selected switching scheme based on active video signal detection.

Features
3x1 BYOD Plug and Play Table-mounted Switching


Built-in intelligent Maestro Room Automation


Up to 4K@60Hz (4:2:0) Resolution


Managed by Kramer Network

BYOD Plug & Play Auto Switcher

Automatically plays the switched user device source signal on the connected display according to user configured preferences, such as priority or last connected input. When the user manually switches, by pressing a button, the auto switching is overridden.

Simple Switching Operation

Local buttons or remotely connected contact closure buttons for flexible user input selection and switching control.

HDMI™ Signal Switching

HDCP compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, 2K, 4K, and 3D as specified in HDMI 2.0.

I EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling, processing, locking and pass through algorithm ensures plug & play operation for HDMI source and display systems.

Multi channel Audio Switching

Up to 32 channels of digital stereo uncompressed signals for supporting studio grade surround sound.

Audio Embedding

An auto–detected analog stereo audio input, per user selection, is converted into a digital signal and embedded in the output HDMI signal, replacing the source HDMI audio input signal. This enables, for example, a presenter to temporarily override the playing source audio with speech description.

Audio De embedding

The digital audio signal passing through to the output, is de embedded, converted to an analog signal and sent to the stereo analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).

Cost effective Maintenance

Status LED indicators for HDMI and VGA ports facilitate easy local maintenance and troubleshooting. Remote IP–driven device management via built in web pages and RS–232 connection. Local and remote firmware upgrade via RS–232 or Ethernet connection tool ensure lasting, field proven deployment.

Easy Installation

Compact MegaTOOLS® fan–less enclosure for flexible table mounting.

Kramer VS-211H2 2x1 4K HDR HDCP 2.2 HDMI Auto Switcher

The SID-X2N is an HDBaseT twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.
Max. Data Rate - 6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.


Max Resolution - 1080p @60Hz @36bpp


Control - Local Step-in Input Select (button or Contact Closure)


HDTV Compatible


HDCP Compliant - Works with sources that support HDCP repeater mode.


HDMI Support - Deep Color, x.v.Color™ and 3D.


EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.


Data Equalization and Reclocking.


Input Signal Detection - Based on video clock presence.


Automatic Input Selection - Based on manual selection or last connected input.


Automatic Analog Audio Detection and Embedding.


Local Balanced Audio De-Embedding.


Support for Digital Audio Formats.


Lockable EDID.


System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–HDKat6a cables.


Local Step–In Switching - Button & contact closure.


Power Supply - Requires independent power supply.

WP-211T is a high-performance PoE-powered wall-plate automatic switcher of 4K HDMI video signals, transmitted over long-reach HDBaseT extension link. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Features
2x1 Plug and Play Wall–mounted Switching
Up to 4K@60Hz (4:2:0) Resolution
Up to 70m (230ft) Reach

Automatic input selection

Plug & play auto switching based on last connected input or manual selection.

High performance switcher transmitter

Professional HDBaseT switcher transmitter for providing long - reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market - available HDBaseT - compliant extension product.

HDMI signal switching

HDMI 2.0 and HDCP 2.2 compliant, it supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS - HD, 2K, 4K, and 3D.

Multi - channel audio switching

Up to 32 channels of digital stereo uncompressed signals for supporting studio - grade surround sound.

I - EDIDPro Kramer intelligent EDID processing

Intelligent EDID handling, processing, locking and pass - through algorithm ensures Plug and Play operation for HDMI source and display systems.

Reliable PoE (Power over Ethernet) Powering

Auto - senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.

Easy installation

Compactly fits into standard US, EU and UK 1 - gang in - wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall - plate installation is fast and cost - effective via a single twisted pair cable, providing both video signal and power (PoE) connections.

VS-21DT is a high-performance automatic switcher for 4K, HDBaseT, HDMI, HDCP 2.2 video signals. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Features
Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).


Max. Resolution - 4K@60Hz (4:2:0).


HDCP 2.2 Compliant


Supports up to 40m reach at 4K@60Hz (4:2:0)


Kramer Equalization and re-Klocking Technology


HDTV Compatible


3D Pass-Though

VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2: 0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2: 0) outputs.

Features:
Step - in master support


Automatic input detection


Auto power off - when no HDMI input for 30 seconds


HDCP on/off switching


Manual or fast auto - switching according to last connected or preset priority


Full HDBaseT certification - including bidirectional RS - 232, Ethernet, IR and POE


HDBaseT extended reach - up to 100m@ 4K60 (4:2: 0)


POE source for HDBaseT receivers


Contact closure - for remote manual switching override


HDMI ARC De - embedding - from output to balanced stereo audio line, uncompressed

The VS-211HA is a high-performance automatic standby switcher for HDMI video and unbalanced stereo audio signals. The VS-211HA can be used as a manual 2x1 switcher or as an automatic switcher. The switcher either uses a priority input or last connected input.

Features
Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel)


HDMI & HDCP compliant


HDTV compatible


Advanced auto switching - based on video clock detection


Automatic output shutdown - if no input signal is detected after a configurable idle period


3D pass through


EDID PassThru - passes EDID signals from display to source


Audio Return Channel (ARC) pass through


Parallel unbalanced stereo audio switching


Contact closure remote control - for manual switching override


DIP-Switches - for setting the switching mode

The VS-211UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. The VS-211UHD automatically switches one of two HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is detected.

Features
Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel)


Max. Resolution - 4K@60Hz (4:2:0)


Stereo analog audio per input


Balanced stereo analog audio output


Automatic input detection & selection


Manual or fast auto switching to last connected or preset priority


Step–in functionality

The SID-X3N is an HDMI transmitter, step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a "Step-In" button that allows the local source to be routed as the active source when connected to the VS-62H.

Features
Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).


HDTV Compatible.


HDCP Compliant - Works with sources that support HDCP repeater mode.


HDMI Support - Deep Color, x.v.Color™ and 3D.


EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.


Data Equalization and Reclocking.


Input Signal Detection - Based on video clock presence.


Automatic Input Selection - Based on manual selection or last connected input.


Automatic Analog Audio Detection and Embedding.


Local Balanced Audio De-Embedding.


Support for Digital Audio Formats.


Lockable EDID.


Local Step-In Switching - Button & contact closure.


Supports Programmable Step-In Functionality - Over HEC enabled HDMI cables, when used with compatible switchers such as the VS-62H.


Power Supply - Requires independent power supply.

The VP-81SIDN is a high-performance digital switcher for DGKat twisted pair, DVI and HDMI signals. The unit has DVI and HDMI local inputs and eight DGKat inputs from HDMI, DVI, DisplayPort and computer graphics video step-in modules, each of which has a step-in button to select the input on the switcher.

Features
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).


HDTV Compatible.


HDCP Compliant.


Cascades Up to Four Units - Via the HDMI port to provide up to 8 twisted pair inputs.


Step–In Support - Supports the SID range of DGKat Step–in Commander panels for remote inputs and remote step–in control.


USB Power Port - Provides power to USB devices and KW–11.


EDID Capture - Copies and stores the EDID from a display device.


Flexible Control Options - Step–in switching (inputs 1–8), RS–232, RS–485, contact closure, Ethernet & IR.


Worldwide Power Supply - 100–240V AC.

DGKat™ Signal Integration

Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.

System Range

Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.

The DIP-31M is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It provides full room automation including control of lights, screens, shades and many other exciting options.

It supports various modes of input selection and transmits the signal via HDMI cable to a compatible receiver (for example the VS-62H or a display/projector). The device is a Step-in commander when connected to a matrix switcher that supports Step-in over HDMI such as the VS-62H. It also features RS-232 commands to support monitor/projector on/off.

Features
Simple and Powerful Maestro 1.0 Room Automation


Resolution support up to 4K@60Hz (4:2:0)


Max. data rate - 10.2Gbps (3.4Gbps per graphic channel)


Automatic live input detection


Automatic input selection


Automatic analog audio detection & embedding


I-EDIDPro™ Kramer Intelligent EDID Processing™


Data equalization and reclocking


Local balanced audio de-embedding


Support for digital audio formats


Local Step-In Switching
