The Excel Category 6 Unscreened Twisted Pair (UTP) angled Keystone Jack, is an independently verified toolless termination RJ45 socket suitable for mounting patch panels. The angled design of the socket face makes this product ideal for high density frames. Traditional horizontal patch cable management bars can be removed or reduced in number as the leads follow a natural route to the left or right of the panel and the cabinet's vertical management. To the rear of the socket the design is exactly the same as the Excel keystone range, enabling standard termination and cable dressing practices to be followed. The socket itself is housed in a high quality ABS plastic housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the conductors of the cable to be terminated are fed into a wire cap the process is completed by snapping the 'butterfly wings' together with minimal, but firm pressure.
Features:
Category 6 compliant
Forms Angled Cat 6 Patch Panel when used with part number PANK24A
Two piece, easy to use design
Toolless termination design
Suitable for patch panel mounting
25 year system warranty
Ideal for high density cabling installations
Keystone Jack Fits The Following Modular Panels:
PANK24A - Excel 24 Port 1U Angled Unloaded UTP Keystone Frame - Black
PANK24A-6A - Excel 24 Port 1U Angled Unloaded FTP Keystone Frame - Chrome
Pack Size: |
The Excel Category 6 Low Profile Unscreened Keystone Jack, is a reduced size toolless termination RJ45 socket. The reduced size allows for multiple cable entry directions to be accommodated when this jack is mounted in a standard depth back box. This permits many mounting options including flush shutters at the outlet as well as more common angled shutter used with keystone jacks. A choice of compatible Patch Panel frames with either 16 or 24 port density in both black and chrome are available for this Low Profile Jack. The low profile design allows this jack to fit in the Excel 0.5U 24 Port Patch Panel resulting in a maximum port density of 48 per 1U. The socket itself is housed in a high quality fire retardant plastic cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the "butterfly" together to complete the termination. Third party verification by Delta assures this high performance jack exceeds the requirements of the ISO, EN & TIA component standards.
Features:
Low Profile - 28mm overall depth
Delta 3rd Party Verified
Supports Gigabit Ethernet
25 Year System Warranty
Toolless termination design
Lifetime Product Warranty
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
PANK24H - Excel Low Profile 24 port Keystone Patch Panel Frame
Colour: | |
Pack Size: |
To complement the extensive range of single piece modules, the range has been expanded with the introduction of the keystone jack. Ideal for the user with a preference for a jack and shutter install these independentley verifed outlets offer exceptional performance and fast reliable installation with either LSA or 110 style tooling. A choice of colours are offered to suit the required housing, White jacks for the shutter, and Black for the patch frame. The patch panel frame offers great flexibility either through part loading to suit the installations and manage cost, or for preterminated requirements, allowing terminated jacks to be snapped into place quickly and easily.
Features:
Category 6 Compliant
IDC point at 90° to jack
Choice of colour
Mounts in either panel frame* or shutter
Lifetime product warranty
25 year system warranty available
* Only black keystone jacks are compatible with patch panel frame
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
PANK24H - Excel Low Profile 24 port Keystone Patch Panel Frame
Colour: | |
Pack Size: |

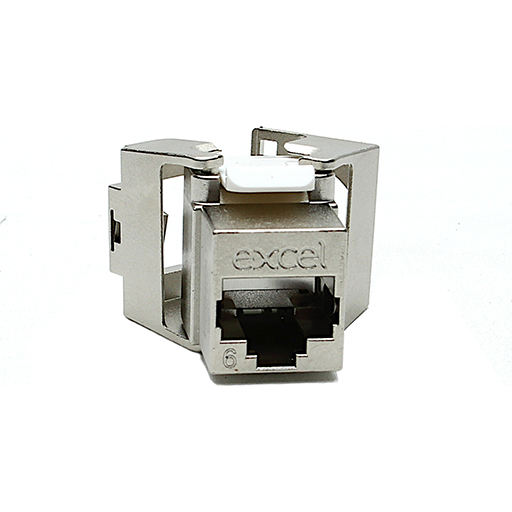

A toolless termination RJ45 socket suitable for mounting in a range of housings from patch panels, faceplates and shutters to sub-floor boxes and distribution enclosures. The socket is manufactured in a high quality zinc die cast housing, with butterfly style Toolless IDC termination points.
Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the ‘butterfly’ together to complete the termination.
Third party verification by Delta assures this high performance jack exceeds the requirements of the ISO, EN & TIA component standards.
Features:
High quality die cast housing
Toolless termination design
Suitable for patch panel and faceplate mounting
Category 6 ISO11801 compliant
360 degree Shielding protects against alien crosstalk
Suitable for foil and braided screen cables
Pack Size: |
Excel Cat6 UTP Unscreened Low Profile Keystone Jack Toolless White Nordic market, available as part of our range of excel Cat6 keystone jacks for RJ45 network connections. The Excel Category 6 Low Profile Unscreened Keystone Jack is a reduced size toolless termination RJ45 socket. The reduced size allows for multiple cable entry directions to be accommodated when this jack is mounted in a standard depth back box. This permits many mounting options including flush shutters at the outlet as well as more common angled shutter used with keystone jacks. The low profile design allows this jack to fit in the Excel 0.5U 24 Port Patch Panel resulting in a maximum port density of 48 per 1U.
The socket itself is housed in a high quality fire retardant plastic cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the ‘butterfly’ together to complete the termination.
Third party verification by Delta assures this high performance jack exceeds the requirements of the ISO, EN & TIA component standards.
Product Features
Nordic market specific
Toolless termination design
Low profile design - 28mm overall depth
UL94V-0 fire retardant plastic
Supports Gigabit Ethernet
Delta 3rd party verified
Colour: | |
Pack Size: |
Excel range of Category 6 Through Couplers provides RJ45 in/out connections, allowing channels to be extended where required. Standard Keystone Jack profile, so fits all Keystone panels and outlets.
Product Features
Standard Keystone fitting
Category 6 FTP
180 degree configuration
Suitable for both screened and unscreened systems
Standard RJ45 connection both ends
Maintains channel performance
Degree: |
Excel Cat6 UTP Unscreened Keystone Jack Toolless, available as part of our range of excel Cat6 keystone jacks for RJ45 network connections. A toolless termination RJ45 socket suitable for mounting in a range of housings from patch panels, faceplates and shutters to sub-floor boxes and distribution enclosures. The socket is manufactured in a high quality ABS housing, with butterfly style Toolless IDC termination points.
Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the ‘butterfly’ together to complete the termination.
Third party verification by Delta assures this high performance jack exceeds the requirements of the ISO, EN & TIA component standards.
Product Features
IDC point at 180 degrees to jack
Toolless termination design
Delta 3rd party verified
UL94V-0 fire retardant plastic
Supports Gigabit Ethernet
ISO, EN & TIA compliant
Colour: | |
Pack Size: |
