Excel Cat6A Patch Leads

Excel Category 6A – Augmented Category 6 – cables, and associated connectors, take the performance capabilities of copper infrastructure to new levels. The cable has been designed to exceed the ISO/IEC, TIA and CENELEC for Category 6A/Augmented Category 6 component requirements. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE-T, 10 Gigabit Ethernet.

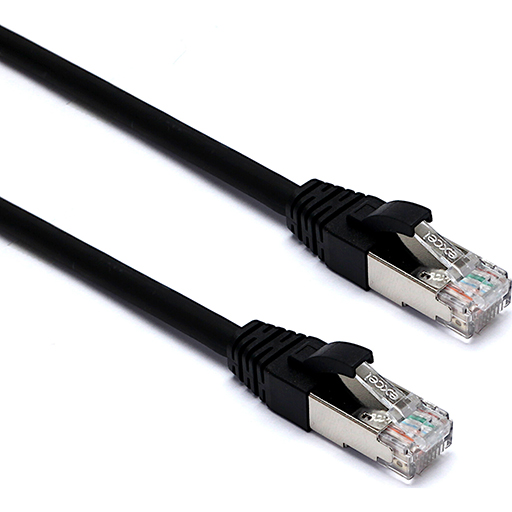

Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, with a blade booted RJ-45 plug fitted to each end. The slimline blade boot make the patch leads suitable with high density switches and equipment.

Features

Specified to 500MHz
Suitable for 10GBASE-T, 10 Gigabit Ethernet Applications
Blade style molded strain relief boot with clip protector
Choice of Length and Colour
Low Smoke Zero Halogen Outer Sheath
25 year system warranty
Performance Overview
Excel Category 6A patch leads are designed, manufactured and tested in accordance with the ISO, EN and TIA standards for Cat 6A. A range of performance characteristics are tested up to 500MHz including return loss, attenuation and near and far end crosstalk (NEXT and FEXT) for which both worst case and power sum tests are completed. The ensures the performance of the installed channels.

Excel Category 6a – Augmented Category 6 – cables, and associated connectors, take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6a performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.

Each Excel Category 6a patch leads consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 shielded plugs, terminate the cable, and each lead is fitted with colour coded slimline molded boots, suitable for use in high density router or switch blades.

Performance Overview
Excel Category 6A patch leads are designed, manufactured and tested in accordance with the ISO and TIA standards for Cat 6A. The use of foil tape screens in the design of this cable ensure that systems are immune to performance concerns sometimes found in high speed, high frequency copper cable networks. Cables designed with pair screening such as this act against Alien Crosstalk, the inducement of noise from one 4 pair cable to an adjoining cable as well as protecting against signal loss though emissions and enabling immunity from disturbance’s which could potentially be received from external sources.

Features:

Specified to 500MHz
Suitable for 10 Gigabit, 10GBase-T, Ethernet application
Individual foil screen over each pair
Blade style molded strain relief boot with clip protector
Choice of Length and Colour
Low Smoke Zero Halogen Outer Sheath
25 year system warranty

Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.

Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades.

Product Features

Panel-to-switch length
Specified to 500MHz
Suitable for 10 Gigabit 10GBase-T, POE++ applications
Individual foil screen over each pair
Blade style moulded strain relief boot with clip protector
Choice of length and colour
LSOH outer sheath

Excel Category 6A S/FTP High Density patch leads are manufactured and tested to ISO 11801, EN 50173 & TIA/EIA 568 requirements for patch cord assemblies and provide optimum performance levels for structured cabling installations.

Plugging and un-plugging is achieved through the unique push?pull design of the RJ45 connector and the use of a special tool (available separately) which extends the grip and removes the necessity to release the connector with the fingers.

Product Features

Suitable for High Density Switches and Panels
Screened braid outer with individual screened foil
Release Tools Sold Separately
Backward Compatible - Independently verified
T568B wiring
Blade style 'slimline' moulded strain relief boot with clip protector
LSOH outer sheath
Individually packaged

Excel Category 6A S/FTP Lockable patch leads are manufactured and tested to ISO 11801, EN 50173 & TIA/EIA 568 requirements for patch cord assemblies and provide optimum performance levels for structured cabling installations.

Excel Category 6A S/FTP Lockable patch leads provide added security, preventing unwanted disconnection on secure or sensitive circuits. Disconnection can only be achieved by using the key which is supplied separately to the Patch Leads.

Features and Benefits

Secure, prevents unwanted disconnection
Screened braid outer with individual screened foil
Keys sold separately
Category 6A compliant
Backwards compatible
Independently verified
T568B wiring
LS0H outer sheath
Individually packaged
Product specifications for these products can be found in the Documentation tab

Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.

Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades.

Features and Benefits

Specified to 500MHz
Suitable for 10 Gigabit 10GBase-T, POE++ applications
Individual foil screen over each pair
Blade style moulded strain relief boot with clip protector
Choice of length and colour
LSOH outer sheath
Product specifications for these products can be found in the Documentation tab

Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.

Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades.

Features and Benefits

Specified to 500MHz
Suitable for 10 Gigabit 10GBase-T, POE++ applications
Individual foil screen over each pair
Blade style moulded strain relief boot with clip protector
Choice of length and colour
LSOH outer sheath

Excel Category 6A Solid Core (U/FTP) Screened Harness/Switch Link Leads are constructed from 100-191 Excel Category 6A U/FTP "S" Foil Screened cable (horizontal cable).

Each of these leads allows the construction of two Switch/Harness Links or Consolidation Point (CP) Cables. The lead is manufactured with a high performance screened RJ-45 plug on each end permitting the lead to be cut into two at the required lengths. Slimline blade strain relief boots are fitted to protect the latch and allow connection to the highest density equipment.

Using the same cable as the horizontal elements of the channel assures performance and does not "use up" the stranded patch lead allowance.

Features and Benefits

Solid core cable
For switch/harness links and CP cables
LS0H Outer Sheath
Euroclass Dca-s2-d2-a1

Excel Category 6A Solid Core (F/FTP) Screened Harness/Switch Link Leads are constructed from 100-196 Excel Category 6A F/FTP "S" Foil Screened cable (horizontal cable).

Each of these leads allows the construction of two Switch/Harness Links or Consolidation Point (CP) Cables. The lead is manufactured with a high performance screened RJ-45 plug on each end permitting the lead to be cut into two at the required lengths. Slimline blade strain relief boots are fitted to protect the latch and allow connection to the highest density equipment. Using the same cable as the horizontal elements of the channel assures performance and does not "use up" the stranded patch lead allowance.

These leads are for the creation of Switch/Harness Links and CP cables. They are not for use as a replacement for patch leads.

Features and Benefits

Category 6A compliant
Solid core cable
For switch/harness links and CP cables
LS0H Outer Sheath
Euroclass Dca-s1a-d1-a1

Excel Category 6A Solid Core (F/FTP) Screened Harness/Switch Link Leads are constructed from 170-196 Excel Category 6A F/FTP "S" Foil Screened cable (horizontal cable).

Each of these leads allows the construction of two Switch/Harness Links or Consolidation Point (CP) Cables. The lead is manufactured with a high performance screened RJ-45 plug on each end permitting the lead to be cut into two at the required lengths. Slimline blade strain relief boots are fitted to protect the latch and allow connection to the highest density equipment. Using the same cable as the horizontal elements of the channel assures performance and does not "use up" the stranded patch lead allowance.

These leads are for the creation of Switch/Harness Links and CP cables. They are not for use as a replacement for patch leads.

Features and Benefits

Category 6A compliant
Solid core cable
For switch/harness links and CP cables
LS0H Outer Sheath
Euroclass Cca-s1a-d1-a1

The Excel Traceable Patch Cord comes equipped with a trace button and an LED in each of its plugs. One press of either trace button activates the LEDs at both ends of the cable, making it easy to identify the location. The Excel Traceable Patch Cord is an enhancement meant to improve any cable management system. With years of proven performance, these are becoming exclusive patch cords to local and national data centers.

Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.

Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with transparent slimline moulded boots, suitable for use in high density router or switch blades.

Features and Benefits

Category 6A
Self-tracing
Rapid resolution for wiring mistakes
Suitable for 10 Gigabit 10GBase-T, POE++ applications
Individual foil screen over each pair
Choice of length and colour
Individually packaged
LSOH outer sheath
