Description
The R6PJR Dell Precision 3660 is a cost-efficient tower design featuring outstanding performance scalability, improved CPU cooling and built-in AI responsiveness. It is also tested to ensure the high-performance applications you rely on every day run smoothly.
Technical Specifications
Processor
Number of processors installed: 1
Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 13th gen Intel® Core™ i7
Processor model: i7-13700
Processor cores: 16
Processor threads: 24
Performance-core Max Turbo Frequency: 5.2 GHz
Performance-core base frequency: 2.1 GHz
Efficient-core base frequency: 1.5 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Bus type: DMI4
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: DVD±RW
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express
NVMe: Yes
SSD form factor: M.2
SSD performance class: 40
Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Memory
Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory slots: 4x DIMM
Memory clock speed: 4400 MHz
Graphics
Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card model: Intel UHD Graphics 770
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PowerShare: Yes
Number of USB ports with PowerShare support: 2
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Line-out: Yes
Combo headphone/mic port: Yes
Number of SATA III connectors: 5
Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.52 G
Non-operating vibration: 2 G
Operating shock: 40 G
Non-operating shock: 105 G
Design
Chassis type: Tower
Placement supported: Vertical
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Intel® vPro™ Platform Eligibility: Yes
Performance
Market positioning: Business
Audio chip: Realtek ALC3246-CG
Trusted Platform Module (TPM): Yes
Product type: Workstation
Power
Power supply: 500 W
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz
80 PLUS certification: 80 PLUS Platinum
Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Operating system language: Multilingual
Trial software: No Microsoft Office License Included 30 day Trial Offer Only
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: No
Dimensions
Width: 173 mm
Depth: 420.2 mm
Height: 369.3 mm
Sustainability
Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, EPEAT Gold
Expansion slots
PCI Express x4 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
Description

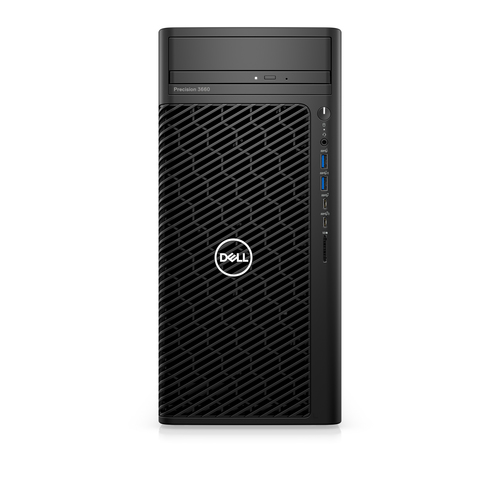

The 276T8 Dell Precision 3660 has a cost-efficient tower design featuring outstanding performance scalability, improved CPU cooling and built-in AI responsiveness. The precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.
Technical Specifications
Processor
Number of processors installed: 1
Number of processors supported: 1
Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 13th gen Intel® Core™ i7
Processor model: i7-13700
Processor cores: 16
Performance-core base frequency: 3.4 GHz
Efficient-core base frequency: 2.5 GHz
Processor cache: 30 MB
Bus type: DMI4
Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.52 G
Non-operating vibration: 2 G
Operating shock: 40 G
Non-operating shock: 105 G
Memory
Internal memory: 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 4400 MHz
Memory channels: Dual-channel
Design
Chassis type: Tower
Placement supported: Vertical
Water cooling system: No
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Intel® vPro™ Platform Eligibility: Yes
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PowerShare: Yes
Number of USB ports with PowerShare support: 2
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Line-out: Yes
Combo headphone/mic port: Yes
Number of rear USB ports: 6
Number of front USB ports: 4
Number of front audio ports: 1
Number of rear audio ports: 1
Number of SATA III connectors: 5
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: DVD±RW
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express
NVMe: Yes
SSD form factor: M.2
SSD performance class: 40
Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
RAID support: No
Performance
Market positioning: Business
Audio chip: Realtek ALC3246-CG
Built-in speaker(s): No
Trusted Platform Module (TPM): Yes
Product type: Workstation
Graphics
Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card model: Intel UHD Graphics 770
Maximum on-board graphics card resolution: 7680 x 4320 pixels
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: No
Bluetooth: No
Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Operating system language: Multilingual
Trial software: No Microsoft Office License Included 30 day Trial Offer Only
Power
Power supply: 500 W
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz
80 PLUS certification: 80 PLUS Platinum
Weight & dimensions
Width: 173 mm
Depth: 420.2 mm
Height: 369.3 mm
Weight: 16.4 kg
Expansion slots
PCI Express x4 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
Sustainability
Sustainability certificates: ENERGY STAR
Description

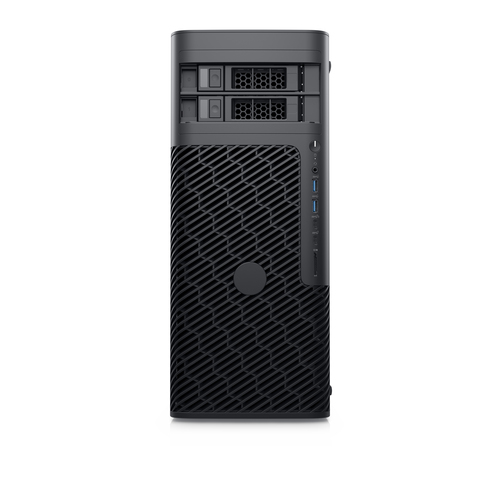

The Y3FRW Dell Precision 5860 tower workstation will be able to keep pace with accelerated project timelines and fluctuating workloads. Featuring powerful performance and advanced graphics designed for high-end applications.
Outstanding expandability: Front access FlexBay for easy storage access and upgrades.
Advanced thermals: Keep your system running cool and quiet for long periods of time.
Scalable memory: Up to 2TB of 4800MHz DDR5, 4-channel memory.
Superior storage: Up to 56TB storage, 2 internal M.2 NVMe drives and 2 internal SATA or SAS drives and 2 Front Flexbay storage drives (M.2 NVMe and/or SATA or SAS).
Professional graphics: Up to (2) AMD or NVIDIA 300W graphics.
Ultimate performance: Up to 24 Cores, 225W Intel® Xeon® Processor.
Technical Specifications
Processor
Number of processors installed: 1
Number of processors supported: 1
Processor manufacturer: Intel
Processor family: Intel Xeon W
Processor model: w3-2425
Processor cores: 6
Processor threads: 12
Processor boost frequency: 4.4 GHz
Processor frequency: 3 GHz
Performance cores: 6
Processor cache: 15MB
Processor cache type: Smart Cache
Processor base power: 130 W
Maximum turbo power: 156 W
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1TB
SSD interface: PCI Express
NVMe: Yes
SSD form factor: M.2
SSD performance class: 40
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
RAID support: No
Memory
Internal memory: 32 GB
Maximum internal memory: 2 TB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 4800 MHz
ECC: Yes
Memory channels: Single-channel
Buffered memory type: Registered (buffered)
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 1000, 10000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: No
Top Wi-Fi standard: Not available
Bluetooth: No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 5
PowerShare: Yes
Ethernet LAN (RJ-45) ports: 2
Line-out: Yes
Combo headphone/mic port: Yes
Number of rear USB ports: 6
Number of front USB ports: 4
Number of front audio ports: 1
Number of rear audio ports: 1
Number of SATA III connectors: 4
Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.52 G
Non-operating vibration: 2 G
Operating shock: 40 G
Non-operating shock: 105 G
Design
Chassis type: Tower
Placement supported: Horizontal/Vertical
Water cooling system: No
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Intel® vPro™ Platform Eligibility: Yes
Performance
Market positioning: Business
Motherboard chipset: Intel W790
Audio chip: Realtek ALC3246-CG
Built-in speaker(s): Yes
Number of speakers: 1
Trusted Platform Module (TPM): Yes
Product type: Workstation
Power
Power supply: 750 W
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz
Expansion slots
PCI Express x8 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Weight & dimensions
Width: 176.5 mm
Depth: 452.1 mm
Height: 417.9 mm
Weight: 21.7 kg
Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Operating system language: German, Dutch, English, French, Italian
Trial software: No Microsoft Office License Included 30 day Trial Offer Only
Certificates
Compliance certificates: RoHS
Sustainability
Sustainability certificates: ENERGY STAR
