| Part No: | FEY3FRW |
| Manufacturer No: | Y3FRW |
| Delivery: | In Stock: 7-10 Days |
 |
Description

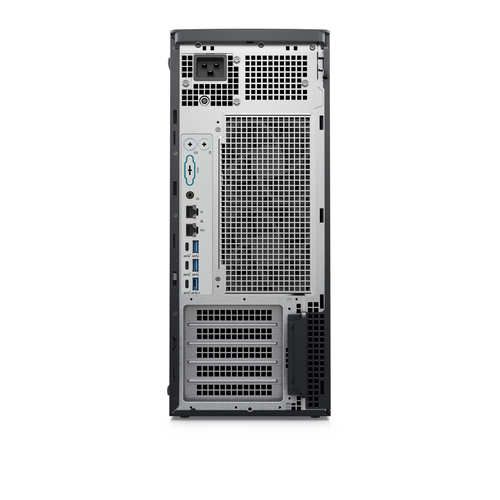

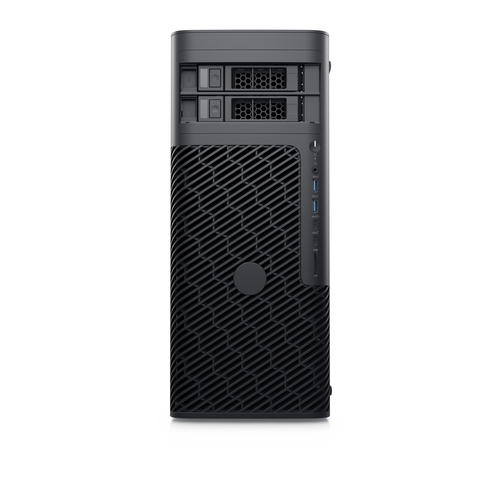

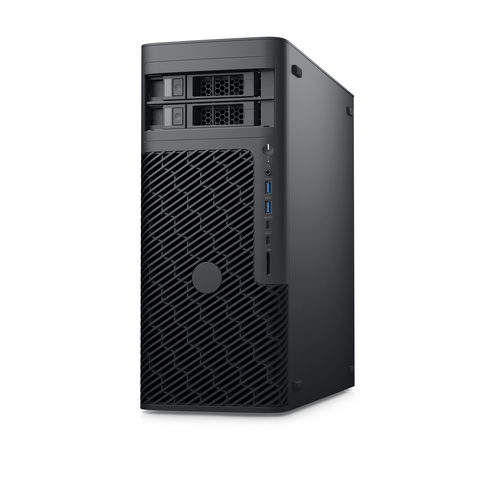

The Y3FRW Dell Precision 5860 tower workstation will be able to keep pace with accelerated project timelines and fluctuating workloads. Featuring powerful performance and advanced graphics designed for high-end applications.
Outstanding expandability: Front access FlexBay for easy storage access and upgrades.
Advanced thermals: Keep your system running cool and quiet for long periods of time.
Scalable memory: Up to 2TB of 4800MHz DDR5, 4-channel memory.
Superior storage: Up to 56TB storage, 2 internal M.2 NVMe drives and 2 internal SATA or SAS drives and 2 Front Flexbay storage drives (M.2 NVMe and/or SATA or SAS).
Professional graphics: Up to (2) AMD or NVIDIA 300W graphics.
Ultimate performance: Up to 24 Cores, 225W Intel® Xeon® Processor.
Technical Specifications
Processor
Number of processors installed: 1
Number of processors supported: 1
Processor manufacturer: Intel
Processor family: Intel Xeon W
Processor model: w3-2425
Processor cores: 6
Processor threads: 12
Processor boost frequency: 4.4 GHz
Processor frequency: 3 GHz
Performance cores: 6
Processor cache: 15MB
Processor cache type: Smart Cache
Processor base power: 130 W
Maximum turbo power: 156 W
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1TB
SSD interface: PCI Express
NVMe: Yes
SSD form factor: M.2
SSD performance class: 40
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
RAID support: No
Memory
Internal memory: 32 GB
Maximum internal memory: 2 TB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 4800 MHz
ECC: Yes
Memory channels: Single-channel
Buffered memory type: Registered (buffered)
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 1000, 10000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: No
Top Wi-Fi standard: Not available
Bluetooth: No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 5
PowerShare: Yes
Ethernet LAN (RJ-45) ports: 2
Line-out: Yes
Combo headphone/mic port: Yes
Number of rear USB ports: 6
Number of front USB ports: 4
Number of front audio ports: 1
Number of rear audio ports: 1
Number of SATA III connectors: 4
Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.52 G
Non-operating vibration: 2 G
Operating shock: 40 G
Non-operating shock: 105 G
Design
Chassis type: Tower
Placement supported: Horizontal/Vertical
Water cooling system: No
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Intel® vPro™ Platform Eligibility: Yes
Performance
Market positioning: Business
Motherboard chipset: Intel W790
Audio chip: Realtek ALC3246-CG
Built-in speaker(s): Yes
Number of speakers: 1
Trusted Platform Module (TPM): Yes
Product type: Workstation
Power
Power supply: 750 W
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz
Expansion slots
PCI Express x8 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Weight & dimensions
Width: 176.5 mm
Depth: 452.1 mm
Height: 417.9 mm
Weight: 21.7 kg
Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Operating system language: German, Dutch, English, French, Italian
Trial software: No Microsoft Office License Included 30 day Trial Offer Only
Certificates
Compliance certificates: RoHS
Sustainability
Sustainability certificates: ENERGY STAR
