Ubiquiti WiFi 7

The Ubiquiti U7-Pro-XG is a high-performance WiFi 7 access point engineered to provide efficient tri-band coverage, wide area reach, and flexible uplink speed options. Designed for modern enterprise networks, it supports advanced spectral analysis and seamless integration with the latest UniFi Network software.

Key Features 6-stream WiFi 7 performance for high-speed wireless connectivity
Tri-radio design supporting 2.4 GHz, 5 GHz, and 6 GHz bands
Flexible uplink options: 1 / 2.5 / 5 / 10 GbE
Up to 1,500 ft² of wireless coverage per access point
Integrated real-time spectral analysis for smart channel selection
Powered via PoE+ for simplified deployment
Requires UniFi Network version 9.0.114 or later
I/O Diagram Flexible Uplink, Broad Compatibility The U7-Pro-XG adapts to diverse infrastructure needs with uplink support ranging from 1 to 10 GbE, making it a versatile solution for both modern and transitional network environments.

High-Capacity Tri-Radio Coverage Its tri-radio design and 6 spatial streams enable simultaneous use of all three major frequency bands, optimizing throughput while supporting a large number of connected devices in up to 1,500 square feet of space.

Advanced Channel Awareness Built-in real-time spectral analysis ensures optimal performance by continuously monitoring the airspace and adjusting channel use to reduce interference and maintain peak signal clarity.

The Ubiquiti UDR7 UniFi Dream Router All-in-One WiFi 7 Router is a next-generation all-in-one networking solution that delivers high performance, powerful security, and seamless control through UniFi Network. Designed for home users and small businesses, the UDR simplifies network management with an integrated gateway, advanced WiFi 6 access point, and intuitive user interface - all in one sleek device.





Key Features: Integrated WiFi 6 router with dual-band 4x4 MU-MIMO radios
Built-in 2.5" HDD bay for UniFi Protect video recording
Four Gigabit LAN ports and one Gigabit WAN port
Advanced firewall and threat management capabilities
Powered by a quad-core 1.3 GHz processor with 2 GB RAM
UniFi OS Console with support for Network, Protect, and Talk apps
Compact, modern design for clean desktop placement






I/O Diagram











WiFi 6 Technology Experience faster speeds and improved device capacity with dual-band WiFi 6, providing up to 3 Gbps aggregate throughput. Ideal for dense device environments where stability and speed are critical.









Integrated Network Controller The UDR features a built-in UniFi Network Controller, giving users real-time insights, device management, and custom traffic rules—all accessible from the web or UniFi mobile app.









Smart Surveillance-Ready With a 2.5" HDD slot, the UDR supports UniFi Protect, transforming it into a home surveillance hub. Store, manage, and review footage from connected cameras without needing additional hardware.









Secure and Intuitive Management Stay in control with advanced firewall configurations, VLAN support, and traffic monitoring. The sleek touchscreen display allows quick status checks and management, while the UniFi interface ensures ease of use for all experience levels.









Versatile Deployment Whether you're building a smart home or upgrading a small business network, the UDR's combination of powerful hardware and software makes it a reliable centerpiece for connected environments.

The Ubiquiti UniFi Access Point WiFi 7 Pro (U7-PRO) delivers next-generation wireless performance for high-traffic environments.  Utilizing the latest WiFi 7 technology, with 6GHz support, 2.5GbE uplink and reaching speeds of up to 9.3 Gbps, the U7-PRO is ideal for offices, schools, and any space needing reliable, high-speed connectivity.






Key Features

WiFi 7 with 6 GHz support
6 spatial streams
140 m2 (1,500 ft2) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Product Diagram




Install Tutorial







Technical Specification

Mechanical Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
Weight: 680 g (1.5 lb)
Enclosure material: Polycarbonate, metal
Mount material: Stainless steel (SUS304), galvanized steel (SGCC)
Hardware Networking interface: (1) 1/2.5 GbE RJ45 port
Management interface: Ethernet
Power method: PoE+
Power supply: UniFi PoE switch
Supported voltage range: 44—57V DC
Max. power consumption: 21W
Max. TX power: 2.4 GHz: 22 dBm
5 GHz: 26 dBm
6 GHz: 23 dBm

MIMO: 2.4 GHz: 2 x 2
5 GHz: 2 x 2
6 GHz: 2 x 2

Throughput rate: 2.4 GHz: 688 Mbps
5 GHz: 2882 Mbps
6 GHz: 5765 Mbps

Antenna gain: 2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.8 dBi

LEDs: White/blue
Button: Factory reset
Mounting: Wall/ceiling (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software WiFi standards: 802.11a/b/g/n/ac/ax/be
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Supported Data Rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements UniFi Network: Version 8.0.26 and later
UniFi OS: Version 3.2 and later

The Ubiquiti E7-Campus is a next-generation WiFi 7 access point engineered for enterprise-scale indoor and outdoor deployments. With support for the 6 GHz band, PRISM™ RF filtering, and real-time spectral intelligence, it delivers optimized signal performance, high client capacity, and redundancy-ready connectivity for dense environments.

Key Features WiFi 7 access point with support for the 6 GHz frequency band
10 spatial streams for high-throughput, multi-user performance
PRISM™ RF filtering technology for precise signal targeting
Real-time spectral analysis with a dedicated monitoring radio
Directional high-gain antenna array for extended coverage
Supports 1,000+ concurrent client connections
1x 10 GbE RJ45 uplink and 1x GbE RJ45 for redundant power/data
I/O Diagrams WiFi 7 for Modern Campus Demands Equipped with WiFi 7 technology and 10 spatial streams, the E7-Campus meets the performance expectations of today's high-density environments, offering reliable coverage and throughput across the 2.4, 5, and 6 GHz bands.

Advanced RF Intelligence Integrated PRISM™ filtering and a dedicated spectral analyser ensure optimal channel selection and minimal interference, maintaining strong performance even in congested RF conditions.

Enterprise-Grade Flexibility With dual Ethernet ports including a 10 GbE uplink and a backup GbE port for power and data redundancy, the E7-Campus offers flexible deployment options and ensures network resilience at every level.

The Ubiquiti UniFi Express 7 (UX7) is a compact, high-performance WiFi 7 router and 10G cloud gateway designed for small businesses and advanced home networks. It combines tri-band wireless, advanced security, and UniFi OS integration in a sleek, desktop-friendly form factor.

Key Features: Tri-band WiFi 7 (2.4 GHz, 5 GHz, 6 GHz) with up to 10.6 Gbps aggregate throughput
Supports up to 300 simultaneous clients over a 160 m² coverage area
10G RJ45 WAN and 2.5G LAN ports for high-speed wired connectivity
Advanced security: Layer 7 firewall, IDS/IPS, content filtering, and ad blocking
License-free SD-WAN with multiple VPN options including WireGuard and Teleport
Manages up to 30 UniFi devices with seamless UniFi OS integration
Compact design with 0.96" status display and USB-C power input
I/O Diagram High-Speed Connectivity Equipped with tri-band WiFi 7 and a 10G WAN port, the UX7 delivers multi-gigabit wireless and wired performance, ensuring low-latency networking for demanding applications.

Advanced Security Suite Features a stateful Layer 7 firewall, intrusion detection/prevention systems (IDS/IPS), content filtering, and ad blocking to protect your network from threats.

Comprehensive VPN Support Offers license-free SD-WAN capabilities with support for various VPN protocols, including WireGuard, OpenVPN, IPsec, and Teleport Zero-Configuration VPN.

Seamless UniFi Integration Manages up to 30 UniFi devices, providing centralized control and monitoring through the UniFi OS platform for a streamlined network management experience.

Compact and Efficient Design With dimensions of 117 x 117 x 42.5 mm and a 0.96" status display, the UX7 fits easily into any setup, offering powerful performance in a small footprint.

The Ubiquiti U7-Pro-XGS is a top-tier WiFi 7 access point built to serve high-density environments with reliable tri-band coverage, greater uplink flexibility, and powerful spectral intelligence. With expanded coverage and an 8-stream architecture, it delivers scalable, secure wireless performance for enterprise-grade deployments.

Key Features 8-stream WiFi 7 performance with enhanced multi-user throughput
Tri-radio support for 2.4 GHz, 5 GHz, and 6 GHz bands
1 / 2.5 / 5 / 10 GbE uplink options for maximum flexibility
1,750 ft² wireless coverage for medium to large indoor spaces
Real-time spectral analysis for dynamic interference management
PoE+ powered for streamlined deployment
Requires UniFi Network version 9.0.114 or newer
I/O Diagram Enterprise-Ready Tri-Band Coverage Built to handle modern traffic demands, the U7-Pro-XGS offers high-efficiency WiFi 7 connectivity across three bands, ensuring smooth performance for streaming, conferencing, and dense device environments.

Expanded Area and Uplink Support With a reach of up to 1,750 ft² and support for uplinks from 1 to 10 GbE, this access point is ready to support the full range of wired backhaul environments with ample room to scale.

Smarter Signal Management The integrated real-time spectral analysis engine adapts in real time, helping mitigate interference while selecting the clearest channels for better uptime and more consistent wireless performance.

The U7-PRO-WALL ia a wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.

Features

WiFi 7 with 6 GHz Support: Embrace the future of home networking with WiFi 7, offering the latest in wireless technology and the 6 GHz band for faster, more reliable connections.

6 Spatial Streams: Experience superior performance and reduced interference with 6 spatial streams, ensuring optimal data throughput for all your devices.

140 m² (1,500 ft²) Coverage: Cover your entire home with robust, high-speed internet over an impressive 140 m² (1,500 ft²) area, eliminating dead zones and ensuring seamless connectivity in every room.

300+ Connected Devices: Effortlessly connect and manage over 300 devices, perfect for smart homes with numerous gadgets and appliances.

Powered Using PoE+: Simplify installation and reduce clutter with Power over Ethernet Plus (PoE+), providing both power and data through a single cable.

2.5 GbE Uplink: Benefit from a powerful 2.5 Gigabit Ethernet uplink, guaranteeing high-speed data transfer and efficient internet distribution throughout your home.

Versatile Deployment Options: Enjoy flexibility in installation with optional Flush Mount and Table Stand accessories, allowing for a sleek and unobtrusive integration into any home design.

The Ubiquiti E7 is a next-generation indoor WiFi 7 access point built for enterprise environments that demand superior wireless performance, redundancy, and intelligent signal control. With advanced RF filtering and real-time spectral awareness, it delivers consistent, high-throughput connectivity to dense device environments.

Key Features 10-stream WiFi 7 performance for high-density enterprise deployment
12 spatial streams with multi-device optimization
1 x 10 GbE uplink and 1 x GbE port for data and power redundancy
Real-time spectral analysis for intelligent channel selection
PRISM RF filtering for enhanced signal quality and interference reduction
Selectable beamforming antenna with 15 dBi (50°) or 11 dBi (90°) coverage
Supports 1,000+ simultaneously connected devices
I/O Diagram Optimized for Enterprise Wireless Demands The E7 access point brings WiFi 7 speed and efficiency to large-scale environments, accommodating more users, higher throughput, and better stability—all within a compact, indoor-friendly footprint.

Redundant and Reliable Uplinks Built with a 10 GbE RJ45 port and a secondary GbE port for power and data backup, the E7 ensures failover protection and uninterrupted connectivity in mission-critical deployments.

Intelligent Signal Management From real-time spectral analysis to

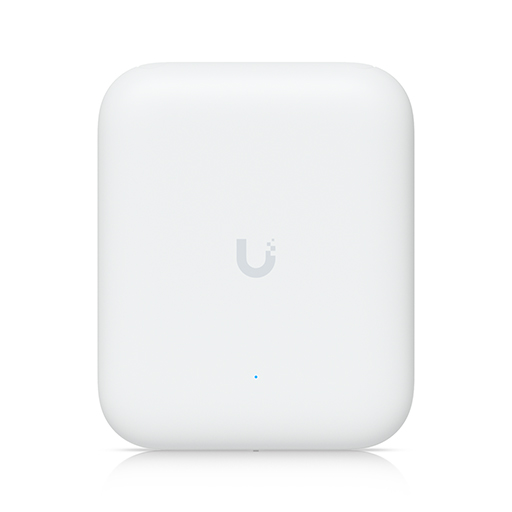

All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

Features

WiFi 7

4 spatial streams

465 m² (5,000 ft²) open space coverage with the integrated directional super antenna

Software-switchable from internal directional to included external omni antennas

200+ connected devices

Powered using PoE+

2.5 GbE uplink

Versatile wall and pole mounting

Weatherproof (outdoor exposed)

Upgrade your wireless network to the latest WiFi 7 standard.

Experience the difference that the latest WiFi 7 technology can make. Engineered for speed, coverage, and seamless connectivity. Enjoy ultra-low latency, faster throughput, and reliable coverage throughout your home or office. The U7-Lite is the perfect device for power users, remote workers, and bandwidth-hungry households.





Key Features Up to 2.5 GbE wired uplink for lightning-fast backhaul
Range up to 1,250 sq ft with 4 spatial streams
Supports PoE for discreet, hassle-free installation
Sleek, low-profile design complements any space

Introducing the Ubiquiti U7-IW - the next-generation WiFi 7 In-Wall Access Point that redefines wireless performance. Upgrade your home or office network with the cutting-edge power of the U7-IW. Engineered with the latest WiFi 7 standard, this advanced access point delivers unprecedented speed, reliability, and coverage - redefining what's possible for wireless connectivity.

Whether you're a tech enthusiast, remote worker, or small business owner, the U7-IW is the ultimate solution for elevating your wireless experience. Enjoy lightning-fast throughput, seamless roaming, and rock-solid reliability that keeps all your devices, smart home systems, and bandwidth-hungry applications running at peak efficiency. Say goodbye to frustrating dead zones, buffering, and connectivity issues, and hello to a new era of wireless freedom and productivity.

Key Features Blazing-fast 2.5GbE uplink for unparalleled wired and wireless speeds
4x4 MIMO technology for extended range and coverage up to 1,250 sq ft
Supports PoE+ for clean, wire-free installation
Sleek, discreet design that blends seamlessly into any environment
Feature and I/O Diagrams

The Ubiquiti U7-PRO-MAX is a Ceiling-mounted WiFi 7 Access Point with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.

Features

WiFi 7 with 6 GHz support provides lightning-fast internet speeds and reduced latency, making it ideal for bandwidth-intensive applications and seamless connectivity.

With 8 spatial streams, this device maximizes throughput and efficiency, ensuring smooth and robust data transmission even in crowded environments.

Real-time spectral analysis for enhanced channel selection ensures optimal performance by dynamically selecting the best channels, reducing interference and improving overall network reliability.

Covering an impressive 160 m² (1,750 ft²), it delivers extensive coverage, making it perfect for large homes or office spaces.

Capable of supporting 500+ connected devices, this system is designed to handle the demands of modern households and busy workplaces without compromising performance.

Powered using PoE+ (Power over Ethernet Plus), it simplifies installation by combining power and data transmission over a single cable, eliminating the need for separate power supplies.

A 2.5 GbE uplink provides high-speed wired connectivity, allowing for faster data transfer rates and a more stable connection for high-demand applications.

The Ubiquiti UniFi Access Point WiFi 7 Pro 5 Pack (U7-PRO-5) delivers next-generation wireless performance for high-traffic environments.  Utilizing the latest WiFi 7 technology, with 6GHz support, 2.5GbE uplink and reaching speeds of up to 9.3 Gbps, the U7-PRO is ideal for offices, schools, and any space needing reliable, high-speed connectivity.










Key Features

WiFi 7 with 6 GHz support
6 spatial streams
140 m2 (1,500 ft2) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Product Diagram






Install Tutorial
