SATA to USB Cable with UASP
SATA to USB Adapter Cable | SATA III 6Gbps | 2.5" SSD or HDD | USB 3.0 | Portable
This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a laptop.
Upgrade the Drive on Your Laptop
This SATA solid-state (SSD) or hard drive (HDD) adapter lets you upgrade to an external 2.5" SATA SSD or HDD.
The cable lets you:
• Add drive space
• Perform backups
• Create disk images
• Implement data recovery
• Transfer content between the drive and the laptop
Faster Transfer Speeds with UASP
The cable supports USB 3.0 data transfer speeds of 5Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB 3.0, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, Mac OS X (10.8 or above), and Linux®.
In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
Connect from Anywhere
The SATA to USB cable is a portable solution that tucks away nicely in a laptop bag -- no external power is required. The cable lets you easily swap between drives with no need to install the drive inside an enclosure. It's plug-and-play and doesn't require drivers.
USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Back up important data to an external storage device
Back up important data to an external storage device
Retrieve data from an old SATA drive
Perform a data migration or clone a drive
Take advantage of USB 3.0 laptops or desktops with UASP for faster transfer speeds
Upgrade your laptop HDD to an SSD via USB 3.0
Features:
Access a SATA SSD or HDD from your laptop with this SATA to USB cable
Experience 70% faster read speed and 40% fast write speeds with UASP support
Connect to external drives anywhere with this SATA to USB adapter -- no power adapter required
Save setup time with plug-and-play installation
Supports USB 3.0 data transfer speeds of 5Gbps and is backward compatible with USB 2.0
The StarTech.com Advantage:
Maximum portability with cable-style adapter, and no external power adapter required
Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
Certifications, Reports and Compatibility:
Technical details
Plug and Play
Yes
Chipset
ASMedia - ASM1153E
Cable length
0.5 m
Interface
USB 3.0
Sustainability certificates
RoHS
Performance
UASP support
Yes
Plug and Play
Yes
Chipset
ASMedia - ASM1153E
Product colour
ASMedia - ASM1153E
Design
Product colour
Black
Certification
CE, FCC
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Other features
Interface
USB 3.0
Data transfer rate
6 Gbit/s
Cable length
0.5 m
Relative humidity
40 - 85 %
Compatible operating systems
Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit), Mac OS X, Linux
Chipset
ASMedia - ASM1153E
Weight & dimensions
Width
49 mm
Depth
500 mm
Height
9 mm
Weight
42.5 g
Packaging data
Package width
220 mm
Package depth
198 mm
Package height
10 mm
Package weight
61 g
Manual
Yes
Full specification and details can be found in the
USB 3.1 to 2.5" SATA Hard Drive Adapter - USB 3.1 Gen 2 10Gbps with UASP External HDD/SSD Storage Converter
Connect a 2.5" SATA SSD/HDD to your computer using this USB 3.1 Gen 2 ultra-portable cable
Here's a fast, easy way to access data on a 2.5" solid-state or hard drive. This cable-style adapter lets you connect your laptop or desktop computer directly to a solid-state drive and access it through ultra-fast USB 3.1 Gen. 2 (up to 10 Gbps).
Convenient drive access
With the adapter cable, you can quickly swap hard drives without having to install your drives into an enclosure. You can copy or retrieve data from a 2.5" SSD/HDD quickly with no additional accessories required. It gives you easy drive access for data migration, drive cloning and data backup applications, with the fast performance of USB 3.1 Gen 2.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Ultra-portable with no external power required
This cable-style adapter features a compact, lightweight design that tucks easily into a laptop bag or carrying case. Use it wherever you go to access valuable data quickly - with no external power required.
Note: This product is not compatible with 3.5 in. hard drives. For 3.5 in. drive support, please see our USB to SATA Cable with Supplemental Power (USB312SAT3).
The USB312SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Technicians who need a quick, easy way to access data on 2.5” hard drives
Take advantage of the faster speed of USB 3.1 Gen 2 (10 Gbps)
Access any 2.5" hard drive or solid-state drive from any USB enabled computer, for data migration or drive cloning
Back up important data to an external storage device
Retrieve data from an old SATA drive
Features:
Get fast, temporary access to data with a USB 3.1 Gen 2 (10 Gbps) cable-style adapter
Connects to a 2.5” SATA SSD/HDD with no accessories required
Supports SATA I, II, III (up to 6 Gbps)
Powered directly from the USB port
UASP support for enhanced performance
Backward compatible with USB 3.0, 2.0 and 1.x
Technical details
Chipset
ASMedia - ASM1351
Cable length
0.5 m
Sustainability certificates
RoHS
Network
Data transfer rate
10 Gbit/s
Performance
UASP support
Yes
Hot-swap
Yes
Chipset
ASMedia - ASM1351
Product colour
Black
Design
Hot-swap
Yes
Product colour
Black
Certification
CE, FCC
Features
UASP support
Yes
Chipset
ASMedia - ASM1351
Data transfer rate
10 Gbit/s
Cable length
0.5 m
Relative humidity
40 - 50 %
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 55 °C
Weight & dimensions
Width
45 mm
Depth
515 mm
Height
8 mm
Weight
30.5 g
Packaging data
Package width
198 mm
Package depth
220 mm
Package height
10 mm
Package weight
56 g
Manual
Yes
Full specification and details can be found in the
USB 3.1 (10Gbps) Adapter Cable for 2.5” SATA Drives - USB-C
Get ultra-fast access to data by connecting a 2.5" SATA SSD/HDD to your laptop’s USB-C port
Take advantage of the USB-C™ port on the latest MacBook, Chromebook Pixel™ or other laptop to get quick access to your external drive. This cable-style adapter lets you use the USB Type-C™ port to connect your laptop directly to a 2.5" solid-state drive or hard drive, and access it through ultra-fast USB 3.1 Gen. 2 (10Gbps). It's fast and easy to connect to your SATA drives, with no additional accessories required.
Ultra-portable with no external power required
You can quickly access your valuable data, wherever you go, using this cable-style adapter. It's USB powered, so there's no external adapter required, and features a compact, lightweight design that you can easily tuck into your laptop bag or carrying case.
Convenient drive access
The adapter cable lets you quickly swap HDDs or SSDs without having to install your drives into an enclosure. You can copy or retrieve data from a 2.5" SSD or HDD quickly. It gives you easy access to your drive for data migration, drive cloning and data backup applications, with the fast performance of USB 3.1 Gen 2.
Connect easily, with USB-C
The integrated, easy-to-use USB Type-C connector is small and reversible, which makes for easier insertions. You can connect the plug with either side facing up, which means less risk of damaging your ports, and less frustration.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
The USB31CSAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Mobile technicians who need a quick and easy way to access the data on 2.5” hard drives or solid-state drives
Access any 2.5" hard drive or solid-state drive from your USB-C enabled computer, for data migration or drive cloning
Retrieve data from an old SATA drive
Features:
Quick and easy external drive access through the USB-C port on your laptop
Connects directly to a 2.5” SATA SSD/HDD with no accessories required
Ultra-portable, powered directly from the USB port
Time-saving data transfer speeds of 10 Gbps with USB 3.1 Gen 2
Supports SATA I, II, III (up to 6 Gbps)
UASP support for enhanced performance
Integrated USB-C cable
Technical details
Chipset
ASMedia - ASM1351
Cable length
0.5 m
Sustainability certificates
RoHS
Network
Data transfer rate
10 Gbit/s
Performance
UASP support
Yes
Hot-swap
Yes
Chipset
ASMedia - ASM1351
Product colour
Black
Design
Hot-swap
Yes
Product colour
Black
Certification
CE, FCC, REACH
Features
UASP support
Yes
Chipset
ASMedia - ASM1351
Data transfer rate
10 Gbit/s
Cable length
0.5 m
Relative humidity
40 - 50 %
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 55 °C
Weight & dimensions
Width
43 mm
Depth
508 mm
Height
5 mm
Weight
29.2 g
Packaging data
Package width
195 mm
Package depth
220 mm
Package height
5 mm
Package weight
41 g
Manual
Yes
Full specification and details can be found in the
USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDD
Quickly and easily connect SATA and/or IDE hard drives through USB 2.0
This USB 2.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through USB 2.0. The adapter lets you connect a bare drive with no enclosure, saving time and hassle.
The USB 2.0 SATA/IDE Adapter features LED indicators that allow you to easily monitor status and activity updates, and is designed for durability and reliability.
Front View:
1. DC Power Port
2. USB-A Link LED
3. 44-Pin IDE Connector
4. SATA Detect/Activity LED
5. SATA Port
6. 40-Pin IDE Connector
7. IDE Detect/Activity LED
Power Adapter:
1. Power LEDs (x 2)
2. Power Switch (x 2) 5
3. Power Connector
4. LP4 Power Connector
5. SATA Power Connector
Connector:
1. USB-A Connector
Applications:
Service technicians who need to test or retrieve data from old hard drives
Technicians who travel and deal with many different types of hard drives
Connect your 2.5" and 3.5" drives to almost any notebook or desktop
Ideal for testing and quickly swapping drives
Features:
Built in connectors for both 2.5in and 3.5in SATA and IDE hard drives
LED indicators provide status and activity updates
High Speed USB 2.0 host interface, with support for transfer rates up to 480 Mbps
Compact, portable form factor
The StarTech.com Advantage:
Supports both 2.5in and 3.5in SATA/IDE hard drives in a single, compact unit
Backed by a StarTech.com 2-year warranty and free lifetime technical support
Technical details
Chipset
JMicron JM20337
Technical features
480 Mbits/Sec
Sustainability certificates
RoHS
Network
Data transfer rate
0.48 Gbit/s
Performance
Chipset
JMicron JM20337
Product colour
Black
Ports & interfaces
Connector(s)
1 x SATA Data 7 pin, 1 x IDE 40 pin, 1 x IDE 44, 1 x SATA, 1 x LP4
Design
Product colour
Black
Certification
CE, FCC
LED indicators
Activity, Link
Other features
Data transfer rate
0.48 Gbit/s
Compatible operating systems
Windows 8/8.1 (32/64bit), 7 (32/64bit), Server 2008 (32/64), Vista(32/64), Server 2003 (32/64) XP(32/64), 2000, Apple Mavericks (10.9) OSX Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6), Linux
Technical features
480 Mbits/Sec
Chipset
JMicron JM20337
Weight & dimensions
Width
43 mm
Depth
70 mm
Height
15 mm
Weight
54 g
Packaging data
Package width
149 mm
Package depth
215 mm
Package height
53 mm
Package weight
410 g
Manual
Yes
Cables included
SATA
Full specification and details can be found in the
USB 3.0 to eSATA HDD / SSD / ODD Adapter Cable - 3ft eSATA Hard Drive to USB 3.0 Adapter Cable - SATA 6 Gbps
Connect an eSATA storage device to a USB 3.0 port on your laptop or desktop
The USB3S2ESATA3 USB 3.0 to eSATA drive cable lets you connect any external eSATA hard drive, solid state drive, or optical disc drive to your USB-enabled computer system -- a great solution for computers that don't natively support eSATA, such as MacBook® and Ultrabook™ computers.
To maximize performance and utilize the speed potential of your SATA 6 Gbps drives, the USB 3.0 to eSATA adapter is compatible with SATA revisions I/II/III and supports transfer speeds up to 5 Gbps through USB 3.0.
With support for Blu-ray/DVD/CD ATAPI / ODD drives and large capacity HDD / SSDs (tested up to 4TB) the USB to eSATA adapter cable is compatible with virtually any eSATA device, and can greatly increase the storage/backup capabilities of your computer.
The USB 3.0 to eSATA drive cable ensures a hassle-free connection with simple plug-and-play installation, plus the cable is the perfect length (1-meter, end-to-end) for easily accessing the rear panel USB ports on your computer.
The USB3S2ESATA3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Connect an external eSATA drive to a computer system that only has USB
Carry with your laptop and eSATA drive for an on the go storage solution
Swap an eSATA drive between computers systems that do not have eSATA
Features:
Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
eSATA interface compliant with SATA revision 3 and other SATA revisions, with supported data transfer rates up to
6 Gbps
Supports hard drives (HDD), solid state drives (SSD) and optical disc drives (ODD)
1x eSATA connector, 1x USB 3.0 connector with integrated 1m (3.3ft) cable
No driver or software installation required
Plug-and-Play and Hot-Swap compatible
The StarTech.com Advantage:
Get high external performance from your eSATA drives, with transfer speeds up to 5 Gbps using your USB 3.0-enabled computer
Hassle-free set up, with plug-and-play installation
Features
Plug and Play
Yes
Connector 1
eSATA
Cable length
0.9 m
Product colour
Black
Certification
CE, FCC
Connector 1 gender
Male
Connector 2 gender
Female
Technical details
Product colour
Black
Manual
Yes
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Weight & dimensions
Width
24 mm
Depth
910 mm
Height
10 mm
Weight
67.5 g
Packaging data
Package width
198 mm
Package depth
218 mm
Package height
15 mm
Package weight
80 g
Manual
Yes
Full specification and details can be found in the
USB-C to eSATA Cable - For External Storage Devices - USB 3.0 (5Gbps) - 3 ft. (1 m)
Access eSATA storage devices containing HDD, SSD or ODD drives from a USB-C or Thunderbolt 3 laptop
This USB-C™ to eSATA cable is an external drive adapter that gives you quick and easy access to an eSATA storage device through the USB-C or Thunderbolt™ 3 port on your laptop.
Connect an Optical Disk Drive to Your Laptop
Even if your laptop doesn’t have eSATA ports, the USB 3.0 to eSATA cable makes it easy to connect it to an external storage device. The cable supports connections to standard SATA hard drives (HDD) and solid-state drives (SSD).
The cable also supports connections to optical drives (ODD), enabling you to connect a CD-ROM or DVD-ROM drive to your laptop.
Efficiently Perform Drive-Management Tasks
The cable supports eSATA commands and functions such as SMART self-monitoring. It’s also compatible with eSATA drive management hardware and software, such as backup utility software.
When connected to a storage device housing HDD or SSD drives, the USB-C to eSATA cable lets IT professionals connect to drives for:
• Data recovery
• Repairing failing drives
• Re-using or re-purposing old drives
• Running drive diagnostics
• Disk imaging
• Backing up and archiving drives to prevent data loss
• Transferring content between the drive and the laptop
The 1-meter cable lets you set up anywhere, enabling you to perform any one of these tasks in a lab, at someone’s desk or out in the field. With plug-and-play installation, it’s easy to connect on any operating system, without any extra software to install.
USB3C2ESAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Connect an eSATA storage device to a USB-C or Thunderbolt 3 computer
Features:
Quickly access eSATA external storage devices with an SSD, HDD or ODD drive from a USB-C computer
Perform drive management tasks
Set up in a lab, at a desk or out in the field
Save setup time with plug-and-play installation
Compatible with SATA I, II and III
Backward compatible with USB 2.0
Features
Plug and Play
Yes
Connector 1
USB C
Cable length
0.9 m
Product colour
Black
Certification
CE, FCC
Connector 1 gender
Male
Connector 2 gender
Male
Technical details
Product colour
Black
Manual
Yes
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Weight & dimensions
Width
12 mm
Depth
90 mm
Height
12 mm
Weight
45 g
Packaging data
Package width
34 mm
Package depth
250 mm
Package height
17 mm
Package weight
45 g
Manual
Yes
Full specification and details can be found in the
SATA to USB Cable with UASP
SATA to USB Adapter Cable | SATA III 6Gbps | 2.5" SSD or HDD | USB 3.0 | Portable
This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a laptop.
Upgrade the Drive on Your Laptop
This SATA solid-state (SSD) or hard drive (HDD) adapter lets you upgrade to an external 2.5" SATA SSD or HDD.
The cable lets you:
• Add drive space
• Perform backups
• Create disk images
• Implement data recovery
• Transfer content between the drive and the laptop
Faster Transfer Speeds with UASP
The cable supports USB 3.0 data transfer speeds of 5Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB 3.0, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, Mac OS X (10.8 or above), and Linux®.
In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
Connect from Anywhere
The SATA to USB cable is a portable solution that tucks away nicely in a laptop bag -- no external power is required. The cable lets you easily swap between drives with no need to install the drive inside an enclosure. It's plug-and-play and doesn't require drivers.
USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Back up important data to an external storage device
Back up important data to an external storage device
Retrieve data from an old SATA drive
Perform a data migration or clone a drive
Take advantage of USB 3.0 laptops or desktops with UASP for faster transfer speeds
Upgrade your laptop HDD to an SSD via USB 3.0
Features:
Access a SATA SSD or HDD from your laptop with this SATA to USB cable
Experience 70% faster read speed and 40% fast write speeds with UASP support
Connect to external drives anywhere with this SATA to USB adapter -- no power adapter required
Save setup time with plug-and-play installation
Supports USB 3.0 data transfer speeds of 5Gbps and is backward compatible with USB 2.0
The StarTech.com Advantage:
Maximum portability with cable-style adapter, and no external power adapter required
Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
Certifications, Reports and Compatibility:
Technical details
Plug and Play
Yes
Chipset
Innostor - IS611
Interface
USB 3.0
Sustainability certificates
RoHS
Performance
Hot-swap
Yes
Plug and Play
Yes
Chipset
Innostor - IS611
Product colour
Black
Design
Product colour
Black
Certification
CE, FCC
Hot-swap
Yes
LED indicators
Activity, Link
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Other features
Interface
USB 3.0
Data transfer rate
4.8 Gbit/s
Relative humidity
5 - 85%
Chipset
Innostor - IS611
Weight & dimensions
Width
70 mm
Depth
43 mm
Height
18 mm
Weight
62 g
Packaging data
Package width
215 mm
Package depth
150 mm
Package height
52 mm
Package weight
419 g
Manual
Yes
Package type
Box
Cables included
AC, SATA
Full specification and details can be found in the
SATA to USB Cable - USB 3.1 (10Gbps) - UASP
SATA to USB Adapter Cable | SATA III 6Gbps | 2.5" or 3.5" SSD or HDD | Portable
This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a USB 3.1 (10Gbps) desktop or laptop.
Faster Transfer Speeds with USB 3.1
The USB 3.1 to SATA adapter gives you greater bandwidth and speed with rates of up to 10Gbps. That’s twice the speed of USB 3.0 and 20x faster than USB 2.0.
You can leverage the high performance of the latest SSDs and HDDs, while alleviating bottlenecks in your data transfers. Plus, you can experience transfer speeds up to 70% faster than conventional USB 3.1, when connected to a computer that supports UASP.
Convenient and Versatile Drive Access
The SATA to USB adapter cable lets you swap between drives so that you can copy or retrieve data from an external 2.5" or 3.5" SATA solid-state drive (SSD) or hard drive (HDD). The cable is ideal for IT technicians who need fast access to SATA drives.
It’s the perfect solution for:
• Data migrations
• Adding drive space
• Cloning drives
• Creating disk images
• Performing backups and data recoveries
Connect from Anywhere
The SATA to USB adapter is a portable solution that includes an integrated cable so you never have to worry about forgetting to bring your cable with you.
You can easily connect to a 2.5" SSD or HDD using USB power. A universal power adapter is also included for connecting to a 3.5" drive, or for connecting to any 2.5" drive that requires additional power. The adapter is plug-and-play and does not require drivers.
USB312SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Diagram:
Applications:
Quickly access 2.5” and 3.5” SSD and HDD drives from a USB-A laptop or tablet - ideal for IT professionals
Migrate data or clone a drive
Back up important data to an external storage device
Restore your computer from a backup drive
Retrieve data from your old SATA drives
Features:
Access a SATA SSD or HDD from your desktop or laptop with this SATA to USB cable
Transfer data faster at up to 10Gbps with this USB 3.1 cable
Experience 70% faster read speeds and 40% fast write speeds with UASP support
Connect to external drives anywhere with this SATA to USB adapter
Power 3.5" or 2.5" drives that require additional power using the included power adapter
Technical details
Plug and Play
Yes
Chipset
ASMedia - ASM1351
Sustainability certificates
RoHS
Network
Data transfer rate
10 Gbit/s
Performance
UASP support
Yes
Hot-swap
Yes
Plug and Play
Yes
Chipset
ASMedia - ASM1351
Product colour
Black
Design
Hot-swap
Yes
Product colour
Black
Certification
CE, FCC
LED indicators
Activity, Power
Features
UASP support
Yes
Plug and Play
Yes
Chipset
ASMedia - ASM1351
Data transfer rate
10 Gbit/s
Relative humidity
0 - 80%
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-20 - 80 °C
Weight & dimensions
Width
14 mm
Depth
85 mm
Height
15 mm
Weight
57 g
Packaging data
Package width
176 mm
Package depth
143 mm
Package height
51 mm
Package weight
323 g
Manual
Yes
Full specification and details can be found in the
1:2 Standalone USB Duplicator and Eraser for Flash Drive
USB Cloner | 1.5GB per minute | USB 2.0 | TAA Compliant
This standalone USB duplicator lets you clone or erase two flash drives without connecting to a host computer.
1:2 Drive Duplication
The USB cloner lets you copy up to two drives simultaneously (synchronous duplication) with speeds of up to 1.5GB per minute. It also offers asynchronous duplication which lets you remove and replace a drive while the other drive continues to copy.
The duplicator features two duplication modes: system-and-file, or whole-drive. System and file provides reduced duplication times, copying partitions and stored data while ignoring any sections with empty space. Whole-drive provides a sector-by-sector (mirror image) duplication of the drive. This duplication mode is ideal when you need to capture everything on the drive, including hidden data.
Erase Two Drives Simultaneously
The USB flash drive duplicator lets you wipe USB drives two at a time and supports several erase modes including:
• Quick erase
• Full erase
• Secure erase
Secure erase meets global requirements, including the new NIST (SP 800-88 Rev1) standards, ensuring that all drives are wiped properly.
Easy to Use
The standalone USB duplicator features an LCD display so that you can monitor erasing and duplication to ensure completion. It also has four shortcut keys for easy operation.
USBDUP12 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Front View:
Back View:
Applications:
Quick USB flash drive backups, data recovery and drive erasing
Create an exact replica of a source USB drive, including hidden data, onto two target USB drives
Thoroughly erase data from a flash drive
Features:
Duplicate or erase two USB drives simultaneously without connecting to a computer, using this standalone USB duplicator
Remove and replace a drive while the other drive continues to copy, using asynchronous duplication
Perform system-and-file or whole-drive duplication with this USB cloner
Wipe USB drives confidently with erase modes that meet NIST and DoD standards
Monitor the status of jobs to ensure completion using the LCD display
The StarTech.com Advantage:
Duplicate two target Flash Drives simultaneously, without connecting to a computer
Save time by only copying content from a flash drive, as opposed to the entire volume
Extremely versatile, duplicate from a USB Flash Drive to a HDD/SSD or other flash media through a USB dock, enclosure, or card reader
Technical details
Product type
USB flash drive duplicator
LED indicators
Activity, Error
Housing material
Plastic
USB connector type
USB Type-A
Plug and Play
Yes
Packet buffer memory
64 MB
Number of simultaneous copies
2 copies
Interface
USB 2.0
Duplicator operating modes
Copy, Erase
Transfer rate
1.5 GB/min
Product colour
Blue
Sustainability certificates
RoHS
Power
Output voltage
5 V
Output current
2 A
AC input voltage
110 - 240 V
Power plug type
Type H
Display
Display
LCD
Backlight colour
Blue
Backlight
Yes
Operational conditions
Storage temperature (T-T)
-20 - 85 °C
Operating temperature (T-T)
5 - 45 °C
Operating relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
130 mm
Depth
120 mm
Height
25 mm
Weight
190 g
Packaging data
Package width
168 mm
Package depth
213 mm
Package height
77 mm
Package weight
550 g
Manual
Yes
AC adapter included
Yes
Full specification and details can be found in the

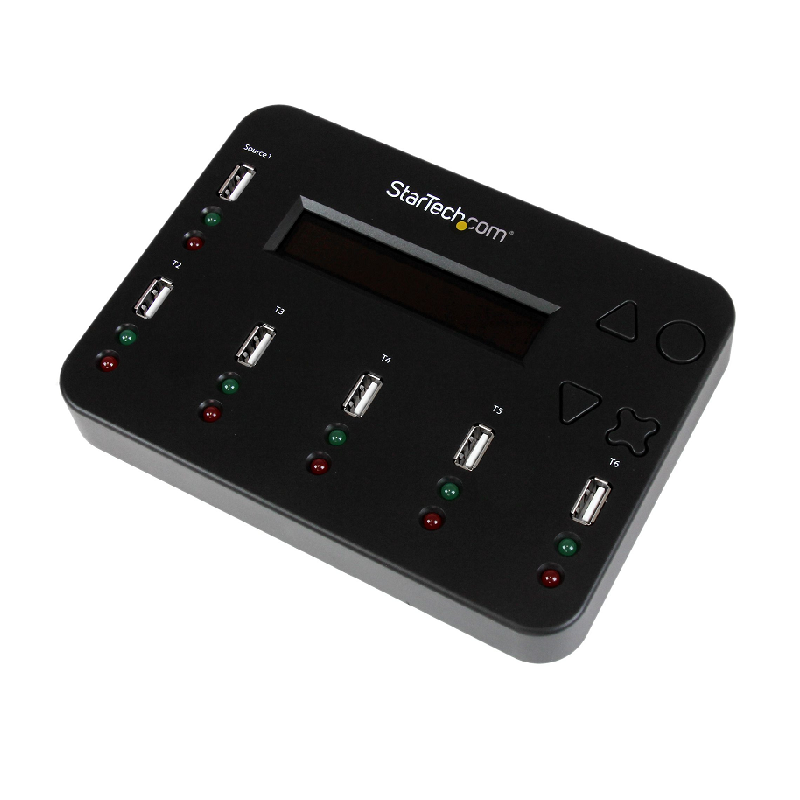

Standalone 1:5 USB Flash Drive Duplicator and Eraser – Flash Drive Copier
Easily duplicate or securely erase up to five USB-A Flash Drives simultaneously, without connecting to a computer
The USBDUP15 OnetoFive USB flash drive duplicator and eraser lets you quickly clone up to five backups of a single USB flash drive, or securely erase up to five flash drives, without connecting to a host computer.
Maximum Portability
Featuring a compact lightweight design that you can carry anywhere, and standalone operation that does not require a host computer, the flash drive duplicator and eraser has a small desktop footprint and is great for travel. Perfect for software and marketing content distribution in the office or on-the-go.
Hassle-free Operation
With an easy-to-read LCD display and intuitive four button menu operation, the USBDUP15 ensures hassle-free setup and control. The menu gives you push-button access to many value-added features that ensure simple task management such as: Capacity & Speed Check, Copy & Compare, Asynchronous Copy, and many more. It also provides numerous advanced setup options for experienced users.
Fast Duplication and Secure Erasing
This versatile device is both hard drive cloner and eraser in one, and offers two duplication modes (File & System Copy / Whole Copy) with up to 1.5GB/m at Whole Copy mode. It offers three erase modes (Quick Erase / Full Erase / DoD Erase) giving you the freedom to choose the best solution for your application.
The USBDUP15 is TAA compliant and backed by a 2-year StarTech.com warranty and lifetime technical support.
Note: The USBDUP15 flash drive duplicator supports copying/cloning to SD/ SDHC/ Micro SD/ MMC/ Mini SD/ CF media through a USB multimedia card reader (sold separately) and to Hard Drives or Solid State Drives through a hard drive docking station or USB enclosure (sold separately)
Front View:
1. Source USB drive port
2. Destination USB drive ports
3. LCD Display
4. Forward button
5. Backward button
6. OK button
7. Escape button
Back View:
1. Power Adapter Port
2. Power Switch
Applications:
Software and operating system updating and distributions
Marketing collateral copying and distribution
Rich media coping and distributions
Quickly backup USB flash drives without a host computer
Create exact copies of a USB flash drive in law enforcement and forensic investigations
Thoroughly erase data from a flash drive, for added data security and peace of mind
Clean and prepare USB drives for reuse
Testing and evaluating USB drives
Features:
Supports USB 3.0/2.0/1.1 flash drives
1:5 standalone duplication with 2 duplication modes
Erase up to 5 USB flash drives with single-pass and multi-pass overwriting/DoD erasing
High-speed duplication at up to 1.5GB per minute
Compact, lightweight design
TAA compliant
Built-in LCD display
Check drive capacity, quality and speed with intuitive task management
Supports both Asynchronous and Synchronous copy modes, for quick batch swapping with 64 MB of internal memory
The StarTech.com Advantage:
Maximize portability with a compact, lightweight design and standalone operation
Hassle-free performance with easy-to-read LCD display
Technical details
Product type
USB flash drive duplicator
LED indicators
Yes
Number of simultaneous copies
5 copies
Interface
USB 2.0
Duplicator operating modes
Copy, Erase
Compatible memory cards
CF, MicroSD (TransFlash), MiniSD, MMC, SD, SDHC
Transfer rate
1.5 GB/min
Product colour
Black
Sustainability certificates
RoHS
Power
Output voltage
5 V
AC input voltage
110 - 240 V
Display
Display
LCD
Operational conditions
Storage temperature (T-T)
-20 - 85 °C
Operating temperature (T-T)
5 - 45 °C
Operating relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
120 mm
Depth
167 mm
Height
25 mm
Weight
318 g
Packaging data
Package width
180 mm
Package depth
231 mm
Package height
82 mm
Package weight
742 g
AC adapter included
Yes
Full specification and details can be found in the

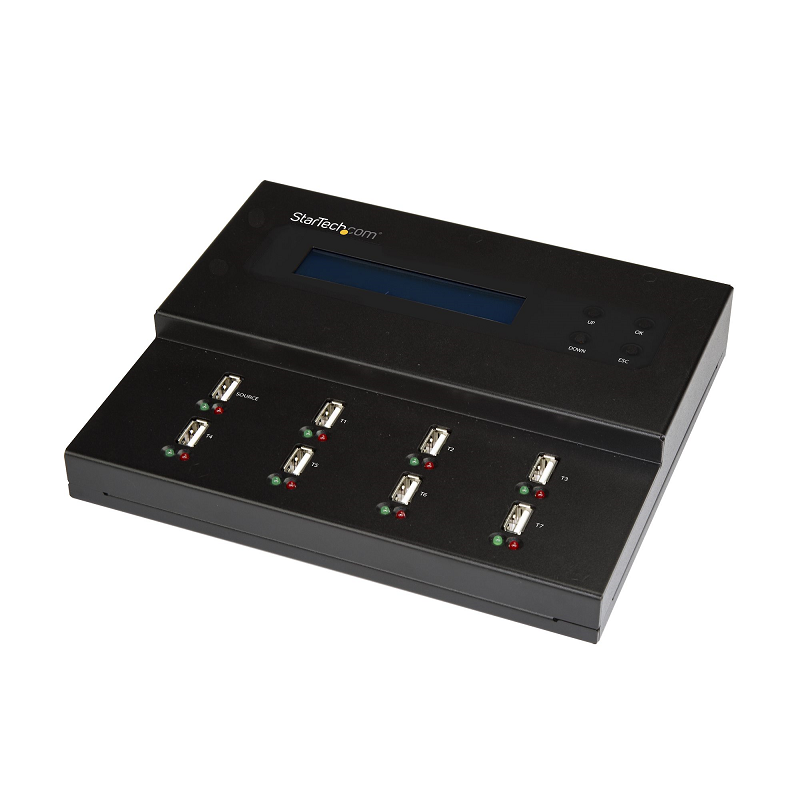

1:7 Standalone USB Duplicator and Eraser - for USB Flash Drives
Duplicate or erase up to seven USB flash drives, without connecting to a computer
This USB duplicator and eraser lets you clone or erase up to seven USB flash drives, without a host computer connection. This means you can work more efficiently and manage larger batches of USB drives, saving time and effort.
The standalone USB duplicator and eraser is perfect for IT professionals and system administrators in corporate, education, marketing, or sales environments.
Efficient 1:7 drive duplication
The duplicator lets you copy up to seven drives simultaneously, and offers both synchronous and asynchronous duplication, with speeds up to 1.5GB per minute. The asynchronous feature means you can remove and replace USB storage devices while other copies continue to run. The eraser/duplicator offers two modes of duplication: system and file and whole file.
Erase multiple USB drives simultaneously
The drive duplicator/eraser lets you erase up to seven flash drives at the same time, so it’s easy to clean large batches of USB drives for reuse. The flash drive duplicator features three modes of erasing: quick erase, single pass erase, and multi-pass erase (meets DoD standards).
Designed for ease of use
The flash drive duplicator and eraser supports USB 3.0, USB 2.0 and USB 1.1 flash drives, providing an easy and cost-effective way to re-use and re-purpose your USB drives. It features a robust metal housing and a compact, standalone design that makes it the perfect desktop companion. The duplicator/eraser also has an LCD display that makes it easy to monitor erasing and duplication to ensure completion.
The USBDUPE17 is TAA compliant and backed by a StarTech.com 2-year warranty and free lifetime technical support.
Front View:
1. LCD display
2. UP button
3. DOWN button
4. OK button
5. ESC button
6. Source USB flash drive port
7. Source USB flash drive LED indicators
8. Destination USB flash drive port
9. Destination USB flash drive LED indicators
Back View:
10. Power switch
11. Power adapter port
Applications:
Software and operating system update rollouts
Marketing collateral copying and distribution
Backup USB flash drives without a host computer
Clean and prepare USB drives for reuse
Testing and evaluating USB drives
Professionals who require identical backups for when data integrity is crucial, such as data recovery
IT administrators who wish to erase multiple drives simultaneously in preparation for use in other applications
Features:
Duplicate or erase up to seven USB 3.0, USB 2.0 and USB 1.1 flash drives, without connecting to a host computer
1:7 standalone duplication with two duplication modes: system and file, and whole file
Erase up to seven drives at the same time, with three modes: quick erase, single pass erase, and multi-pass erase (meets DoD standards)
TAA compliant
Compact metal design
Built-in LCD display
Duplication speeds up to 1.5GB per minute
Includes universal power adapter
Supports both asynchronous and synchronous copy modes, for quick batch swapping with 64 MB of internal memory
Certifications, Reports and Compatibility:
Technical details
Product type
USB flash drive duplicator
Chipset
Xilinx Spartan - XC3S700A
LED indicators
Activity, Fault
Housing material
Steel
USB connector type
USB Type-A
Plug and Play
Yes
Maximum supported storage capacity
2 TB
Packet buffer memory
128 MB
Number of simultaneous copies
7 copies
Interface
USB 2.0
Duplicator operating modes
Copy, Erase
Transfer rate
1.5 GB/min
Product colour
Black
Sustainability certificates
RoHS
Power
Output voltage
12 V
Output current
9 A
Input current
1.6 A
AC input voltage
100 - 240 V
Included power plug types
ANZ, EU, JP, NA, UK
Power consumption (typical)
108 W
Display
Display
LCD
Operational conditions
Storage temperature (T-T)
-20 - 85 °C
Operating temperature (T-T)
5 - 45 °C
Operating relative humidity (H-H)
20 - 80 %
Weight & dimensions
Width
160 mm
Depth
190 mm
Height
35 mm
Weight
1.1 kg
Packaging data
Package width
235 mm
Package length
44.5 cm
Package height
85 mm
Package weight
3 kg
Manual
Yes
AC adapter included
Yes
Full specification and details can be found in the

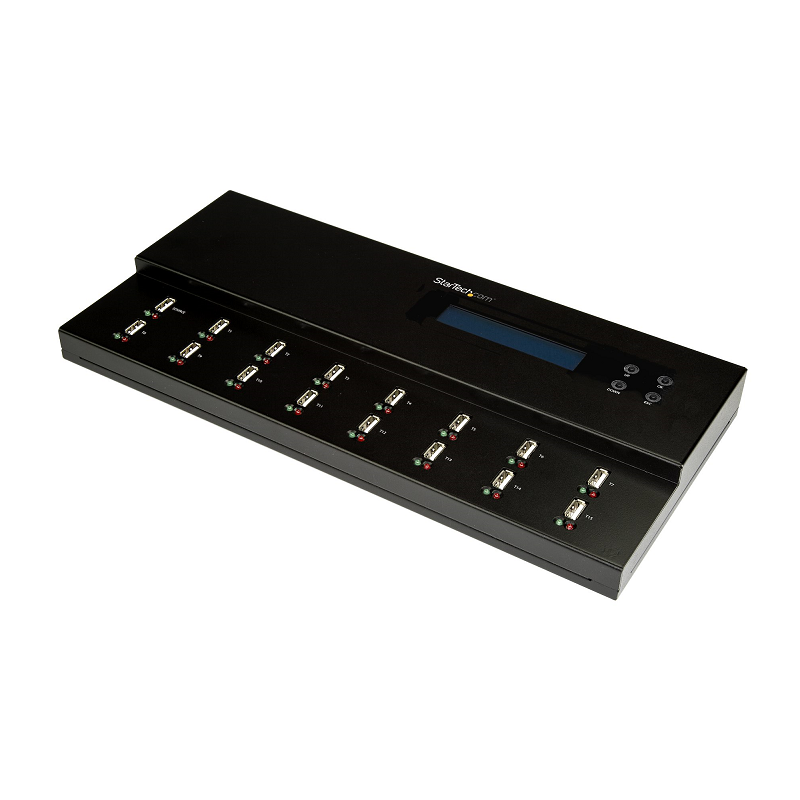

1:15 Standalone USB Duplicator and Eraser - for USB Flash Drives
Duplicate or securely erase up to 15 USB flash drives, without connecting to a computer
This USB duplicator and eraser lets you clone or erase up to 15 USB flash drives, without a host computer connection. This means you can work more efficiently and manage larger batches of USB drives, saving time and effort.
The standalone USB duplicator and eraser is perfect for IT professionals and system administrators in corporate, education, marketing, or sales environments.
Efficient 1:15 drive duplication
The duplicator lets you copy up to 15 drives simultaneously, and offers both synchronous and asynchronous duplication, with speeds up to 1.5GB per minute. The asynchronous feature means you can remove and replace USB storage devices while other copies continue to run. The duplicator offers two duplication modes, system and file and whole file.
Erase multiple USB drives simultaneously
The drive duplicator/eraser lets you erase up to 15 flash drives at the same time, so it’s easy to clean large batches of USB drives for reuse. The flash drive duplicator features three modes of drive erasing: quick erase, single pass erase, and multi-pass erase (meets DoD standards).
Designed for ease of use
The flash drive duplicator and eraser supports USB 3.0, USB 2.0 and USB 1.1 flash drives, providing an easy and cost-effective way to re-use and re-purpose your USB drives. It features a robust metal housing and a compact, standalone design that makes it the perfect desktop companion. The flash drive eraser/copier also has an LCD display that makes it easy to monitor erasing and duplication to ensure completion.
The USBDUPE115 is TAA compliant and backed by a StarTech.com 2-year warranty and free lifetime technical support.
Front View:
1. LCD display
2. UP button
3. DOWN button
4. OK button
5. ESC button
6. Source USB flash drive port
7. Source USB flash drive LED indicators
8. Destination USB flash drive port
9. Destination USB flash drive LED indicators
Back View:
10. Power switch
11. Power adapter port
Applications:
Software and operating system update rollouts
Marketing collateral copying and distribution
Backup USB flash drives without a host computer
Clean and prepare USB drives for reuse
Testing and evaluating USB drives
Professionals who require identical backups for when data integrity is crucial, such as data recovery
IT administrators who wish to erase multiple drives simultaneously in preparation for use in other applications
Features:
Duplicate or erase up to 15 USB 3.0, USB 2.0 and USB 1.1 flash drives, without connecting to a host computer
1:15 standalone duplication with two duplication modes: system and file, and whole file
Erase up to 15 drives at the same time with three modes: quick erase, single pass erase, and multi-pass erase (meets DoD standards)
TAA compliant
Compact metal design
Built-in LCD display
Duplication speeds up to 1.5GB per minute
Includes universal power adapter
Supports both asynchronous and synchronous copy modes, for quick batch swapping with 64 MB of internal memory
Certifications, Reports and Compatibility:
Technical details
Product type
USB flash drive duplicator
Chipset
Xilinx Spartan - XC3S700A
LED indicators
Activity, Fault
Housing material
Steel
USB connector type
USB Type-A
Plug and Play
Yes
Maximum supported storage capacity
2 TB
Packet buffer memory
128 MB
Number of simultaneous copies
15 copies
Interface
USB 2.0
Duplicator operating modes
Copy, Erase
Transfer rate
1.5 GB/min
Product colour
Black
Sustainability certificates
RoHS
Power
Output voltage
12 V
Output current
12.5 A
Input current
2.2 A
AC input voltage
100 - 240 V
Included power plug types
ANZ, EU, JP, UK
Power consumption (typical)
150 W
Display
Display
LCD
Operational conditions
Storage temperature (T-T)
-20 - 85 °C
Operating temperature (T-T)
5 - 45 °C
Operating relative humidity (H-H)
20 - 80 %
Weight & dimensions
Width
160 mm
Depth
345 mm
Height
35 mm
Weight
1.8 kg
Packaging data
Package width
250 mm
Package depth
250 mm
Package height
115 mm
Package weight
4 kg
Manual
Yes
AC adapter included
Yes
Full specification and details can be found in the
- Review: The 10 Best Wireless Access Points
- Review: The Top 10 Best Ethernet Cables
- What Is An Ethernet Cable And What Does It Do?
- 10 Best CCTV Security IP Cameras For Home & Business
- Review: Best Powerline Adapters In The UK
- Celebrating 20 Years Of Comms Express!
- The Top 10 DrayTek Wireless Access Points
- Best Selling APC Products At Comms Express
- Review: Top 5 Best Performing APC Uninterruptible Power Supply Units (UPS)
- Review: Top 10 Best PDU’s
