The Euromod system of wallplates provides a flexible and versatile method of installation. This modular system offers a wide range of wallplates and modules that allows the user to install as many or as few data or voice outlets as required. The system caters for small and large installations alike.
The Euromod Single and Double gang wallplate system is the basis of this modular approach. The single gang wallplate has a 50 x 50mm aperture and the double gang a 50 x 100mm aperture, which accepts the Euromod range of data, voice (module size 25 x 50mm) and blank modules.
Designed to offer flexibility and cost effectiveness, the user can choose to install only the number of outlets required, using the blank modules when needed to provide a professional looking finish.
Features & Advantages
Full, half and quarter blank module
Complements Euromod wall outlets and modules
Durable scratch resistant finish
The Euromod system of wallplates provides a flexible and versatile method of installation. This modular system offers a wide range of wallplates and modules that allows the user to install as many or as few data or voice outlets as required. The system caters for small and large installations alike.
The Euromod Single and Double gang wallplate system is the basis of this modular approach. The single gang wallplate has a 50 x 50mm aperture and the double gang a 50 x 100mm aperture, which accepts the Euromod range of data, voice (module size 25 x 50mm) and blank modules.
Designed to offer flexibility and cost effectiveness, the user can choose to install only the number of outlets required, using the blank modules when needed to provide a professional looking finish.
Features & Advantages
Full, half and quarter blank module
Complements Euromod wall outlets and modules
Durable scratch resistant finish
The Euromod system of wallplates provides a flexible and versatile method of installation. This modular system offers a wide range of wallplates and modules that allows the user to install as many or as few data or voice outlets as required. The system caters for small and large systems alike.
The Euromod Single and Double gang wallplate system is the basis of this modular approach. The single gang wallplate has a 50 x 50mm aperature and the double gang a 50 x 100mm aperture, which accepts two (single gang) or four (double gang) of the Euromod range of data, voice or blank modules (modules have a 25 x 50mm fascia size).
The polished face of these wallplates offers a quality finish, ideal for office installations and the styling complements most UK style electrical power outlets.
Features & Advantages
50 x 50mm aperture size (single gang)
50 x 100mm aperture size (double gang)
Available with or without labelling facility
Fixing screws provided
Quality polished finish
Accepted by all UK backboxes
The MOD-SNAP system of wallplates provides a flexible wall outlet solution allowing the fitment of as many 38.5mm x 22mm MODSNAP voice or data outlets as necessary.

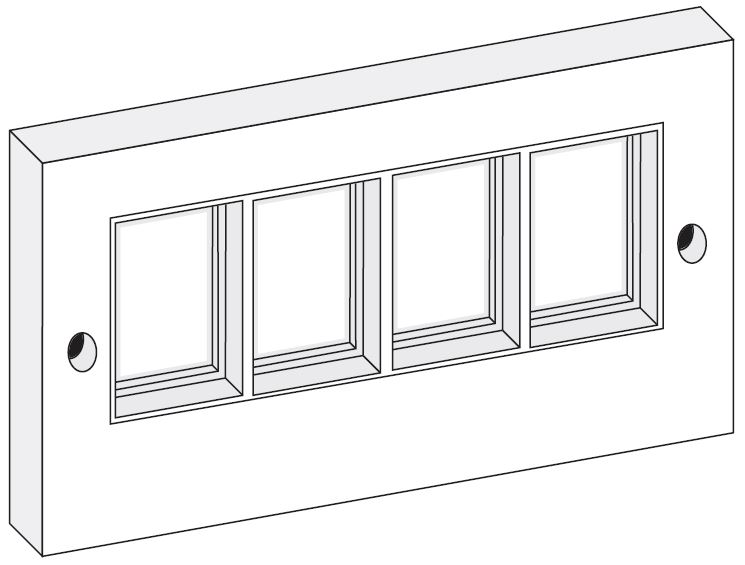

The MOD-SNAP single and double gang wallplate system is the basis for this modular range. It comprises of a single gang wallplate, available with one or two apertures and a double gang wallplate with four apertures.
Any combination of voice or data modules can be fitted. In addition a blank module is available to fill in any apertures not currently required in the system. This facilitates simple and convenient future expansion. The polished face of these wallplates offers quality finish, ideal for office installations. The styling also compliments most UK style electrical power outlets.
Features & Advantages
Single gang, one or two outlets
Double gang, four outlets
Fixing screws provided
Quality polished finish
Accepted by all UK backboxes
The MOD-SNAP system of wallplates provides a flexible wall outlet solution allowing the fitment of as many 38.5mm x 22mm MODSNAP voice or data outlets as necessary.
The MOD-SNAP single and double gang wallplate system is the basis for this modular range. It comprises of a single gang wallplate, available with one or two apertures and a double gang wallplate with four apertures.
Any combination of voice or data modules can be fitted. In addition a blank module is available to fill in any apertures not currently required in the system. This facilitates simple and convenient future expansion. The polished face of these wallplates offers quality finish, ideal for office installations. The styling also compliments most UK style electrical power outlets.
Features & Advantages
Single gang, one or two outlets
Double gang, four outlets
Fixing screws provided
Quality polished finish
Accepted by all UK backboxes
The MOD-SNAP system of wallplates provides a flexible wall outlet solution allowing the fitment of as many 38.5mm x 22mm MODSNAP voice or data outlets as necessary.
The MOD-SNAP single and double gang wallplate system is the basis for this modular range. It comprises of a single gang wallplate, available with one or two apertures and a double gang wallplate with four apertures.
Any combination of voice or data modules can be fitted. In addition a blank module is available to fill in any apertures not currently required in the system. This facilitates simple and convenient future expansion. The polished face of these wallplates offers quality finish, ideal for office installations. The styling also compliments most UK style electrical power outlets.
Features & Advantages
Single gang, one or two outlets
Double gang, four outlets
Fixing screws provided
Quality polished finish
Accepted by all UK backboxes
The Euromod system of wallplates provides a flexible and versatile method of installation. This modular system offers a wide range of wallplates and modules that allows the user to install as many or as few data or voice outlets as required. The system caters for small and large systems alike.
The Euromod Single and Double gang wallplate system is the basis of this modular approach. The single gang wallplate has a 50 x 50mm aperature and the double gang a 50 x 100mm aperture, which accepts two (single gang) or four (double gang) of the Euromod range of data, voice or blank modules (modules have a 25 x 50mm fascia size).
The polished face of these wallplates offers a quality finish, ideal for office installations and the styling complements most UK style electrical power outlets.
Features & Advantages
50 x 50mm aperture size (single gang)
50 x 100mm aperture size (double gang)
Available with or without labelling facility
Fixing screws provided
Quality polished finish
Accepted by all UK backboxes
The Euromod modular system provides a flexible and versatile method of installation. This modular system offers a wide range of wallplates and modules to allow the user to install as many data outlets as required. The modules are fully assembled units featuring the Molex Connected Enterprise Solutions low profile Cat 5e RJLP connector and a 25 x 50mm fascia, shutter and spring assembly.
Molex Connected Enterprise Solutions unique patented RJLP RJ45 connector is engineered to meet the highest performance standards in the industry and offers a low profile, space saving design that enables installation in shallow backboxes and trunking.
Suitable for high speed data transmission the PowerCat RJLP RJ45 connector had been designed to meet the requirements of the Cat 5e standard which demands compliance with the PowerSum principle of measurement and test.
Features & Advantages
Cat 5e performance RJ45 RJLP connector
EIA 568B wired
Space saving low profile module
Technical Information
Jack Connector
Operating Life: Minimum 500 insertion cycles
Contact Material: Phosphor Bronze
Contact Plating: 1.25 micrometers Au/Ni
Contact Force: 100g minimum
Material: UL 94VO Thermoplastic
IDC Connector
Operating Life: Minimum 100 Reterminations
Contact Material: Phosphor Bronze
Contact Plating: Sn/Pb over Ni
Wire Accommodation: 2 x 22-26 AWG solid or stranded
The MOD-SNAP modular system provides a flexible and versatile method of installation, allowing the user the choice of installing as many data outlets as required. The modules are fully assembled units featuring the Molex Premise Networks low profile Cat 5E RJLP connector and a 25 x 38.5mm fascia (BT 6C size), shutter and spring assembly.
Molex Premise Networks unique patented RJLP RJ45 connector is engineered to meet the highest performance standards in the industry and offers a low profile, space saving design that enables installation in shallow backboxes and trunking.
Suitable for high speed data transmission the PowerCat RJLP RJ45 connector was designed to meet the requirement of the Cat 5E standard which demands compliance with the PowerSum principle of measurement and test.
Features & Advantages
RJ45 RJLP connector Category 5E
EIA 568B wired
Space saving low profile module
Labelling facility
Technical Information
Jack Connector
Operating Life: Minimum 500 insertion cycles
Contact Material: Phosphor Bronze
Contact Plating: 1.25 micrometers Au/Ni
Material: UL 94VO Thermoplastic
IDC Connector
Operating Life: Minimum 100 Reterminations
Contact Material: Phosphor Bronze
Contact Plating: Sn/Pb over Ni
Wire Accommodation: 2 x 22-26 AWG solid or stranded
