Kramer All-in-One Presentation Systems

VS-622DT is an all-in-one 4K@60 Hz (4:2:0) presentation system with 6 x 2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60 Hz (4:2:0) and WUXGA.

VS-622DT is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS-232, four IR, two GPI/O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.
Features:

HDBaseT extension reach - Up to 100 m at 4K @60 Hz (4:2:0), up to 130 m (430 ft) at full HD (1080p @60 Hz 36 bpp), up to 180 m (590 ft) at ultra - mode and full HD (1080p @60 Hz 24 bpp). For optimum range and performance, use recommended Kramer cables.
Simple and powerful maestro room automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.


Power amplifier - 1x 120 W @70 V/100 V & 2x 60 W @4/8 Ω with line level output, fast swapping between two de-embedded audio sources and individual gain for each source.


Audio de-embedding (extracting) - The user selects the audio signals from 2 of the 6 inputs (2 HDBaseT + 4 HDMI) to be de-embedded. The de-embedded signals are output through the two balanced analog audio outputs. In addition, one of the de-embedded audio signals can be output to the power amplifier.


HDBaseT data tunneling - Supports Ethernet tunneling, as well as bidirectional tunneling for RS - 232 and IR control.

VS-84UT is an all-in-one 4K@60Hz (4:2:0) audio-video presentation system with integrated range extension and an integrated control system master. The unit switches the video, embeds the audio, and outputs the signal to both HDMI™ and HDBaseT 2.0 with USB extension and PoE on the HDBaseT output ports. Outstanding audio support includes balanced stereo audio, unbalanced stereo audio, and de-embedded audio sources that output to embedded audio, balanced stereo audio as well as a power amplified audio output.

VS-84UT includes a master room controller that can operate over Ethernet (LAN) with control ports that include: one bidirectional RS-485, four RS-232, four IR, four GPI/O, and eight relays to control a wide variety of AV devices. It includes a KNET™ connector interface that enables access to the master controller from auxiliary room controllers such as control keypads. The unit can also provide power to auxiliary room controllers via the KNET™ connectors. VS-84UT includes an Ethernet gateway to control and manage remote I/O ports.

Features
Resolutions up to 4K@60Hz (4:2:0)


Data Rate up to 10.2Gbps (3.4Gbps per graphics channel) Signal Extension up to 100m at 4K @60Hz (4:2:0)


Flexible Audio Extraction, Embedding and Control


Programmable Master Room Controller


RS-232, RS-485, IR, GPI/O, and relay ports


PoE (Power over Ethernet) Provider

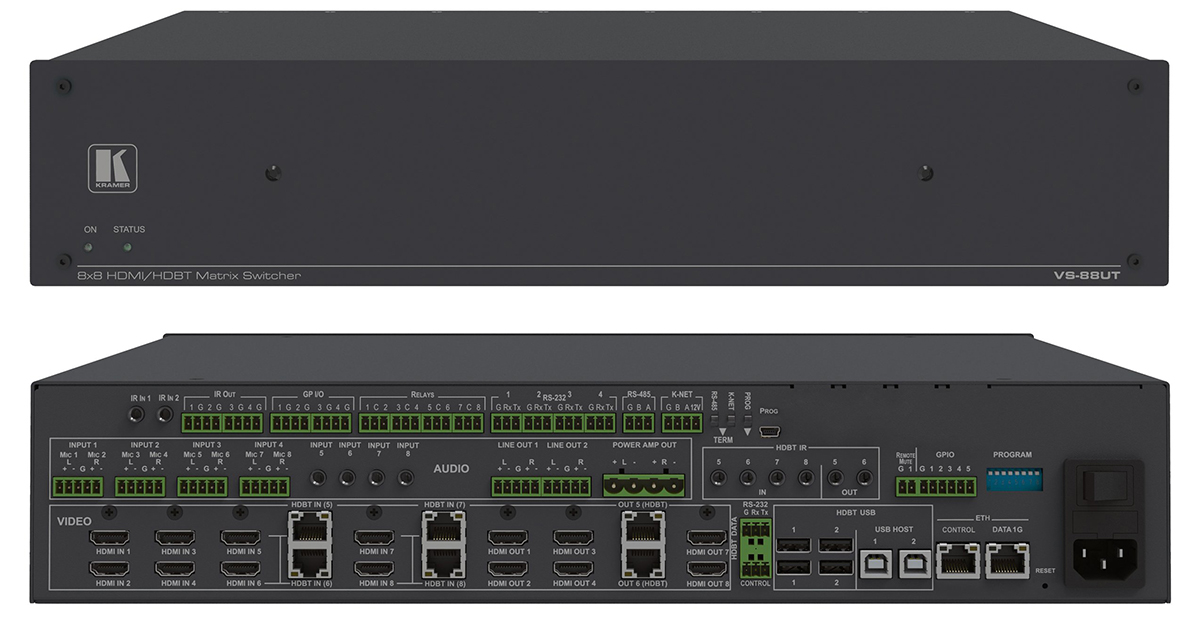

VS-88UT is a high-performance 4K@60Hz (4:2:0) audio-video presentation system with integrated range extension and an integrated control system master. The unit switches the video, embeds the audio and outputs the signal to both an HDMI and an HDBaseT 2.0 with USB extension and PoE on input and output ports. Outstanding audio support includes balanced stereo audio, unbalanced stereo audio and de-embedded audio sources that output to embedded audio, balanced stereo audio as well as a power amplified audio output. VS-88UT includes a master room controller that can operate over Ethernet (LAN) with control ports that include: one bidirectional RS-485, four RS-232, four IR, four GPI/O, and eight relays to control a wide variety of AV devices. It includes a KNET connector interface that enables access to the master controller from auxiliary room controllers such as control keypads.

Features:

Audio volume control


HDMI, HDCP and DVI compliance


HDBaseT Certified - V2.0 support


Kramer reKlocking and Equalization Technology - rebuilds the digital signal to travel longer distances


Advanced EDID management per input


Active source & acceptor detection
