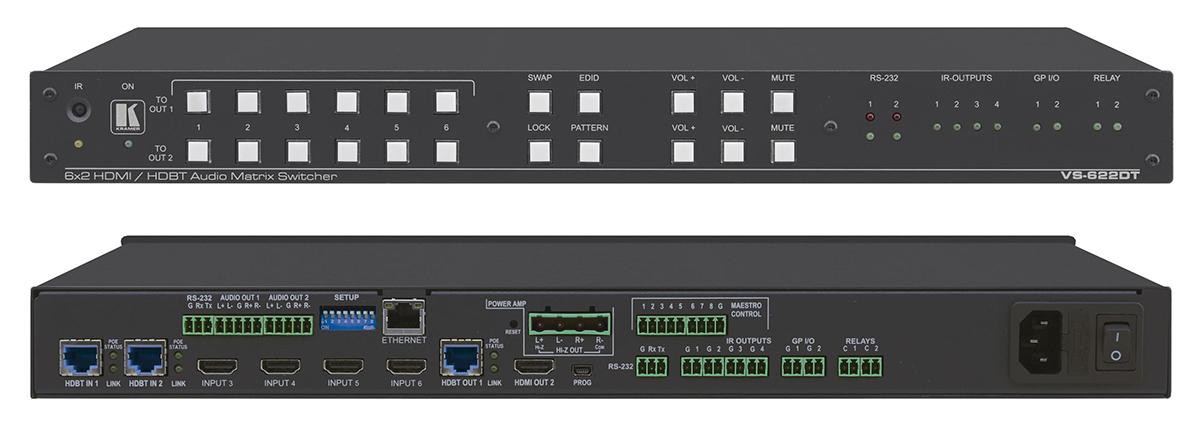

Kramer VS-622DT All-in-One Presentation System

VS-622DT is an all-in-one 4K@60 Hz (4:2:0) presentation system with 6 x 2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60 Hz (4:2:0) and WUXGA.

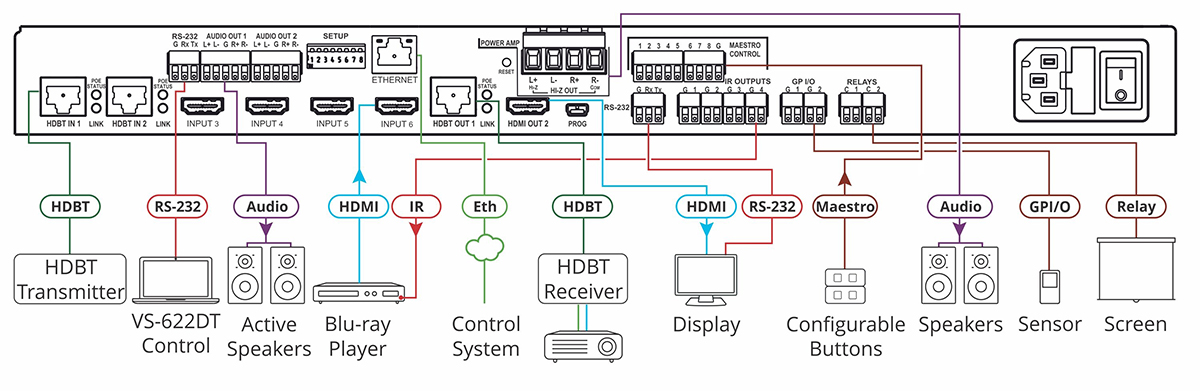

VS-622DT is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS-232, four IR, two GPI/O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.

Features:

• HDBaseT extension reach - Up to 100 m at 4K @60 Hz (4:2:0), up to 130 m (430 ft) at full HD (1080p @60 Hz 36 bpp), up to 180 m (590 ft) at ultra - mode and full HD (1080p @60 Hz 24 bpp). For optimum range and performance, use recommended Kramer cables.

• Simple and powerful maestro room automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.


• Power amplifier - 1x 120 W @70 V/100 V & 2x 60 W @4/8 Ω with line level output, fast swapping between two de-embedded audio sources and individual gain for each source.


• Audio de-embedding (extracting) - The user selects the audio signals from 2 of the 6 inputs (2 HDBaseT + 4 HDMI) to be de-embedded. The de-embedded signals are output through the two balanced analog audio outputs. In addition, one of the de-embedded audio signals can be output to the power amplifier.


• HDBaseT data tunneling - Supports Ethernet tunneling, as well as bidirectional tunneling for RS - 232 and IR control.
