Excel GOP Boxes

Product Features Excel blanking plates to suit the Excel GOP boxes.

Pack of 10

25 Year System Warranty

Overview The Excel Grid Outlet Position (GOP) Box Plus has been developed from the successful original versions
This range is available in four versions from 2 Way to 12 Way
The range has been developed for fixing to the end of flexible conduit typically where outlets are presented in a grid layout with cable containment mounted within a raised floor system
The GOP Box then has a degree of flexibility to be positioned within the radius of the flexible conduit to suit the office layout. 25 mm and 32 mm "L" Brackets are available to fix the other end of the flexible conduit to the floor slab
GOP Boxes are typically then attached to the underside of the desk, the flexible conduit passing through the floor tile via a grommet.

These Plus versions are enhanced with cable tie saddles adjacent to the conduit fixing point to accept either nylon of hook & loop ties
This permits the cable to be secured if required
Additionally the GOP box has a hole at each end of the upper case to accept self-tap screws for fixing to adaptor plates or bespoke brackets
Supplied with the GOP Boxes are black rubber blanks for the un-used 6c apertures
The 2 way is supplied with 1 blank, the 4 way is supplied with 2 blanks, the 6 way with 4 blanks and the 12 way with 12 blanks
The blanks are also available separately.

The flexible conduit fixing hole is slotted to aid cable installation
As the flexible conduit hole is part of the jack mounting metal work it ensures easy termination of the outlet while maintaining the cable management
The base has two fixing holes for mounting where required
The two parts of the box are assembled with a single machine screw.

GOP Boxes and "L" Brackets are sold in packs of 10 to reduce packaging waste
The flexible conduit is sold separately.

Product Features The Excel 12 Port low profile unloaded 6c consolidation point box in grey is perfect for being used in floor and ceiling voids

This unit allows for dynamic installations where routing of cables can be adapted and re-routed as and when needed.

The unit is designed with ergonomics in mind

The unit has the outlets seperated into 3 sets of 4 with each set placed on a different angle to allow for routing in different directions but with bend radius at a minimum.

2 x 32mm Diameter Conduit opening

For use in floor and ceiling voids

Ergonomic design

25 Year system warranty

Overview The Excel Grid Outlet Position (GOP) Box Plus has been developed from the successful original versions
This range is available in four versions from 2 Way to 12 Way
The range has been developed for fixing to the end of flexible conduit typically where outlets are presented in a grid layout with cable containment mounted within a raised floor system
The GOP Box then has a degree of flexibility to be positioned within the radius of the flexible conduit to suit the office layout. 25 mm and 32 mm "L" Brackets are available to fix the other end of the flexible conduit to the floor slab
GOP Boxes are typically then attached to the underside of the desk, the flexible conduit passing through the floor tile via a grommet.

These Plus versions are enhanced with cable tie saddles adjacent to the conduit fixing point to accept either nylon of hook & loop ties
This permits the cable to be secured if required
Additionally the GOP box has a hole at each end of the upper case to accept self-tap screws for fixing to adaptor plates or bespoke brackets
Supplied with the GOP Boxes are black rubber blanks for the un-used 6c apertures
The 2 way is supplied with 1 blank, the 4 way is supplied with 2 blanks, the 6 way with 4 blanks and the 12 way with 12 blanks
The blanks are also available separately.

The flexible conduit fixing hole is slotted to aid cable installation
As the flexible conduit hole is part of the jack mounting metal work it ensures easy termination of the outlet while maintaining the cable management
The base has two fixing holes for mounting where required
The two parts of the box are assembled with a single machine screw.

GOP Boxes and "L" Brackets are sold in packs of 10 to reduce packaging waste
The flexible conduit is sold separately.

Overview The Excel Grid Outlet Position (GOP) Box Plus has been developed from the successful original versions
This range is available in four versions from 2 Way to 12 Way
The range has been developed for fixing to the end of flexible conduit typically where outlets are presented in a grid layout with cable containment mounted within a raised floor system
The GOP Box then has a degree of flexibility to be positioned within the radius of the flexible conduit to suit the office layout. 25 mm and 32 mm "L" Brackets are available to fix the other end of the flexible conduit to the floor slab
GOP Boxes are typically then attached to the underside of the desk, the flexible conduit passing through the floor tile via a grommet.

These Plus versions are enhanced with cable tie saddles adjacent to the conduit fixing point to accept either nylon of hook & loop ties
This permits the cable to be secured if required
Additionally the GOP box has a hole at each end of the upper case to accept self-tap screws for fixing to adaptor plates or bespoke brackets
Supplied with the GOP Boxes are black rubber blanks for the un-used 6c apertures
The 2 way is supplied with 1 blank, the 4 way is supplied with 2 blanks, the 6 way with 4 blanks and the 12 way with 12 blanks
The blanks are also available separately.

The flexible conduit fixing hole is slotted to aid cable installation
As the flexible conduit hole is part of the jack mounting metal work it ensures easy termination of the outlet while maintaining the cable management
The base has two fixing holes for mounting where required
The two parts of the box are assembled with a single machine screw.

GOP Boxes and "L" Brackets are sold in packs of 10 to reduce packaging waste
The flexible conduit is sold separately.

Overview The Excel Grid Outlet Position (GOP) Box Plus has been developed from the successful original versions
This range is available in four versions from 2 Way to 12 Way
The range has been developed for fixing to the end of flexible conduit typically where outlets are presented in a grid layout with cable containment mounted within a raised floor system
The GOP Box then has a degree of flexibility to be positioned within the radius of the flexible conduit to suit the office layout. 25 mm and 32 mm "L" Brackets are available to fix the other end of the flexible conduit to the floor slab
GOP Boxes are typically then attached to the underside of the desk, the flexible conduit passing through the floor tile via a grommet.

These Plus versions are enhanced with cable tie saddles adjacent to the conduit fixing point to accept either nylon of hook & loop ties
This permits the cable to be secured if required
Additionally the GOP box has a hole at each end of the upper case to accept self-tap screws for fixing to adaptor plates or bespoke brackets
Supplied with the GOP Boxes are black rubber blanks for the un-used 6c apertures
The 2 way is supplied with 1 blank, the 4 way is supplied with 2 blanks, the 6 way with 4 blanks and the 12 way with 12 blanks
The blanks are also available separately.

The flexible conduit fixing hole is slotted to aid cable installation
As the flexible conduit hole is part of the jack mounting metal work it ensures easy termination of the outlet while maintaining the cable management
The base has two fixing holes for mounting where required
The two parts of the box are assembled with a single machine screw.

GOP Boxes and "L" Brackets are sold in packs of 10 to reduce packaging waste
The flexible conduit is sold separately.

Overview The Excel Grid Outlet Position (GOP) Box Plus has been developed from the successful original versions
This range is available in four versions from 2 Way to 12 Way
The range has been developed for fixing to the end of flexible conduit typically where outlets are presented in a grid layout with cable containment mounted within a raised floor system
The GOP Box then has a degree of flexibility to be positioned within the radius of the flexible conduit to suit the office layout. 25 mm and 32 mm "L" Brackets are available to fix the other end of the flexible conduit to the floor slab
GOP Boxes are typically then attached to the underside of the desk, the flexible conduit passing through the floor tile via a grommet.

These Plus versions are enhanced with cable tie saddles adjacent to the conduit fixing point to accept either nylon of hook & loop ties
This permits the cable to be secured if required
Additionally the GOP box has a hole at each end of the upper case to accept self-tap screws for fixing to adaptor plates or bespoke brackets
Supplied with the GOP Boxes are black rubber blanks for the un-used 6c apertures
The 2 way is supplied with 1 blank, the 4 way is supplied with 2 blanks, the 6 way with 4 blanks and the 12 way with 12 blanks
The blanks are also available separately.

The flexible conduit fixing hole is slotted to aid cable installation
As the flexible conduit hole is part of the jack mounting metal work it ensures easy termination of the outlet while maintaining the cable management
The base has two fixing holes for mounting where required
The two parts of the box are assembled with a single machine screw.

GOP Boxes and "L" Brackets are sold in packs of 10 to reduce packaging waste
The flexible conduit is sold separately.

The Excel 4 Way Enhanced Plastic GOP Box ZP4WEPGB10 provides a durable and installer-friendly cable management solution for raised floor environments, office workspaces, and flexible conduit systems. Manufactured from at least 80% recycled material, this lightweight yet robust GOP box features a clip-shut design, integrated labelling window, and support for both 25 mm and 32 mm conduit installations, making it ideal for structured cabling and workspace connectivity projects.

Key Features of Excel ZP4WEPGB10 Clip-shut design with no screws required
Integrated ID window for easy labelling
Knockout LJ6C blanks for unused insert positions
Slotted and plain fixing holes for simple installation
Manufactured from 80% recycled material
IK06 impact resistance rating
Designed for Fast Installation The enhanced clip-shut construction eliminates the need for screws, reducing installation time while providing secure closure. Slotted and plain fixing holes offer greater flexibility when mounting the box beneath desks, raised floors, or workstation furniture.

Optimised for Raised Floor Systems Designed specifically for use at the end of flexible conduit runs, this 4-way GOP box is ideal for grid-layout outlet installations. The generous underside radius helps improve cable clearance through desktop cable access holes, supporting flexible office layouts and efficient cable routing.

Supports Multiple Conduit Sizes The 4-way configuration accepts both 25 mm and 32 mm conduit systems and includes a threaded adaptor for added installation versatility. This makes it suitable for a wide range of structured cabling and commercial infrastructure projects.

Improved Identification and Cable Management An integrated ID window allows clear circuit or outlet labelling, helping installers and facilities teams quickly identify connections. Knockout LJ6C blanks provide a neat finish where insert positions are not required.

Durable and Sustainable Construction Manufactured using at least 80% recycled plastic, the GOP box combines environmental responsibility with dependable performance. Its IK06 impact rating ensures durability in demanding office and commercial environments while maintaining a lightweight design for easier handling.

Ideal for Modern Workspace Connectivity Whether deployed beneath desks, within raised access floors, or as part of flexible office infrastructure, the Excel Enhanced Plastic GOP Box delivers a practical, robust, and professional cable management solution that supports evolving workplace requirements.

The Excel 6 Way Enhanced Plastic GOP Box ZP6WEPGB10 is a robust and sustainable cable management solution designed for raised floor systems, workstation connectivity, and structured cabling installations. Featuring a redesigned lightweight construction made from 80% recycled material, this 6-way GOP box supports 32 mm conduit systems and provides fast installation, improved durability, and efficient cable organisation for modern commercial environments.

Key Features of Excel ZP6WEPGB10 Clip-shut design with no screws required
Integrated ID window for easy labelling
Knockout LJ6C blanks for unused insert positions
Slotted and plain fixing holes for simple installation
Manufactured from 80% recycled material
IK06 impact resistance rating
Purpose-Built for Raised Floor Applications Designed for use at the end of flexible conduit runs, the 6-way GOP box provides a practical outlet solution for raised access floor environments. Its configuration makes it ideal for supporting high-density workstation connectivity and structured cabling deployments.

Quick and Efficient Installation The clip-shut enclosure design eliminates the need for screws, reducing installation time and simplifying maintenance. Slotted and plain fixing holes offer greater flexibility when securing the box beneath desks or within workspace furniture.

Optimised for 32 mm Conduit Systems The 6-way version is specifically designed to accommodate 32 mm conduit, providing ample capacity for cable routing and distribution. This makes it well suited to larger cabling installations where multiple services need to be delivered to a single location.

Improved Cable Management and Identification An integrated ID window allows outlets and circuits to be clearly labelled for easier administration and maintenance. Knockout LJ6C blanks help maintain a professional appearance by covering unused insert positions.

Lightweight Yet Durable Construction Manufactured using recycled plastic, the enhanced design reduces weight while maintaining excellent structural integrity. The IK06 impact rating provides reliable protection against everyday knocks and impacts commonly encountered in commercial environments.

Flexible Workspace Deployment The generous underside radius improves cable clearance through desktop access holes and supports flexible positioning beneath desks. This allows installers to adapt cable routing layouts to suit changing office configurations and workspace requirements.

Sustainable Office Infrastructure Solution By incorporating at least 80% recycled material, the Excel Enhanced Plastic GOP Box supports environmentally conscious infrastructure projects while delivering the durability, reliability, and installation efficiency demanded by modern workplace environments.

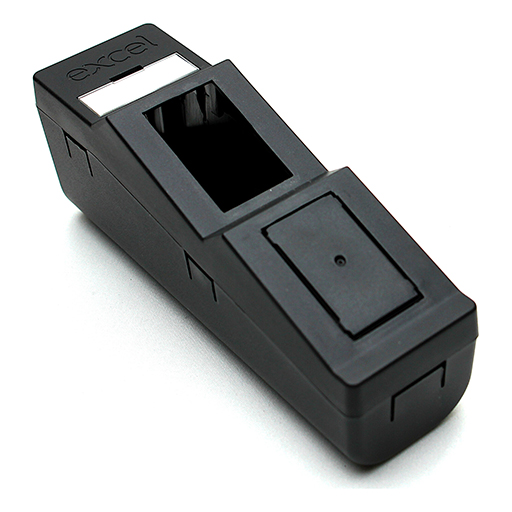

The Excel ZP2WEPNGB10 Enhanced Plastic Narrow GOP Box is a compact, installer-friendly cable management solution designed for structured cabling in office and raised floor environments. Built for 25 mm conduit systems, this 2-way configuration delivers a lightweight yet durable housing made from 80% recycled material, supporting efficient workstation connectivity and modern workspace layouts.

Key Features of Excel ZP2WEPNGB10 Clip-shut design with no screws required
Integrated ID window for easy labelling
Knockout LJ6C blanks for unused insert positions
Slotted and plain fixing holes for simple installation
Manufactured from 80% recycled material
IK06 impact resistance rating
Compact Narrow Design for 25 mm Conduit Designed specifically for 25 mm conduit applications, the narrow 2-way format provides a space-efficient outlet solution while maintaining structural integrity and ease of installation in confined areas.

Fast and Tool-Light Installation The clip-shut enclosure eliminates the need for screws, allowing for quicker deployment and simplified access during installation or maintenance. Slotted and plain fixing holes further improve mounting flexibility.

Flexible Structured Cabling Integration Ideal for grid-layout and raised floor systems, the box supports flexible conduit routing from floor tiles through to desk-mounted or under-desk termination points, adapting easily to changing workspace layouts.

Clear Identification and Neat Finish An integrated ID window supports clear labelling of outlets for improved network organisation. Knockout LJ6C blanks ensure unused ports remain neatly covered for a clean professional finish.

Durable Recycled Construction Manufactured from at least 80% recycled plastic, the enclosure balances sustainability with durability. The IK06 rating ensures resistance to everyday impact in busy office environments.

Optimised for Modern Office Deployments The lightweight yet robust design makes it suitable for contemporary workspace infrastructure where adaptability, quick installation, and clean cable management are essential.
