Excel Cable Management & Blanking Panels

Product Features The Excel Vertical Cable Management rings have been introduced to complement the Patch Rack System however they can be installed in all cabinets to assist in the management of patch cables.

Manufactured from high quality ABS plastic, the larger rings have the capacity to manage over 100 patch leads

They come complete with cage nuts and screws to mount them to the side of the 19" profiles of the Excel Environ cabinets or the Patch Rack.

83mm Cable Ring

Supplied with mounting hardware

2 sizes available

Manage over 100 patch leads

ABS plastic

25 Year system warranty

Product Features The Excel Vertical Cable Management rings have been introduced to complement the Patch Rack System however they can be installed in all cabinets to assist in the management of patch cables.

Manufactured from high quality ABS plastic, the larger rings have the capacity to manage over 100 patch leads

They come complete with cage nuts and screws to mount them to the side of the 19" profiles of the Excel Environ cabinets or the Patch Rack.

144mm Cable Ring

Supplied with mounting hardware

2 sizes available

Manage over 100 patch leads

ABS plastic

25 Year system warranty

Product Features A range of cable management bars designed to fit in standard 19" racks and cabinets.

Management of patch leads

Available in 1U

Cage nut set included

Black metal bar with plastic rings

65mm cable rings

Product Features Excel cable management rings for use in conjunction with the Excel V panel to ensure the cables can be managed out to edge of a data rack without the need to use a 19" management panel and save on U space.

Plastic construction

Sold in pairs

77mm cable rings

Attached with the same bolt as the 100-040 uses

Product Features A range of cable management bars designed to fit in standard 19" racks and cabinets.

Management of patch leads

Also available in 2U

Cage nut set included

Black metal bar and rings

65mm cable rings

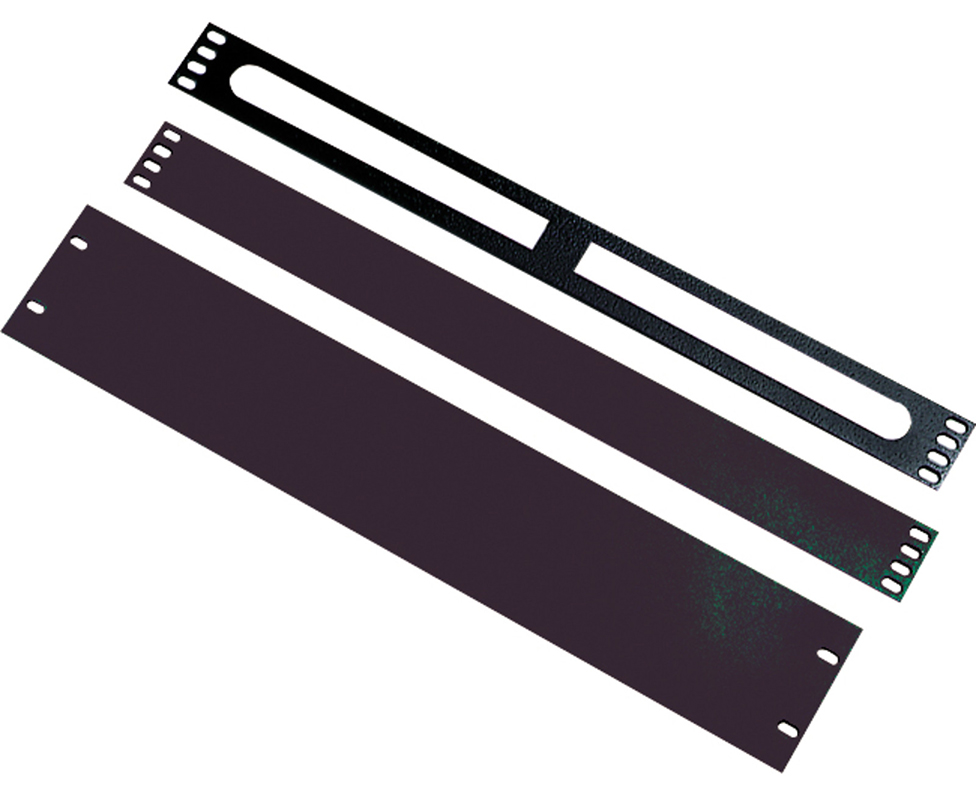

Product Features To improve cabinet appearance Blank Plates can be installed to cover unused space

Letterbox Panels allow patch cords to be fed to or from the rear of the cabinet.

The Excel Letterbox Panels to allow patch cords to be fed to or from the rear of the cabinet.

Enhances cabinet appearance

Split panel design

2 x185mm openings

25 Year system warranty

Product Features A range of cable management bars designed to fit in standard 19" racks and cabinets.

Management of patch leads

Available in 1U

Cage nut set included

Black metal bar and rings

100mm cable rings

Product Features To improve cabinet appearance Blank Plates can be installed to cover unused space

Letterbox Panels allow patch cords to be fed to or from the rear of the cabinet.

The Excel 1U Horizontal style brush strip creates a cable pathway and protection against dust ingress

Rack and Cabinet air flow efficiency and effectiveness can be greatly increased by channelling it directly where you need it.

Brush protected cable entry

Wide cable slot to allow spacing of cable

Compatible with all Environ racks

25 Year system warranty

Product Features To improve cabinet appearance Blank Plates can be installed to cover unused space

Letterbox Panels allow patch cords to be fed to or from the rear of the cabinet.

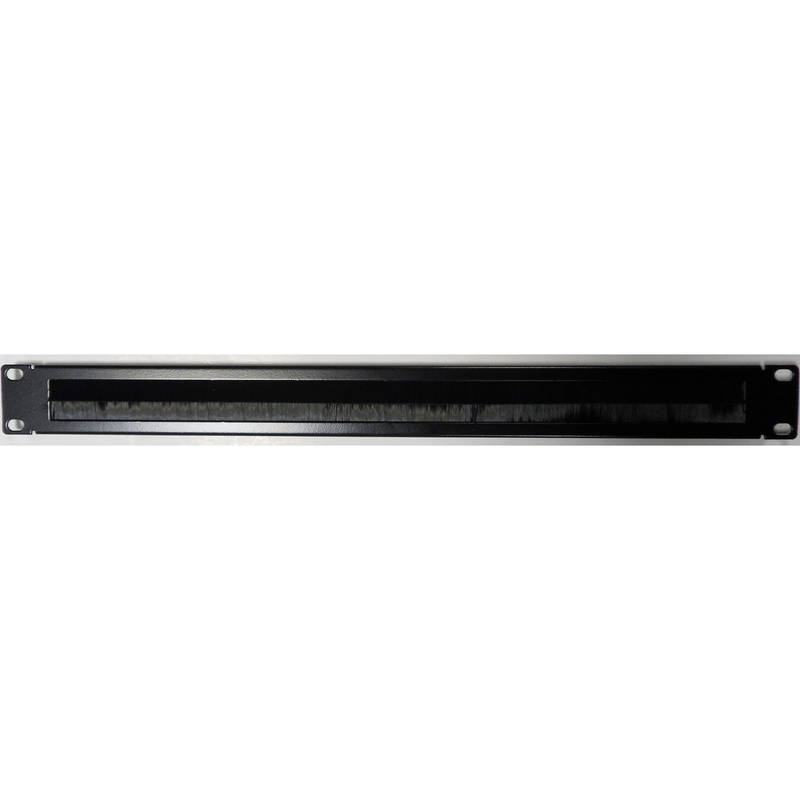

The Excel 1U Horizontal split letterbox-style brush strip, creates a cable pathway and protection against dust ingress

Rack and Cabinet air flow efficiency and effectiveness can be greatly increased by channelling it directly where you need it.

Split brushes top to bottom

50/50 brush split top and bottom

Enhances appearance

25 Year system warranty

Product Features Management of patch leads

Available in 0.5U/1U

Cage nut set included

Chrome metal bar and rings

90mm cable rings

Product Features Management of patch leads

Available in 0.5U/1U

Cage nut set included

Chrome metal bar and rings

90mm cable rings

Product Features Environ Cable/Patch Lead Management Ring designed to easily fix to the 19" profiles of the Environ range of cabinets (and others)

Large size to accommodate many cables and patch leads

Several mounting options to suit cabinet configuration, with fixings included.

Large size to accommodate many cables (95mm x 200mm)

Fits the Excel Environ range of cabinets

Fixes to 19" profiles

All steel construction

Nickel Plated

Fixings included

A range of strong Steel 19" Blanking Plates suitable for all 19" racks and frames which utilise profiles with square cage nut holes.

Promotes air flow characteristics of the rack. Fitting is simple and does not require any tools. Fixings are plastic rivets which fit the square profile holes and can be reused & moved many times.

Features and Benefits

Standard 19-inch profile fitting
Available in 1U/2U/3U
Steel construction
25 year System Warranty
Product specifications for this product can be found in the Documentation tab

A range of strong Steel 19" Blanking Plates suitable for all 19" racks and frames which utilise profiles with square cage nut holes. Promotes air flow characteristics of the rack. Available from stock in heights of 1U, 2U and 3U. Fitting is simple and made by using standard cage nuts

Features and Benefits

Standard 19-inch profile fitting
Available in 1U/2U/3U
Steel construction
Product specifications for this product can be found in the Documentation tab
