DrayTek WiFi 6 Routers

The Ideal SoHo VPN Router for Full Fibre Connections


The DrayTek Vigor 2135ax Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

The Vigor 2135ax is an Ethernet WAN router with Gigabit performance, allowing you to make full use of DrayTek's advanced feature set, with Quality of Service, VPN and Content Filtering. Connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Either connection, or a 4G USB modem can be used as the primary or Failover connections, so that if the main Internet connection goes down, the Vigor 2135ax can use its backup connections to guarantee reliable Internet access and VPN connectivity.

The 2135ax adds 802.11ax wireless, providing fast wireless coverage to your network's computers and devices.

The inclusion of Wi-Fi 6 technology in the Vigor 2135ax model provides a reliable, highly integrated and reliable connectivity solution for SoHo networks.


Gigabit Ethernet WAN for Fibre Broadband

Make full use of Fibre Broadband with the Vigor 2135ax's Gigabit WAN. Ideal performance for Home and Small Office applications, where Firewall, Content Filtering and Quality of Service can be managed. High-Performance VPN Router for SMB

Securely connect remote sites at high speed, up to 2 VPN tunnels. Connect remote workers to network resources and secure connectivity, with DrayTek SSL VPN and OpenVPN support.   Wi-Fi 6 - AX3000 Performance

Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering. Feature Packed Router

Take advantage of DrayTek's rich feature set and useful functionality such as Route Policy, Quality of Service, Firewall, VPN Matcher, DrayDDNS and more.   Quality of Service with App QoS

Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues. Hardware NAT & Routing with Hardware QoS

The accelerator supports up to 4k NAT and routing connections. With acceleration enabled, Vigor2135's firewall performance can reach 940Mbps, while still meeting high expectation of QoS quality. Easily prioritize critical apps, and always keep VoIP in 1st priority.


DrayTek VigorSwitch G2540xs Diagram




Key Specifications

Gigabit Ethernet WAN Router with Failover
Up to 940Mbps Firewall Throughput for Ethernet WAN
4 Gigabit LAN Ports
AX3000 - 11ax Dual Band Wireless
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Up to 150Mbps IPsec VPN Throughput
2 LAN-to-LAN or Remote Teleworker VPN Tunnels
DrayTek SSL VPN and OpenVPN support
Optional VigorCare Available
Can be centrally Managed by VigorACS

The Ideal SoHo Wi-Fi 6 & VPN Router for G.Fast, VDSL and Gigabit Fibre

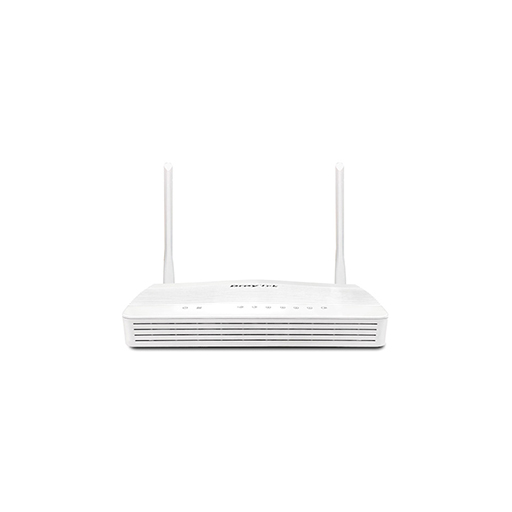

The Vigor 2766ax is DrayTek’s G.Fast / VDSL and Ethernet router that is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service, and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wi-Fi 6 features, the Vigor 2766ax routers provide a reliable, highly integrated and reliable network solution for SoHo environments.


G.Fast, VDSL and Ethernet Router

Connect the Vigor 2766 to Ultrafast G.Fast or Superfast VDSL2+ FTTC with the integrated DSL Modem, or connect to Virgin Media Cable and Ultrafast FTTP with the Ethernet WAN port Powerful SoHo VPN Router

Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 150Mbps IPsec performance, with SSL and OpenVPN support.   Wi-Fi 6 - AX3000 Performance

Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering. Hardware NAT & Routing with Hardware QoS

The accelerator supports up to 4k NAT and routing connections. With acceleration enabled, Vigor2766's firewall performance can reach 940Mbps, while still meeting high expectation of QoS quality. You may easily prioritize business critical apps, and always keep VoIP in 1st priority.   Packed With Features

Configure DrayTek's rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more. VigorACS Central Management

Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations.


DrayTek Vigor 2766 Series Diagram




Key Specifications

G.Fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL2+ and Ethernet Router with Failover
Up to 940Mbps Firewall Throughput for Ethernet WAN
4 Gigabit LAN Ports
AX3000 - 11ax Dual Band Wireless
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Up to 150Mbps IPsec VPN Throughput
2 Dial-Out LAN-to-LAN or Remote Teleworker VPN Tunnels
DrayTek SSL VPN and OpenVPN support
Optional VigorCare Available
Can be centrally Managed by VigorACS

DrayTek Vigor 2865ax VDSL Router Features

VDSL2 (Superfast Fibre)
and Gigabit Ethernet WAN Router

Multi-WAN Gigabit Performance Router
with Load-Balancing & Failover

Up to 950Mbps Firewall Throughput for Ethernet WAN

Up to 800Mbps VPN Throughput with IPsec acceleration

5+1 Gigabit RJ-45 LAN Ports

32 LAN-to-LAN & Remote Teleworker VPN Tunnels

16 DrayTek SSL VPN or OpenVPN Tunnels

AX3000 - Wi-Fi 6 Dual Band Wireless

8 LAN Subnets with VLANs (Port-based / 802.1q)

SPI Firewall and Content Filtering

Can be centrally Managed by VigorACS

Optional VigorCare Available



VDSL and Ethernet Load Balancer

The Vigor 2865ax is a VDSL and Ethernet WAN router featuring VPN, advanced routing features, firewall, content filtering, bandwidth management and more. Connect the Vigor 2865 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Featuring high throughput with Load Balancing and Failover connectivity, suitable for handling Fibre to the Premises (FTTP) and Gigabit Internet connections. Offering up to 950Mbps per-WAN of Hardware Accelerated throughput while retaining its full feature set.

With Wi-Fi 6 AX3000 wireless, it provides ultra fast and efficient wireless coverage, to your network's computers and devices. In addition, the router can connect to Wireless networks for Internet access, allowing it to make use of Mobile Hotspot wireless connections and nearby wireless networks, where for instance a neighbour's wireless network could provide an emergency backup connection.

Mesh Wireless

The Vigor 2865 'ax' wireless routers can be used as part of DrayTek's Mesh wireless system, allowing the router to work as the Mesh Root, providing Internet access and management of Mesh VigorAPs directly, all without installing network cabling.

VLANs are also bridged across Mesh wireless, so if you have multiple SSIDs or separate network segments, those can also work across Mesh with DrayTek's wireless routers and VigorAPs.

For cabled wireless networks, the router's Central AP Management greatly reduces installation time and provides an easy way to manage VigorAPs, including auto-provisioning, so new VigorAPs are configured by the router when they're plugged into the router's network.

Wi-Fi 6 - AX3000 Performance

The Vigor 2865ax features ultra-fast and highly efficient Wi-Fi 6, or 802.11ax. OFDMA allows the router to send to more than one device at a time, splitting up wireless frequency into blocks, assigning more to users that need more e.g. video data, less to users that need less e.g. VoIP calls, then sending all at once. Which ensures all users have less of a wait, greatly improving efficiency. It allows the router to effectively and responsively, serve more wireless clients.

Ideal VPN Router for SMB

A feature central to DrayTek routers is its VPN (Virtual Private Networking) capabilities. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office.

The Vigor 2865 is an ideal VPN router, with 300 Mbps standard IPsec VPN throughput and up to 50 concurrently active VPN tunnels.

IPsec Hardware Acceleration boosts performance, up to 800 Mbps for 16 VPN tunnels, allowing securely encrypted tunnels between sites to make full use of high speed Internet connections.

It supports all common industry standard VPN protocols, for it to connect to VPN services, link remote offices and handle connections from all types of VPN clients. Supporting IPsec IKEv1 & IKEv2 protocols with EAP and XAuth authentication, DrayTek's SSL VPN and L2TP for both LAN to LAN and Dial-In teleworker VPNs. In addition, teleworkers can connect to the router with OpenVPN.

User management for Dial-In Teleworkers is managed through the router's web interface, with mOTP 2-factor authentication available for IPsec, L2TP and SSL VPN Teleworker connections. Alternatively, authentication for Dial-In Teleworker connections can be forwarded to your Active Directory (LDAP) or RADIUS or TACACS+ server.

Connect VPNs from Behind NAT with DrayTek's VPN Matcher

A typical requirement for connecting a VPN tunnel between two points is that the VPN server must be directly accessible on the public Internet. Sometimes this can be achieved with NAT Port Forwarding if the router is located behind another router, but if the router is connected to 4G Mobile Broadband or is behind Carrier-Grade NAT (CG-NAT), connecting to that VPN server may be impossible.

DrayTek's new VPN Matcher service helps DrayTek routers behind NAT to allow Dial-In Teleworkers to connect, or connect two DrayTek VPN routers that are behind NAT and could not normally establish a VPN tunnel.

Connecting Remote Sites with LAN to LAN VPN

Supporting up to 32 concurrently active VPN tunnels, the Vigor 2865 series is ideal for connecting multiple sites or home offices together with fast and secure IPsec VPN tunnels.

Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices.

DrayTek SSL VPN for Dial-In Teleworkers & LAN to LAN

The Vigor 2865 supports up to 16 active DrayTek SSL VPN tunnel connections. These are encrypted tunnels linking your teleworkers or remote DrayTek Vigor routers back to your main office using SSL/TLS technology - the same encryption that you use for secure web sites such as your bank.

Teleworkers can easily create a secure SSL VPN tunnel to the DrayTek Vigor 2865 using the free DrayTek Smart VPN Client app. Available for Windows, macOS, Apple iOS (iPad, iPhone) and Android devices.

5+1 Gigabit LAN Ports with VLANs

The Vigor 2865 series provides up to 6 Gigabit LAN ports for wired links to Computers, Servers and Network Attached Storage.

With 5 dedicated LAN ports and one flexible LAN/WAN port, the Vigor 2865 can connect up to 6 devices directly with a single Ethernet WAN configuration, or 5 devices with a dual Ethernet WAN configuration.

With Multiple LAN subnets and VLANs, the Vigor 2865 can manage up to 8 separate networks. For instance, an internal network with a separate network for Guests to use, completely separate from the private network. Each network with its own Content Filtering, Firewall, Quality of Service and Route Policy applied.

The router has full support for 802.1Q VLAN tagging, so that these subnets can be passed to other devices that support VLAN tags, such as the DrayTek VigorSwitch G1080 8-port switch, for additional network ports.

The Wireless LAN also links to these VLANs, making the same Guest & Private networks possible simply using different wireless SSIDs. Or connect up a DrayTek VigorAP wireless access point, such as the VigorAP 903 to do the same, spanning the router's own wireless and any connected wireless APs.

Designed for Central Management

The Vigor 2865 series (along with most other DrayTek routers, Access points and switches) can be centrally managed by our VigorACS central management platform.

This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs managing customers' devices or any user who wants to know what's going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues.

Robust & Comprehensive IPv4 / IPv6 Firewall

Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems.

The DrayTek object-based firewall enables you to create combinations of Firewall rules and Content Filtering to suit a home or small office environment, applying Content Filtering to the whole network, only specified devices or just the network that guests can connect to.

The Vigor 2865 supports both IPv4 and IPv6 with Dual-Stack IPv4/IPv6. Advanced networking features, such as the object-based Firewall, Quality of Service, Content Filtering and VLANs support both IPv4 and IPv6 networks.

Web Content Filtering with DNS Filter

The content control features of the Vigor 2865 allow you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules.

Content filtering can also block sites using HTTPS/SSL where URLs are encrypted (and normal routers cannot block).

Using the GlobalView service, you can block whole categories of web sites (e.g. gambling, adult sites etc.), subject to an annual subscription, which is continuously updated with new or changed site categorisations or sites which have become compromised (such as infected with Malware). A free 30-day trial is included with your new router.

High Availability - Hardware Failover

For even greater resilience, the Vigor 2865 series provides High Availability (HA), with both a primary and secondary router able to provide connectivity to your network and subnets.

In the event of the primary unit failing, the secondary unit will take its place on the network, automatically switching over to resume Internet, routing and VPN connectivity with no intervention required. This can remove the possibility of a single point of failure within your routers.

With Config Sync, the two routers are managed as a single unit, so that any changes made to the primary router will automatically propagate to the secondary router, ensuring it's ready to take over at any time.

DrayDDNS - DrayTek Dynamic DNS Address

DrayTek provides a free Dynamic DNS address to each Vigor 2865 router, allowing you to link the router's current IP address to a memorable "drayddns.com" hostname, such as "myrouter.drayddns.com".

This address automatically updates whenever the Internet connection's IP changes, so if one WAN's IP address allocation is dynamic, or the IP changes when switching from the primary WAN connection to a backup, you can easily locate and access your Vigor 2865 router. Just use the hostname to access the router's VPN services, management and any other services you have made accessible through the router.

The Vigor 2865 can also authenticate your DrayDDNS hostname with free SSL/TLS certificates provided by LetsEncrypt, the router manages and automates the certificate process. Keeping the certificate up to date and ready for use with SSL VPN and other services.

Manage Guest WiFi with Hotspot Web Portal

DrayTek routers make it easy to manage Guest Wireless with Hotspot Web Portal. The fully customisable captive portal can apply to both the router's wireless networks and LAN interfaces, for use with wireless access points.

Authentication can be handled by Google/Facebook or an external web Portal service such as Purple WiFi with RADIUS.

Upon connecting to the wireless network, users are presented with your company's branding and information. From there, depending on what you've set, they can simply click-through, provide their details or enter a PIN with Voucher generated by the router.

Once connected, the router can allow access until a user reaches their quota limit of time connected or bandwidth used.

Quality of Service & Bandwidth Control

Prioritise latency-sensitive applications on your network with Quality of Service.

App QoS simplifies setting up Quality of Service significantly, simply select which applications or services to prioritise, such as Zoom and Skype.

Use 4 separate queues to give priority to servers & PCs (IP address), services such as VoIP or DNS, or packet tagging used by IP phones with 802.1p and DSCP support

Auto Voice VLAN allows the router to automatically prioritise VoIP calls as they pass through the router without additional configuration.

Control throughput with Bandwidth Limit, by setting speed limits for all clients individually, groups of IPs, or a shared bandwidth limit for a whole subnet, such as a Guest network.

Central AP & Switch Management

The Vigor 2865 manages DrayTek VigorAP access points and VigorSwitch switches connected locally to the router. This enables you to centrally control, manage and administer multiple AP & Switch devices installed around your building/campus from just the one router.

G.Fast VPN Router for Small Business and Remote Working


The Vigor 2866 series is DrayTek’s G.Fast / VDSL and Ethernet Multi-WAN Firewall VPN router. Ideally suited to connect directly to Ultrafast G.Fast broadband and Superfast VDSL. Providing advanced Firewall and Content Filtering, Quality of Service and VPN with Gigabit throughput.

Options for Wi-Fi 6 on ‘ax’ models, or Wi-Fi 5 ‘ac’ models provide fast & efficient wireless connectivity, while the integrated 4G+ LTE modem on ‘Lac’ models takes full advantage of mobile broadband. The Vigor 2866 series provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.


G.Fast and Ethernet Load Balancer

Connect the Vigor 2866 to Ultrafast G.fast and Superfast VDSL2 FTTC with integrated DSL modem. Load Balance with Ethernet WAN and more for greater resiliency and higher throughput. Robust SMB VPN Router

Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support.   Wi-Fi 6 - AX3000 Performance

Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering. 5+1 Gigabit LAN Ports with VLANs

Link Server, Computers, and Network Attached Storage directly, with up to 6 Gigabit LAN ports. VLANs allow for as many as 8 separate networks, with options for Hotspot Captive Portal.   Packed With Features

Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, VPN Matcher, DrayDDNS and more. VigorACS SD-WAN Central Management

Manage the Vigor 2866 remotely and utilise DrayTek’s powerful SD-WAN features with the VigorACS 3 management platform. Centrally manage & provision whole networks across multiple sites.


Vigor V2866AX-K Router Diagram




Key Specifications

G.fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL and Ethernet Router
Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
Up to 950Mbps Firewall Throughput for Ethernet WAN
5+1 Gigabit RJ-45 LAN Ports
Up to 800Mbps VPN Throughput with IPsec acceleration
32 LAN-to-LAN & Remote Teleworker VPN Tunnels
16 DrayTek SSL VPN or OpenVPN Tunnels
AX3000 – Wi-Fi 6 Dual Band Wireless
8 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Optional VigorCare Available
Can be centrally Managed by VigorACS

Overview The DrayTek Vigor 2927ax - Dual-WAN Load Balancing Firewall VPN Router allows you to make the most of FTTP Fibre Broadband with Gigabit WAN throughput, extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.

The Vigor 2927ax features Wi-Fi 6 wireless, providing fast and efficient AX3000 wireless networking to your computers and devices. OFDMA enables the router to send data to more than one client at a time.

The Vigor 2927ax provides a reliable, flexible, and secure network solution, that’s ideal for Small Business and Home Offices. Product Features Gigabit Dual-WAN Load Balancer Unleash the full potential of Fibre broadband. High speed, Gigabit CPE with flexible application. Make full use of Fibre Broadband with the Vigor 2927ax’s Gigabit throughput per-WAN. Up to 1.8Gbps total combined throughput with Firewall, Content Filtering and Quality of Service.

Ideal VPN Router for SMB Provide secure, encrypted network access for remote workers. Provide fast and secure VPN access, with up to 50 VPN tunnels. Enabling remote workers to access network resources and connecting remote sites. With DrayTek SSL VPN and OpenVPN support.

Wi-Fi 6 - AX3000 Performance Improve wireless performance. Built with the latest technologies. Make full use of Fibre Broadband with the Vigor 2927ax’s Gigabit throughput per-WAN. Up to 1.8Gbps total combined throughput with Firewall, Content Filtering and Quality of Service.

5+1 Gigabit LAN Ports with VLANs Improve quality of service for private, office and guest data traffic. Attach Computers, Servers and Network Attached Storage directly, with up to 6 Gigabit LAN ports. Use VLANs to supply Broadband & VPN connectivity to as many as 8 separate networks.

Quality of Service with App QoS Ensures the best quality and overall performance from your Internet connections. Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.

VigorACS SD-WAN Central Management Save time and money. Provision, manage and monitor remote sites easily, without on-site IT or dedicated staff. Manage the Vigor 2927 remotely and utilise DrayTek’s powerful SD-WAN features with the VigorACS 3 management platform. Centrally manage & provision whole networks across multiple sites.
