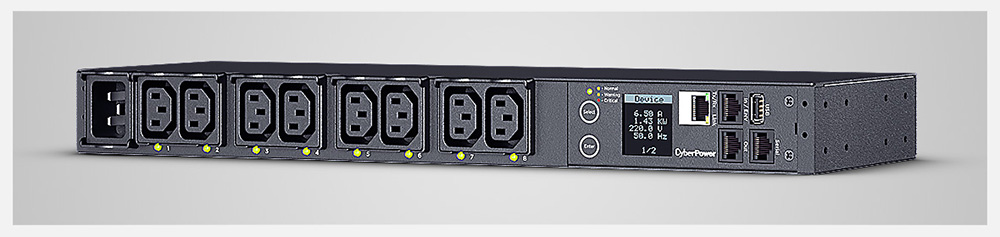

20A 1U 8x IEC-320 ATS Switched PDU
CyberPower Logo

CyberPower PDU81005 is a network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD's colors to easily categorize devices.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Specifications

Type Voltage (Vac) Rated Current (A) Outlet Type Installed Rack Height (U) Switched Metered-by-Outlet 100 ~ 240 16 IEC C13 x 8 1 Main Features

Real-time Local/Remote Monitoring and Switching

Controllable Receptacles with Power Sequencing

  Work Under High Temperature

Ultra Low Power Consumption

  Real-time Local/Remote Monitoring and Switching

Work under High Temperature

±1% Measurement Accuracy

Digital Real-time Load Display

Hot-swappable LCD Design

LED Status Indicator

Support ENVIROSENSOR

PowerPanel Management Software

Cord Retention Tray

Controllable Receptacles with Power Sequencing

Ultra Low Power Consumption

Industrial-grade Metal Housing

User Configurable Color LCD

Rotatable LCD for Proper Display Orientation

Firmware Upgrade via USB

User-upgradeable Firmware

Adjustable Mounting Brackets

IEC Receptacle Locking

  Box Contents

1. PDU81005

2. User's Manual

3. Cord Retention Tray

4. Mounting Brackets

  5. Cable Ties

6. Screw Kit

7. Power Cord

8. Serial Cable

  * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

Express View Logo
In Stock: Next Day
£437.76
£525.31 Inc Vat
Add To Cart
