These FC - FC cable assemblies are constructed from high quality FC connectors and 9/125 (OS2) grade Cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
Length: |
These FC - LC Fibre Optic cable assemblies are constructed from high quality FC/LC connectors and 9/125 (OS2) grade Cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
Length: |
These FC - SC Fibre cable assemblies are constructed from high quality FC/SC connectors and 9/125 (OS2) grade Cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
Length: |
These FC - ST cable assemblies are constructed from high quality FC/ST connectors and 9/125 (OS2) grade Cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
Length: |
Our Multimode LC - LC Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath and come in a choice of 62.5/125 (OM1), 50/125 (OM2), Enhanced 50/125 (OM3) and 50/125 (OM4) grade cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
LC Fibre Optic Patch Lead Connector
Features:
Available in OM1, OM2, OM3 and OM4 Multimode in a variety of lengths
LC-LC Connectors
Low smoke zero halogen (LSZH) jacket
Test Certificate Included
100% Optically Tested
Duplex Connectors
Note: Due to a low demand, OM2 Leads are now at a higher price than OM3 leads.
OM3 leads are backwards compatible with OM2 leads and will fulfil the same requirements.
Length: | |
Fibre Size: |
These Singlemode 9/125 OS2 LC - LC Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath.
Each cable is individually tested, bagged, labelled and supplied with a test report.
LC Fibre Optic Patch Lead Connector
Features:
OS1/OS2 Singlemode 9/125
LC-LC Connectors
Low smoke zero halogen (LSZH) jacket in yellow
900µm tight buffer
Test Certificate Included
100% Optically Tested
Duplex Connectors
Length: |

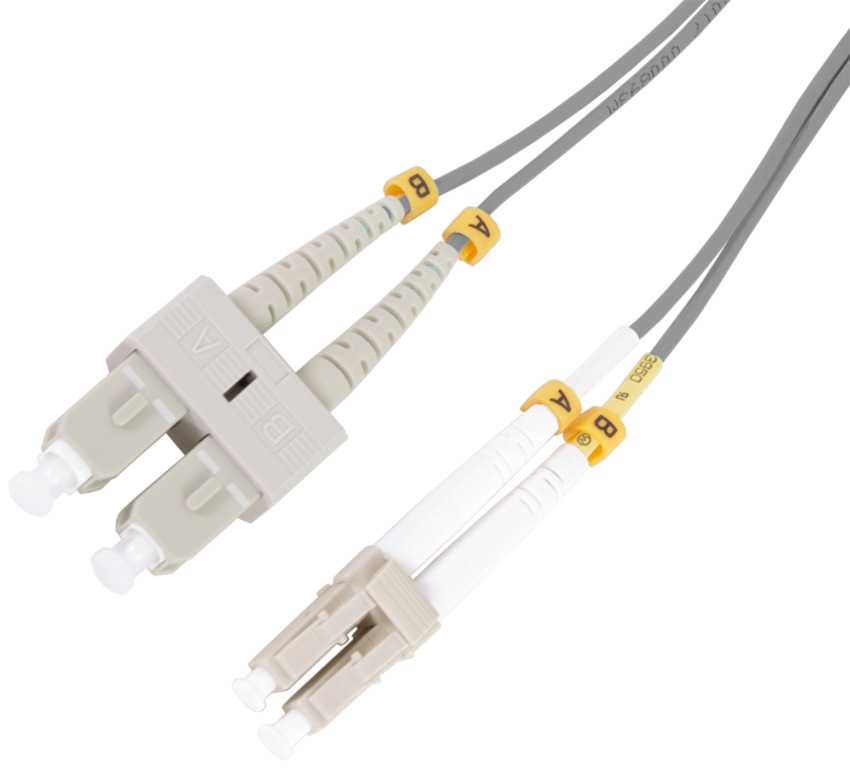

Our Multimode LC - SC Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath and come in a choice of 62.5/125 (OM1), 50/125 (OM2), Enhanced 50/125 (OM3) and 50/125 (OM4) grade cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
LC Fibre Optic Patch Lead Connector
SC Fibre Optic Patch Lead Connector
Features:
Available in OM1, OM2, OM3 and OM4 Multimode in a variety of lengths
LC-SC Connectors
Low smoke zero halogen (LSZH) jacket
Test Certificate Included
100% Optically Tested
Duplex Connectors
Note: Due to a low demand, OM2 Leads are now at a higher price than OM3 leads.
OM3 leads are backwards compatible with OM2 leads and will fulfil the same requirements.
Length: | |
Fibre Size: |

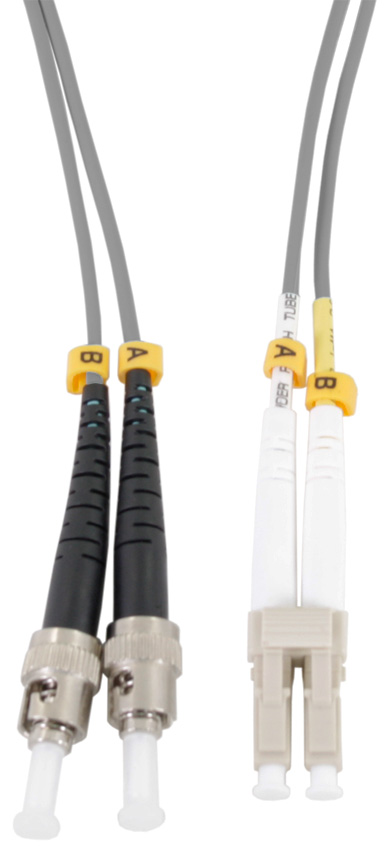

Our Multimode LC - ST Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath and come in a choice of 62.5/125 (OM1), 50/125 (OM2), Enhanced 50/125 (OM3) and 50/125 (OM4) grade cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
LC Fibre Optic Patch Lead Connector
ST Fibre Optic Patch Lead Connector
Features:
Available in OM1, OM2, OM3 and OM4 Multimode in a variety of lengths
LC-ST Connectors
Low smoke zero halogen (LSZH) jacket
Test Certificate Included
100% Optically Tested
Duplex Connectors
Note: Due to a low demand, OM2 Leads are now at a higher price than OM3 leads.
OM3 leads are backwards compatible with OM2 leads and will fulfil the same requirements.
Length: | |
Fibre Size: |
These Singlemode 9/125 OS2 LC - ST Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath.
Each cable is individually tested, bagged, labelled and supplied with a test report.
LC Fibre Optic Patch Lead Connector
ST Fibre Optic Patch Lead Connector
Features:
OS1/OS2 Singlemode 9/125
LC-ST Connectors
Low smoke zero halogen (LSZH) jacket in yellow colour
900µm tight buffer
Test Certificate Included
100% Optically Tested
Duplex Connectors
Length: |
These Singlemode 9/125 OS2 LC - SC Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath.
Each cable is individually tested, bagged, labelled and supplied with a test report.
LC Fibre Optic Patch Lead Connector
SC Fibre Optic Patch Lead Connector
Features:
OS1/OS2 Singlemode 9/125
LC-SC Connectors
Low smoke zero halogen (LSZH) jacket in yellow colour
900µm tight buffer
Test Certificate Included
100% Optically Tested
Duplex Connectors
Length: |

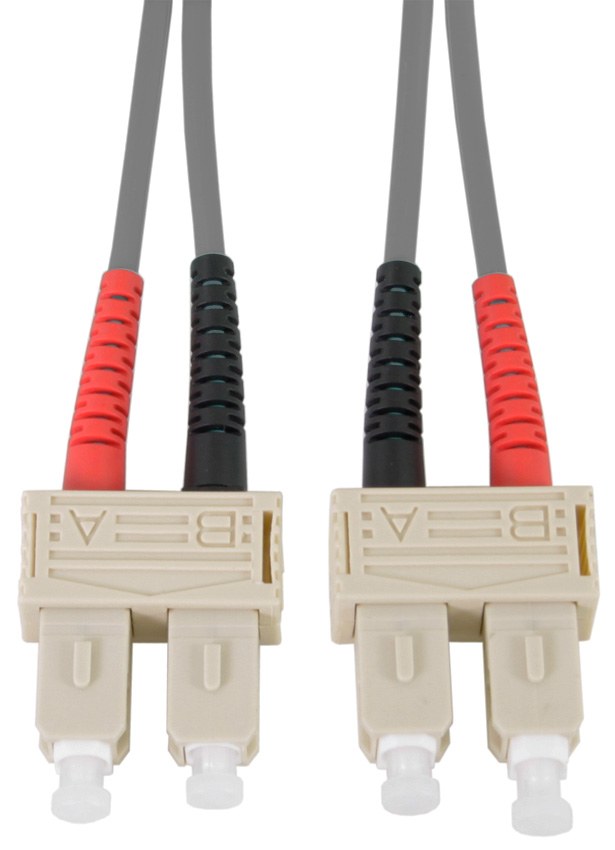

SC to SC multimode duplex fibre patch leads provide a reliable optical link between switches, transceivers, patch panels and media converters across LAN, data centre and backbone deployments. Each assembly uses two factory-terminated SC connectors with a duplex clip for paired transmit and receive, and is finished with an LSZH outer sheath suitable for indoor cable management routes.
SC Fibre Optic Patch Lead Connector
Key Features
SC to SC duplex configuration with paired transmit and receive channels
Choice of OM1 (62.5/125), OM2, OM3 and OM4 (50/125) multimode grades
LSZH outer sheath for low-smoke, halogen-free environments
Short strain relief boots to protect the connector ferrule
100% optically tested with an individual insertion loss report
Individually bagged and labelled for traceable rollout
Benefits
Direct replacement for existing SC infrastructure with no equipment changes
LSZH jacket meets indoor fire safety requirements for risers and indoor commercial cable routes
Test report removes the need for on-site optical verification before patching
Four OM grades let you match cable performance to current and planned link speeds
Duplex clip keeps polarity consistent and reduces patching errors
Product Comparison
LC to SC duplex multimode - same fibre grades but with a smaller LC connector at one end, typically used when patching newer SFP transceivers into legacy SC panels
SC to SC duplex singlemode (OS1/OS2) - identical SC interface but uses 9/125 singlemode fibre for campus and long-haul backbone links beyond multimode distance limits
SC to ST duplex multimode - pairs SC with a bayonet-style ST connector for environments still running older ST-terminated equipment
Cable Lengths and Performance
Available in a range of standard patch lengths. Distance support varies by OM grade:
OM1 (62.5/125): up to 275m at 1Gb, 33m at 10Gb
OM2 (50/125): up to 550m at 1Gb, 82m at 10Gb
OM3 (50/125 laser-optimised): up to 300m at 10Gb, 100m at 40/100Gb
OM4 (50/125): up to 400m at 10Gb, 150m at 40/100Gb
OM3 is backwards compatible with OM2 and is now priced below OM2 due to demand.
Who It’s For
Network engineers, integrators and IT teams maintaining or extending multimode fibre links in offices, data centres and campus environments where SC ports are in use on switches, transceivers or patch panels.
FAQs
Can I use OM3 in place of OM2? Yes. OM3 is backwards compatible and meets or exceeds OM2 performance at every standard data rate.
Are these suitable for 10Gb links? OM3 and OM4 are the practical choice for 10Gb and above. OM1 and OM2 will run at 10Gb but only over short distances.
What does LSZH mean? Low-smoke, zero-halogen. The jacket emits less toxic smoke in a fire, which is required for many indoor commercial installations.
Is a test report included? Yes. Every lead is 100% optically tested and supplied with an insertion loss report.
Length: | |
Fibre Size: |
These Singlemode 9/125 OS2 SC - SC Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath.
Each cable is individually tested, bagged, labelled and supplied with a test report.
SC Fibre Optic Patch Lead Connector
Features:
OS1/OS2 Singlemode 9/125
SC-SC Connectors
Low smoke zero halogen (LSZH) jacket in yellow colour
900µm tight buffer
Test Certificate Included
100% Optically Tested
Duplex Connectors
Length: |

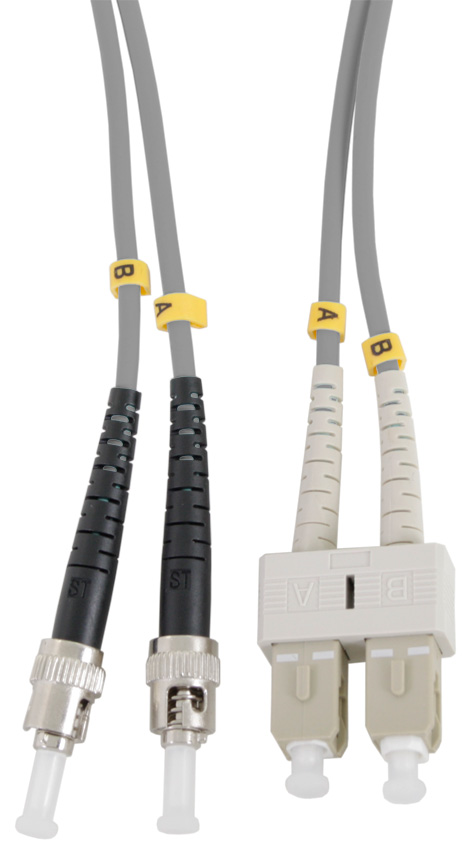

Our Multimode SC - ST Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath and come in a choice of 62.5/125 (OM1), 50/125 (OM2), Enhanced 50/125 (OM3) and 50/125 (OM4) grade cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
SC Fibre Optic Patch Lead Connector
ST Fibre Optic Patch Lead Connector
Features:
Available in OM1, OM2, OM3 and OM4 Multimode in a variety of lengths
SC-ST Connectors
Low smoke zero halogen (LSZH) jacket
Test Certificate Included
100% Optically Tested
Duplex Connectors
Note: Due to a low demand, OM2 Leads are now at a higher price than OM3 leads.
OM3 leads are backwards compatible with OM2 leads and will fulfil the same requirements.
Length: | |
Fibre Size: |
These Singlemode 9/125 OS2 SC - ST Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath.
Each cable is individually tested, bagged, labelled and supplied with a test report.
SC Fibre Optic Patch Lead Connector
ST Fibre Optic Patch Lead Connector
Features:
OS1/OS2 Singlemode 9/125
SC-ST Connectors
Low smoke zero halogen (LSZH) jacket in yellow colour
900µm tight buffer
Test Certificate Included
100% Optically Tested
Duplex Connectors
Length: |

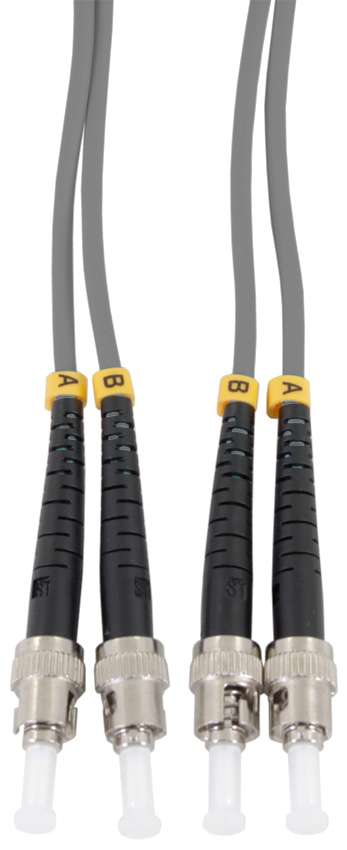

Our Multimode ST - ST Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath and come in a choice of 62.5/125 (OM1), 50/125 (OM2), Enhanced 50/125 (OM3) and 50/125 (OM4) grade cable.
Each cable has a short strain relief boot and is supplied with a test report detailing insertion loss. All of the assemblies come with an LSOH sheath and are individually bagged and labelled.
ST Fibre Optic Patch Lead Connector
Features:
Available in OM1, OM2, OM3 and OM4 Multimode in a variety of lengths
ST-ST Connectors
Low smoke zero halogen (LSZH) jacket
Test Certificate Included
100% Optically Tested
Duplex Connectors
Note: Due to a low demand, OM2 Leads are now at a higher price than OM3 leads.
OM3 leads are backwards compatible with OM2 leads and will fulfil the same requirements.
Length: | |
Fibre Size: |
These Singlemode 9/125 OS2 ST - ST Fibre Patch Leads are manufactured using only the highest quality components, including an LSOH/LSZH outer sheath.
Each cable is individually tested, bagged, labelled and supplied with a test report.
ST Fibre Optic Patch Lead Connector
Features:
OS1/OS2 Singlemode 9/125
ST-ST Connectors
Low smoke zero halogen (LSZH) jacket in yellow colour
900µm tight buffer
Test Certificate Included
100% Optically Tested
Duplex Connectors
Length: |
