Product Features
The Excel Vertical Cable Management rings have been introduced to complement the Patch Rack System however they can be installed in all cabinets to assist in the management of patch cables.
Manufactured from high quality ABS plastic, the larger rings have the capacity to manage over 100 patch leads
They come complete with cage nuts and screws to mount them to the side of the 19" profiles of the Excel Environ cabinets or the Patch Rack.
83mm Cable Ring
Supplied with mounting hardware
2 sizes available
Manage over 100 patch leads
ABS plastic
25 Year system warranty
The Excel Cat5E RJ45 In-Line Connector White (23-0035) is designed for extending existing cabling installations. It offers a straight-through RJ45 to RJ45 connection while maintaining Cat5e performance. This connector is ideal for ensuring reliable and efficient network connectivity, making it suitable for various networking applications

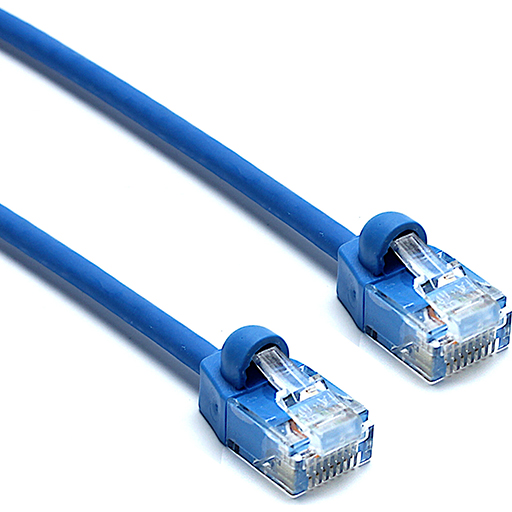

Excel Category 6 U/UTP Mini patch leads are manufactured and tested to ISO 11801, EN 50173 & TIA/EIA 568-C-2 requirements for patch cord assemblies and provide optimum performance levels for structured cabling installations.
Each cable has a low smoke zero halogen outer sheath as standard and the small 3.8mm outside diameter makes them ideal for data centre and high density environments where there are high density patching fields and blade server/switch chassis deployments, allowing for maximum use of valuable rack space.
Product Features
Suitable for high density switches and panels
Reduced outside diameter - 3.8mm OD
Category 6
Backward compatible
Independently verified
Choice of colours
T568B wiring
Blade style 'slimline' moulded strain relief boot with clip protector
LSOH outer sheath as standard
Length: | |
Colour: |
Excels Keystone Blanks are fitted in the same way as the keystone jacks the blanks can be used to populate unoccupied ports for a more aesthetic finish. Available in two colours so that the blanks can either blend in with the panel colour or delibrately stand out, whether fitted to the Black or Chrome coloured Excel Keystone Panel Frames.
Features
Choice of colour
supplied in packs of 24
Colour: |
4/1A PSTN Flush Mount Line Jack Unit
Twin Outlet Flush Mounted Line Jack Units. Supplied complete with fixings but without a back box.
Excel Category 6 U/UTP patch leads are manufactured and tested to ISO 11801, EN 50173 & TIA/EIA 568 requirements for patch cord assemblies and provide optimum performance levels for structured cabling installations.
Product Features
Cat6 compliant
Backward compatible
Independently verified
Choice of colours and lengths
Blade style "slimline" moulded strain relief boot with clip protector
LS0H outer sheath
Individually packaged
"Stepped" RJ45 connector pins
T568B wiring
Length: | |
Colour: |
Excel's Euro style PABX voice outlets have the standard Excel slide label system and an LJU right polarised socket as standard. The Euro style fits the standard Excel faceplates.
PABX Voice Module
Euro style 50 x 25mm overall dimensions
Fit standard Excel faceplates
LJU socket
Slide label system
Excel Screened RJ45 Cat5e Shuttered Module
Excel Category 5e RJ45 Screened modules comply with the EIA TIA Standard for enhanced Category 5. Each shuttered module is supplied with a slide label field and space above, this is allowed for use of self adhesive or further labelling if required. Termination can be made using Krone tooling, a cable tie base is positioned to the side of the IDC blocks to relieve cable stress.
Please Note: These modules are designed to fit only into Excel Faceplates found Here
Features
Screened
Supports Gigabit Ethernet
Category 5e
25 x 50mm Euromod Size
Power Sum Compliant
LSA Style Termination Blocks
Built in Slide Label System
One Piece, Snap-in Design
Integral Cable Tie Position
Simple Earthing Point
Performance Overview
Excel Category 5e Data Outlets are manufactured and tested to the current Category 5 enhanced standards as defined by the TIA and ISO standards’ bodies. Swept frequency tests are applied to each critical performance characteristic, such as near end cross talk (NEXT) and far end cross talk (FEXT). Both Worst Case and Power Sum Test methods are applied. Actual performance exceeds the required standard by a considerable margin ensuring sufficient headroom for even the most demanding applications
The Excel Category 6A Unscreened Twisted Pair (UTP) Keystone Jack, is an LSA termination RJ45 socket suitable for mounting in range of housings from patch panels, faceplates and shutters to sub floor boxes, and work area distribution enclosures. A choice of Patch Panel frames with either 16 or 24 port density
Features
LSA Punchdown temination
Suitable for patch panel and faceplate mounting
Suitable for 10 Gigabit Ethernet application
Suitable for installation in 27mm deep back box with bevelled faceplate
Lifetime Product Warranty
25 year system warranty
Metalised cap protects against alien crosstalk
Performance Overview
The Excel Category 6A keystone jack is designed and manufactured to comply with the channel requirements of Augmented Category 6/Class EA specifications as defined in ISO 11801 2nd edition amend 1.1, and ANSI/TIA-568-C.2-2009 standards. A range of performance characteristics are tested upto 500Mhz including return loss, attenuation, and near end cross talk (NEXT) and far end cross talk (FEXT). Both worst case and power sum test methods are applied. The product design incorporates staggered 50 micron plated contact pins within the jack to ensure optimum performance levels are achieved, the metallised cap around the terminated pairs ensures Alien Crosstalk is minimised. Support of emerging applications such as 10 Gigabit Ethernet is guaranteed over channel distances of upto 100 metres. The keystone jack is fully interoperable and backward compatible with Category 5e and Category 6 products.
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
Colour: | |
Pack Size: |

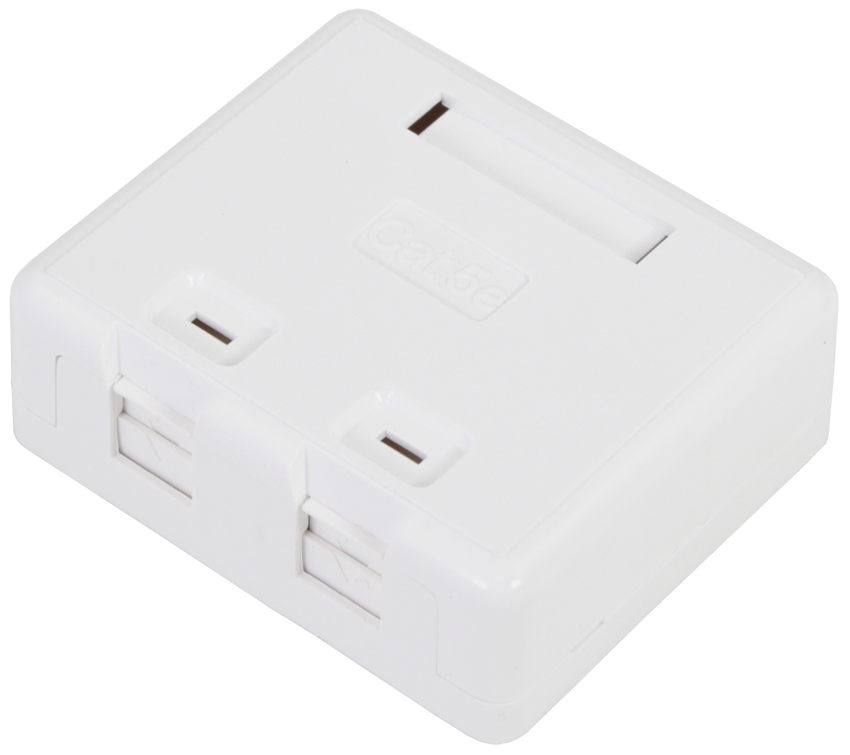

The new Excel Plus surface mount boxes can be used in a wide variety of applications and provide a quick and easy method of installing up to 6 outlets to work areas. These shuttered units can be installed in desk clusters, beneath retail counters, under floors or wall mounted. They are also ideal for temporary or emergency installations
Features
Category 5e compliant
Built in labelling field
Provides convenient workstation outlet for Gigabit Ethernet applications
Supplied with cable ties and fixing kit
Lifetime Product Warranty
Available in a choice of port density
25 Year System Warranty
Shuttered outlets as standard
Performance Overview
The Excel Plus surface mount boxes are manufactured and tested to the current Category 5 enhanced standards as defined by the TIA and ISO standards’ bodies. Swept frequency tests are applied to each critical performance characteristic, such as near end cross talk (NEXT) and far end cross talk (FEXT). Both Worst Case and Power Sum Test methods are applied. Actual performance exceeds the required standard by a considerable margin ensuring sufficient headroom for even the most demanding applications.
Ports: |
The Excel 1 & 2 Port Keystone Wall Mount box offers a compact discrete jacking presentation. The box accepts standard and low profile toolless jacks, as well as the IDC keystone jacks (plastic support removed to fit standard size toolless jacks).
The base is fixed in position using appropriate screws (not included) and the lid snaps into place to finish the installation. The lid has various cut out sections to facilitate cable entry from various directions.
Product Features
25 Year system warranty
Supplied with one keystone opening as standard
Snap out second jack aperture
For standard & low profile Excel keystone jacks
100-181 Excel Cat6a FTP Screened Low Profile Keystone Jack Toolless Silver, available as part of our range of excel cat6a keystone jacks for RJ45 network connections. This Low Profile Cat6a Keystone Jack is a reduced size toolless termination RJ45 socket which allows for multiple cable entry directions when this jack is mounted in a standard depth back box. This supports options including flush shutters at the outlet and angled shutters often used with keystone jacks.
A choice of compatible Patch Panel frames with either 16 or 24 port density in both black and chrome are available for this Low Profile Jack. The socket itself is housed in a high quality zinc die cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points. Once the pairs are arranged in the cable management cap and trimmed it is a simple case of closing the 'butterfly' together to complete the termination.
Features
High quality die cast housing
Low profile design - just 28mm overall depth
360° Shielding protects against alien crosstalk
Toolless termination design
Supports 10 Gigabit Ethernet application
Lifetime Product Warranty
25 year system warranty
3rd Party ISO11081 2nd Edition verification
Keystone Jack Fits The Following Modular Panels:
PANK24 - Excel 24 port 1U Unloaded Black Keystone Frame
PANK16-6A - Excel 16 port 1U Unloaded Chrome Keystone Frame
PANK24-6A - Excel 24 port 1U Unloaded Chrome Keystone Frame
PANK24V - Excel 24 port Keystone V Patch Panel Frame
PANK24H - Excel Low Profile 24 port Keystone Patch Panel Frame
Pack Size: |
Excel Category 6A – Augmented Category 6 – cables, and associated connectors, take the performance capabilities of copper infrastructure to new levels. The cable has been designed to exceed the ISO/IEC, TIA and CENELEC for Category 6A/Augmented Category 6 component requirements. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE-T, 10 Gigabit Ethernet.
Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, with a blade booted RJ-45 plug fitted to each end. The slimline blade boot make the patch leads suitable with high density switches and equipment.
Features
Specified to 500MHz
Suitable for 10GBASE-T, 10 Gigabit Ethernet Applications
Blade style molded strain relief boot with clip protector
Choice of Length and Colour
Low Smoke Zero Halogen Outer Sheath
25 year system warranty
Performance Overview
Excel Category 6A patch leads are designed, manufactured and tested in accordance with the ISO, EN and TIA standards for Cat 6A. A range of performance characteristics are tested up to 500MHz including return loss, attenuation and near and far end crosstalk (NEXT and FEXT) for which both worst case and power sum tests are completed. The ensures the performance of the installed channels.
Length: | |
Colour: |

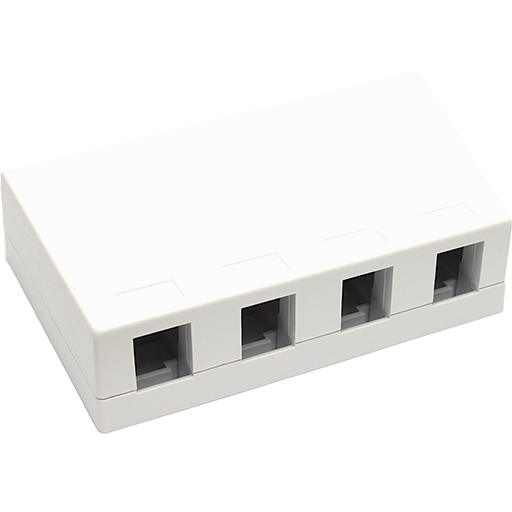

Features
Category 6 compliant
Built in labelling field
Provides convenient workstation outlet for Gigabit Ethernet applications
Supplied with cable ties and fixing kit
Lifetime Product Warranty
Available in a choice of port density
25 Year System Warranty
Shuttered outlets as standard
Product Overview
The new Excel Plus surface mount boxes can be used in a wide variety of applications and provide a quick and easy method of installing up to 6 outlets to work areas. These shuttered units can be installed in desk clusters, beneath retail counters, under floors or wall mounted. They are also ideal for temporary or emergency installations
Performance Overview
The Excel Plus surface mount boxes are manufactured and tested to the Category 6 performance standards defined by the TIA/EIA, ISO and EN standards bodies. A range of performance characteristics are tested up to 250MHz including return loss, attenuation and near and far end crosstalk (NEXT and FEXT) for which both worst case and power sum tests are completed. Actual performance far exceeds the required standard – when tested in isolation and in circuit – resulting in significant headroom for even the most demanding of applications. As well as providing link and channel compliance – when installed with Excel category 6 components – with the aforementioned specification – the box is also backward compatible with Category 5 and 5e components.
Ports: |
Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.
Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades.
Features and Benefits
Specified to 500MHz
Suitable for 10 Gigabit 10GBase-T, POE++ applications
Individual foil screen over each pair
Blade style moulded strain relief boot with clip protector
Choice of length and colour
LSOH outer sheath
Product specifications for these products can be found in the Documentation tab
Length: | |
Colour: |
Excel OM2 50/125µm duplex patch leads are manufactured from the highest quality 900µm buffer/jacket optical fibre, terminated with ceramic ferrule connectors.
Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive 'legs' of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the centre of cable for quality and traceability purposes.
Features and Benefits
100% Optically Tested
Test Certificate Included
Low Loss Connectors
Zirconia Ceramic PC Ferrules
Polarity Changeable (Duplex Connectors)
Bend insensitive construction
25 Year System warranty
Product specifications for these products can be found in the Documentation tab
Length: |
Introducing the Excel 106-980 Cat6A External Outdoor Patch Lead: a Class EA S/FTP, 0.5 m rugged, waterproof, UV-resistant solution engineered for demanding outdoor networking environments. It supports 10GBase-T and PoE++ while ensuring high signal integrity and longevity.
Key Features:
Waterproof and UV-resistant PE outer sheath
Certified Class EA/Category 6A per ISO & EIA/TIA standards
Supports 10GBase-T and PoE++
Individually foil-screened twisted pairs with overall braid
Staggered-pin shielded RJ45 plugs with slimline colour-coded boots
Suitable for screened or unscreened installations
Outer jacket material: LLDPE
Embodied carbon: 0.259 kg CO2e
Technical Specifications
Cable type: S/FTP
Category: 6A (IEC - Class EA)
Length: 0.5 m
Connectors: RJ45 8(8) — both ends
A-WG: 26 AWG stranded copper pairs, individually foil-screened
Overall shield: Foil plus braid
Colour: Black
Strain relief boot: Moulded, black
Performance & Standards
Meets demanding outdoor network requirements with IP68-grade durability when used with external-grade cable and couplers. Supports 10 Gigabit Ethernet and high-power PoE deployments while maintaining ISO/EIA/TIA compliance for certified network performance.
Ideal Applications
Perfect for secure outdoor terminations such as CCTV cameras, outdoor access points, intercoms, and any external devices requiring shielded, weather-resistant, high-performance connections.
Excel OM3 50/125 µm duplex patch leads are manufactured from the highest quality 900 µm buffer/jacket optical fibre, terminated with ceramic ferrule connectors.
Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive 'legs' of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the centre of cable for quality and traceability purposes.
Features and Benefits
Test Certificate Included
Low Loss Connectors
Zirconia Ceramic PC Ferrules
Polarity Changeable (Duplex Connectors)
Bend insensitive construction
25 Year System warranty
Product specifications for these products can be found in the Documentation tab
Length: |
Excel OM3 50/125 µm duplex patch leads are manufactured from the highest quality 900 µm buffer/jacket optical fibre, terminated with ceramic ferrule connectors.
Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive 'legs' of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the centre of cable for quality and traceability purposes.
Features and Benefits
Test Certificate Included
Low Loss Connectors
Zirconia Ceramic PC Ferrules
Polarity Changeable (Duplex Connectors)
Bend insensitive construction
25 Year System warranty
Product specifications for these products can be found in the Documentation tab
Length: |
Excel 201A Boxcon (20 Pairs) Connection Box
A Plastic Enclosure fitted with a 2 Way Backmount Frame to allow the installation of up to 2 Terminal Strips. The cover is secured by large head quick release screws. Built in cable management is included to ensure efficient installation and use. An Earth Post allows the connection box backmount frame to be bonded to earth.
Features:
Type 200 Connection Box Suits all Terminal Strips
Supplied with Earth Post 30 Pair Maximum Capacity
Dimensions 160 x 143 x 54.5mm
