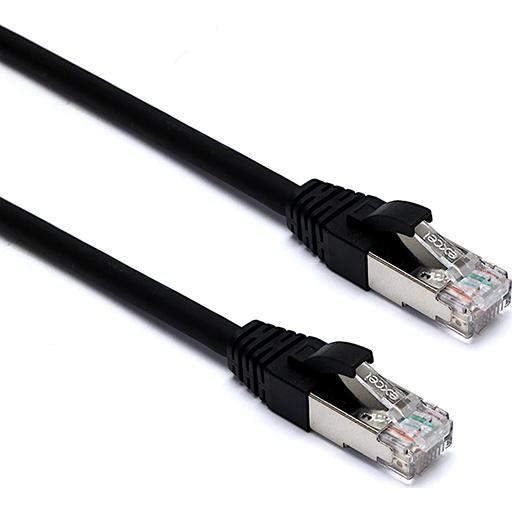

Excel Cat6A Outdoor Patch Lead S/FTP 0.5 m Black

Introducing the Excel 106-980 Cat6A External Outdoor Patch Lead: a Class EA S/FTP, 0.5 m rugged, waterproof, UV-resistant solution engineered for demanding outdoor networking environments. It supports 10GBase-T and PoE++ while ensuring high signal integrity and longevity.

Key Features:

• Waterproof and UV-resistant PE outer sheath
• Certified Class EA/Category 6A per ISO & EIA/TIA standards
• Supports 10GBase-T and PoE++
• Individually foil-screened twisted pairs with overall braid
• Staggered-pin shielded RJ45 plugs with slimline colour-coded boots
• Suitable for screened or unscreened installations
• Outer jacket material: LLDPE
• Embodied carbon: 0.259 kg CO₂e

Technical Specifications

Cable type: S/FTP
Category: 6A (IEC - Class EA)
Length: 0.5 m
Connectors: RJ45 8(8) — both ends
A-WG: 26 AWG stranded copper pairs, individually foil-screened
Overall shield: Foil plus braid
Colour: Black
Strain relief boot: Moulded, black

Performance & Standards

Meets demanding outdoor network requirements with IP68-grade durability when used with external-grade cable and couplers. Supports 10 Gigabit Ethernet and high-power PoE deployments while maintaining ISO/EIA/TIA compliance for certified network performance.

Ideal Applications

Perfect for secure outdoor terminations such as CCTV cameras, outdoor access points, intercoms, and any external devices requiring shielded, weather-resistant, high-performance connections.
