Grandstream GWN7702 UNMANAGED 16-PORT GE SWITCH

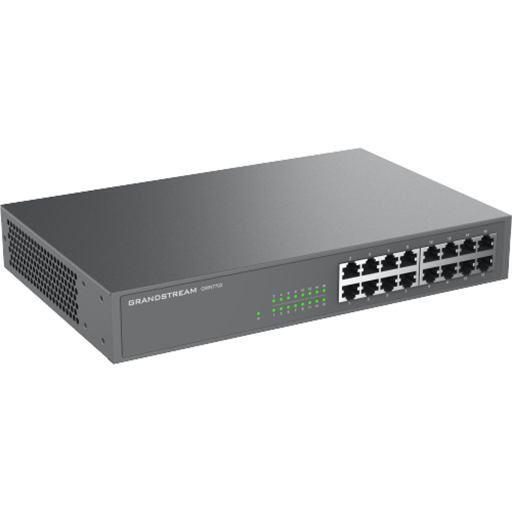

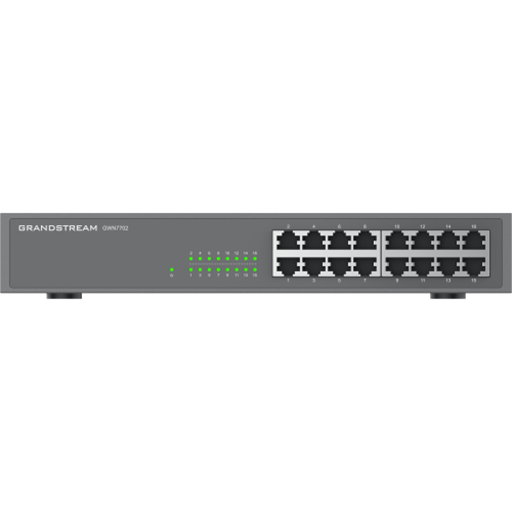

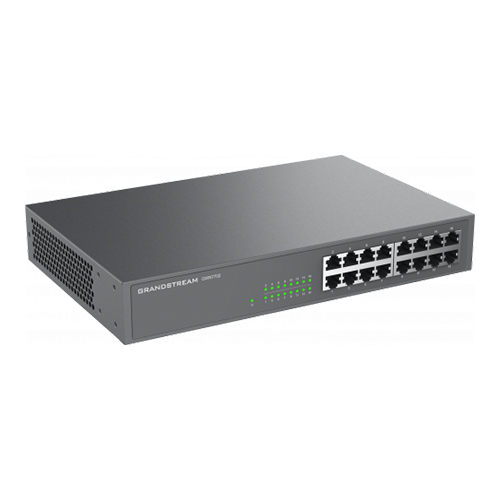

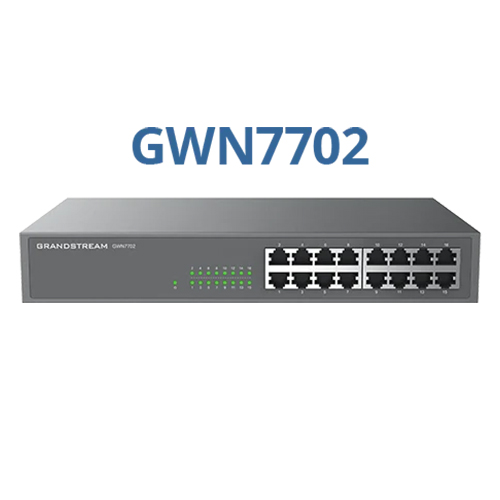

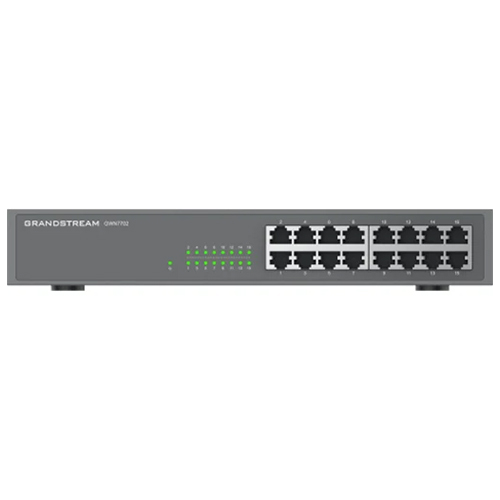

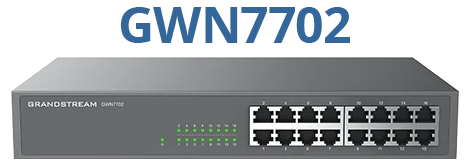

Grandstream GWN7702 16-Port Gigabit Unmanaged Switch

The Grandstream GWN7702 is a plug-and-play 16-port Gigabit unmanaged switch designed to add high-speed wired connectivity to offices and small-to-medium businesses. It provides sixteen 10/100/1000Mbps RJ45 ports for connecting compatible workstations, printers, servers, routers and other network devices.

With 32Gbps switching capacity, an 8K MAC address table and 10KB jumbo frame support, the GWN7702 provides reliable Gigabit performance in a durable metal case suitable for desk or rack-mounted installation.

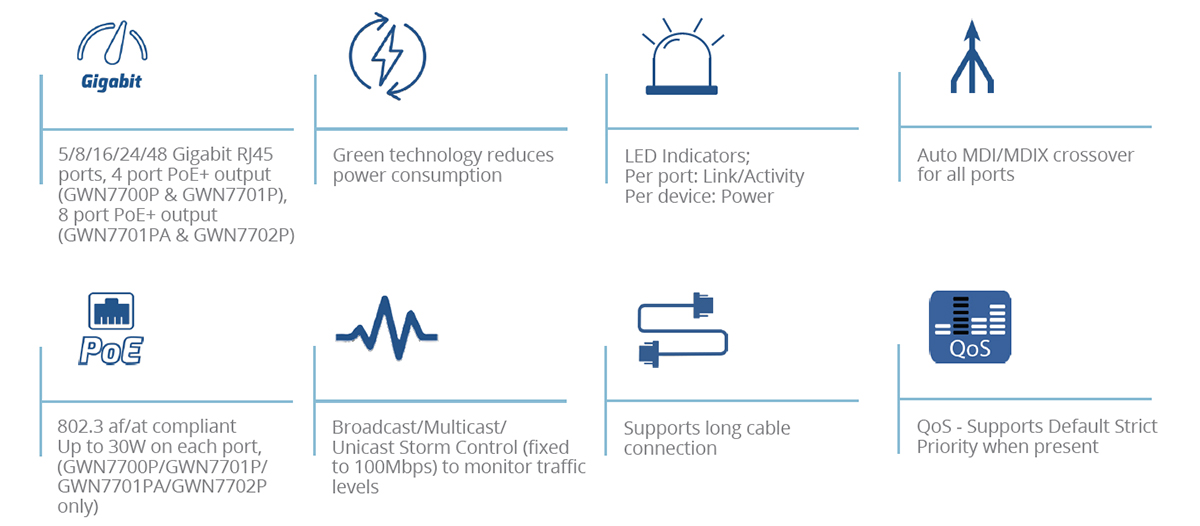

Key Features

• 16 x 10/100/1000Mbps Gigabit RJ45 ports
• Unmanaged plug-and-play operation for straightforward deployment
• 32Gbps switching capacity with an 8K MAC [Media Access Control] address table
• 10KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Metal case for desk or rack-mounted installation
• IEEE 802.3x flow control and 802.1p QoS [Quality of Service] with default strict priority
• Half/full-duplex operation with half-duplex backpressure
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• Internal 100-240V AC power supply with 8W maximum base-system power consumption at 220V/50Hz

Simple 16-Port Gigabit Expansion

The GWN7702 provides increased wired capacity wherever a router or existing switch needs more Gigabit Ethernet ports. Its 16-port design is well suited to offices, workgroups, server rooms and other installations requiring dependable connectivity for a larger number of locally powered network devices.

Key Benefits

• Adds sixteen Gigabit ports for reliable wired network expansion
• Connects a larger number of workstations, printers, servers and other wired devices
• Reduces deployment time with plug-and-play unmanaged operation
• Automatically adapts to connected 10Mbps, 100Mbps and Gigabit devices
• Supports flexible installation on a desk, shelf or rack

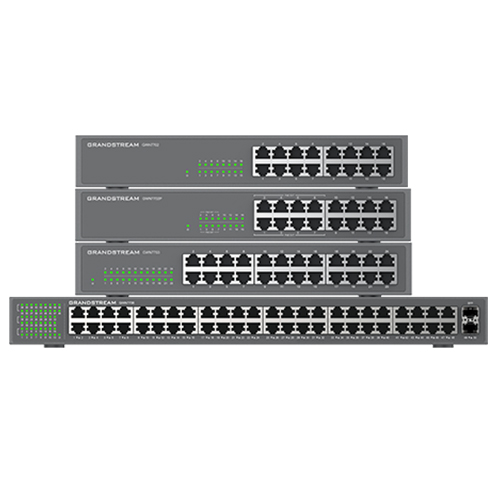

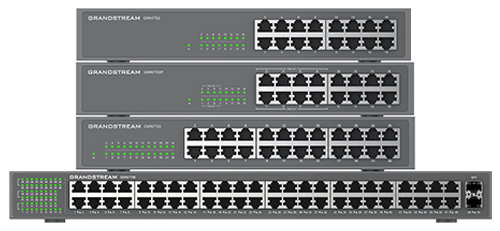

Comms Express offers GWN7700 series switches, along with many others in Grandstream Unmanaged Switches including:

• GWN7702 - 16 Gigabit ports, metal case, desk/rack-mount, 32Gbps switching
• GWN7703 - 24 Gigabit ports, metal case, desk/rack-mount, 48Gbps switching
• GWN7706 - 48 Gigabit ports, 2 x SFP ports, metal case, desk/rack-mount, 100Gbps switching
• GWN7702P - 16 Gigabit ports, 8 PoE/PoE+ ports, 138W PoE budget, metal case, desk/rack-mount, 32Gbps switching

For a wider choice of networking equipment, Comms Express also offers:

• Grandstream Switches for many other Grandstream switch options
• Network Switches for an impressive range of switches from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7702 switch, a 1.2m AC power cable, rack-mounting standard brackets, four rubber feet and a Quick Installation Guide.

*For complete specifications see the documentation tab above
