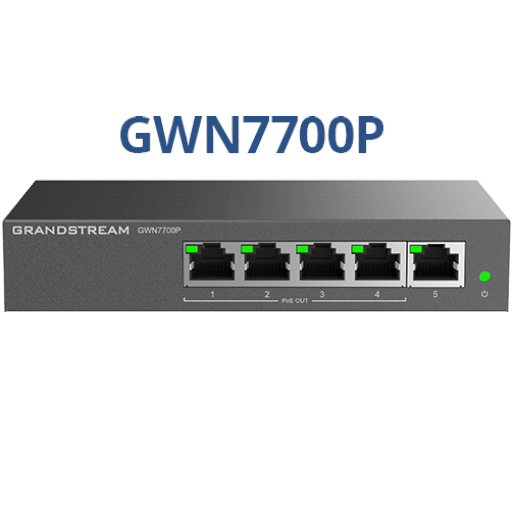

Grandstream GWN7700P UNMANAGED 5-PORT (4 X POE) SWITCH (METAL CASE)

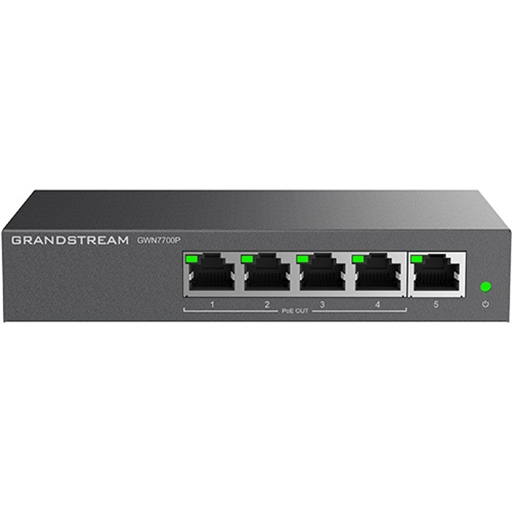

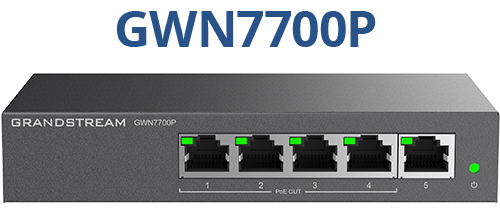

Grandstream GWN7700P 5-Port Gigabit Unmanaged PoE Switch

The Grandstream GWN7700P is one of two closely related 5-port switches in the GWN7700 series, designed to add straightforward Gigabit connectivity to home offices and small-to-medium businesses. It provides five 10/100/1000Mbps RJ45 ports, including four IEEE 802.3af/at PoE/PoE+ ports for powering compatible IP phones, IP cameras, wireless access points and other network devices.

Each PoE port can deliver up to 30W, supported by a 60W total PoE budget. With 10Gbps switching capacity, a 2K MAC address table and 9KB jumbo frame support, the GWN7700P provides reliable network performance in a durable metal case suitable for desk or wall-mounted installation.

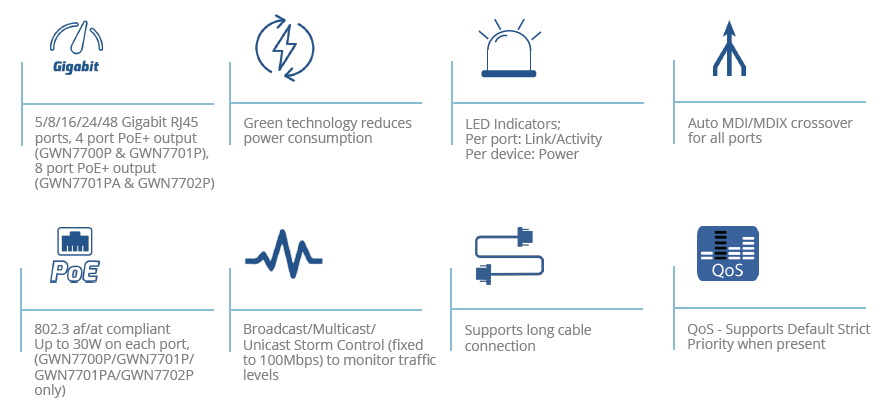

Key Features

• 5 x 10/100/1000Mbps Gigabit RJ45 ports
• 4 x IEEE 802.3af/at PoE/PoE+ output ports
• Up to 30W output per PoE port with a 60W total PoE budget
• Unmanaged plug-and-play operation for straightforward deployment
• 10Gbps switching capacity with a 2K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Metal case for desk or wall-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, snooping, route port autolearn and query refresh member port support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• 2W maximum base-system power consumption, excluding PoE output

Gigabit Switching with PoE

The GWN7700P combines Gigabit network expansion with power delivery for compatible PoE devices. This allows data and electrical power to be carried over the same Ethernet cable, helping simplify installations for IP phones, security cameras and wireless access points where separate power sockets may be inconvenient.

Key Benefits

• Adds five Gigabit ports for reliable wired network expansion
• Powers up to four compatible PoE or PoE+ devices directly from the switch
• Combines network data and power over the same Ethernet cabling
• Automatically adapts to connected 10Mbps, 100Mbps and Gigabit devices
• Supports neat placement on a desk, shelf or wall

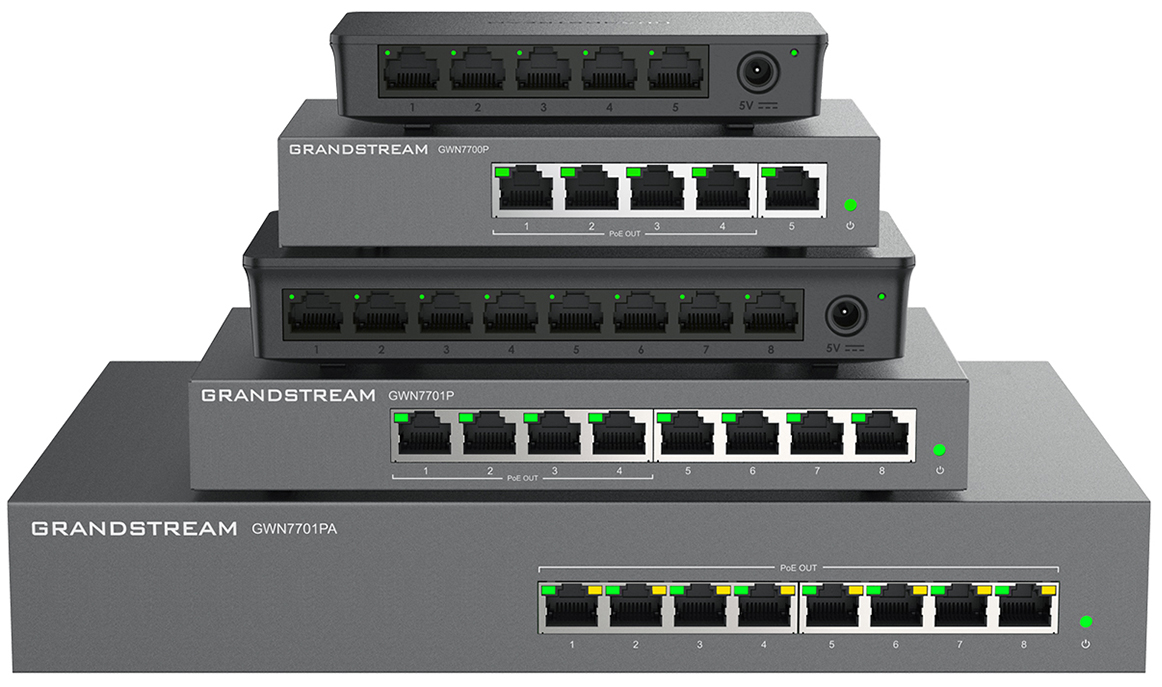

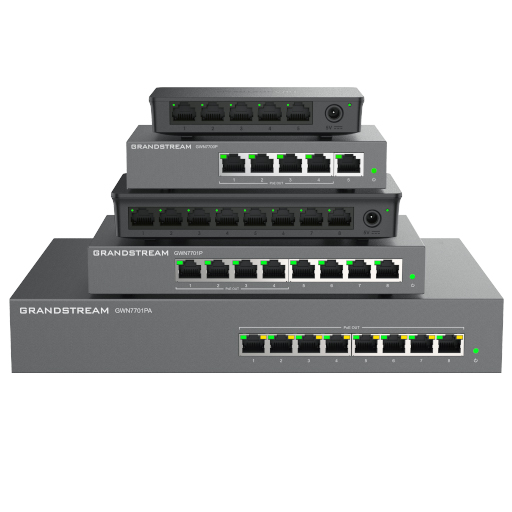

Comms Express offers GWN7700 series switches including:
GWN7700 - 5 Gigabit ports, plastic case, 10Gbps switching
GWN7700P - 5 Gigabit ports, 4 PoE/PoE+ ports, 60W PoE budget, metal case, 10Gbps switching
along with many others, in Grandstream Unmanaged Switches.

For wider network builds, Comms Express also offers:
Grandstream Switches for many other Grandstream switch options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7700P switch, an external power adapter and a Quick Installation Guide.

*For complete specifications see the documentation tab above
