Grandstream GWN7701M UNMANAGED 8X2.5GB + 1XSFP SWITCH

Grandstream GWN7701M 8 x 2.5GbE Unmanaged Multi-Gigabit Switch with SFP+

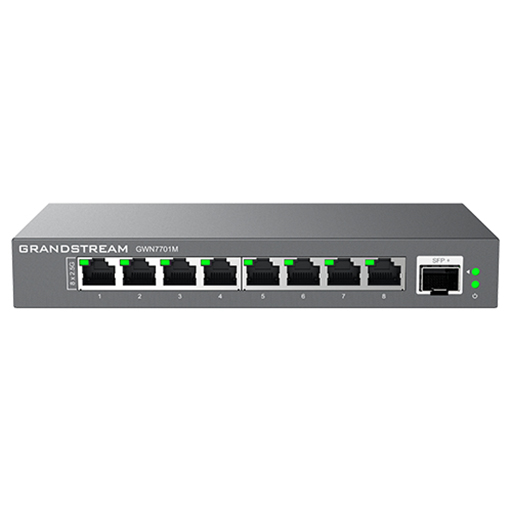

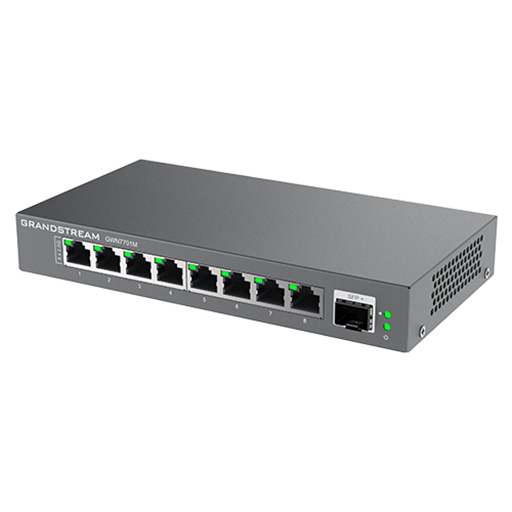

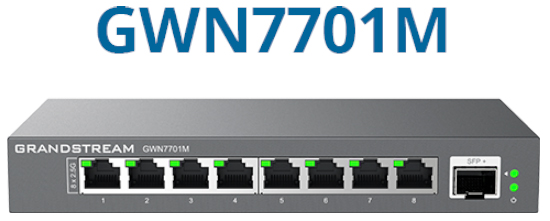

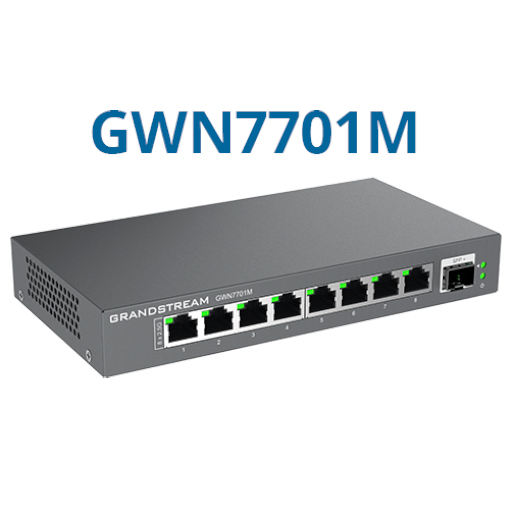

The Grandstream GWN7701M is one of three closely related unmanaged multi-Gigabit switches in the GWN7700M series, designed to add high-speed wired connectivity to home offices and small-to-medium businesses. It combines eight 100/1000/2500Mbps RJ45 ports with a 1/10Gbps SFP+ fibre port, supporting workstations, servers, storage devices and other high-bandwidth network equipment.

With 60Gbps switching capacity, a 4K MAC address table and 9KB jumbo frame support, the GWN7701M provides the performance required for demanding local network traffic. Its fanless metal case supports quiet desk or wall-mounted installation, while auto-negotiation and Auto MDI/MDIX simplify connection to compatible 100Mbps, Gigabit and 2.5GbE devices.

Key Features

• 8 x 100/1000/2500Mbps RJ45 multi-Gigabit copper ports
• 1 x SFP+ [Small Form-factor Pluggable Plus] fibre port supporting 1Gbps or 10Gbps connectivity
• Unmanaged plug-and-play operation for straightforward deployment
• 60Gbps switching capacity with a 4K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Fanless metal case for quiet desk or wall-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, snooping, route port autolearn and query refresh member port support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• IEEE 802.3az Energy Efficient Ethernet with 9.7W maximum base-system power consumption

High-Speed Multi-Gigabit Expansion

The GWN7701M allows compatible 2.5GbE devices to communicate at more than twice standard Gigabit speed while continuing to support 100Mbps and Gigabit equipment. Its eight copper ports provide increased capacity for larger wired networks, while the additional SFP+ port offers a flexible 1Gbps or 10Gbps fibre connection to compatible network infrastructure.

Key Benefits

• Adds eight multi-Gigabit ports for high-performance workstations, servers and network storage
• Provides a high-speed SFP+ connection for compatible fibre uplinks
• Automatically adapts to connected 100Mbps, Gigabit and 2.5GbE devices
• Supports quiet operation in offices, meeting rooms and other noise-sensitive locations
• Offers flexible placement on a desk, shelf or wall

Comms Express offers all three GWN7700M series models, as well as many others, in Grandstream Unmanaged Switches:

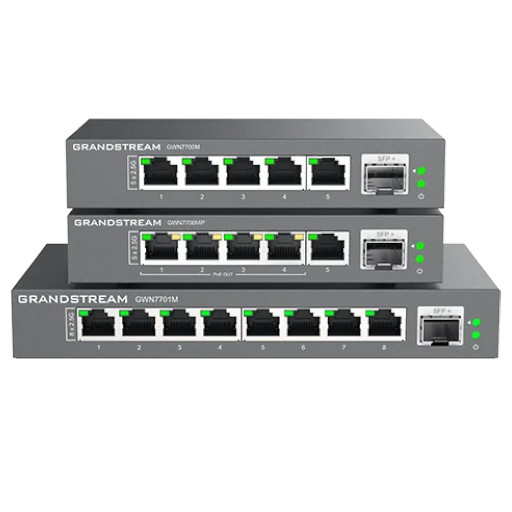

GWN7700M - 5 x 2.5GbE, 1 x 1/10G SFP+, 45Gbps switching
GWN7700MP - 5 x 2.5GbE, 1 x 1/10G SFP+, 4 PoE/PoE+ ports, 57W PoE budget, 45Gbps switching
GWN7701M - 8 x 2.5GbE, 1 x 1/10G SFP+, 60Gbps switching

For wider network builds, Comms Express also offers:
Grandstream Switches for many other Grandstream switching options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7701M switch, an external power adapter and a Quick Installation Guide.

*For complete specifications see the documentation tab above
