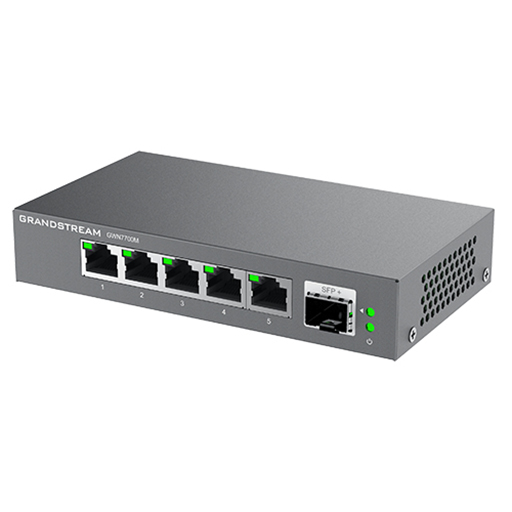

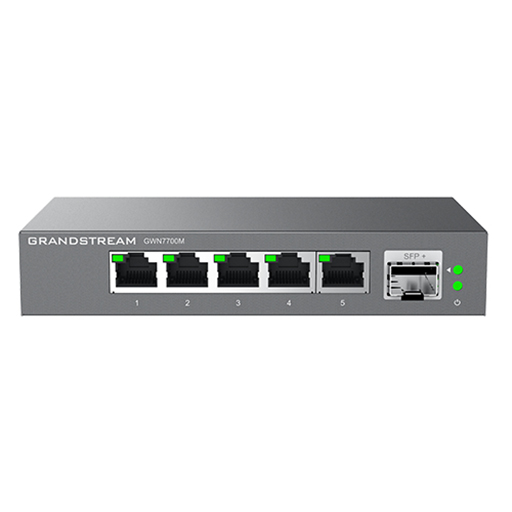

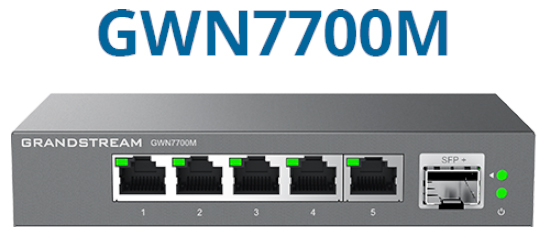

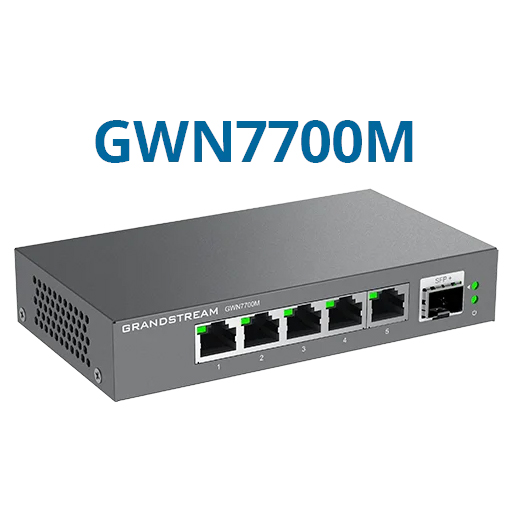

Grandstream GWN7700M UNMANAGED 5X2.5G+1SFP SWITCH (METAL CASE)

Grandstream GWN7700M 5 x 2.5GbE Unmanaged Switch with SFP+

The Grandstream GWN7700M is a plug-and-play unmanaged multi-Gigabit switch designed to add high-speed wired connectivity to home offices and small-to-medium businesses. It combines five 100/1000/2500Mbps RJ45 ports with a 1/10Gbps SFP+ fibre port, supporting workstations, servers, storage devices and other high-bandwidth network equipment.

With 45Gbps switching capacity, a 4K MAC address table and 9KB jumbo frame support, the GWN7700M provides the performance required for demanding local network traffic. Its fanless metal enclosure supports quiet desktop or wall-mounted installation, while auto-negotiation and Auto MDI/MDIX simplify connection to compatible 100Mbps, Gigabit and 2.5GbE devices.

Key Features

• 5 x 100/1000/2500Mbps RJ45 multi-Gigabit copper ports
• 1 x SFP+ [Small Form-factor Pluggable Plus] fibre port supporting 1Gbps or 10Gbps connectivity
• Unmanaged plug-and-play operation for straightforward deployment
• 45Gbps switching capacity with a 4K MAC [Media Access Control] address table
• 9KB jumbo frame support for compatible high-volume network traffic
• Auto-negotiation and Auto MDI/MDIX on all ports
• Fanless metal enclosure for quiet desktop or wall-mounted installation
• IEEE 802.3x flow control and 802.1p/DSCP QoS [Quality of Service]
• IGMP [Internet Group Management Protocol] fast-leave, snooping, route port autolearn and query refresh member port support
• Broadcast, multicast and unicast storm control fixed to 100Mbps
• IEEE 802.3az Energy Efficient Ethernet with 7W maximum base-system power consumption

High-Speed Multi-Gigabit Expansion

The GWN7700M allows compatible 2.5GbE devices to communicate at more than twice standard Gigabit speed while continuing to support 100Mbps and Gigabit equipment. Its additional SFP+ port provides a flexible 1Gbps or 10Gbps fibre connection for linking the switch to compatible network infrastructure.

Key Benefits

• Adds multi-Gigabit capacity for high-performance workstations, servers and network storage
• Provides a high-speed SFP+ connection for compatible fibre uplinks
• Automatically adapts to connected 100Mbps, Gigabit and 2.5GbE devices
• Supports quiet operation in offices, meeting rooms and other noise-sensitive locations
• Offers flexible placement on a desk, shelf or wall

Comms Express offers all three GWN7700M series models, as well as many others, in Grandstream Unmanaged Switches:
GWN7700M - 5 x 2.5GbE, 1 x 1/10G SFP+, 45Gbps switching
GWN7700MP - 5 x 2.5GbE, 1 x 1/10G SFP+, 4 PoE/PoE+ ports, 57W PoE budget, 45Gbps switching
GWN7701M - 8 x 2.5GbE, 1 x 1/10G SFP+, 60Gbps switching

For wider network builds, Comms Express also offers:
Grandstream Switches for many other Grandstream switching options
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for connecting workstations, printers, routers and other wired network devices.

The package includes the GWN7700M switch, an external power adapter and a Quick Installation Guide.

*For complete specifications see the documentation tab above
